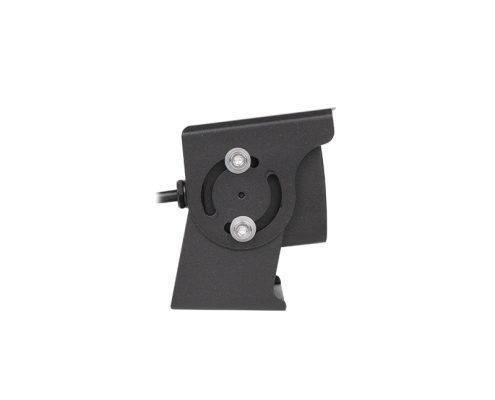

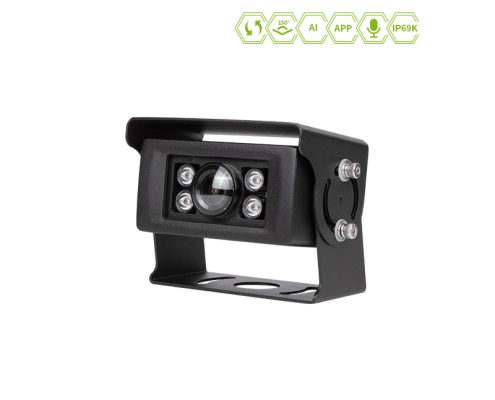

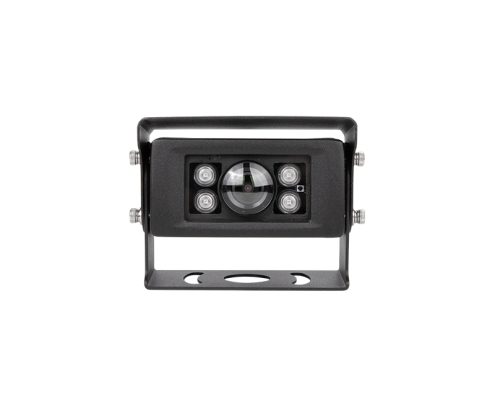

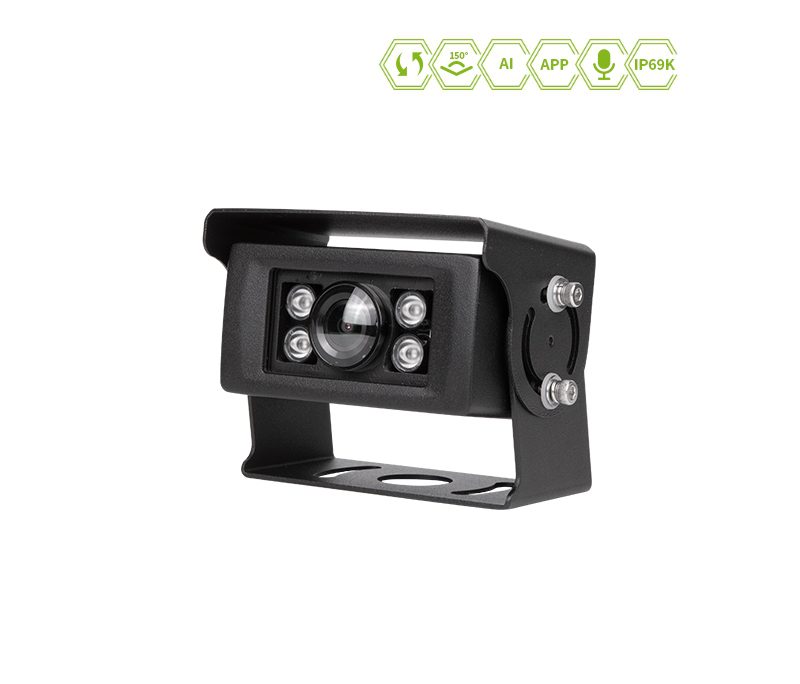

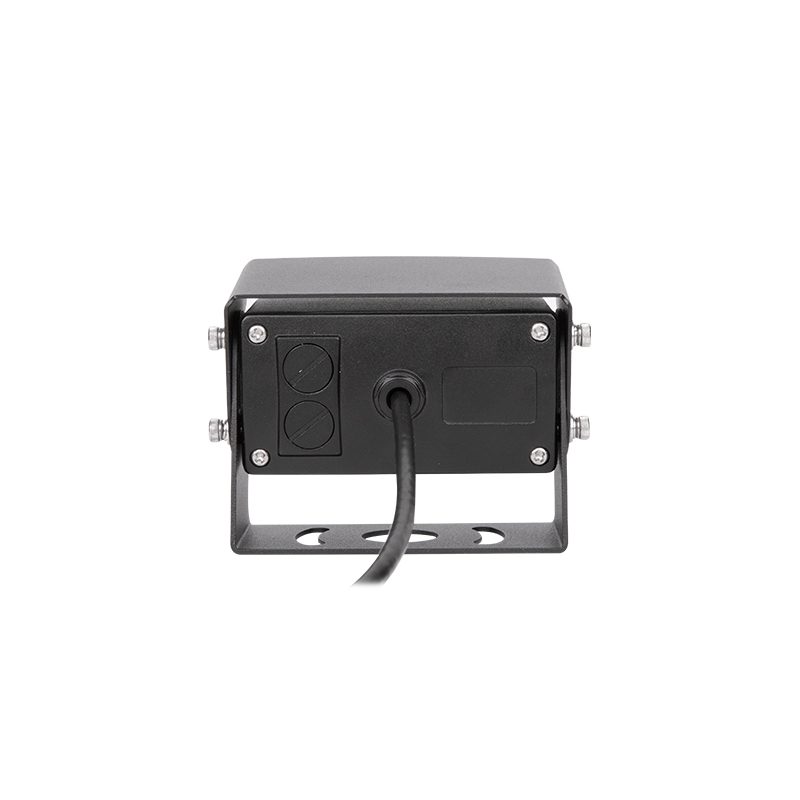

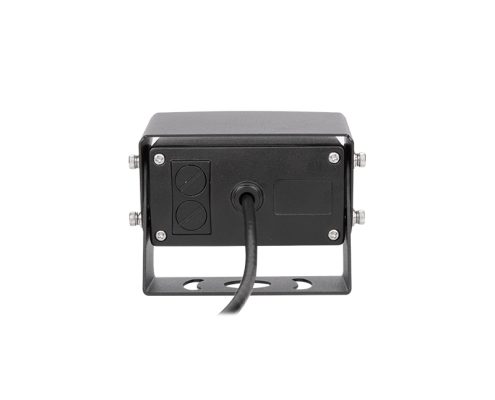

JY-6735 Vehicle HD 1080P IP69K waterproof intelligent AI camera with vehicle & pedestrian detection
Product Features
This AI camera adopts deep learning technology for real-time detection and AI intelligent early warning of pedestrians and vehicles in the front and side of the vehicle, featuring a 150° horizontal viewing angle for real-time vision display and supporting real-time video and audio alerts with HD displays. It allows parameter setting and calibration via mobile APP (compatible with Android and iOS), supports switching of image format, mirror and flip modes, and flexible adjustment of detection targets, scale areas and trigger areas. Equipped with an external WiFi module for wireless communication and online upgrade, it has an IP69K waterproof rating, professional night vision function, and flexible installation around the vehicle. It effectively eliminates blind spots and provides reliable safety protection for vulnerable road users and drivers.
- Supports AI-powered pedestrian and vehicle recognition and warning functions.
- Supports parameter settings and calibration via a mobile app.
- App compatible with Android and iOS systems.
- Supports alarm audio output, providing real-time audio alerts.
- Supports image format, mirroring, and flipping switching.
- Supports parameter adjustment for detected object, scale area, and trigger area.
- External WiFi communication and upgrade function.
- Waterproof rating IP69K.
- Can be installed around a vehicle.
- Supports night vision function.
Technical Specifications
| Image Sensor | 1/2.9 CMOS GC2053 |
| TV System | NTSC/PAL |
| Frame Rate | 30/25 fps |
| Pixel Size | 2.8μm（H）ⅹ 2.8μm（V） |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Sync. System | Internal |
| Output Resolution | 1920*1080/1280*720（Optional） |
| Output Signal Amplitude | 1.0Vp-p/75 Ohm |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| IR LED Qty | 4PCS |
| Scanning System | Progressive |
| AGC | AUTO |
| Signal to noise ratio | Better than 38dB |
| Gamma Consumption | 0.45 |
| White balance | AUTO |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Lens | 2.3mm |
| Lens Angle | H:129° V:67° D:150° |
| Power Supply | DC12V~24V |
| Current Drain | Day：275±20mA；Night：410±20mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
