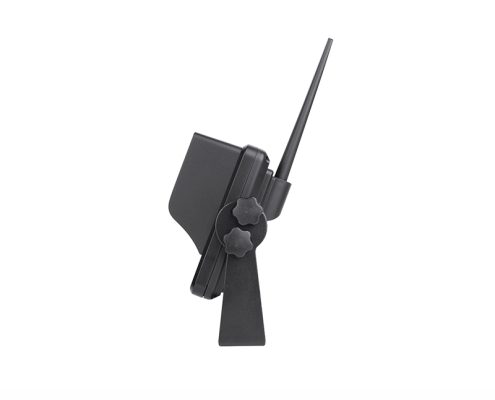

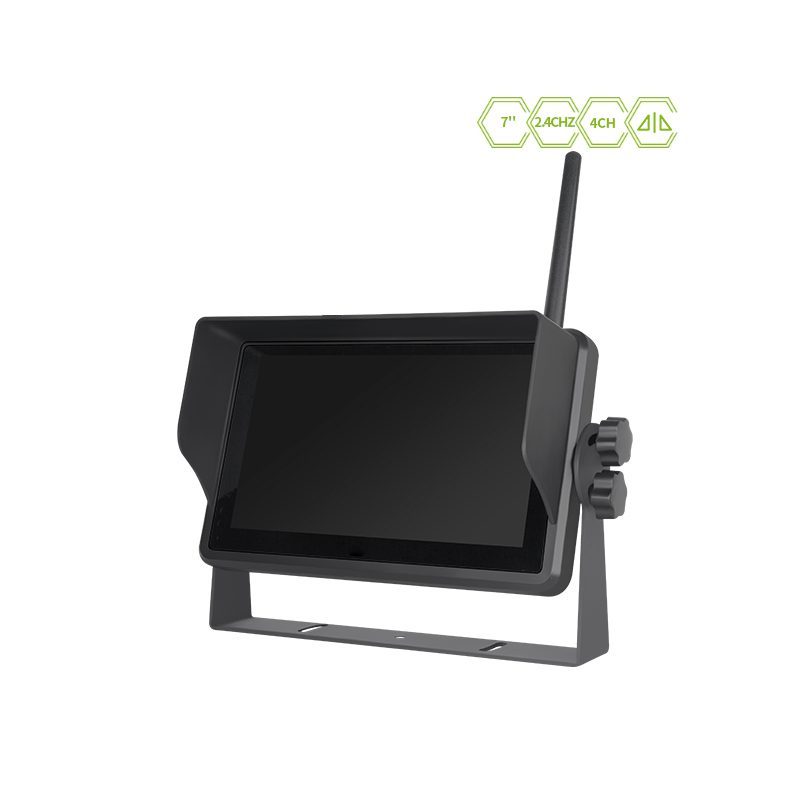

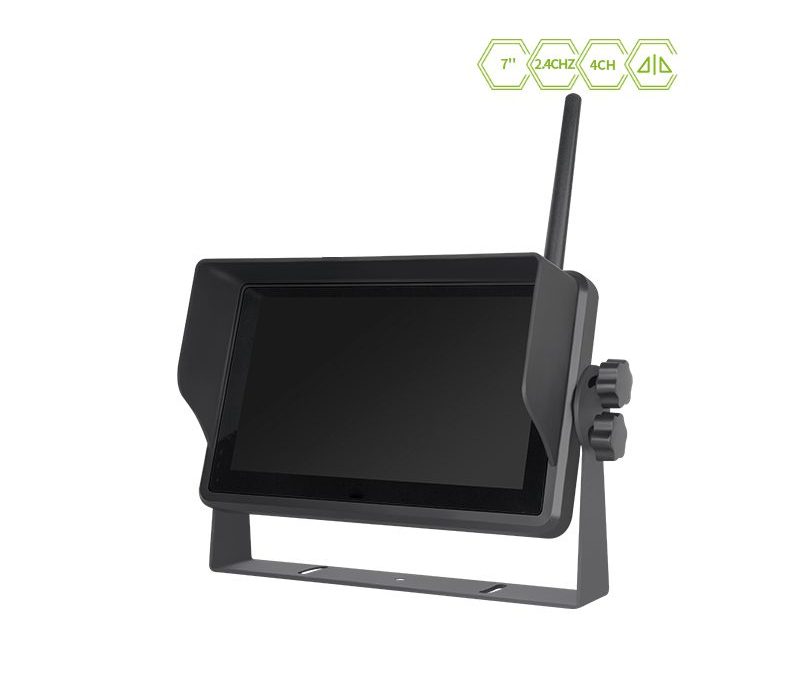

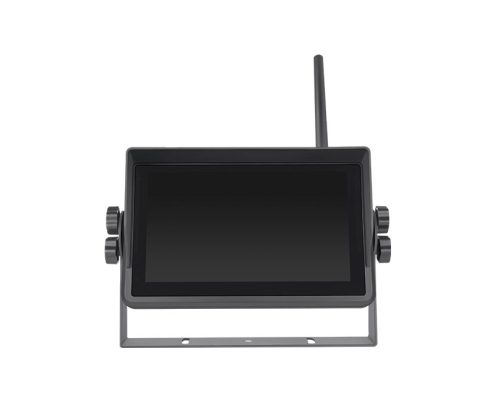

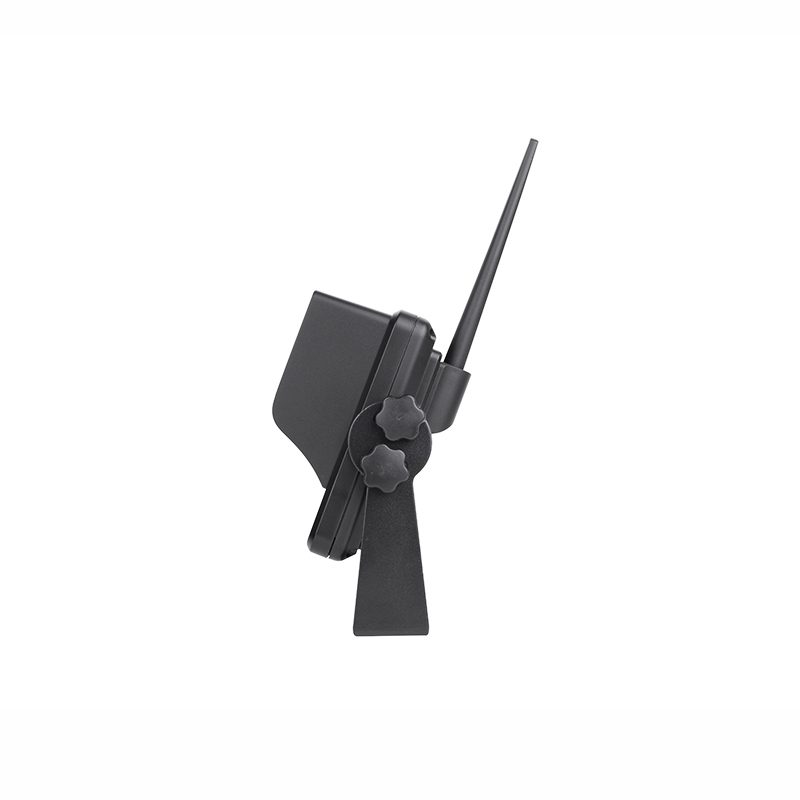

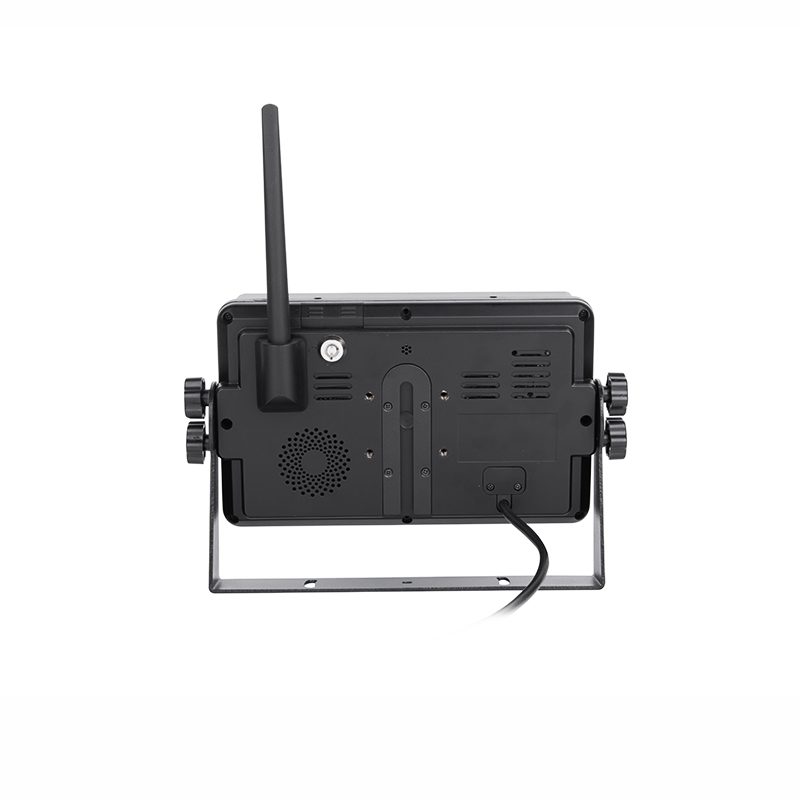

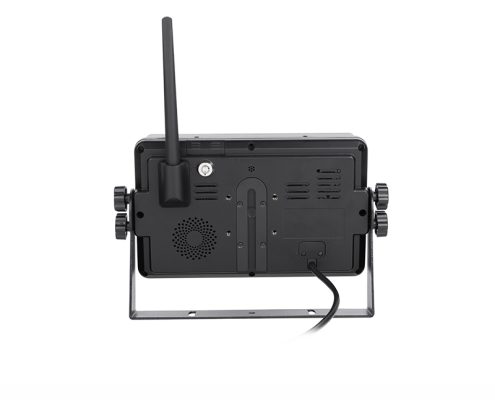

JY-M175W Monitor LCD digital sem fios HD de 2,4 GHz com 7 polegadas, visualização quádrupla e formato 16:9
Características do produto
Experience a revolutionary driving experience with the Luview JY-M175W, featuring an ultrabright HD digital 2.4GHZ wireless 7 inch quad view 16:9 monitor. With support for up to four video inputs and automatic triggering switch, enjoy crystal clear images day or night – even in challenging conditions – thanks to its sunshade cover! Prepare yourself for any scenario on the road ahead with this must have backup camera system.
- Automatic pairing capability
- Support 4-channel simultaneous recording and video replay.
- Várias línguas de exibição disponíveis
- Com função de controlo remoto
- Quad display mode,Dual display mode, auto-scan mode, and single display mode available
- Support audio input from four camera at a time (optional)
- Each trigger control line automatically switches when triggered
- In standby mode, the trigger automatically starts and switches to the corresponding camera image or segmentation state
- Working power supply range 9~32V, short circuit protection function of power supply
- Storage capability of TF CARD: 128G
Especificações técnicas
| Tamanho do ecrã | 7"/16:9 |
| Resolução | 1024 (L) * R.G.B * 600 (A) |
| Sistema de TV | PAL/NTSC |
| Brilho | 500cd/㎡ |
| Contraste | 800:1 |
| Operating Frequency | 2412 - 2467 MHz |
| Ângulo de visão | U: 80 / D: 85, R/L: 85 |
| Configurações de imagem | Brilho、Cor、Contraste |
| Transmitting Distance | 150 M |
| Espelho Flip | Non-mirror, mirror |
| Channel | 4 channels |
| transmitting power | '17 dBm |
| SD Card | Max. 128G |
| Decompression Form | H.264 |
| Fonte de alimentação | 12/24V，Max. 8W |
| Temperatura de funcionamento | -20 ℃ a +65 ℃ |
| Temperatura de armazenamento | -25 ℃ a +70 ℃ |
