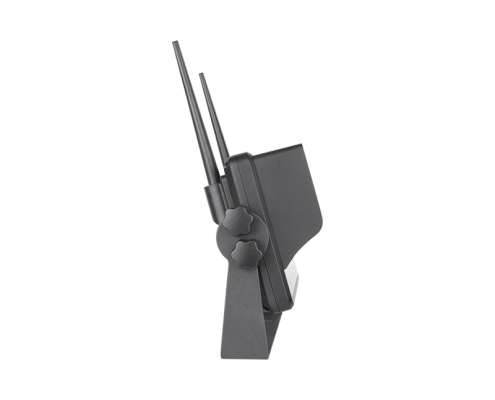

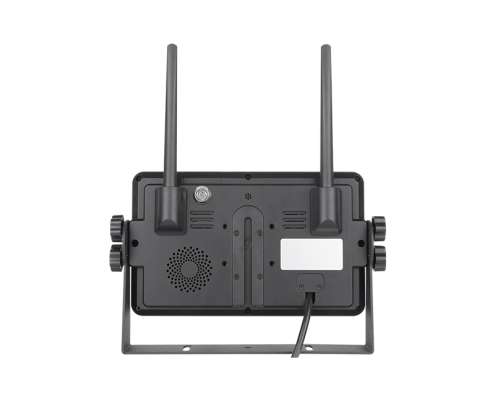

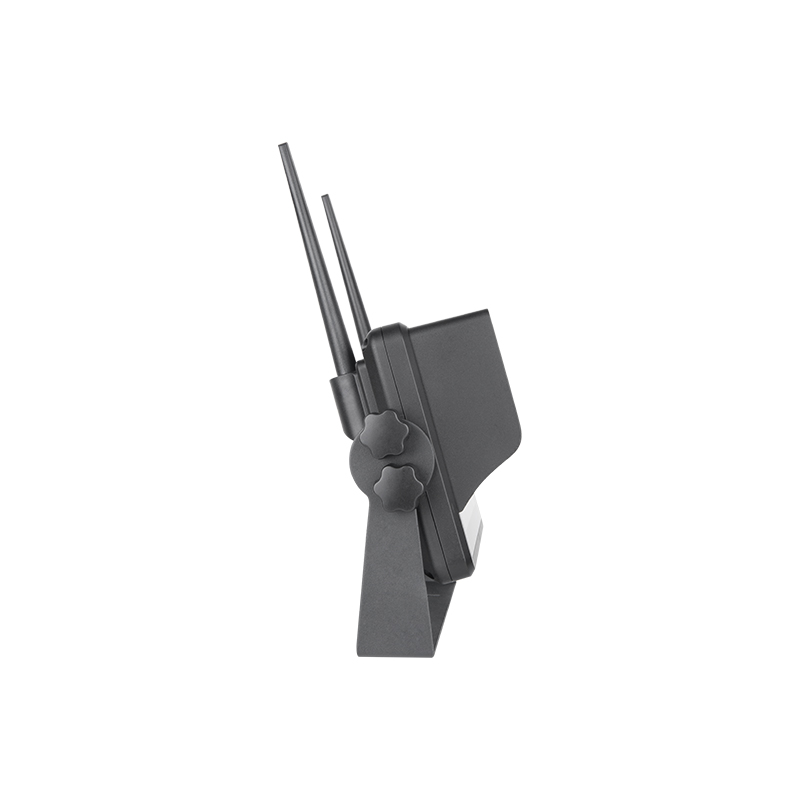

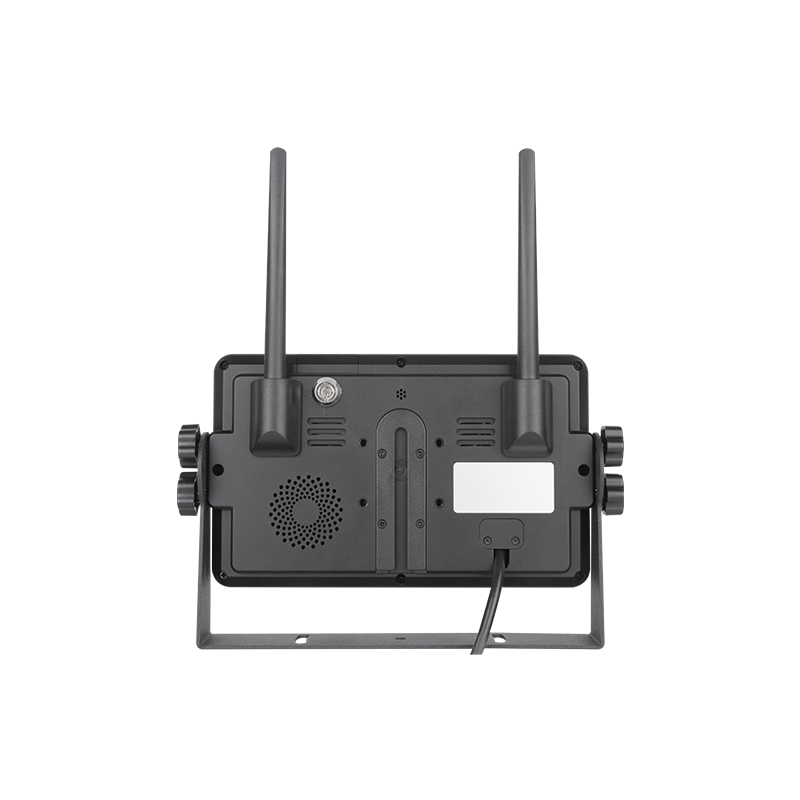

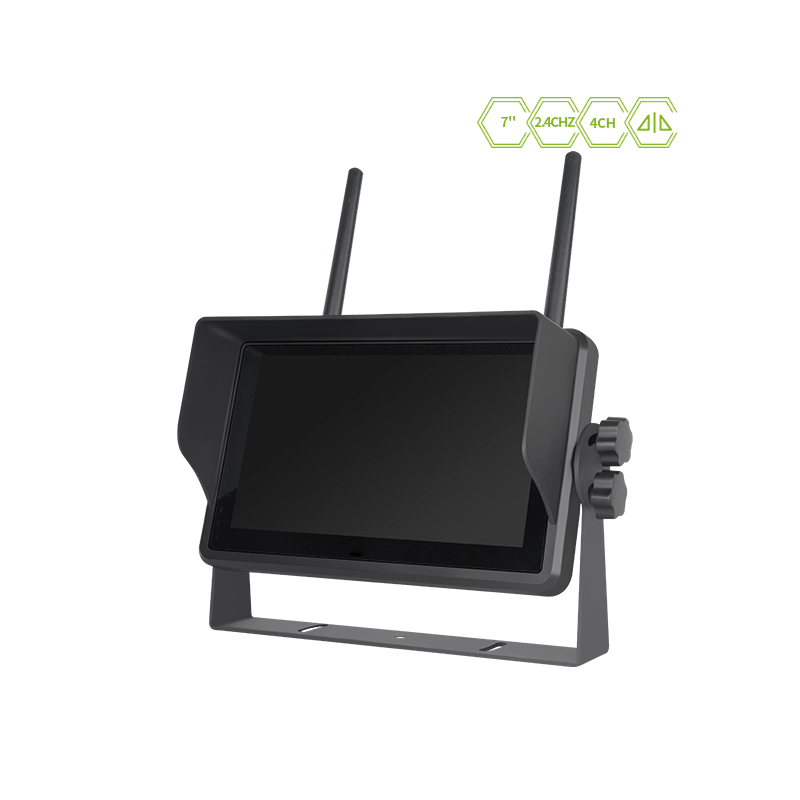

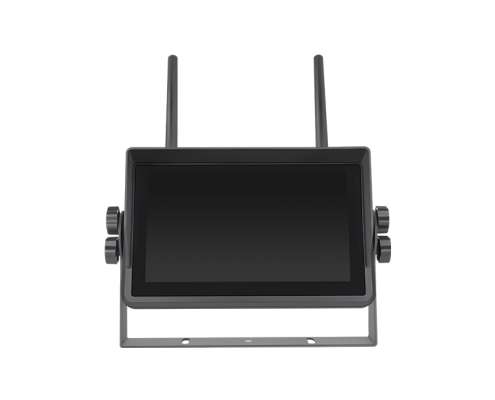

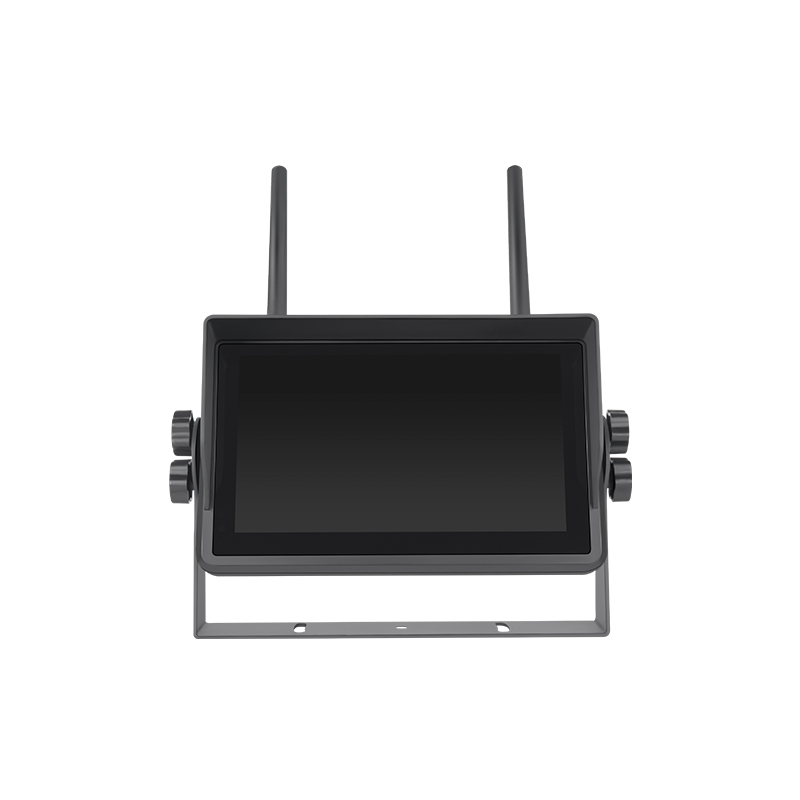

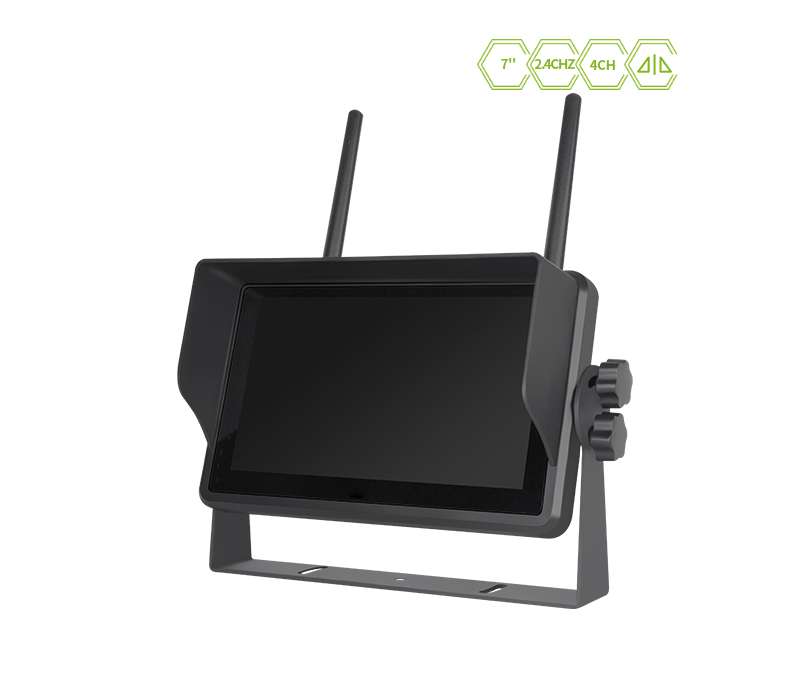

JY-M175W 2.4GHz HD Digital Wireless 7 Inch Quad View 16:9 LCD Monitor

Product Features

JY-M175W 2.4GHz HD digital wireless 7 inch quad view 16:9 LCD monitor, with ultra brightness and high definition screen, support 4 channel video input and automatically trigger switch, the additional sunshade cover makes it reliable both at day and night in hard conditions. Suitable for all kinds of wireless backup camera system.

  • Automatic pairing capability
  • Support 4-channel simultaneous recording and video replay.
  • Multi-languages of display available
  • With remote control function
  • Quad display mode,Dual display mode, auto-scan mode, and single display mode available
  • Support audio input from four camera at a time (optional)
  • Each trigger control line automatically switches when triggered
  • In standby mode, the trigger automatically starts and switches to the corresponding camera image or segmentation state
  • Working power supply range 9~32V, short circuit protection function of power supply
  • Storage capability of TF CARD: 128G

Technical Specifications

Screen Size7"/16:9
Resolution1024(W)* R.G.B * 600(H)
TV SystemPAL/NTSC
Brightness500cd/㎡
Contrast800:1
Operating Frequency2412 - 2467 MHz
Viewing AngleU: 80 / D: 85, R/L: 85
Image SettingsBrightness、Color、Contrast
Transmitting Distance150 M
Mirror FlipNon-mirror, mirror
Channel4 channels
transmitting power'17 dBm
SD CardMax. 128G
Decompression FormH.264
Power Supply12/24V,Max. 8W
Operating Temperature-20℃ to +65℃
Storage Temperature-25℃ to +70℃
