JY-M175 7 inch 720p 1080p monitor with two split, three split & four split display

Product Features

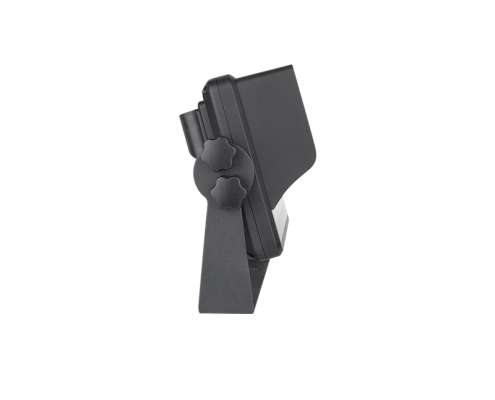

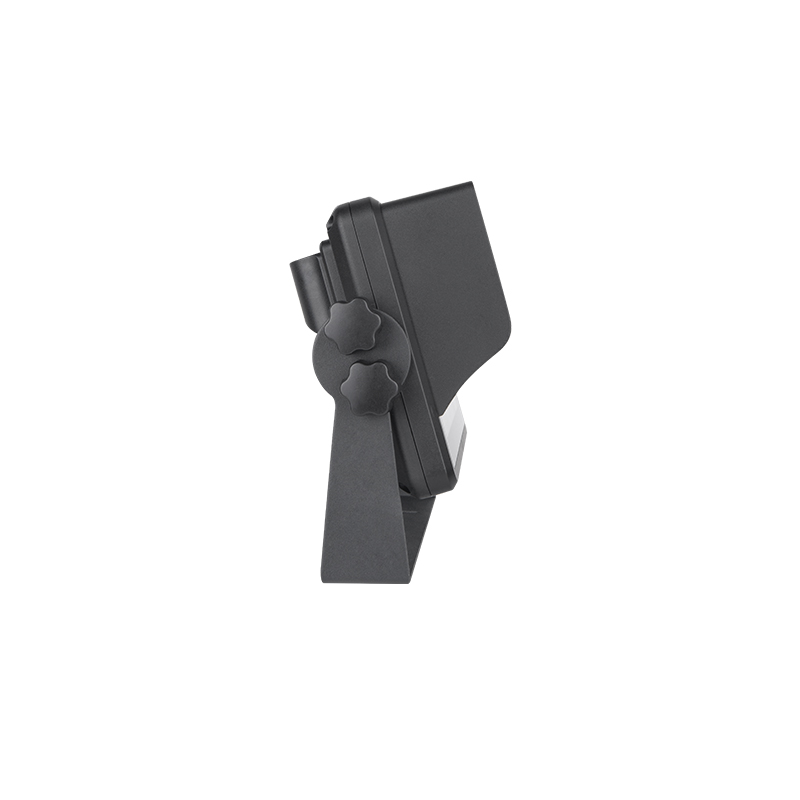

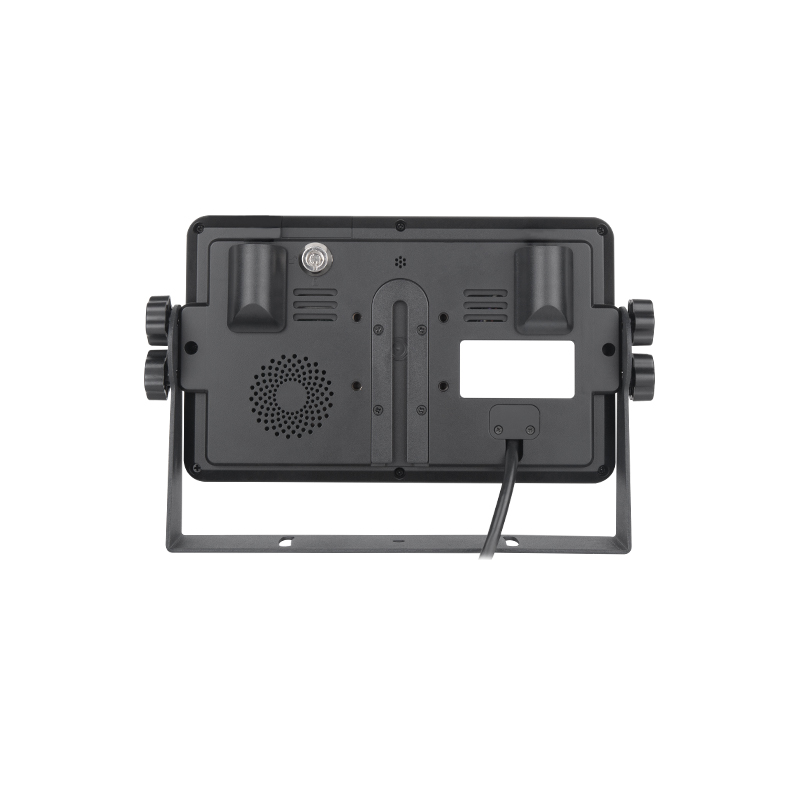

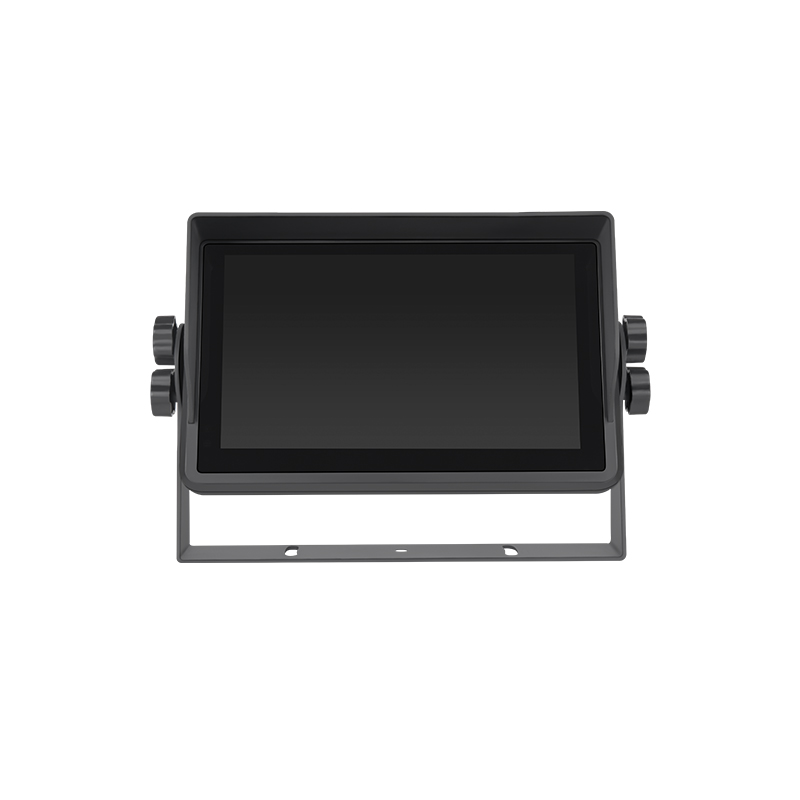

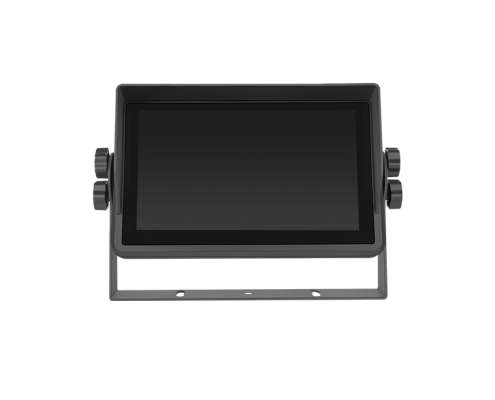

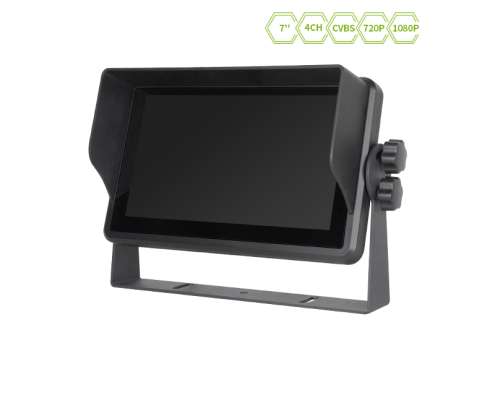

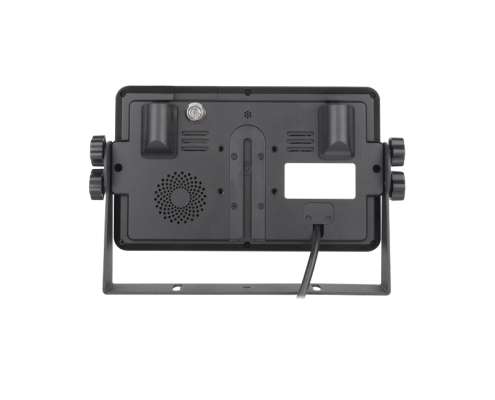

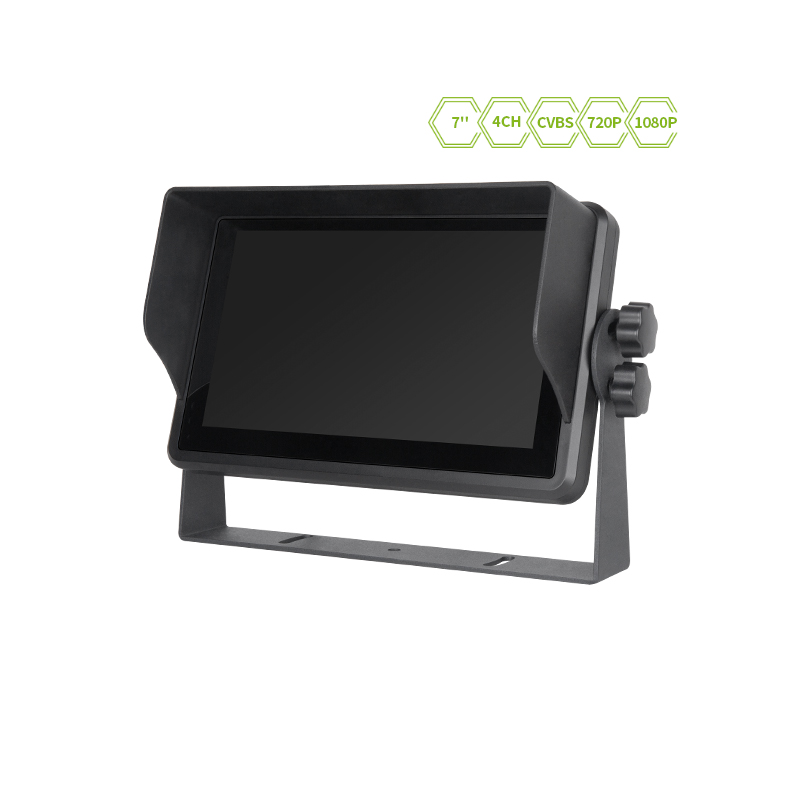

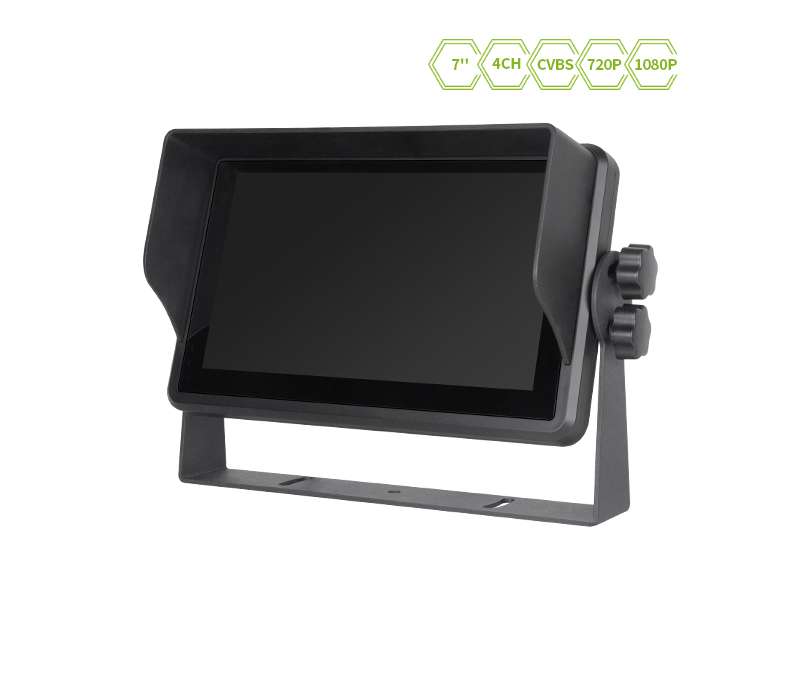

JY-M175 is a 7-inch high-definition monitor launched by luview in 2020, which is mainly used in vehicle monitoring systems and security monitoring systems. The display has a sunshade and metal bracket, adopts high-definition touch control screen, supports 1080P, 720P input, clear and stable picture quality, simple and convenient operation. When the monitor is in the standby state, it will automatically turn on when triggered and switch to the corresponding camera image. It supports two-split, three-split and four-split display.

  • Automatic pairing capability
  • With remote control function
  • Working power supply range 9~32V
  • Multi-languages of display available
  • Storage capability of TF CARD: 128G

Technical Specifications

Screen Size7"/16:9
Resolution1024(W)* R.G.B * 600(H)
TV SystemPAL/NTSC
Brightness500cd/㎡
Contrast800:1
Operating Frequency2412 - 2467 MHz
Viewing AngleU: 80 / D: 85, R/L: 85
Image SettingsBrightness、Color、Contrast
Transmitting Distance150 M
Mirror FlipNon-mirror, mirror
Channel4 channels
transmitting power'17 dBm
SD CardMax. 128G
Decompression FormH.264
Power Supply12/24V,Max. 8W
Operating Temperature-20℃ to +65℃
Storage Temperature-25℃ to +70℃
