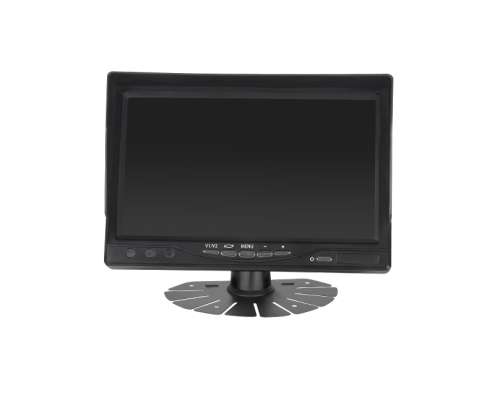

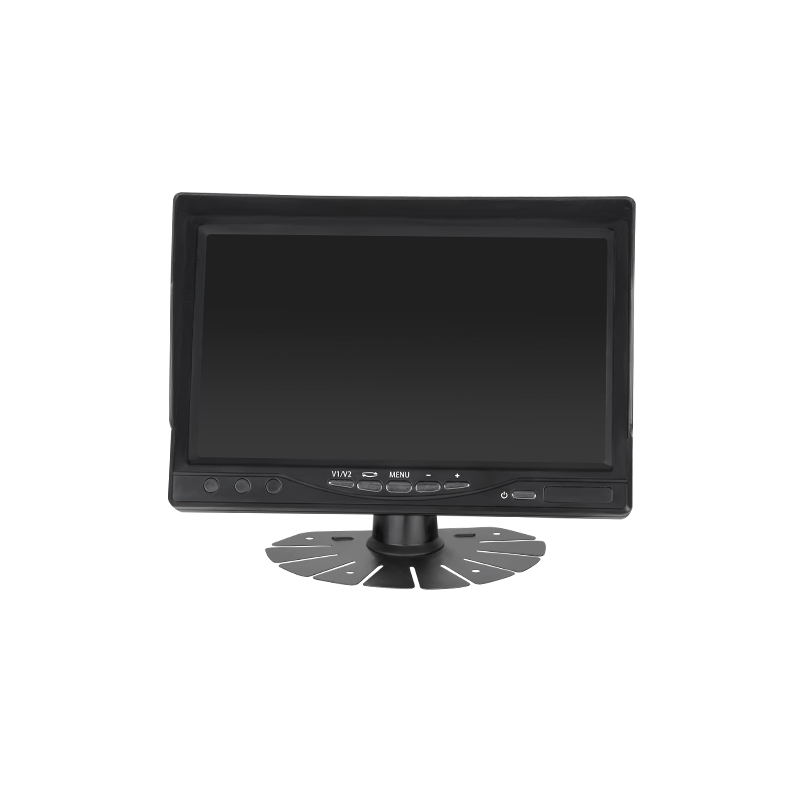

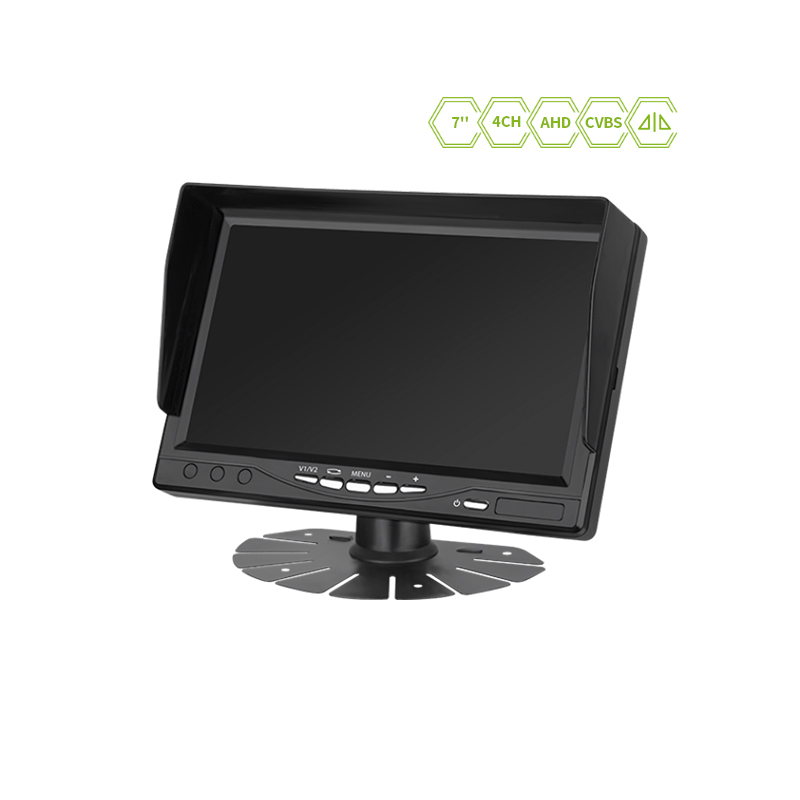

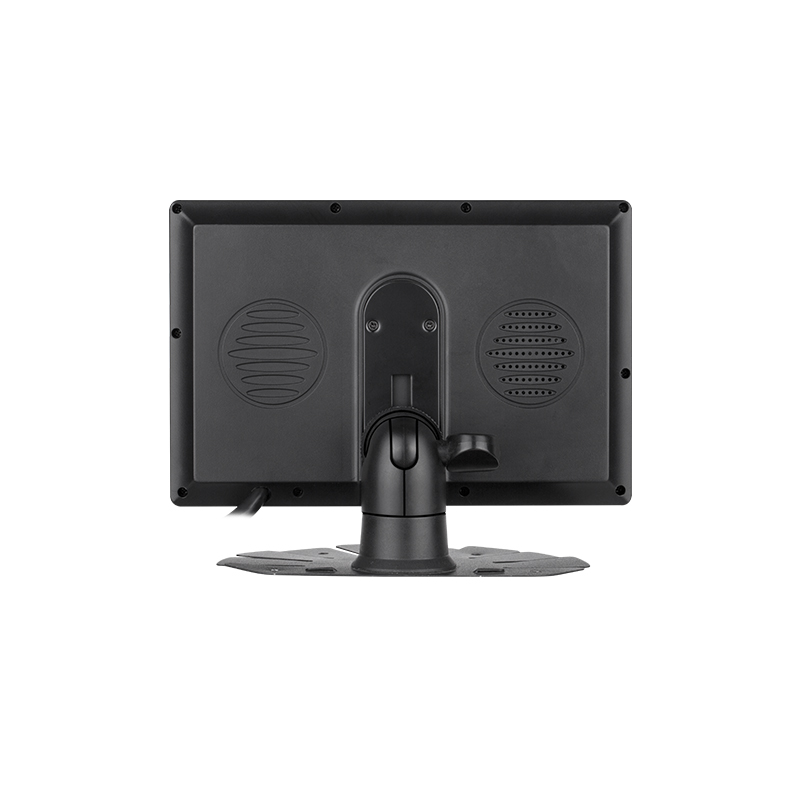

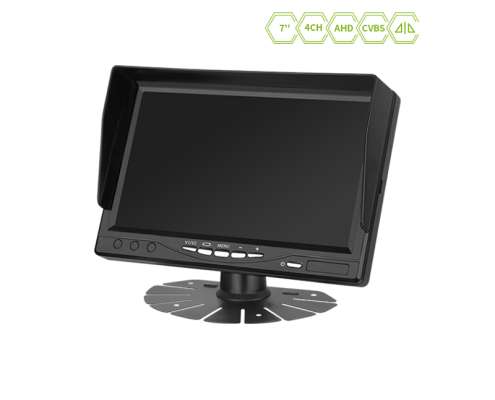

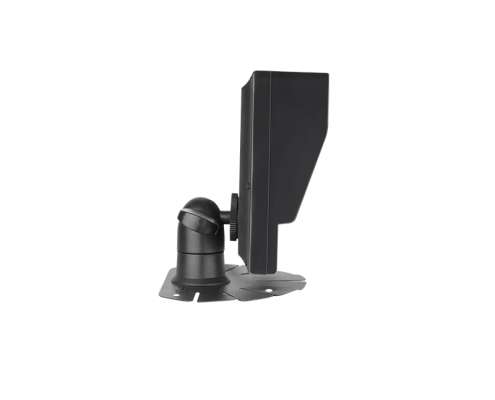

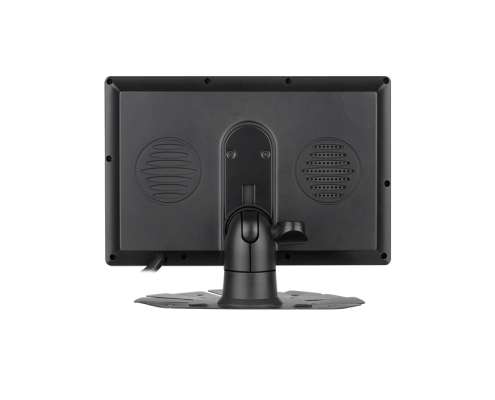

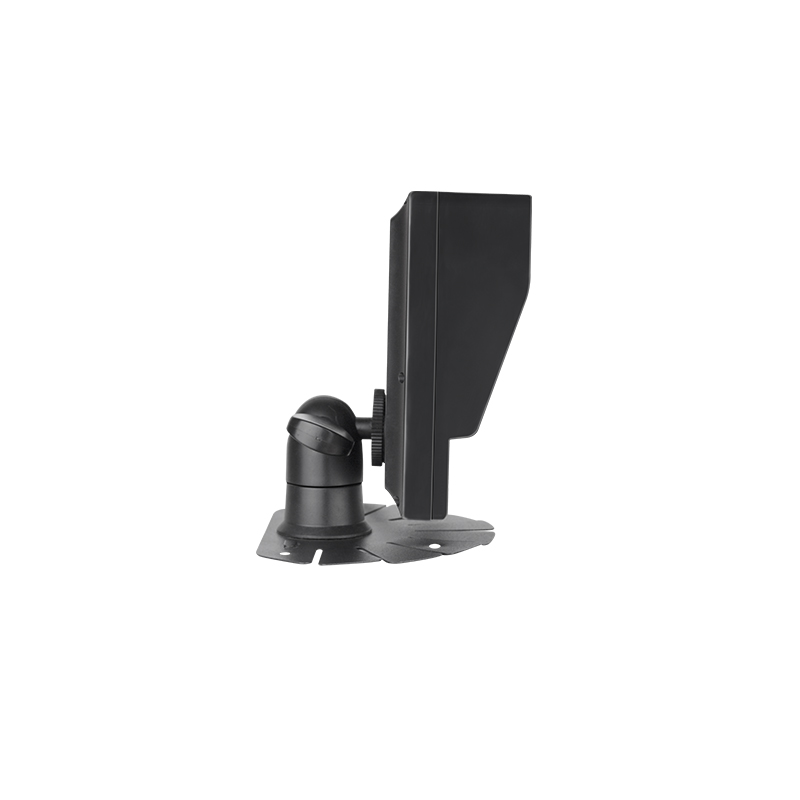

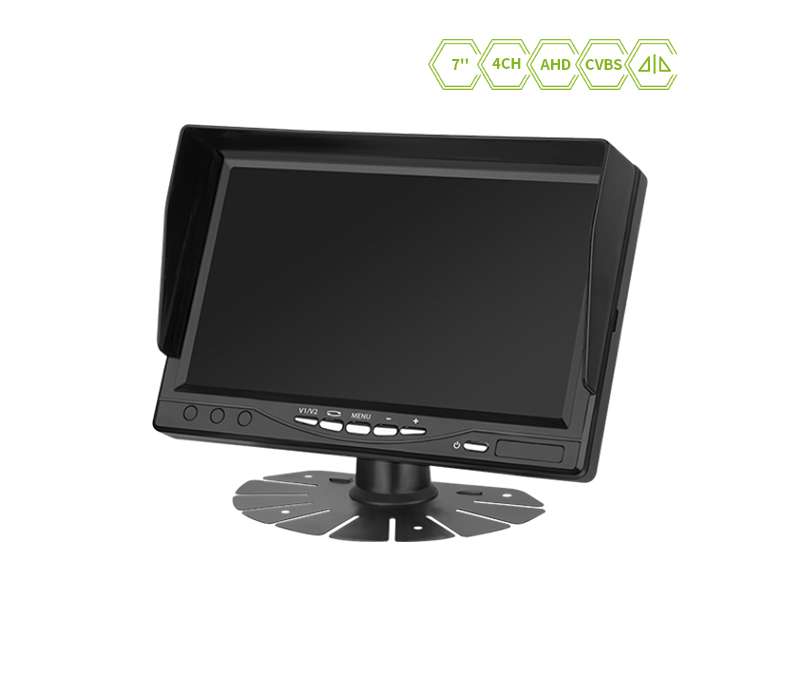

JY-M760 2 CH or 4 CH input 7 inch AHD monitor with scale ruler

Product Features

JY-M760 has beautiful appearance and stable performance, which can improve images with clear image quality and vivid colors. The monitor has multiple menu languages, remote control functions, and easy operation. It supports 4 video inputs, which can be applied to the connection of DVD, rear view, front view, and side view cameras, and has the functions of automatic switching of the rear view and automatic wake-up. Luview has 15 years of production research and development experience in the field of automotive electronics, supports various production and processing requirements, provides various services such as boot screen customization, OEM LOGO design, etc. Please feel free to contact us.

  • Multi-languages available
  • With remote control function
  • Images can be flipped up and down from left to right
  • With short circuit protection function of power supply

Technical Specifications

Screen Size 7"/16:9
Resolution 1024(W)* R.G.B * 600(H)
TV System AUTO
Brightness 300cd/㎡
Contrast 500:1
Active Area 154.08(W) × 85.92(H) mm
Viewing Angle U/D:50°/70°,R/L:70°/70°
Image Settings Brightness、Color、Contrast
Video Format AHD
Mirror Flip Non-mirror, mirror, flip, mirror flip
Video Channel Two channel video input
Reverse Function Single way back (ruler setting function)
Reversing Delayed 0-15s
Scale Function Two scale ruler and automatic ruler switch
Power Supply 12/24V,DC/<9W
Operating Temperature -20℃ to +65℃
Storage Temperature -25℃ to +70℃
