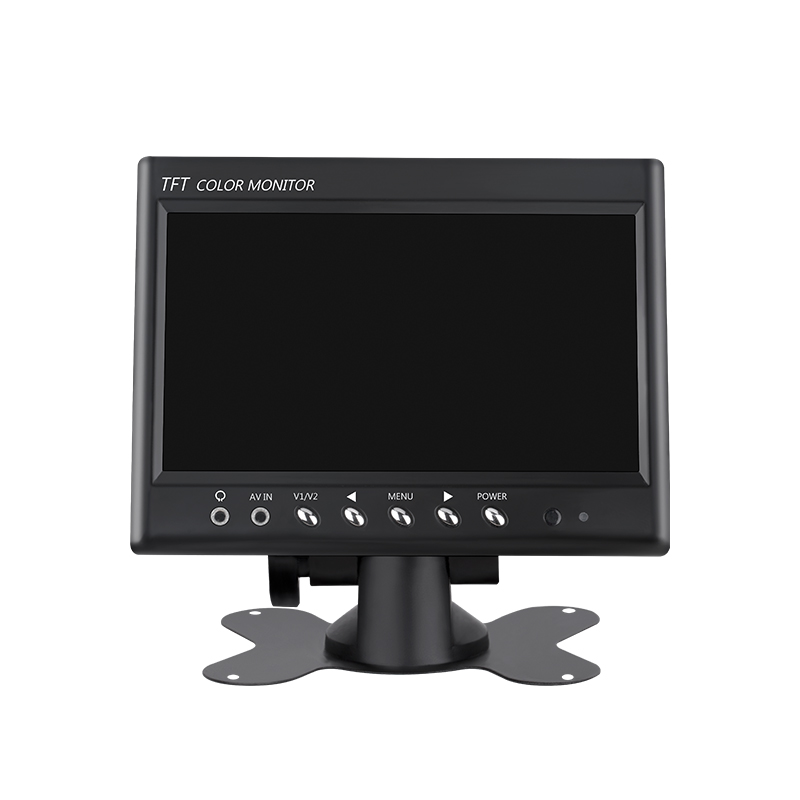

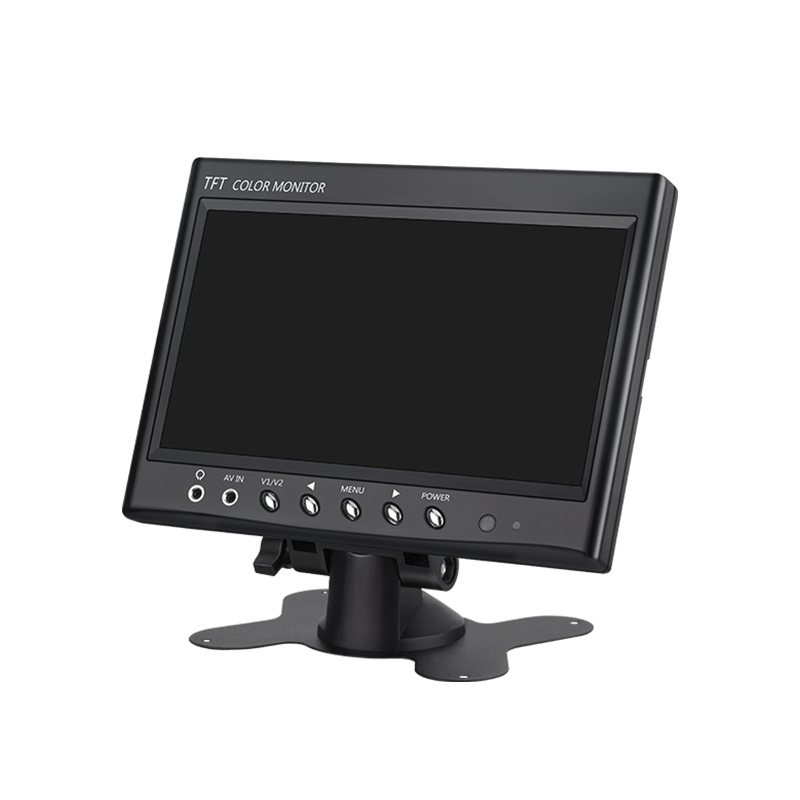

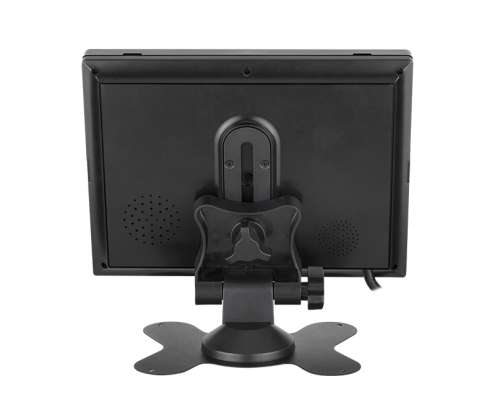

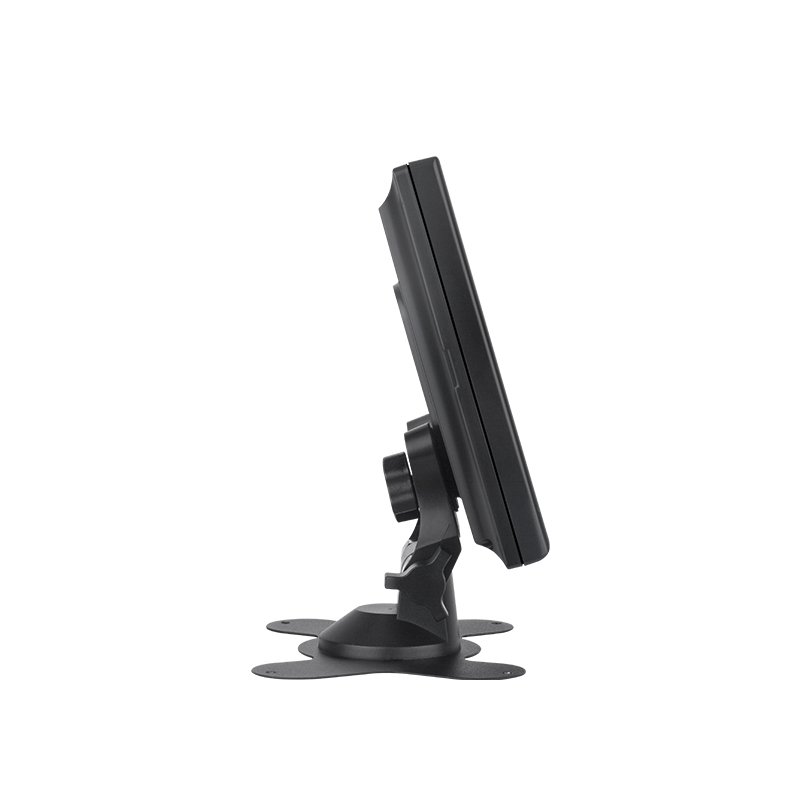

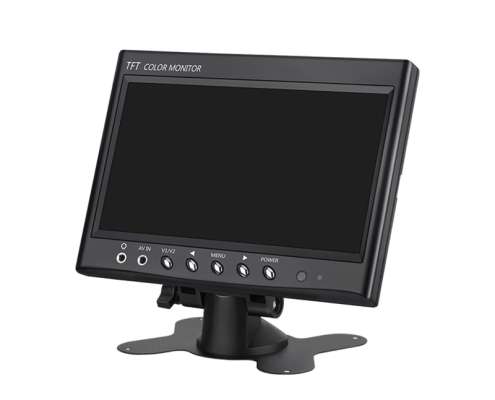

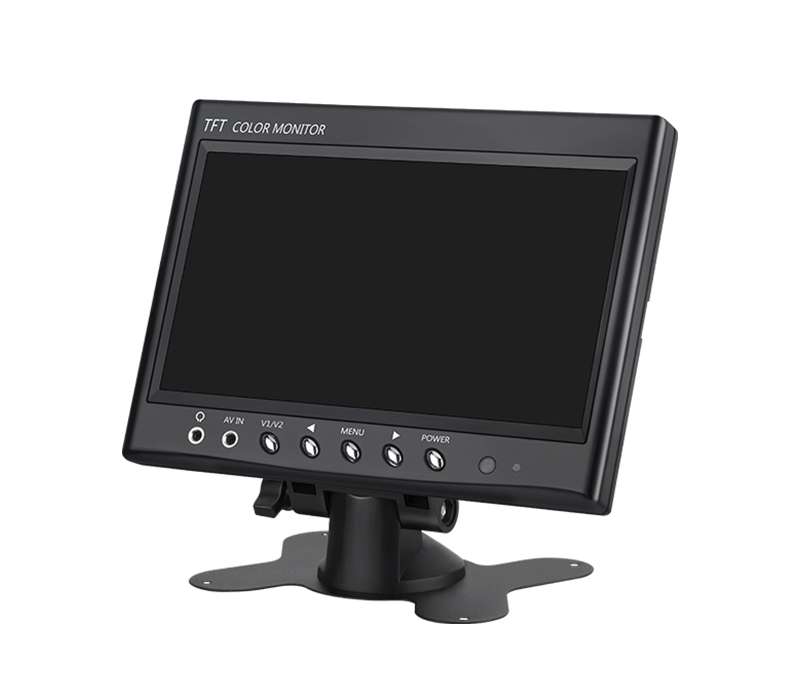

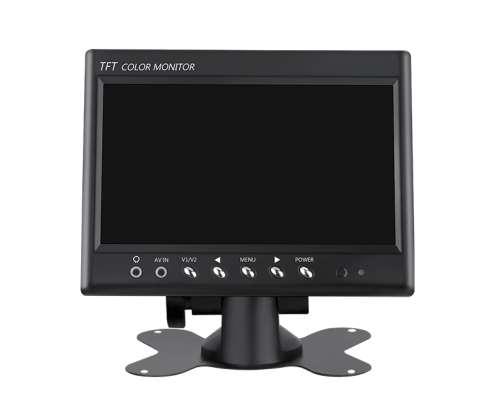

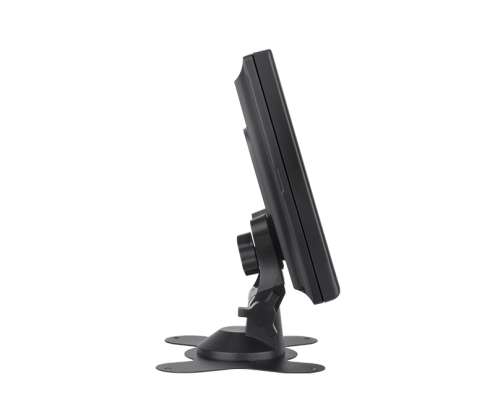

JY-M07 7 inch AHD monitor with 2 cameas and 1 audio input
Product Features
Luview 7 inch AHD monitor, suitable for buses, taxis, trucks, forklifts and various siege machinery. The monitor has multiple menu languages, supports 2 high-definition camera inputs and 1 audio input at the same time. The driver can know the road conditions of the front, rear, left and right of the vehicle at any time, reducing the possibility of driving blind spots, rear-end collisions, scratching and other accidents, and assisting driving safety .
- With speakers
- With remote control function
- Multi-languages of display available
- Supports video input from 2 cameras at the same time
- Support audio input from 1 camera at a time (optional)
- Images can be flipped up and down from left to right
- 12/24V，DC/<6W
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 800（W）* R.G.B * 480(H) |
| TV System | PAL/NTSC/AUTO |
| Brightness | 300cd/㎡ |
| Contrast | 500:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:50°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Reverse Function | Single way back (ruler setting function) |
| Reversing Delayed | 0-15s |
| Scale Function | Two scale ruler and automatic ruler switch |
| Power Supply | 12/24V，DC/<6W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
