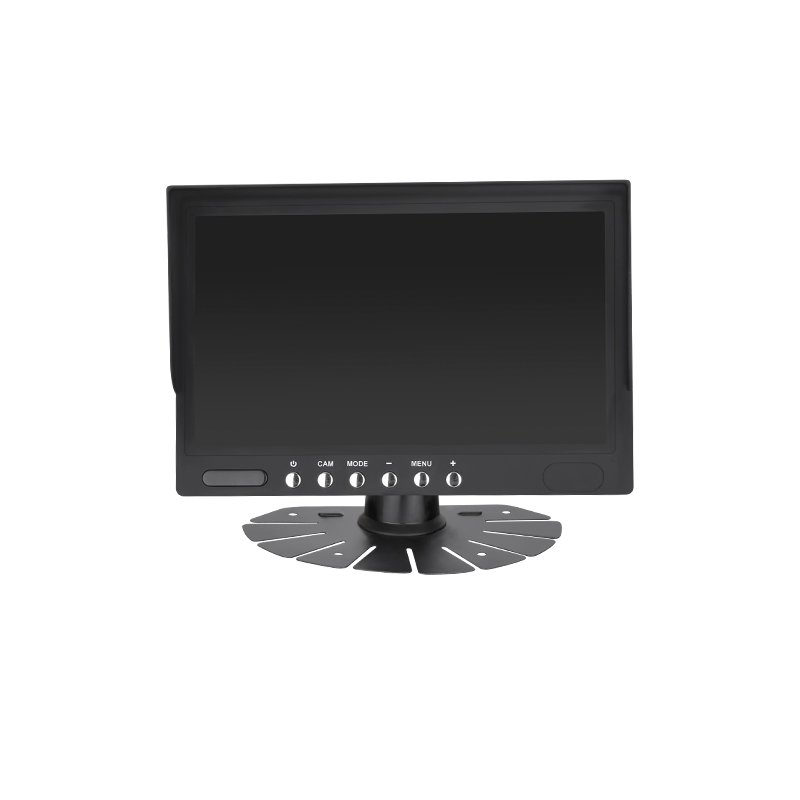

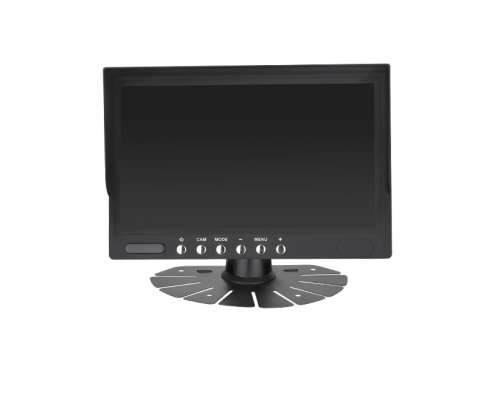

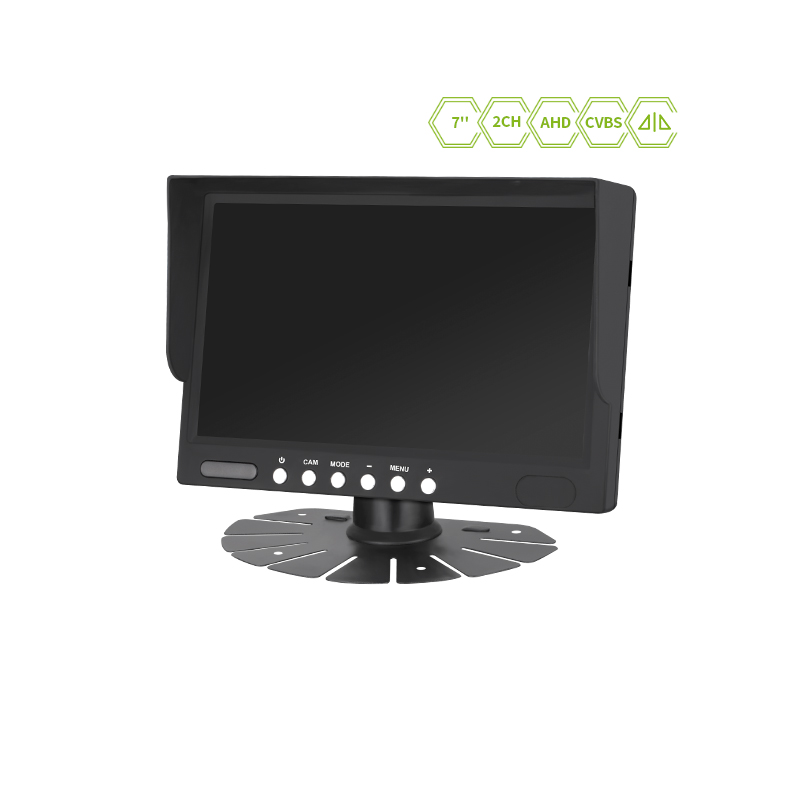

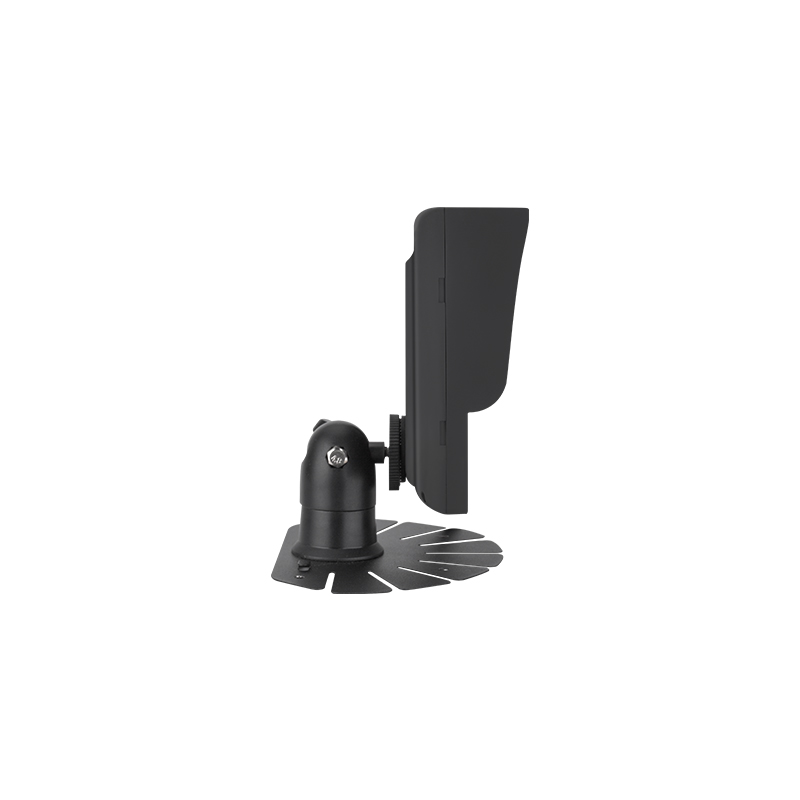

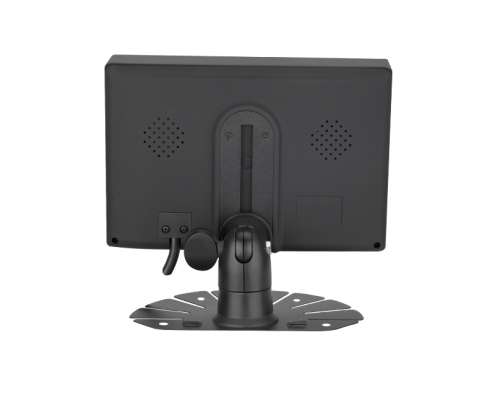

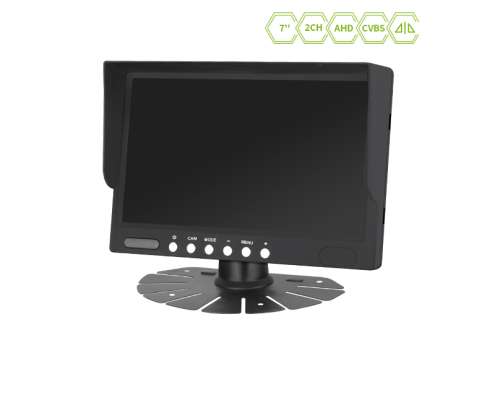

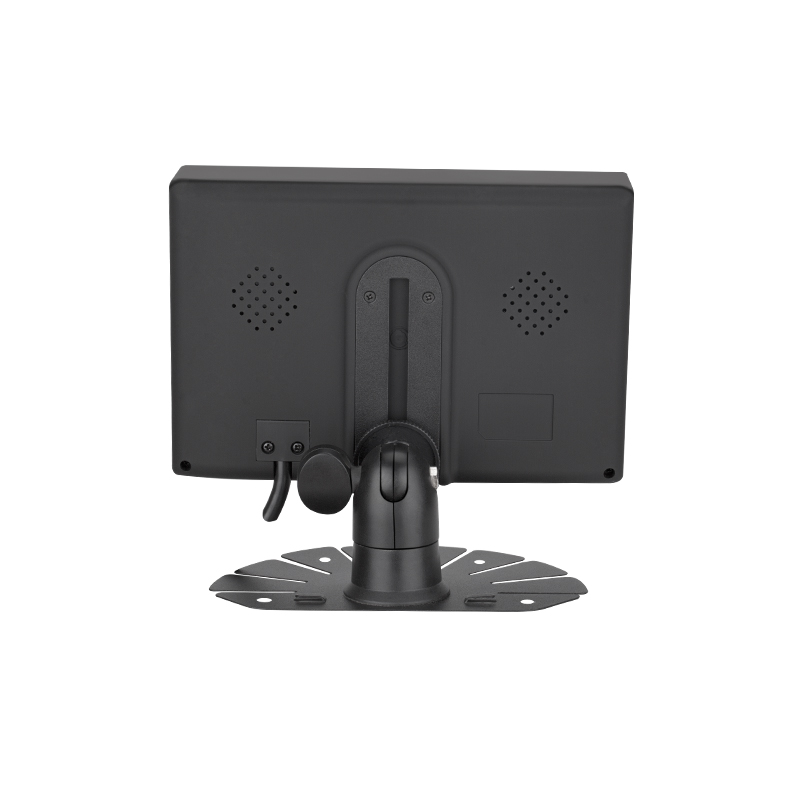

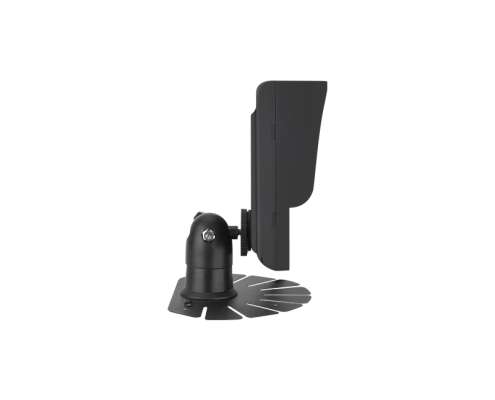

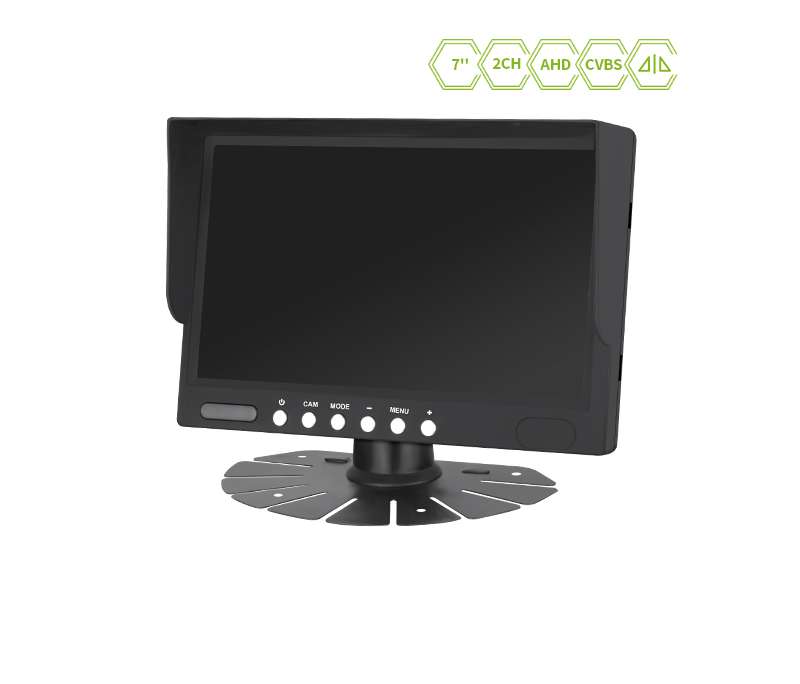

JY-M710 high bright CVBS and AHD 7 inch digital LCD monitor

Product Features

JY-M710 is a 7-inch digital LCD monitor with two options: CVBS and AHD signal. It is very suitable for cars, school buses, traffic patrol cars, trailers, etc. The monitor and our supporting HD camera can constitute a complete rearview camera system to help drivers eliminate all blind spots and improve driving safety.

  • With speakers
  • With remote control function
  • Multi-languages of display available
  • Multi-languages of display available
  • Supports video input from 4 cameras at the same time
  • Support audio input from 4 camera at a time (optional)
  • Images can be flipped up and down from left to right
  • 12/24V,DC/<6W

Technical Specifications

Screen Size7"/16:9
Resolution800(W)* R.G.B * 480(H)
TV SystemPAL/NTSC
Brightness300cd/㎡
Contrast500:1
Active Area154.08(W) × 85.92(H) mm
Viewing AngleU/D:50°/70°,R/L:70°/70°
Image SettingsBrightness、Color、Contrast
Video FormatCVBS
Mirror FlipNon-mirror, mirror, flip, mirror flip
Video ChannelTwo channel video input
Reverse FunctionSingle way back (ruler setting function)
Reversing Delayed0-15s
Scale FunctionTwo scale ruler and automatic ruler switch
Power Supply12/24V,DC/<9W
Operating Temperature-20℃ to +65℃
Storage Temperature-25℃ to +70℃
