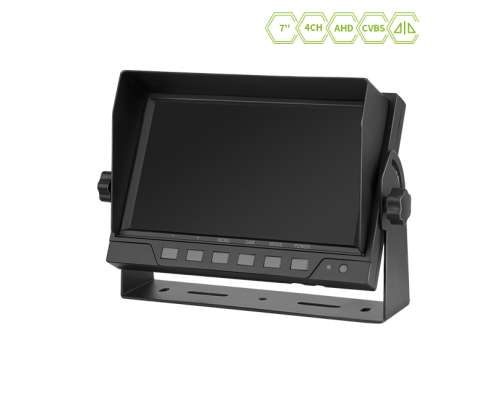

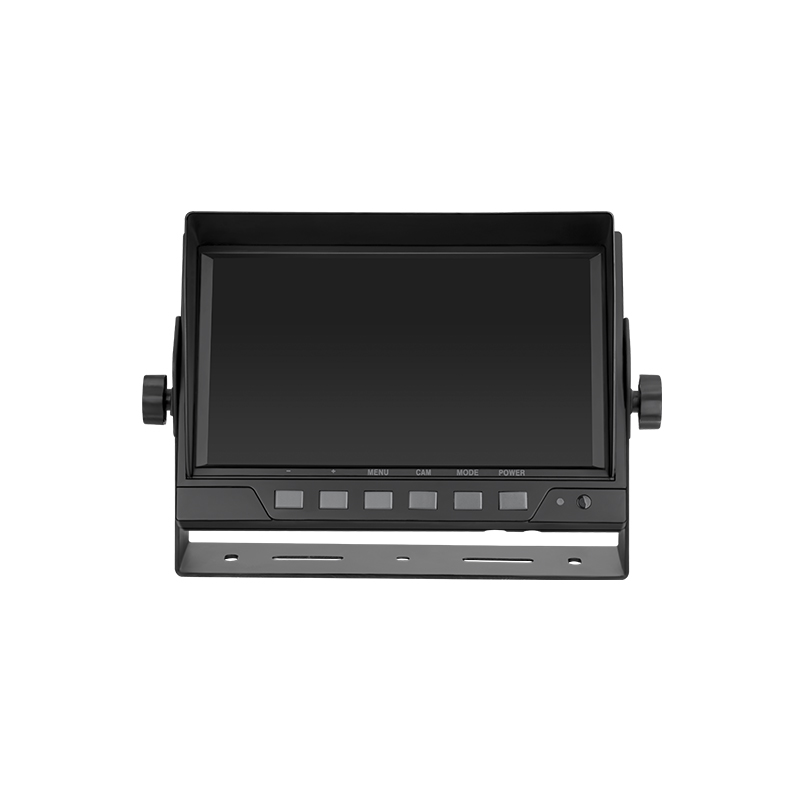

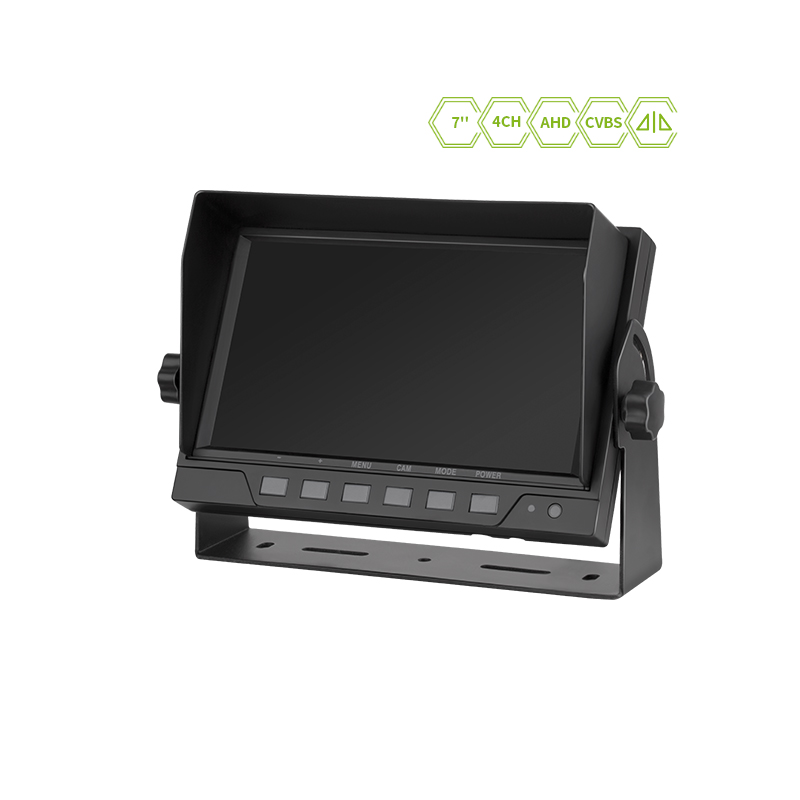

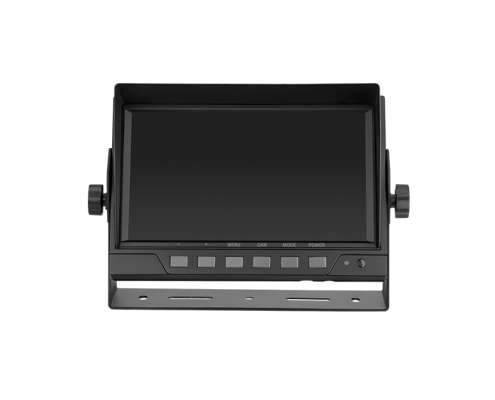

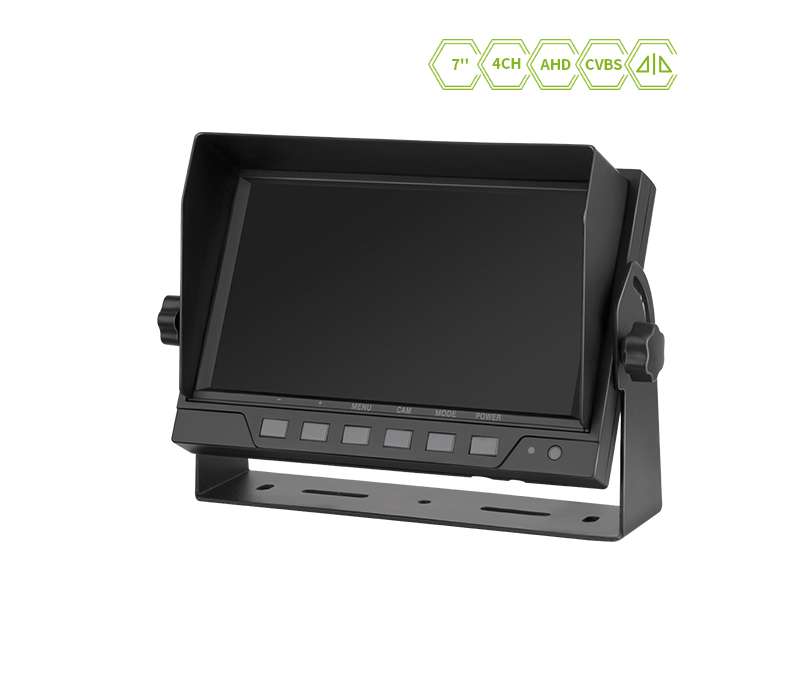

JY-M730 sun shade 600 TVL 7 inch monitor with metal bracket
7 inch dashboard AHD Monitor with 2 video input for sale from China manufacturer, EEC, E-mark, CE, FCC, RoHS certificate approved, cheap price with reliable quality. CVBS AHD HDMI VGA input, supports 420TVL, 600TVL, 700TVL, 720P, 1080P backup cameras; LCD 16:9 Aspect Ratio with Max. 1024 x 600 pixels, suitable for car, truck, trailer, van, other heavy duty agricultural vehicles and constructional vehicles.
Product Features

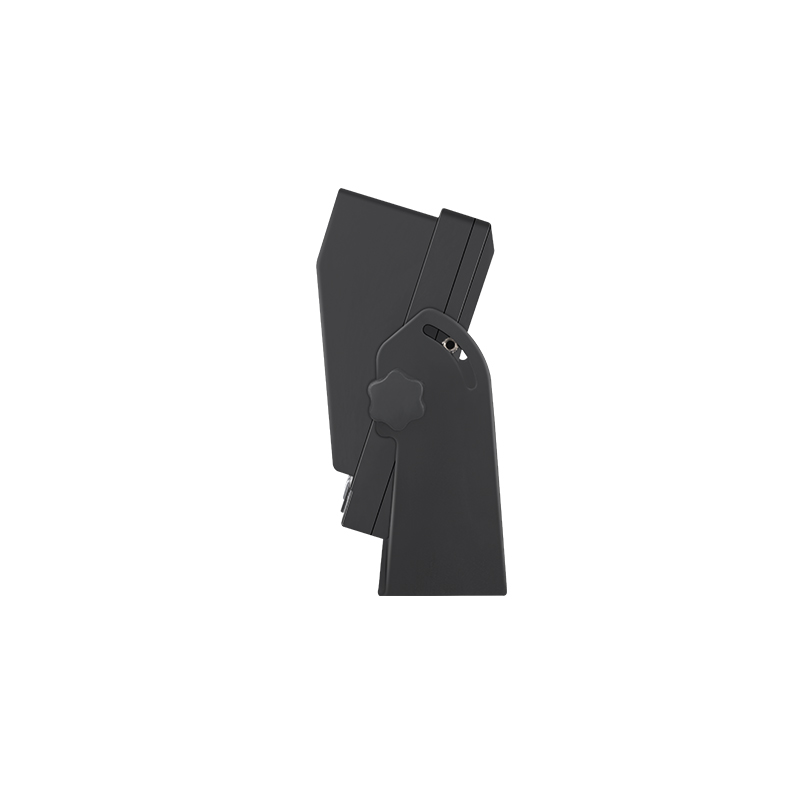

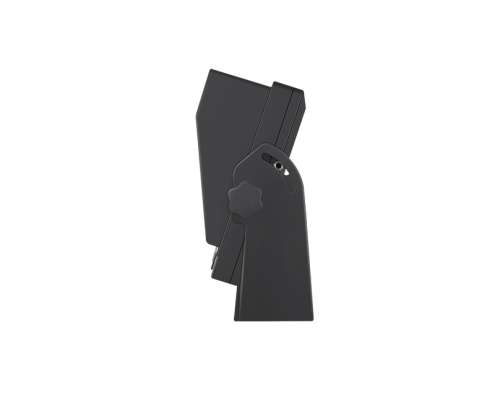

JY-M730’s bracket is made of high quality metal material, firm and stable, with sun shade design, can provide you with excellent images, also can achieve one channel, two channels and four channels video input. If you are looking for a reliable rear view safety solution, LUVIEW is the right choice for you.

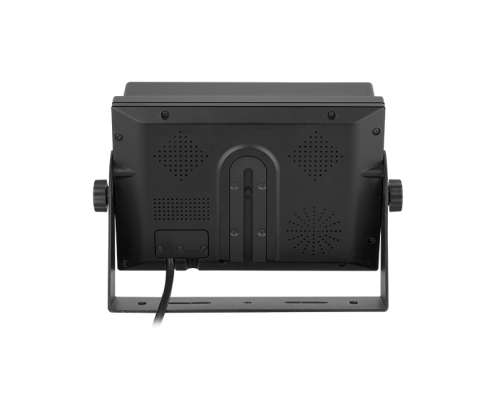

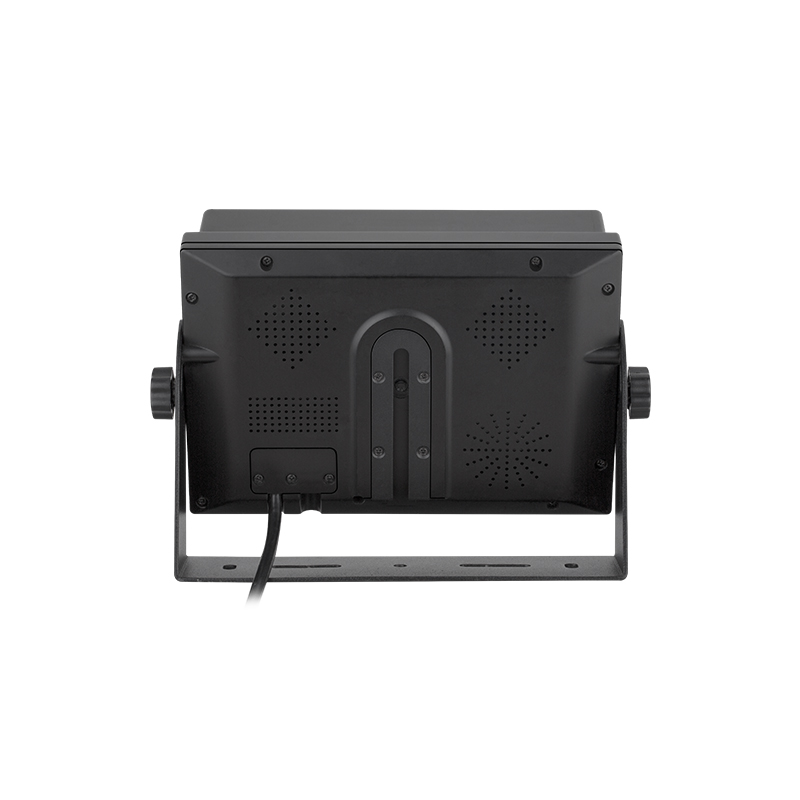

- With speakers
- With remote control function
- Multi-languages of display available
- Supports video input from 2 cameras at the same time
- Support audio input from 1 camera at a time (optional)
- Images can be flipped up and down from left to right
- 12/24V,DC/<6W
Technical Specifications
Screen Size | 7"/16:9 |
Resolution | 1024(W)* R.G.B * 600(H) |
TV System | AUTO |
Brightness | 300cd/㎡ |
Contrast | 500:1 |
Active Area | 154.08(W) × 85.92(H) mm |
Viewing Angle | U/D:40°/65°,R/L:65°/65° |
Image Settings | Brightness、Color、Contrast |
Video Format | AHD/CVBS |
Mirror Flip | Non-mirror, mirror, flip, mirror flip |
Video Channel | Two channel video input |
Reverse Function | Single way back (ruler setting function) |
Reversing Delayed | 0-15s |
Scale Function | Two scale ruler and automatic ruler switch |
Power Supply | 12/24V,DC/<9W |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -25℃ to +70℃ |
