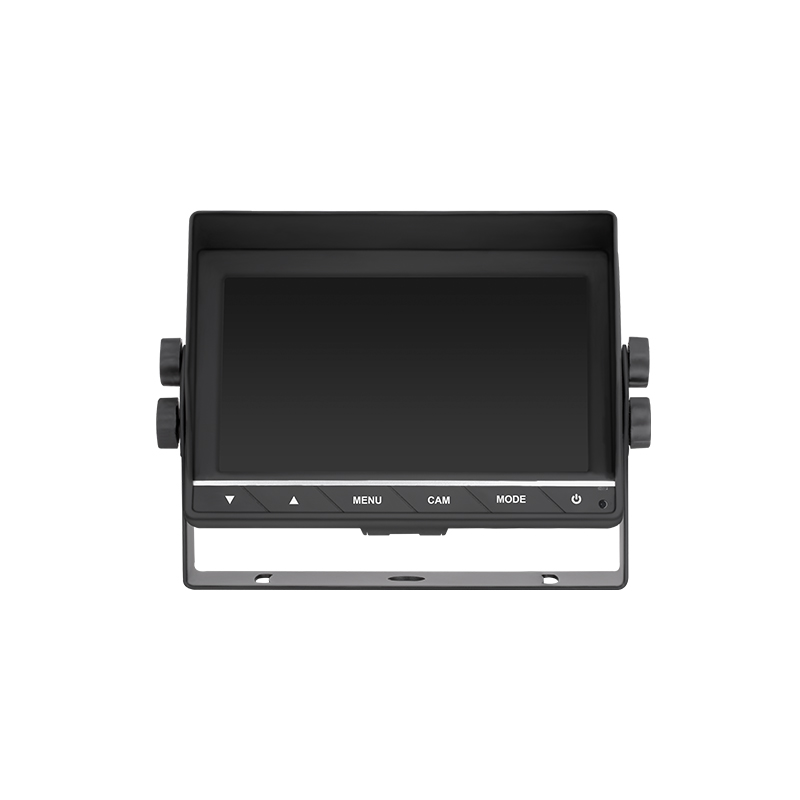

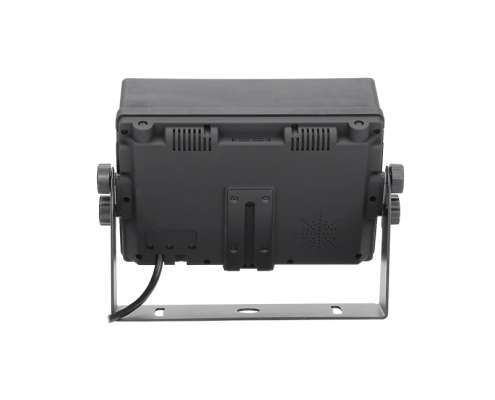

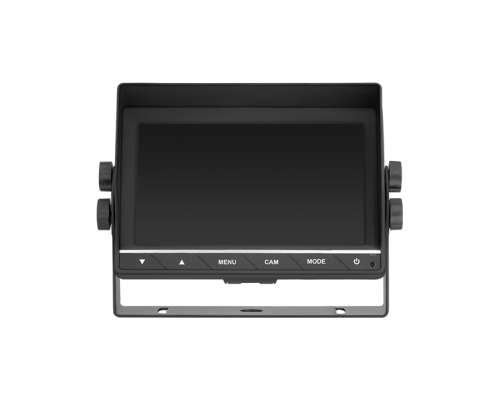

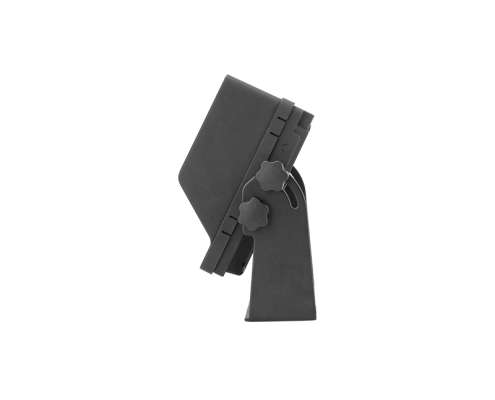

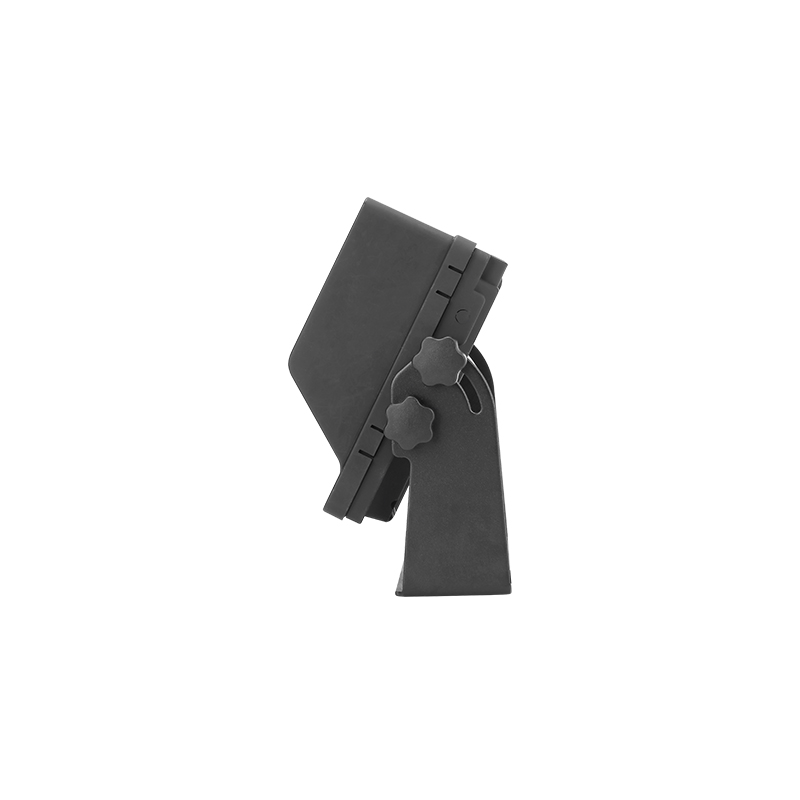

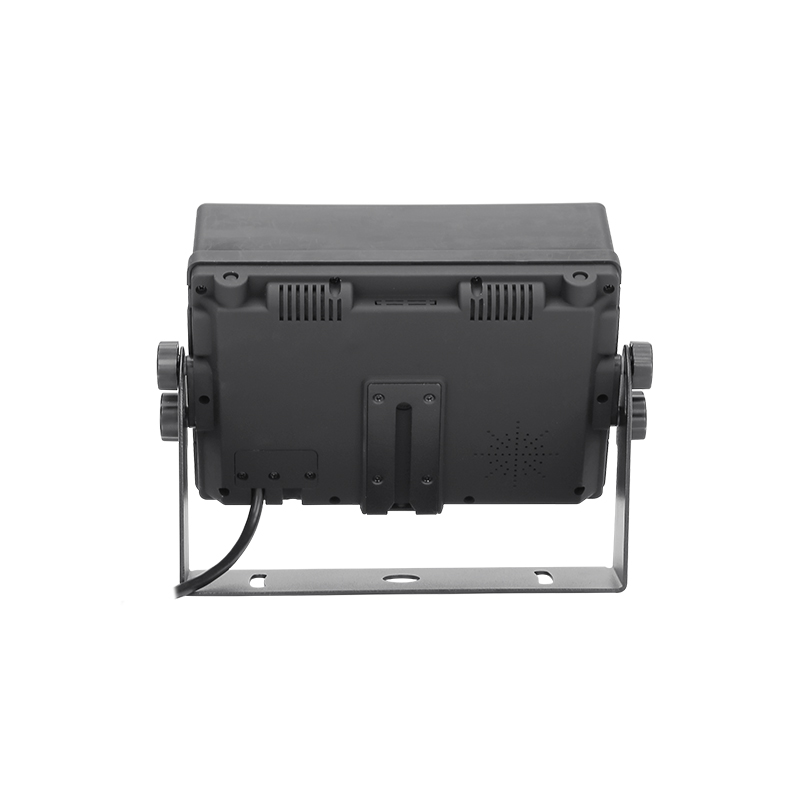

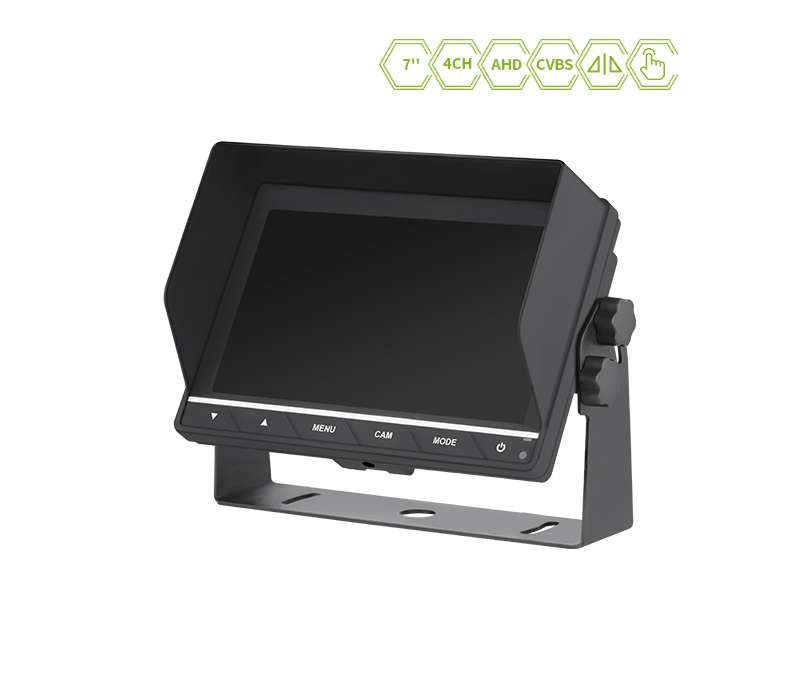

JY-M745T 7 inch touch control digital LCD monitor with 4 optional audio input

Product Features

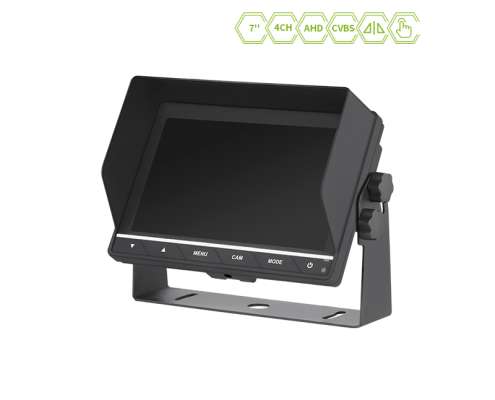

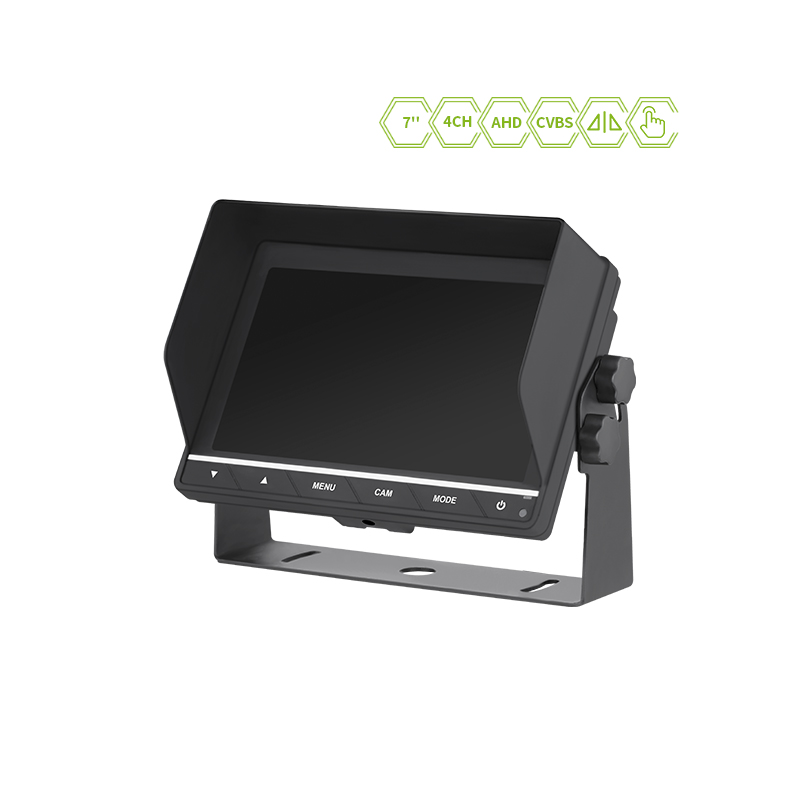

LUVIEW can provide you with professional automotive rear-view system solutions. We have our own production workshop with guaranteed quality. The monitor is designed with a sun visor to effectively block out sunlight. Four channels video input, four channels audio optional, good picture quality and high resolution.

  • With speakers
  • With remote control function
  • Multi-languages of display available
  • With automatic detection function
  • Supports video input from 4 cameras at the same time
  • Support audio input from 4 camera at a time (optional)
  • Images can be flipped up and down from left to right
  • 12/24V,DC/<6W

Technical Specifications

Screen Size7"/16:9
Resolution800(W)* R.G.B * 480(H)
TV SystemPAL/NTSC
Brightness300cd/㎡
Contrast500:1
Active Area154.08(W) × 85.92(H) mm
Viewing AngleU/D:50°/70°,R/L:70°/70°
Image SettingsBrightness、Color、Contrast
Video FormatCVBS
Mirror FlipNon-mirror, mirror, flip, mirror flip
Video ChannelTwo channel video input
Reverse FunctionSingle way back (ruler setting function)
Reversing Delayed0-15s
Scale FunctionTwo scale ruler and automatic ruler switch
Power Supply12/24V,DC/<9W
Operating Temperature-20℃ to +65℃
Storage Temperature-25℃ to +70℃
