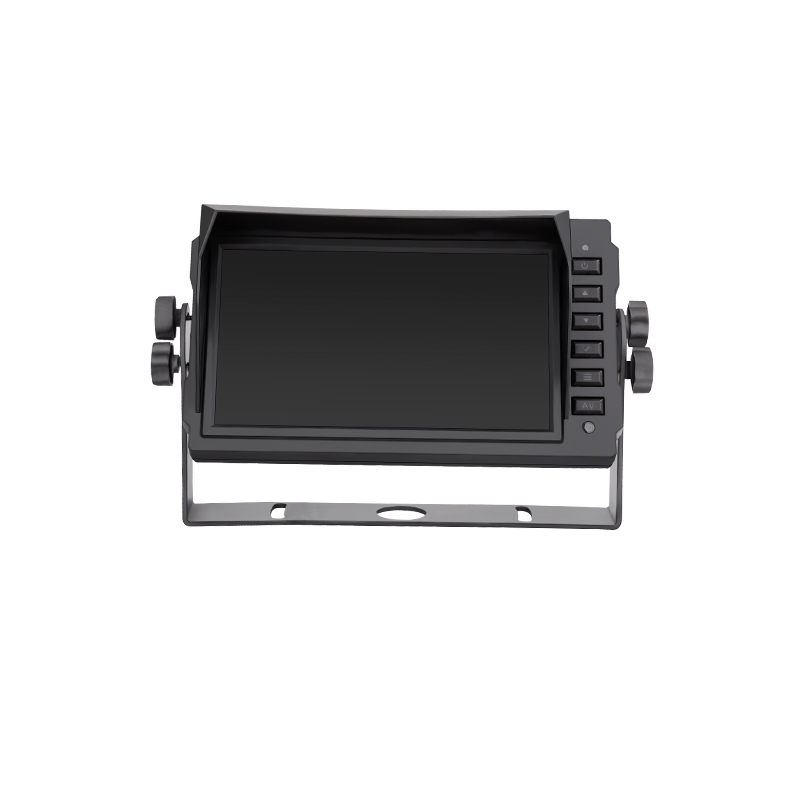

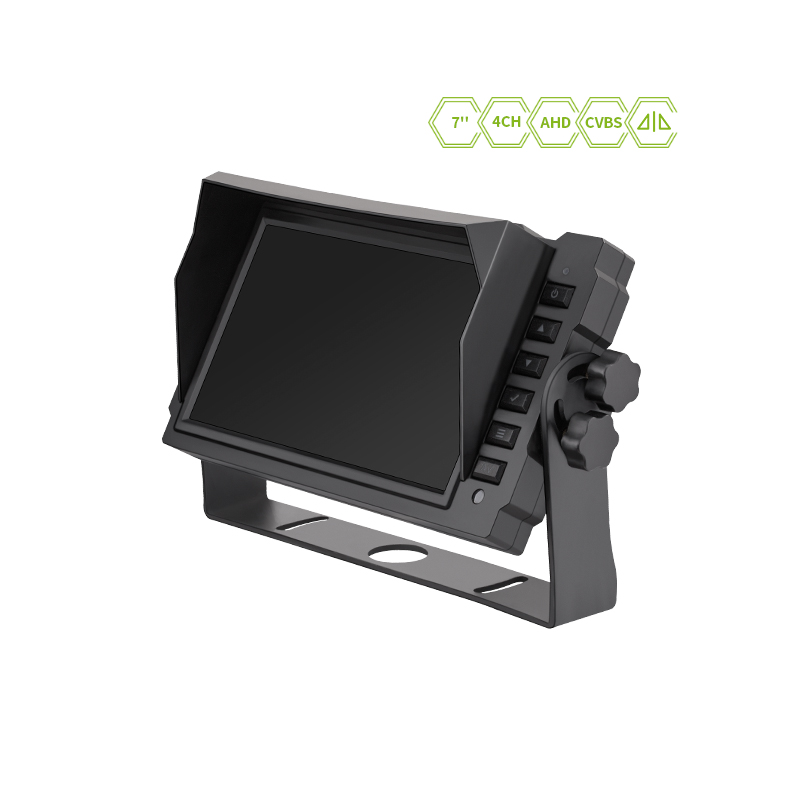

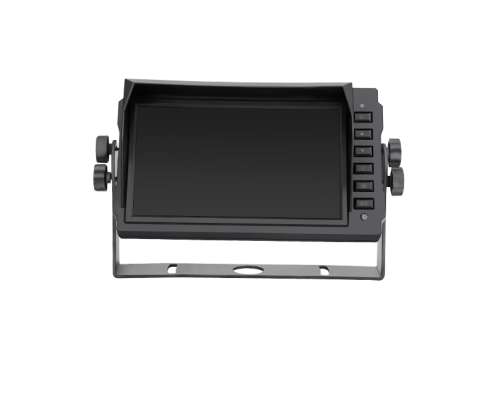

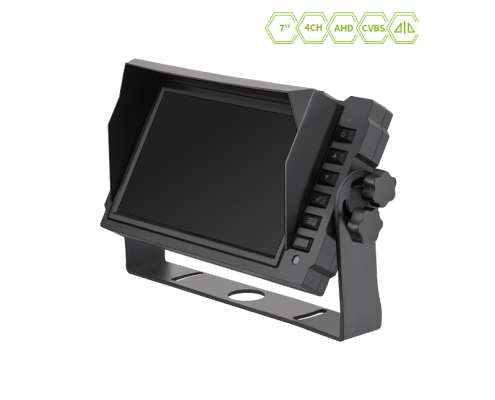

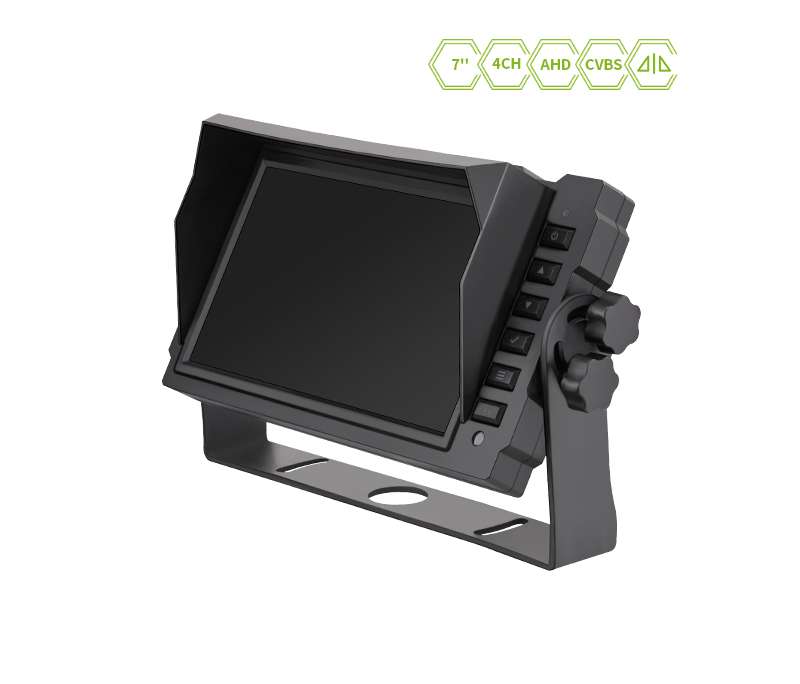

JY-M171 7 inch LCD digital monitor with two cameras inputs and auto switching
Product Features
7 inch LCD digital monitor, equipped with speakers and remote control functionality, designed for trucks, cargo vehicles, and heavy-duty vehicles, providing a wide field of view and clear images. It supports multiple language menus and remote control operation, making it convenient for drivers to adjust settings. The monitor comes with audio input and an adjustable angle bracket, offering clear audio and the best viewing experience.
- Multi-languages of display available:English, Portuguese, Spanish, Russian, Swedish, Italian, Turkish, French, German, Japanese, Korean, Chinese
- With remote control function

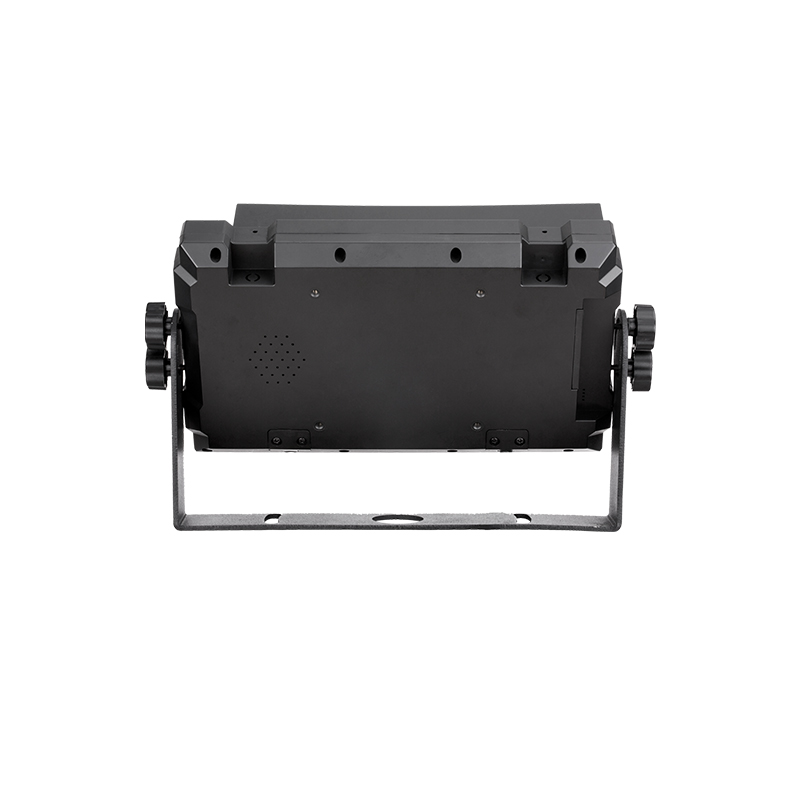

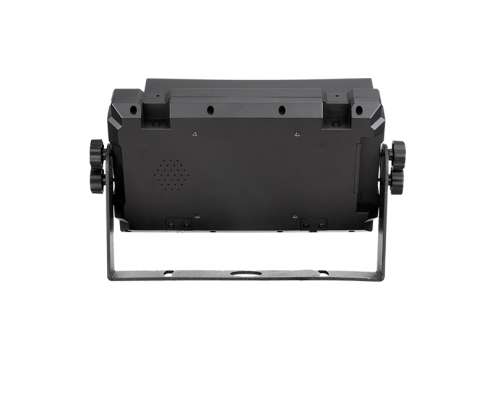

- The monitor has speakers that can adjust the sound from the control panel or remote control
- Supports video input from two cameras at the same time
- Support audio input from one camera at a time (optional)
- Images can be flipped up and down from left to right
- The second camera has a trigger control line and automatically switches when triggered
- In standby mode, it will start up automatically when triggered and switch to the corresponding camera image
- The working power supply range is 12~24V, with short circuit protection function of power supply

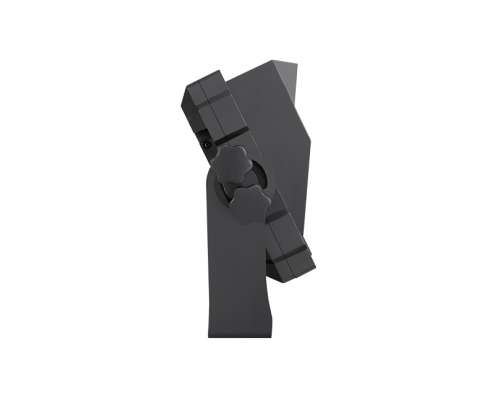

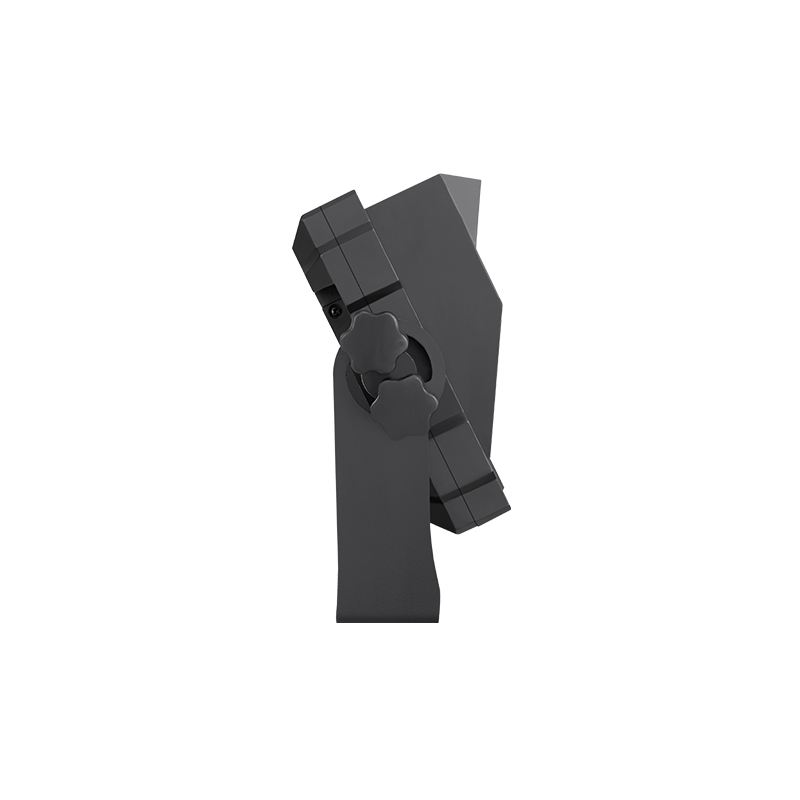

- Bracket adjustable angle
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 1024（W）* R.G.B * 600(H) |
| TV System | PAL/NTSC/AUTO |
| Brightness | 300cd/㎡ |
| Contrast | 400:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:40°/65°,R/L:65°/65° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS, AHD |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Reverse Function | Single way back (ruler setting function) |
| Reversing Delayed | 0-15s |
| Scale Function | 2 scale ruler, automatic switching of ruler |
| Power Supply | 12/24V，DC/<6W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
