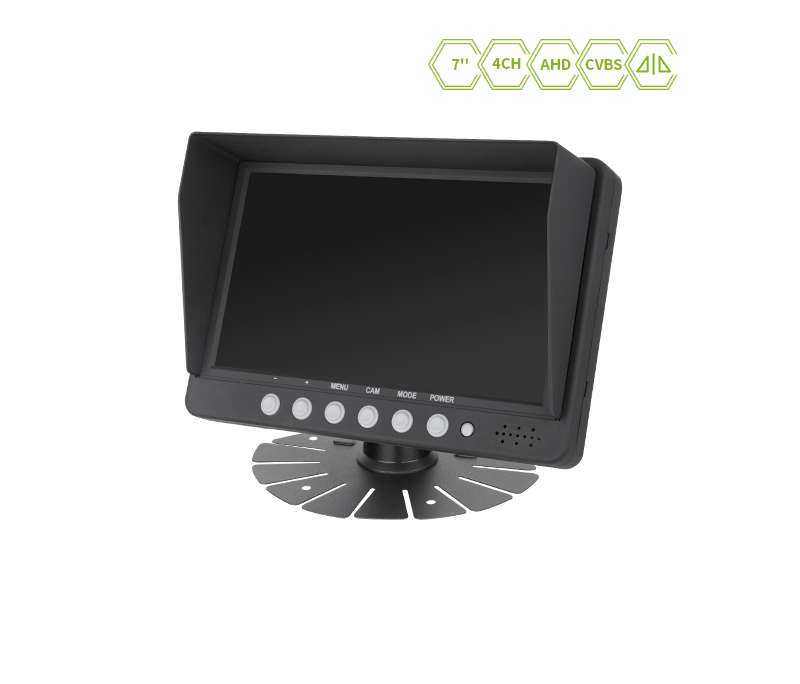

JY-MS07 sunvisor 7 inch split screen lcd TFT AHD monitor

Product Features

7-inch HD split screen, supports video input from four cameras, 4-channel single channels display. The monitor with the cameras can be perfectly assembled into a practical backing up image, making it more convenient for us to back up, and avoiding the hidden safety hazard brought to us by the backing up blind area.

  • A Menu Language: English
  • Supports five kinds of split pictures
  • Supports four single channel displays
  • Supports simultaneous video input from four cameras
  • Supports video input from 4 cameras at the same time
  • Image can be flipped up and down, left and right mirrors
  • 12/24V,DC≤6.5W

Technical Specifications

Screen Size7"/16:9
Resolution1024(W)* R.G.B * 600(H)
TV SystemPAL/NTSC
Brightness300cd/㎡
Contrast800:1
Active Area154.214(H) × 85.92(V) mm
Viewing AngleU/D:85°/85°,R/L:85°/85°
Image SettingsBrightness、Color、Contrast
Video FormatCVBS, AHD
Mirror FlipNon-mirror, mirror, flip, mirror flip
Video ChannelFour channel video input
Reverse FunctionFour way back (ruler setting function)
Reversing Delayed0-30s
Scale Function4-way ruler, automatic switching of ruler
Power Supply12/24V,DC/<6.5W
Operating Temperature-20℃ to +65℃
Storage Temperature-25℃ to +70℃
