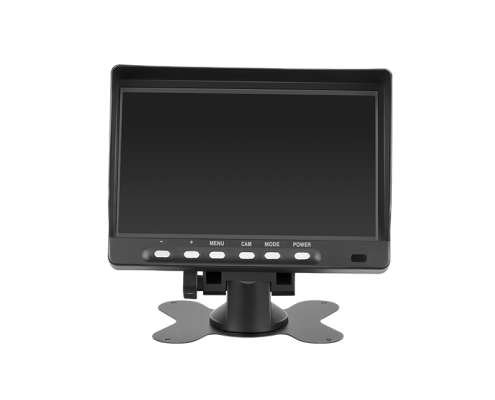

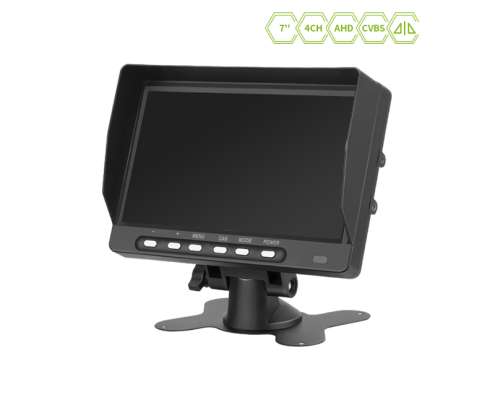

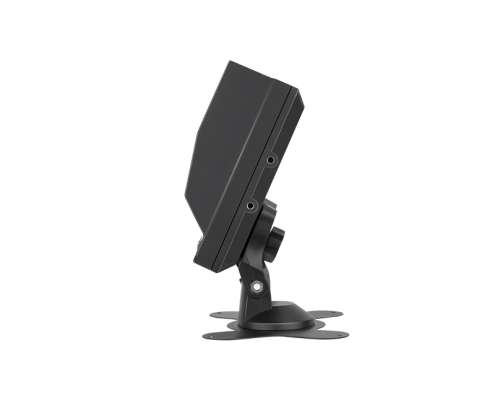

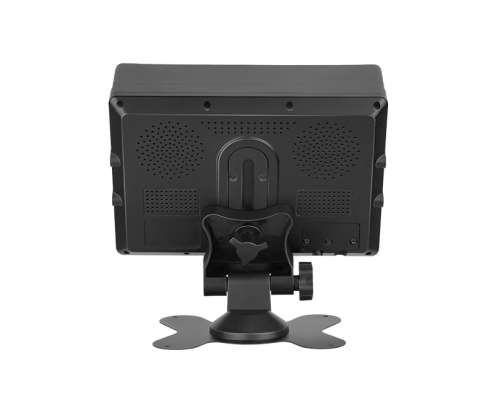

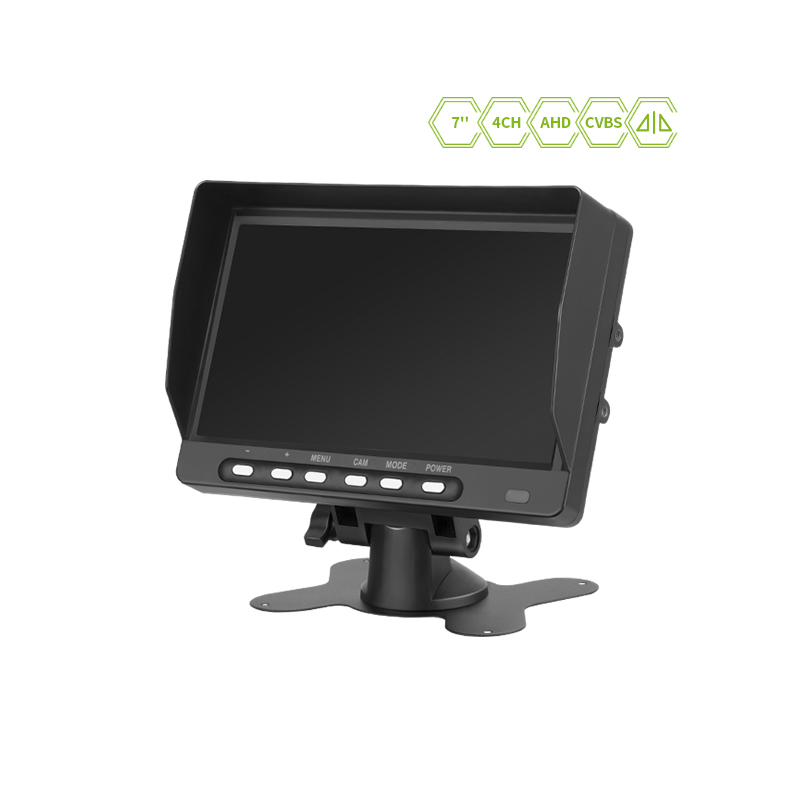

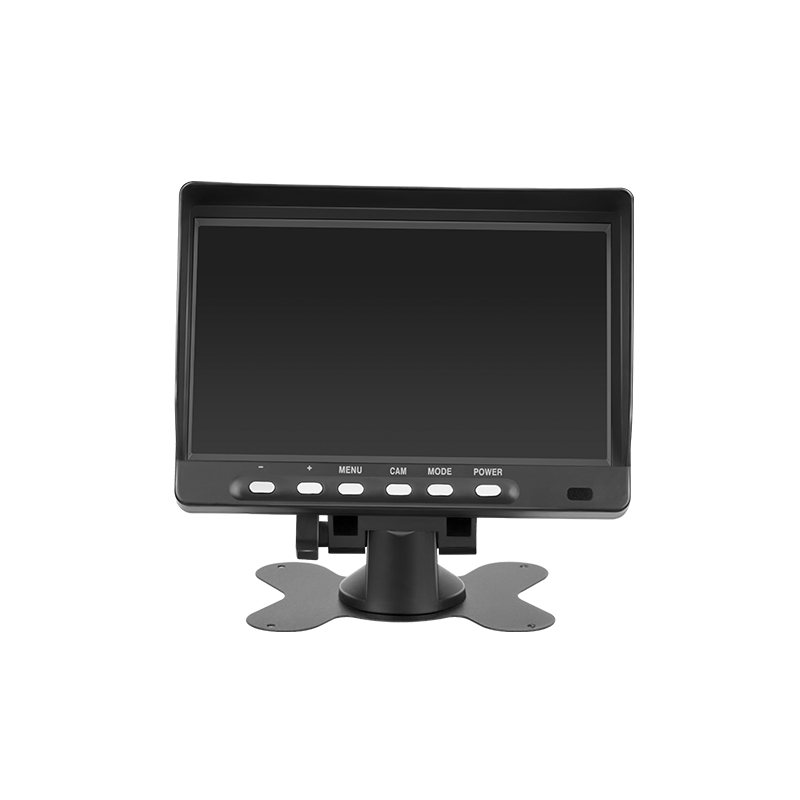

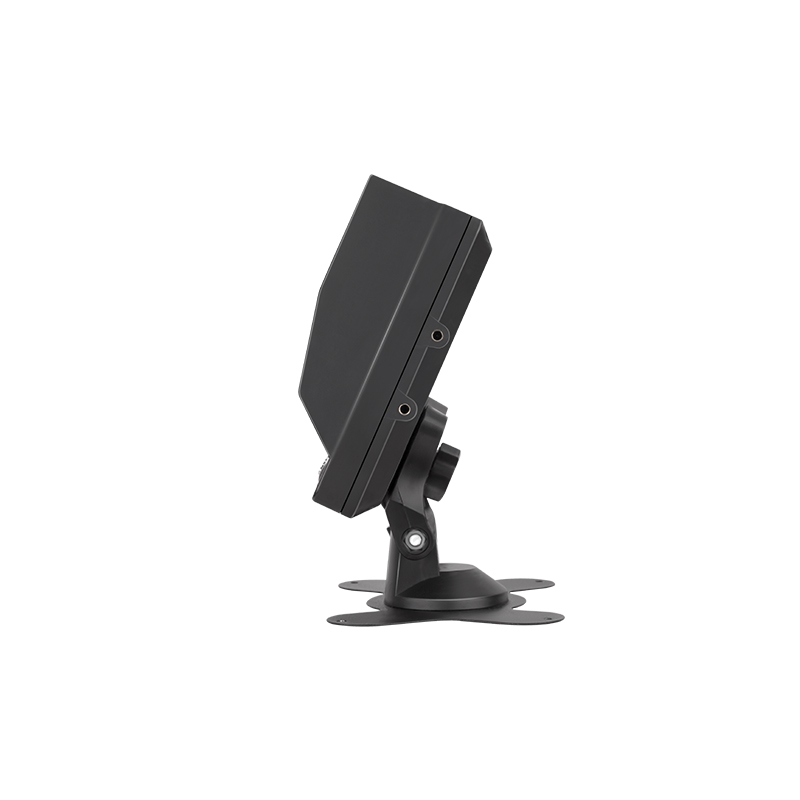

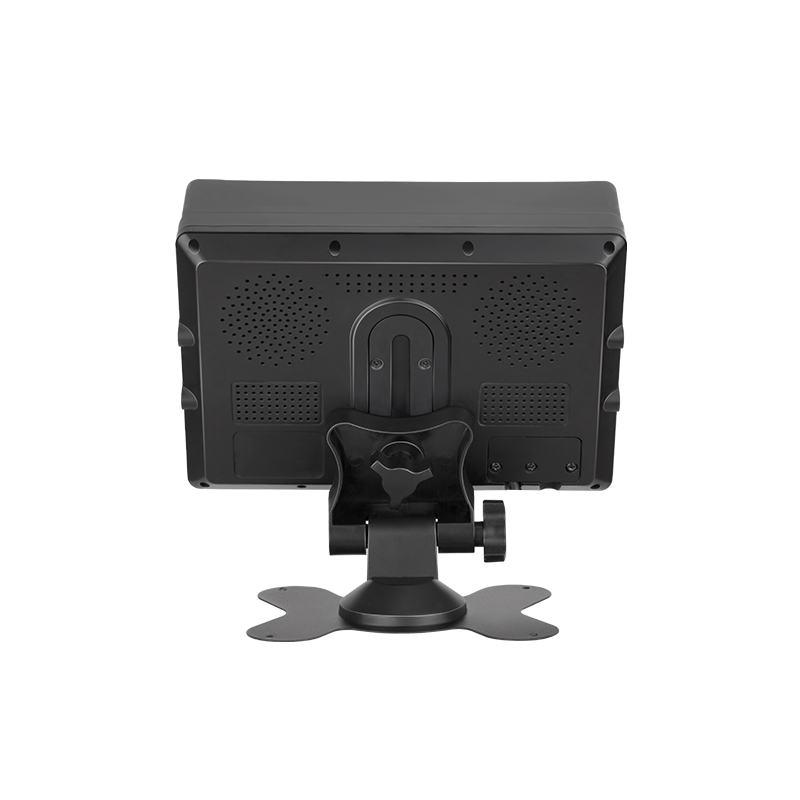

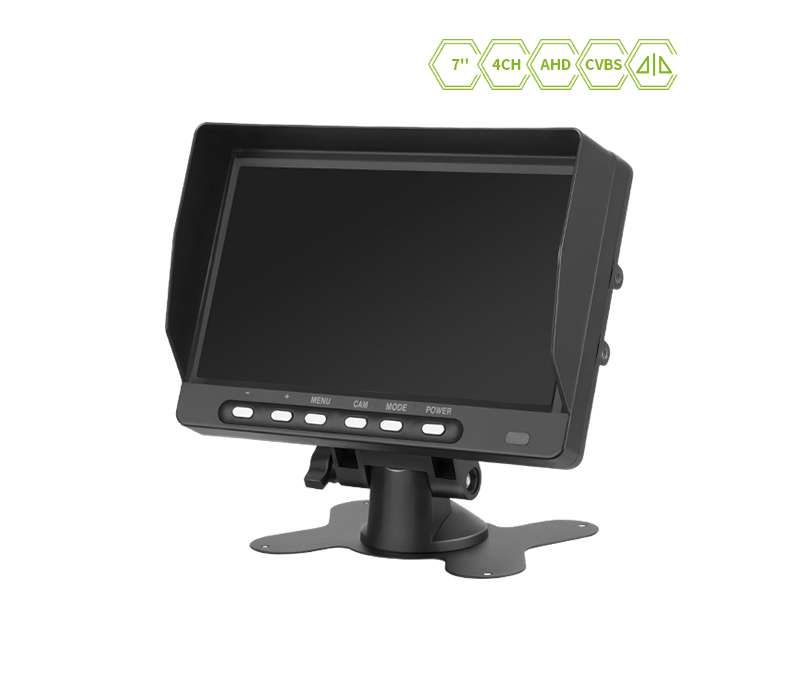

JY-M770 7 inch AHD LCD monitor with optional mobile app control

7 inch 4 ch quad split screen AHD LCD monitor for car camera system, support 4 camera image display at the same time,with optional remote control or mobile app control. If you are looking for quality hd 7 inch quad split screen 4 channel LCD monitor for wholesale or retail in China, please don’t hesitate to contact Luview.

Product Features

7 inch and 4 channel with quad function, JY-M770 menu language is applicable to many countries, it can be used for car camera system. In standby mode, it will start automatically when triggered and switch to the corresponding camera image. LUVIEW provides logo services when power up.

  • With speakers
  • 12/24V,DC/<6W
  • With remote control function
  • Multi-languages of display available
  • Supports video input from 2 cameras at the same time
  • Support audio input from 2 camera at a time (optional)
  • Images can be flipped up and down from left to right

Technical Specifications

Screen Size 7"/16:9
Resolution 1024(W)* R.G.B * 600(H)
TV System AUTO
Brightness 300cd/㎡
Contrast 400:1
Active Area 154.08(W) × 85.92(H) mm
Viewing Angle U/D:50°/70°,R/L:70°/70°
Image Settings Brightness、Color、Contrast
Video Format AHD
Mirror Flip Non-mirror, mirror, flip, mirror flip
Video Channel Two channel video input
Reverse Function Single way back (ruler setting function)
Reversing Delayed 0-15s
Scale Function One scale ruler and automatic ruler switch
Power Supply 12/24V,DC/<9W
Operating Temperature -20℃ to +65℃
Storage Temperature -25℃ to +70℃
