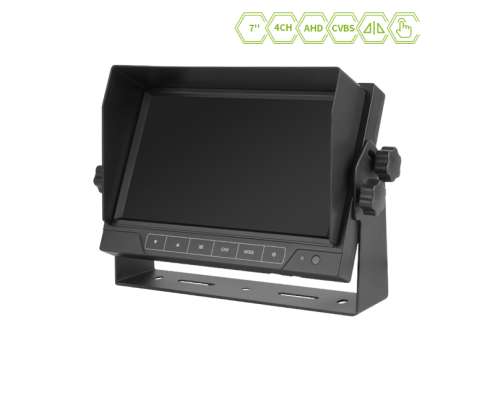

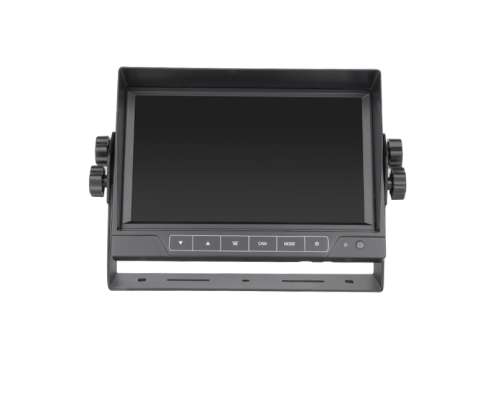

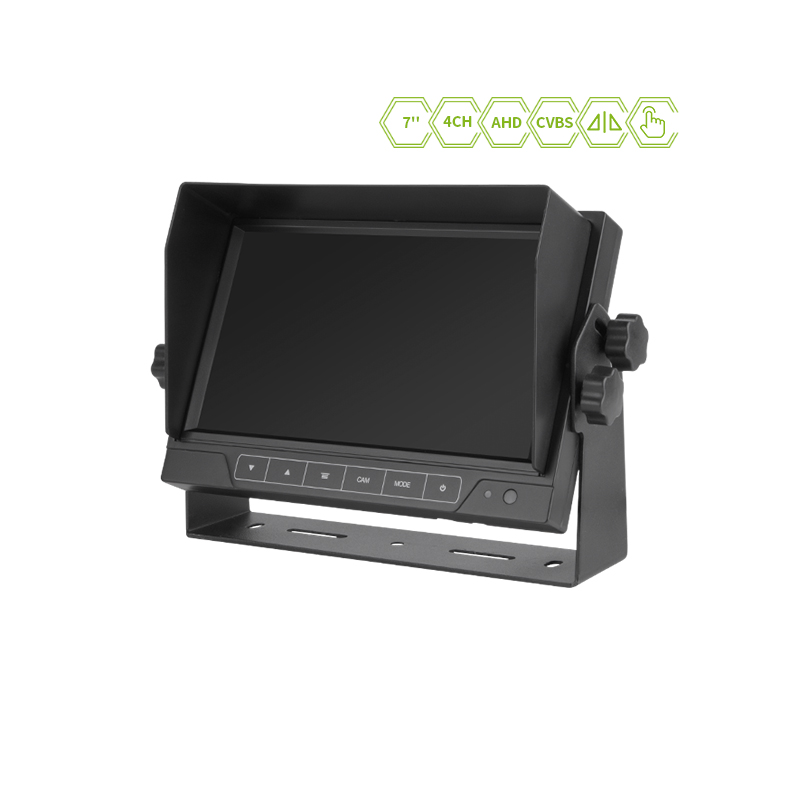

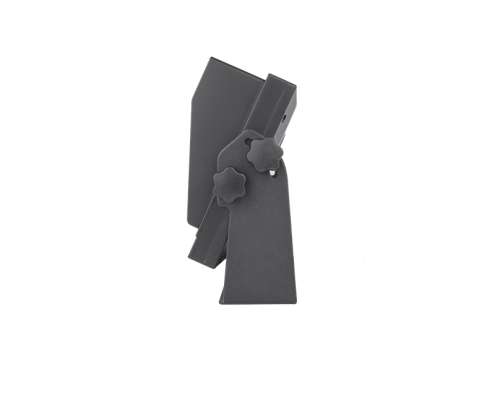

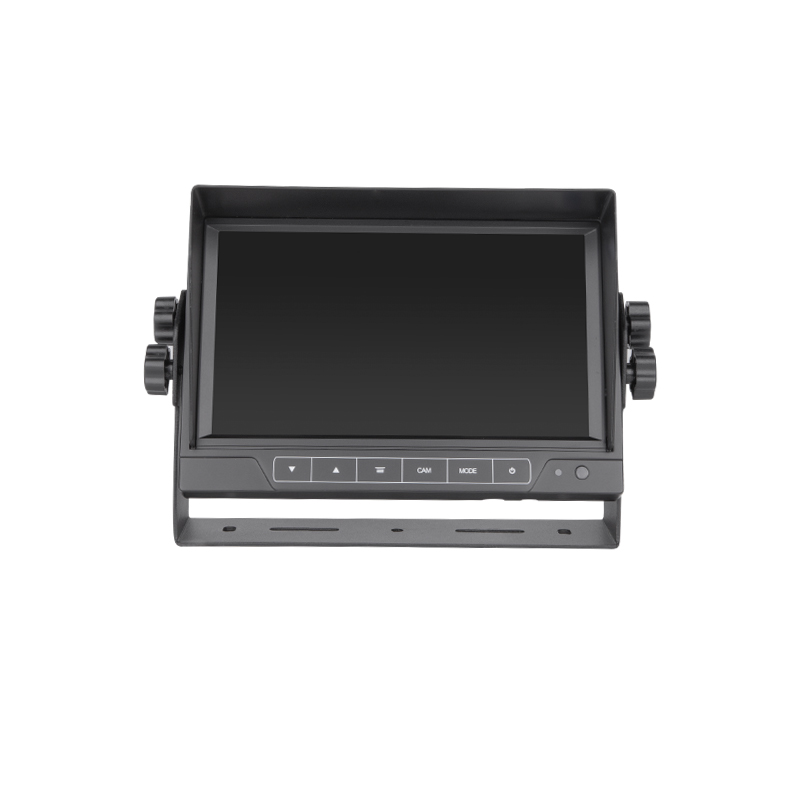

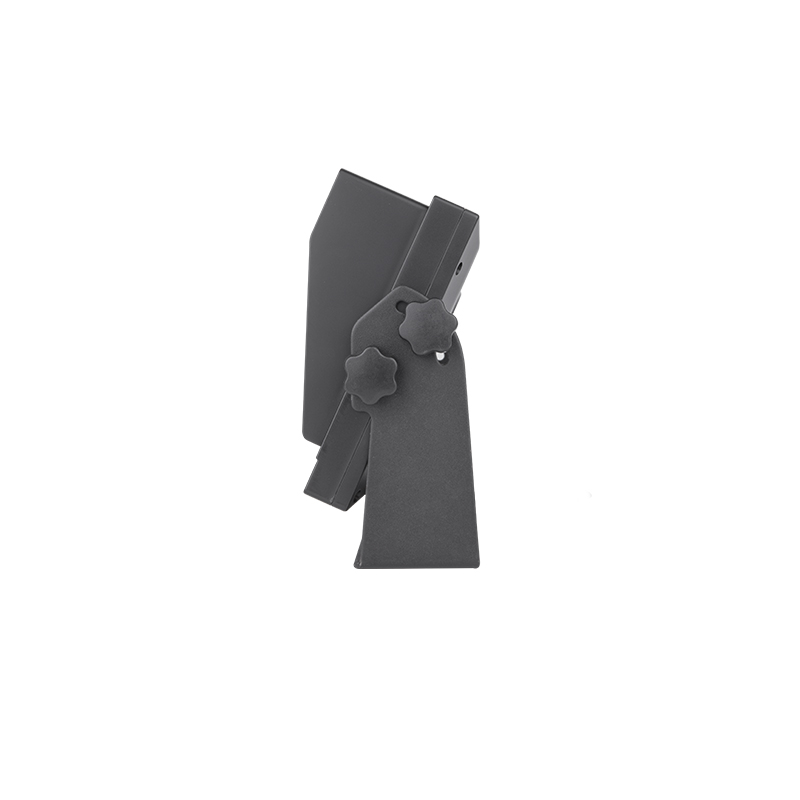

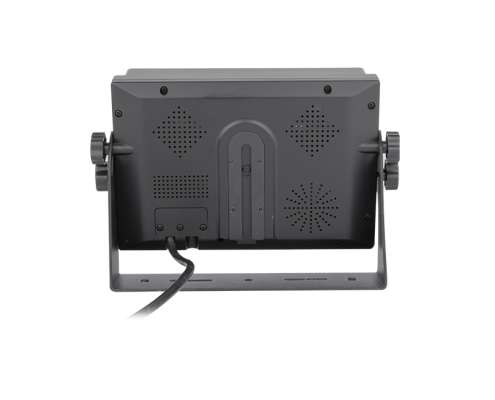

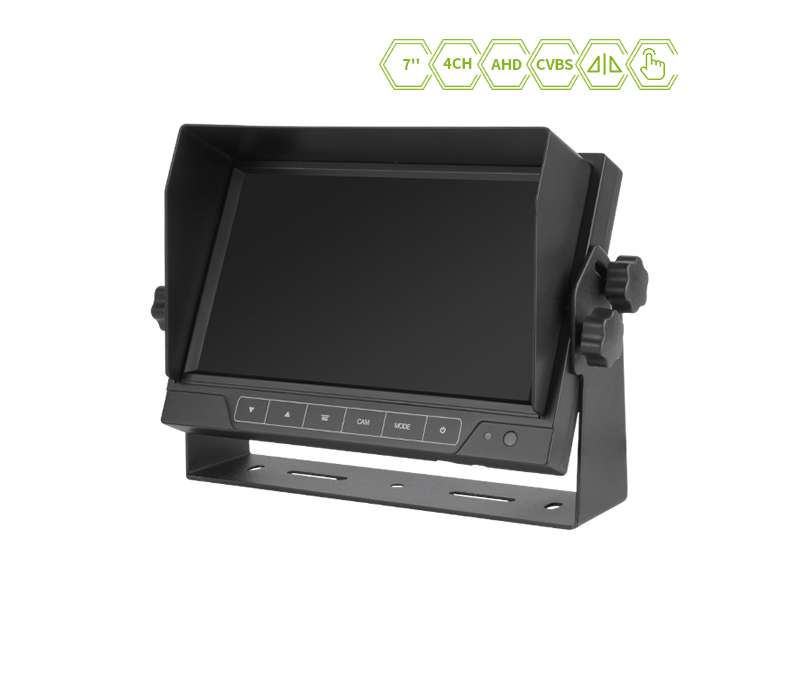

JY-M730T 7 inch IPS full view monitor with metal waterproof bracket

Product Features

7 “IPS full view monitor, with metal waterproof bracket and sun shield, the Angle of the bracket can be adjusted, flexible installation and easy to use, the sun shield design can effectively prevent glare. The monitor supports 4 camera video input at the same time, and the image can be flipped up, down, left and right. In a wide Angle of view, there is no color difference at every Angle, which improves the level of light and shade and makes the picture sharp and clear.

  • With speakers
  • 1.Multi-languages available
  • Have remote control function
  • Images can be flipped up and down from left to right
  • With short circuit protection function of power supply

Technical Specifications

Screen Size7"/16:9
Resolution1024(W)* R.G.B * 600(H)
TV SystemPAL/NTSC/AUTO
Brightness300cd/㎡
Contrast400:1
Active Area154.08(W) × 85.92(H) mm
Viewing AngleU/D:40°/65°,R/L:65°/65°
Image SettingsBrightness、Color、Contrast
Video FormatAHD/CVBS
Mirror FlipNon-mirror, mirror, flip, mirror flip
Video ChannelTwo channel video input
Reverse FunctionSingle way back (ruler setting function)
Reversing Delayed0-15s
Scale FunctionTwo scale ruler and automatic ruler switch
Power Supply12/24V,DC/<9W
Operating Temperature-20℃ to +65℃
Storage Temperature-25℃ to +70℃
