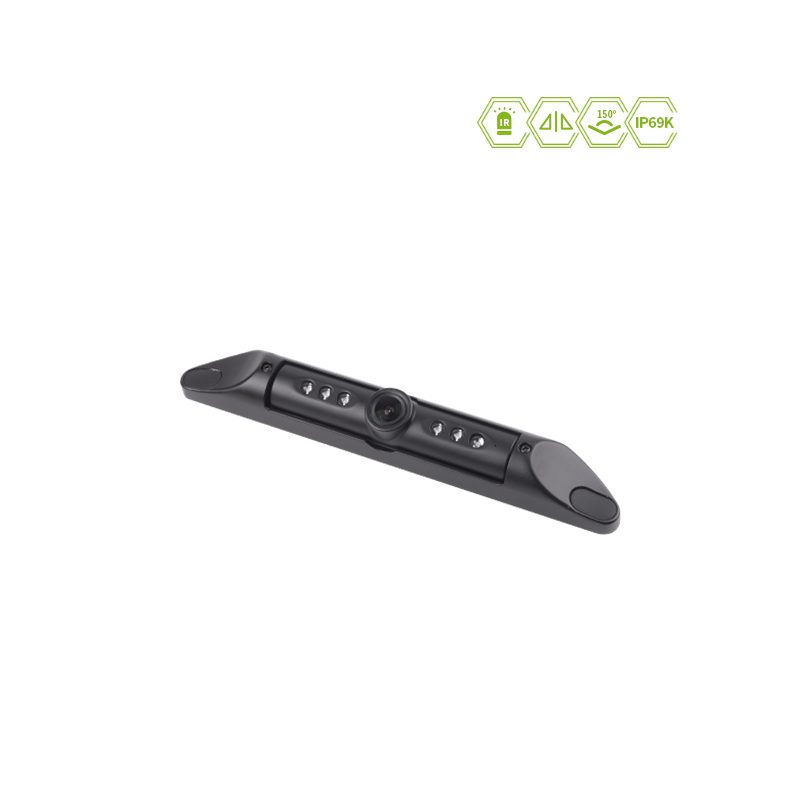

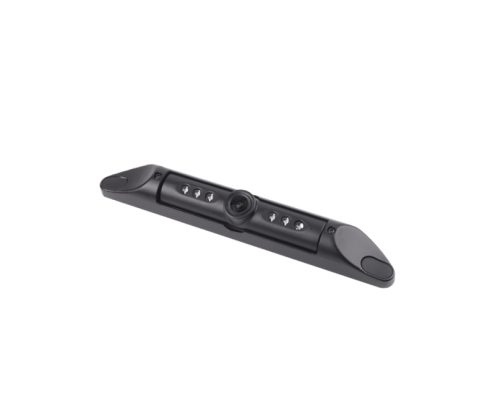

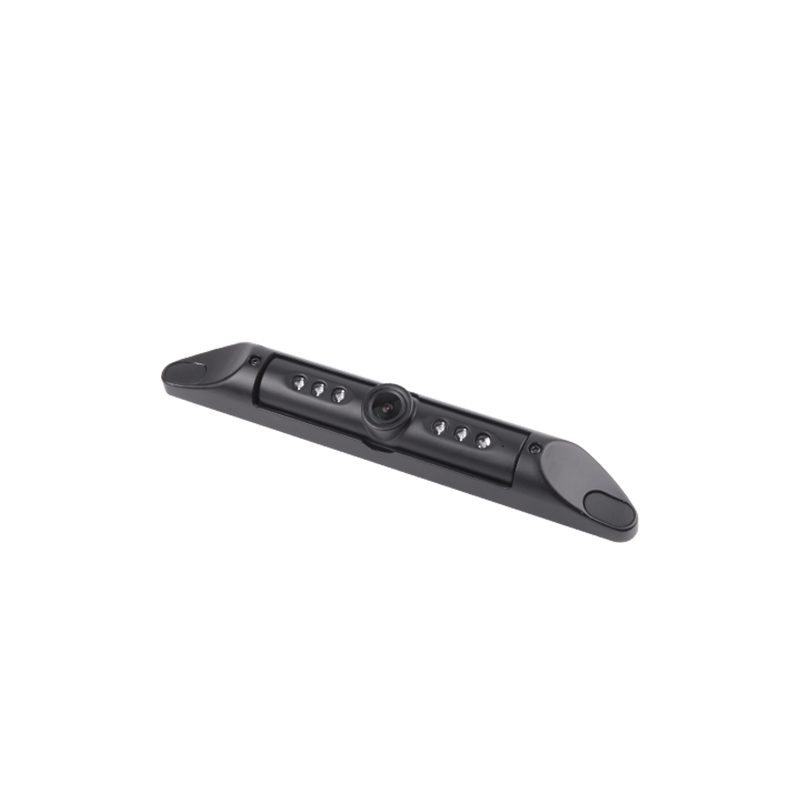

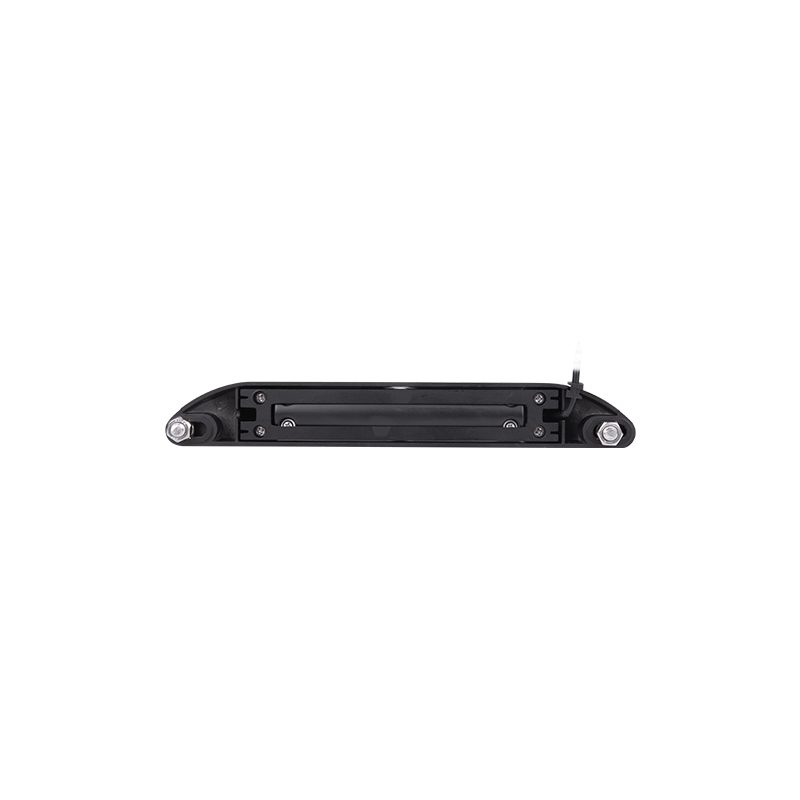

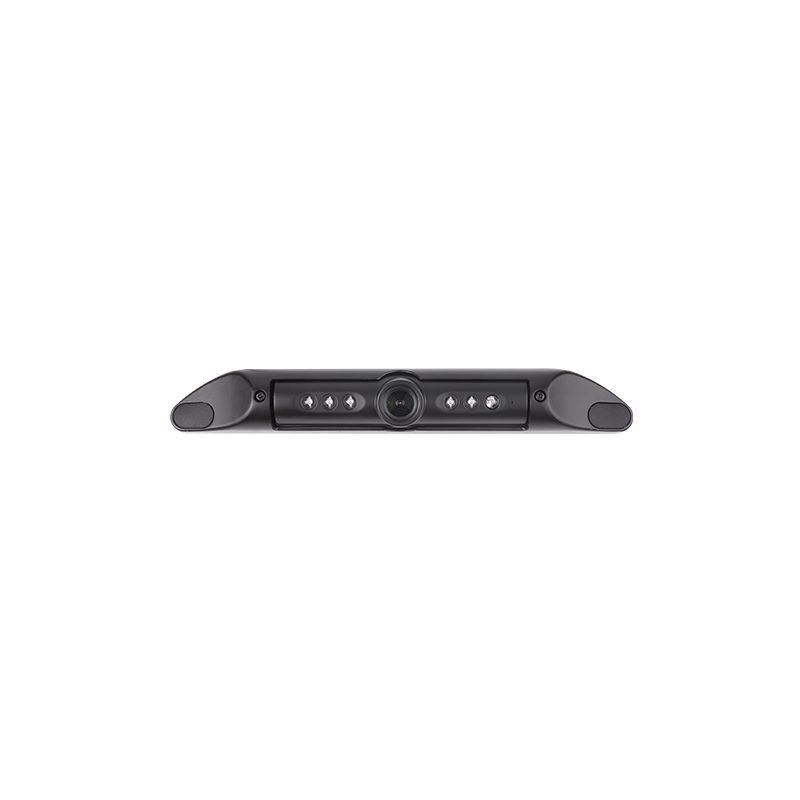

JY-022A license plate camera with IP69K and wide view angle

Backup camera is a universal equipment for car recently. But for old car, is it possible to install backup camera too ? The answer is yes, Luview offer latest Sony ccd sensor IP69K 700 TVL backup camera that can installed on the license plate, simply remove the license plate, and replace it with Sony ccd sensor license plate backup camera, and connect the backup camera with wires to the monitor mounted on the dashboard or connect to your cellphone screen by WiFi . It is so easy !

Product Features

JY-022A is a large wide-angle license plate camera with a viewing angle of 150°. It can provide the driver with a wide field of vision, fully understand the blind spot of the rear view of the car, and help the car driver to drive more intuitively and safely. The camera’s waterproof rating is IP69K, and it has undergone strict immersion and other waterproof tests before leaving the factory. It has stable performance and can play a good auxiliary role in rain and fog.

  • Super wide viewing angle(150°)
  • Waterproof grade IP69K
  • With night vision function
  • Support mirror switch and scale control function

Technical Specifications

Image Sensor 1/3 CMOS
TV SystemNTSC/PAL
Effective Pixels728(H)*488(V)
Sensing Area4.623mm*3.611mm
Sync. SystemInternal
Resolution600 TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty5PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens1.7mm
Lens Angle150°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
