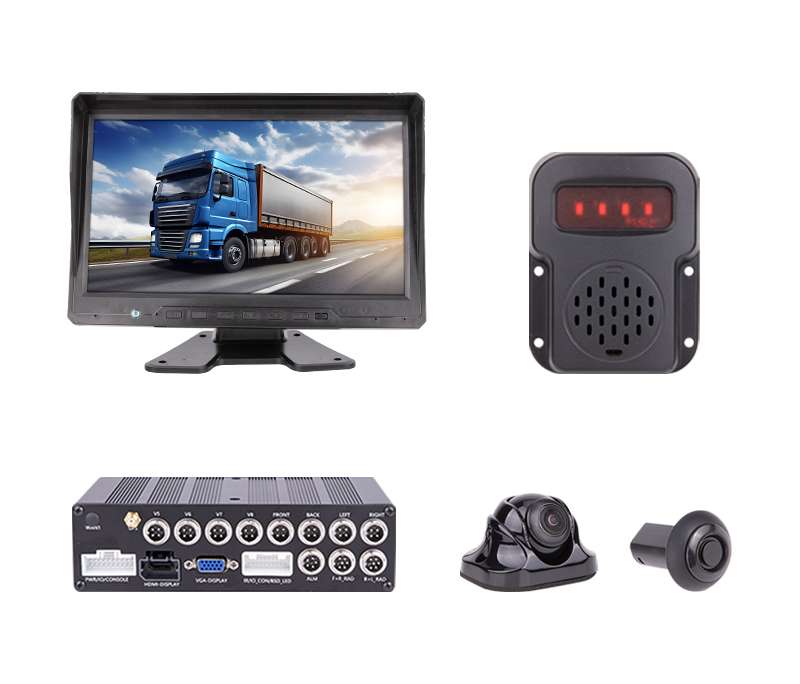

JY-FV04 360 degree panoramic radar surveillance

system with intelligent AI alert

Product Features

Due to the large size and high driving position of construction, agricultural, and tank trucks, significant blind spots often occur, making single cameras or traditional rearview systems inadequate. The LUVIEW JY-FV04 solves this issue by combining 360-degree imaging with advanced AI technology for comprehensive safety monitoring. It features four 210-degree high-definition fisheye cameras and supports 8-channel 1080P AHD cameras—four for panoramic stitching and four for independent viewing. AI algorithms provide real-time detection and alerts, while the optional four-direction 16-sensor ultrasonic radar enhances blind spot detection, lane change assistance, and parking support, significantly improving driving safety.

  • High-definition fisheye lens with a horizontal angle of 210 degrees
  • 8-channel 1080P AHD camera input (4-channel stitching + 4-channel monitoring)
  • Support AHD (optional) / CVBS / HDMI / VGA video output
  • Support one-click calibration stitching
  • Support USB drive and SD card recording, with a maximum support for 512GB memory card (SD card prioritized). Supports 2.5-inch HDD or SSD storage via SATA interface. Capacity ranges from 128GB to 2TB.
  • Wide voltage design of DC12-36V, with surge protection, reverse polarity protection, low voltage protection, and short-circuit overload protection
  • Support AI visual warning function, supports ultrasonic radar with 16 probes in four directions (optional)
  • Support vehicle blind spot detection (BSD) + lane change assist (LCA) + parking assist function

Technical Specifications

Main Control Solution HiSilicon
Radar Four-Direction 16-Sensor
AI Alert People + Vehicles
Storage U-Disk and SD Card Recording, supporting up to 512GB SD Cards. SATA interface for 2.5 inch HDD or SSD storage, with capacities ranging from 128GB to 2TB.U
USB USB2.0 Host
Remote Control Method 433MHz wireless remote control
GPS Support (external antenna)
Video Input AHD 1920*1080P
Video Output DC 12-36V
Maximum Power Consumption of Main Host 30W
Camera Resolution AHD 1080P (IP68 waterproof rating)
Camera Power Parameters Voltage DC 8-16V, Power Consumption 0.5-1W
Radar Detection Range Detection distance of 2.5 meters in all four directions, 0.3 meters when the vehicle is off
Radar Power Parameters Supply Voltage DC 12-33V, Maximum Power Consumption 0.2W
Normal Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +80°C
