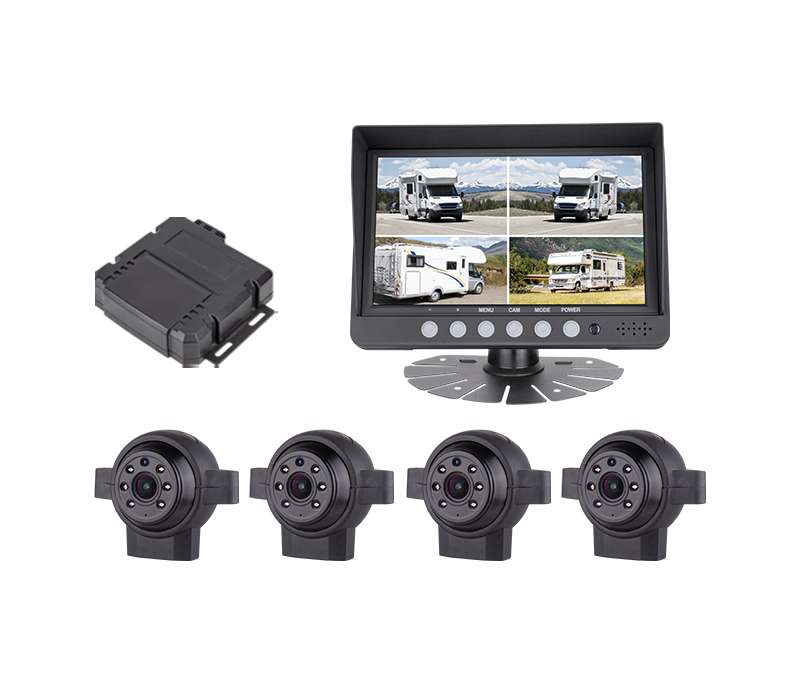

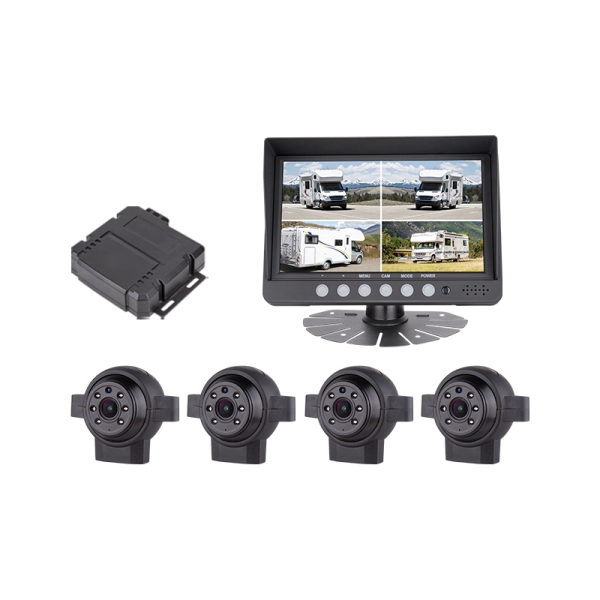

JY-BV360 360 degree panoramic image surround view backup camera system

Product Features

The system implements real-time splicing and synthesis processing by installing 4 fisheye cameras on the vehicle and using software algorithms to realize vehicle visual effects and three-dimensional surround view panoramic images. Effectively improve the safety and convenience of driving in various parking and narrow lanes.

  • 360°panoramic view
  • 8 perspective display
  • With Parking monitoring
  • With Video function

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective Pixels968(H)*488(V)
Sensing Area6.2um*7.4um
Sync. SystemInternal
Resolution700 TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty6PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.3mm
Lens Angle150°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
