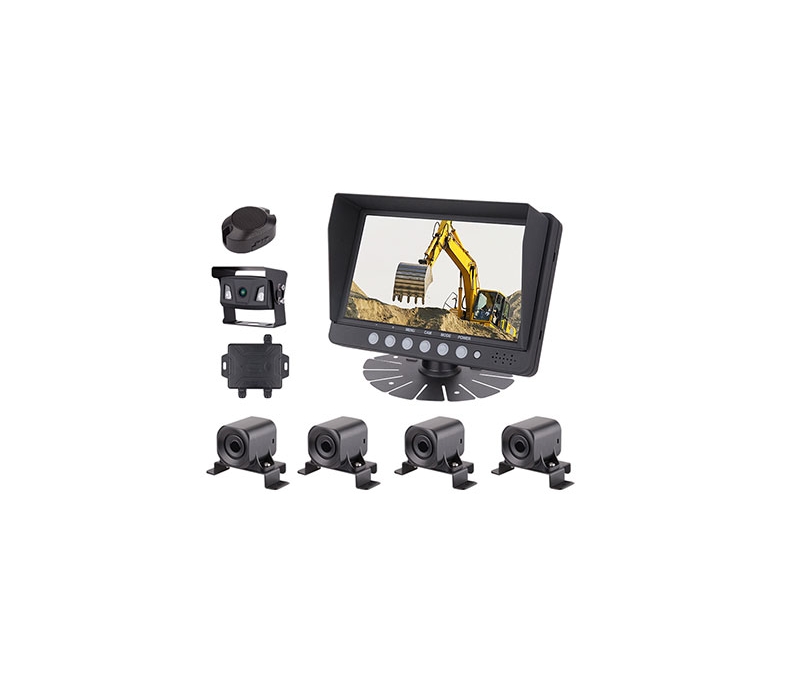

JY-PT01 parking radar sensor system with backup camera, monitor and CVBS signals input
Product Features
JY-PT01 parking radar sensor system with backup camera, monitor and CVBS signals input, without ECU. This product is a new generation of host digital radar system, when vehicle reversing radar system began to work, ultrasonic probe obstacle distance and azimuth data transmission via a serial port to host boxes, boxes to radar signal and video signal is superimposed display to display, the display shows the obstacles and location information of the image and drive buzzer alarm, thereby ensuring safe parking.
- Adopt wide voltage power supply
- High precision distance detection
- Use the method of serial communication
- Signal format supports AHD/TVI/CVI/CVBS
- Dust proof and waterproof grade are IP67
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 800（W）* R.G.B * 480(H) |
| TV System | PAL/NTSC/AUTO |
| Brightness | 300cd/㎡ |
| Contrast | 400:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:40°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Four channel video input, one channel audio |
| Reverse Function | Four way back (ruler setting function) |
| Reversing Delayed | 0-20s |
| Scale Function | Four scale ruler and automatic ruler switch |
| Power Supply | 9/36V,DC/<5W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
