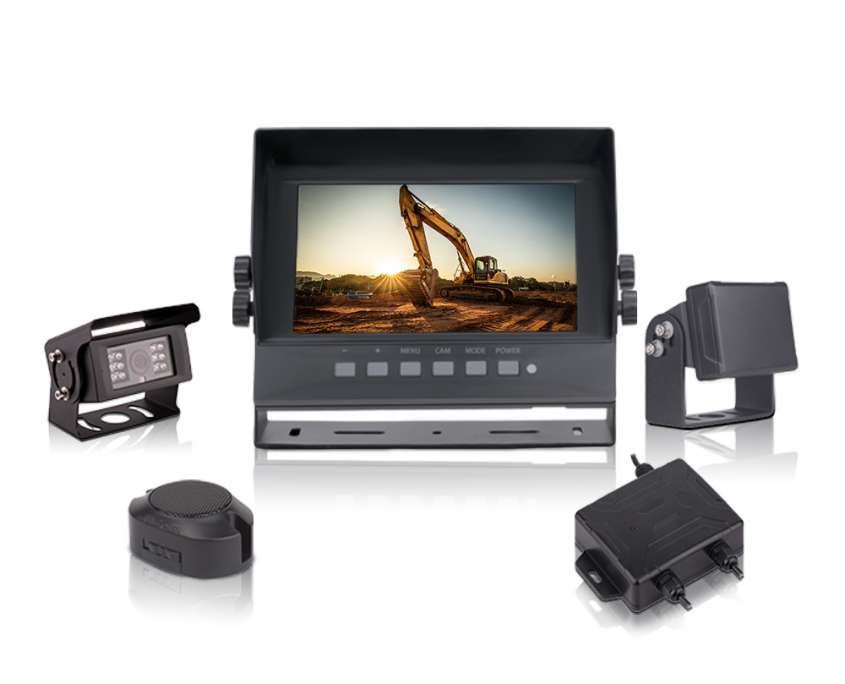

JY-PT09+JY-M750+JY-6731 24GHZ AI Camera Millimeter Microwave Blind Spot Proximity Warning & Alert Systems
Product Features
The JY-PT09+JY-M750+JY-6731 system is a newly designed radar system that uses a short-range K-band millimeter-wave radar sensor system to monitor a distance of approximately 30 meters. It uses FMCW mode to accurately detect the distance, speed, and angle of moving targets with high ranging and speed measurement accuracy. The millimeter reversing radar system resolves the problem of blind spots in vehicles, enhancing vehicle safety and reducing the risk of blind spot collisions.
- High-precision range detection
- With wide voltage power supply
- Radar uses CAN interface to communicate
- Dustproof and waterproof grade is IP67
Technical Specifications
| Product | Radar main box |
| Operating Voltage | 12-24V |
| Operating Current | 210mA/12V |
| Video Signal type | AHD 720P |
| Signal Standards | NTSC/PAL |
| Operating Temperature | -20℃-70℃ |
| Operating Humidity | RH50%～95% |
| Storage Temperature | -40℃-85℃ |
| Product | Radar sensor |
| Transmission frequency | 24.00-24.20GHz |
| Transmission power | 20dBm |
| Update rate | 20Hz |
| Power consumption | 1.8W MAX @12V DC 25℃ |
| Distance measuring range | Passenger cars 0.1-30m, pedestrians 0.1-15m |
| Operating Voltage | 12-24V |
| Operating Temperature | -40℃-85℃ |
| Storage Temperature | -40℃-95℃ |
| Maximum Operating Current | Max：200mA@12V DC |
| Detection Angle | Horizontal degrees: 56, vertical degrees:40 |
| Installation height | 40-150cm |
| Distance accuracy | 0.1m |
