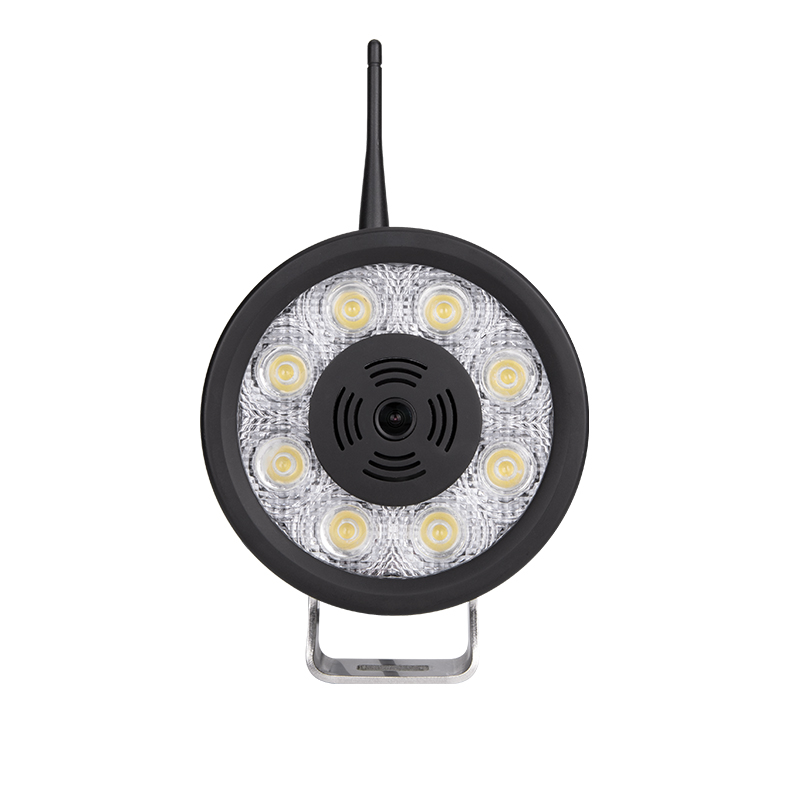

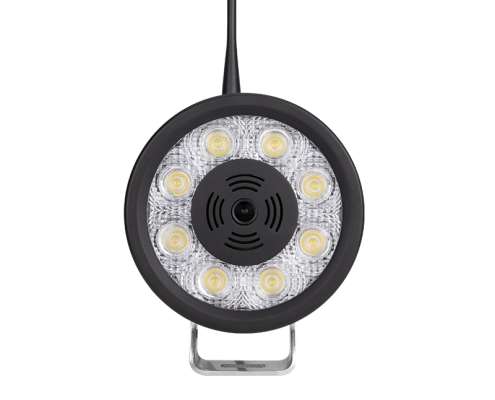

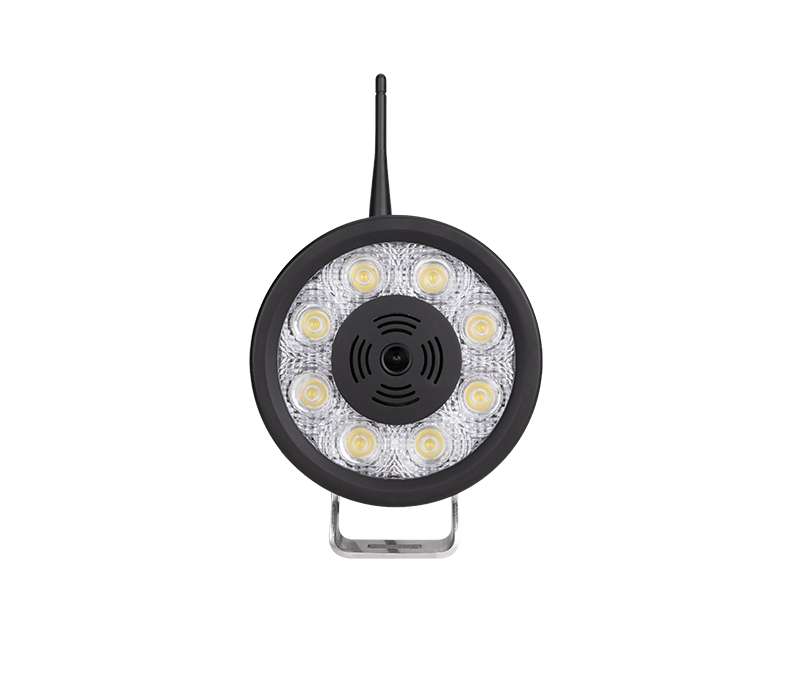

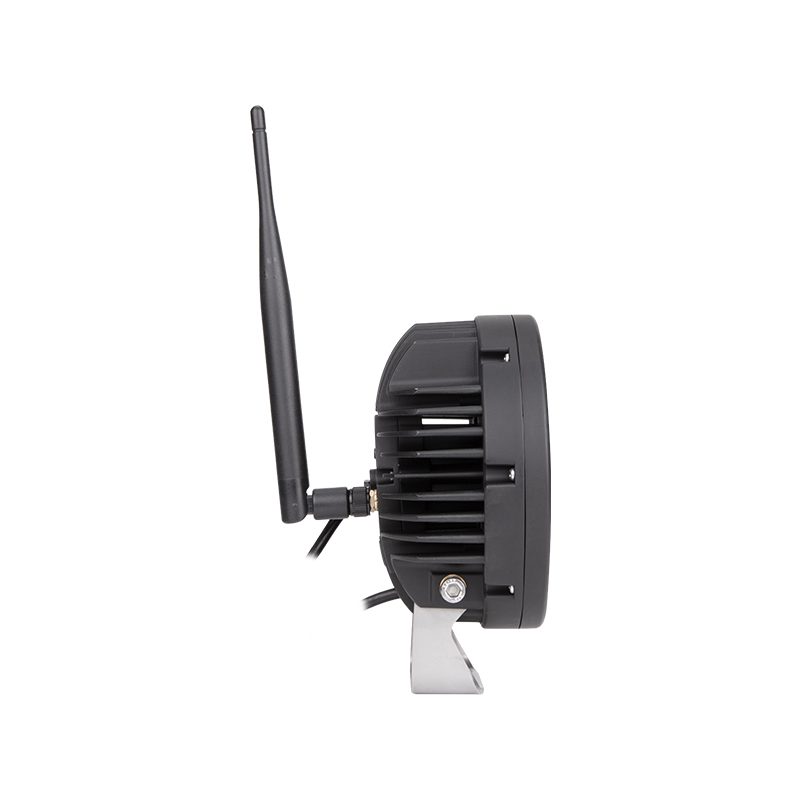

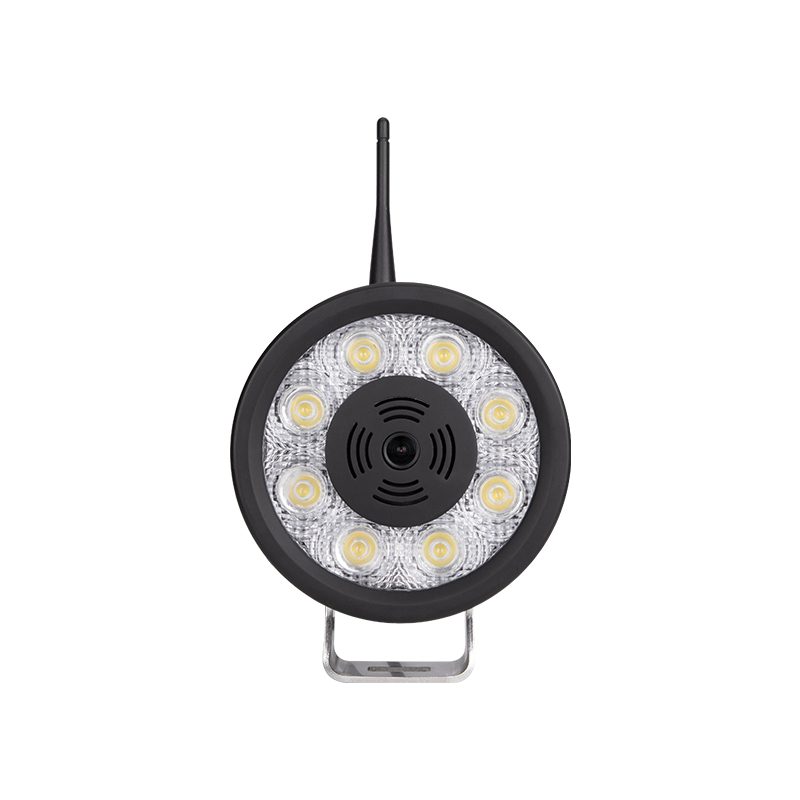

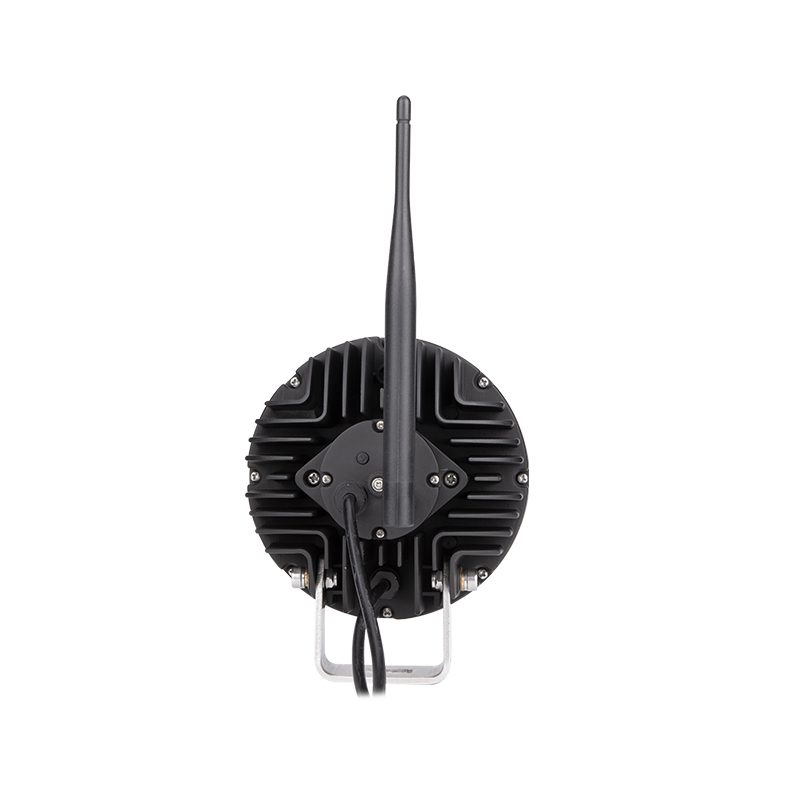

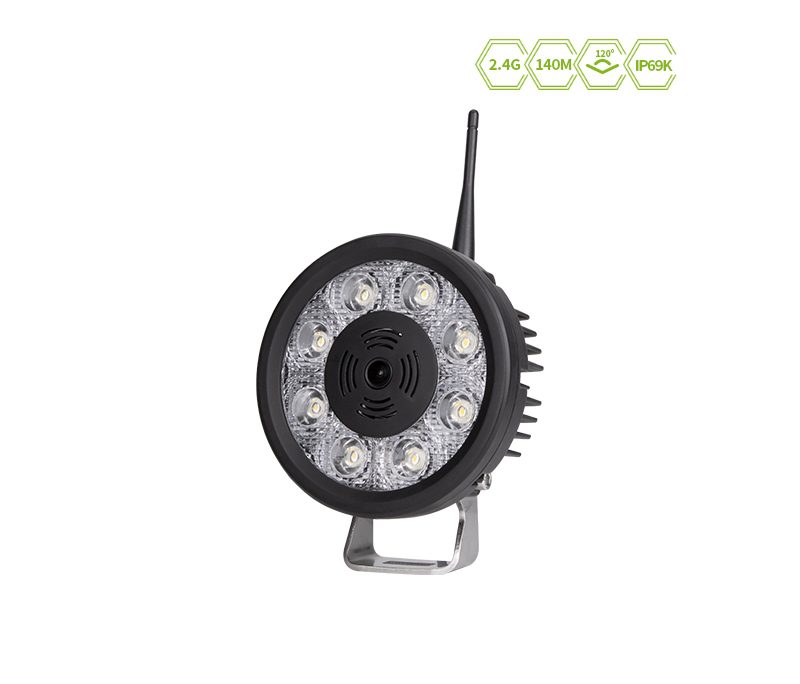

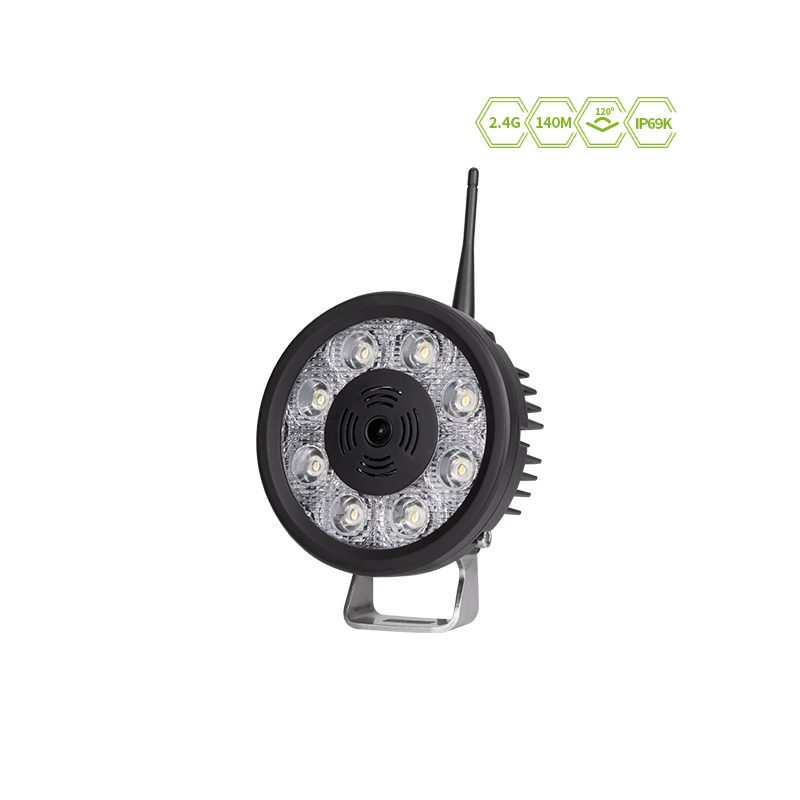

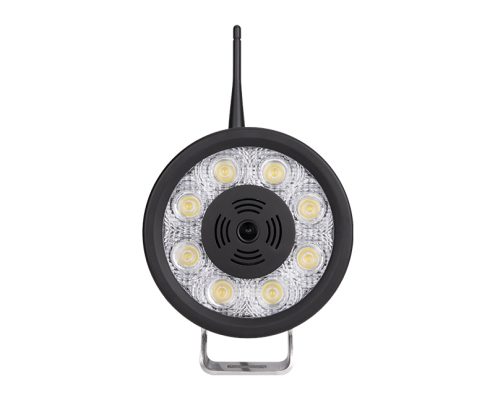

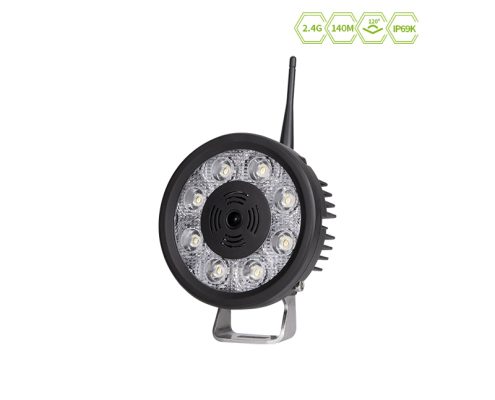

JY-WLC-LB3 wireless 720P HD IP69K round LED headlight working light camera with 2.4GHz transmission

Product Features

LUVIEW JY-WLC-LB3, equipped with a 1/2.9-inch CMOS sensor, is a wireless 720P work light camera ideal for construction sites, agricultural machinery, mining, and industrial applications. Supporting a voltage input range of 12V to 24V, it ensures stability in diverse work settings. Enhanced by white LED full-color night vision, it captures clear monitoring images in low-light conditions. With the utilization of 2.4GHz wireless technology, the camera enables video signal transmission of up to 140 meters in open areas. With its IP69K waterproof rating, it guarantees reliability in challenging weather and work conditions. The JY-WLC-LB3 provides the flexibility of magnetic or non-magnetic installation options to meet different requirements.

  • Equipped with a 1/2.9-inch CMOS sensor, supports wireless 720P high-definition video with 2.4GHz digital technology
  • Wide voltage design, supports 12V-24V voltage input
  • White LED full-color night vision for enhanced visibility in low-light conditions
  • Utilizes 2.4GHz wireless technology for video signal transmission, achieving a transmission distance of up to 140 meters in open areas
  • Waterproof grade IP69K
  • You can choose to take a magnet with no magnet by default

Technical Specifications

Image Sensor 1/2.9 GC2053
TV System NTSC/PAL
Effective Pixels 1280(H)ⅹ960(V)
Sensing Area 2.8μmX2.8μm
Sync. System Internal
Resolution 130W
Minimum Illumination 0.1 Lux
Microphone Optional
IR LED Qty white light*8PCS
Light angle 120°
Night vision distance 30-50m
Microphone NO
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 43dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Lens 1.98mm
Lens Angle H:110° V:80° D:125°
LED lamp plate voltage DC12-24V
LED lamp board power 18W
Luminous flux / lumen 1154/lm
Color temperature 6500K
Lens material PC
Power Supply DC12V
Current Drain 145mA±20mA (day)/1.6A±0.2A(night vision)
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
