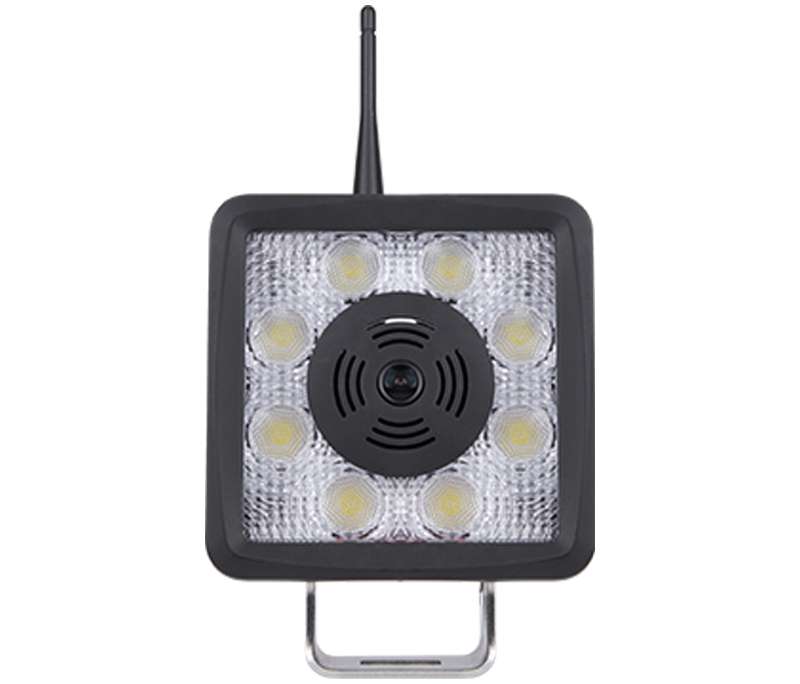

JY-WLC-LB4 wireless HD waterproof square LED working light camera for agricultural machine vehicle

Product Features

This LUVIEW working light camera features a high-performance 1/2.9CMOS sensor, enabling wireless 720P HD video transmission through a 2.4GHz digital signal. With its impressive White Light LED full-color night vision capability, your work environment will be brilliantly illuminated, even during the darkest nights. This camera supports wireless 2.4GHz video signal transmission, offering an exceptional range of 140 meters in open areas. Maintain a clear line of sight to your equipment without worries, even in vast fields.

  • Equipped with a 1/2.9-inch CMOS sensor, supports wireless 720P high-definition video with 2.4GHz digital technology
  • Wide voltage design, supports 12V-24V voltage input
  • White LED full-color night vision for enhanced visibility in low-light conditions
  • Utilizes 2.4GHz wireless technology for video signal transmission, achieving a transmission distance of up to 140 meters in open areas
  • Waterproof grade IP69K
  • You can choose to take a magnet with no magnet by default

Technical Specifications

Image Sensor 1/2.9 GC2053
TV System NTSC/PAL
Effective Pixels 1280(H)ⅹ960(V)
Sensing Area 2.8μmX2.8μm
Sync. System Internal
Resolution 130W
Minimum Illumination 0.1 Lux
Microphone Optional
IR LED Qty white light*8PCS
Light angle 120°
Night vision distance 30-50m
Microphone NO
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 43dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Lens 1.98mm
Lens Angle H:110° V:80° D:125°
LED lamp plate voltage DC12-24V
LED lamp board power 18W
Luminous flux / lumen 1154/lm
Color temperature 6500K
Lens material PC
Power Supply DC12V
Current Drain 145mA±20mA (day)/1.6A±0.2A(night vision)
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
