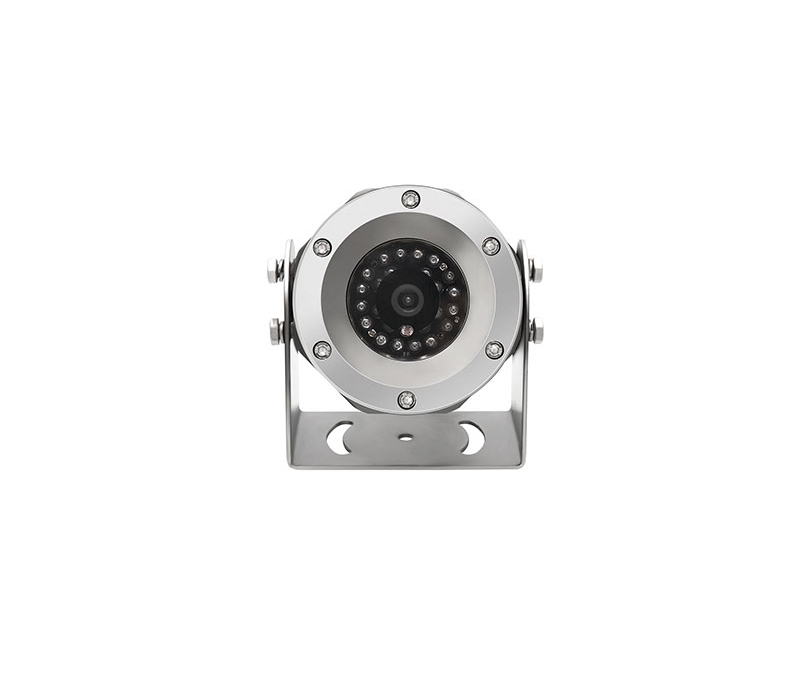

JY-EX01 explosion-proof camera with stainless steel 304 housing and infrared LEDS

Product Features

The Luview JY-EX01 explosion-proof camera is an innovative device, equipped with a special anti-vibration and explosion protection system to operate safely in hazardous environments. Its strong stainless steel 304 shell ensures excellent thermal conductivity while the built-in infrared light automatically switches on when it gets dark for stable image quality without any focus shift. The highly luminous window glass adds extra durability against water, dust and oil – making this cutting edge camera perfect for use at fuel tankers, fire trucks or coal mines as well as military operations!

  • With night vision function
  • Support mirror switching
  • Waterproof and explosion-proof
  • Supporting IR-CUT switching to realize day and night monitoring

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)*488(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 700 TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone NO
IR LED Qty 18PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 3.6mm
Lens Angle 85°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
