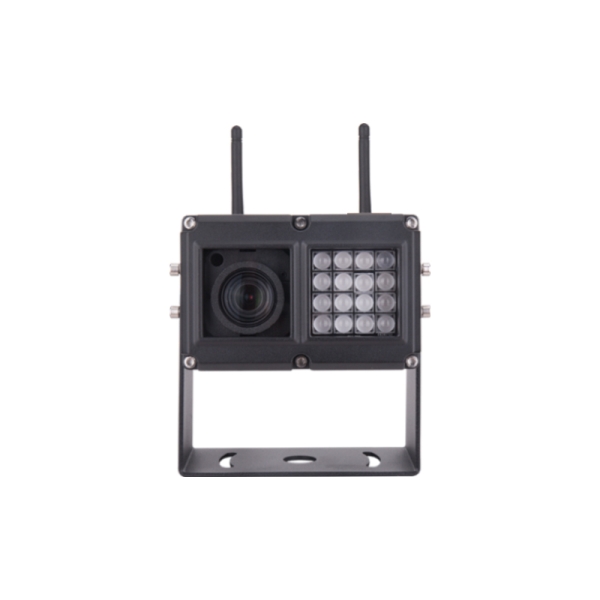

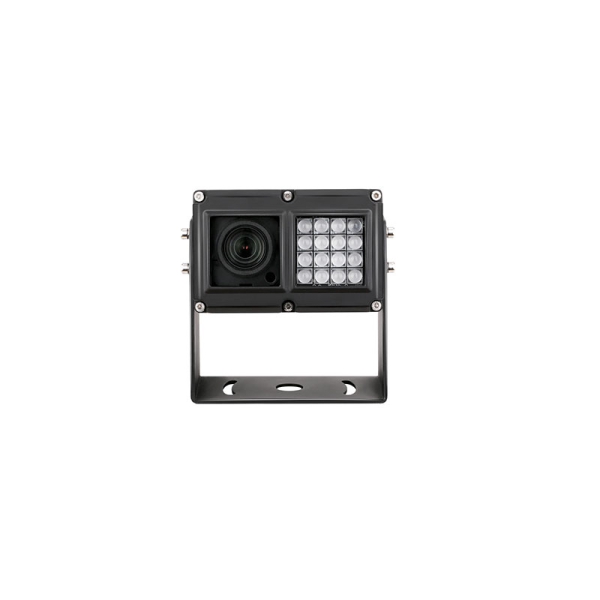

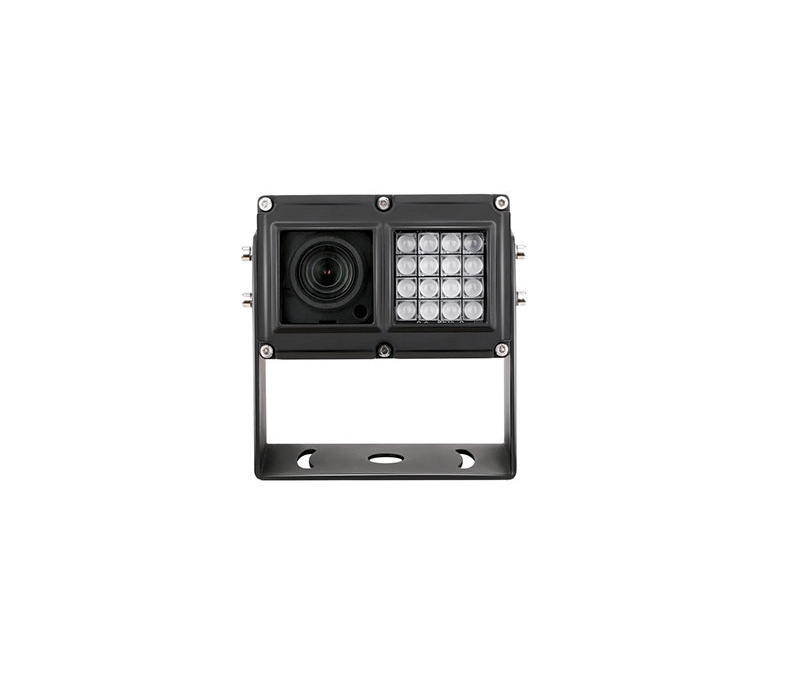

JY-679 IP68 tower crane zoom camera with wireless focus control
Product Features
There are many tower cranes on the construction site, and there is a risk of cross collision when these tower cranes are working at the same time, JY-679 tower crane camera can greatly reduce the accident rate. This camera uses original SMD infrared lamps and high-transmittance imported cup lamps to ensure an infrared projection distance of 30-50 meters. The product is equipped with intelligent infrared control technology, which can automatically control the infrared lamp according to the use environment. Under the premise of ensuring the monitoring effect, it can effectively increase the service life of the infrared lamp and ensure the stability of the product.
- Waterproof IP68
- Wireless focus control
- Constant current circuit design
- Intelligent infrared control technology
- High efficiency heat dissipation structure
- High performance 1.3Megapixel sensor of ON
Technical Specifications
| Image Sensor | 1/3 AR0130 |
| TV System | NTSC/PAL |
| Effective Pixels | 1280(H)×960(V) |
| Sensing Area | 3.75μm |
| Sync. System | Internal |
| Resolution | 1.3 mega pixels |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | NO |
| IR LED Qty | 15PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | PAL:1/25~1/10000s NTSC:1/30~1/12000s |
| Backlight Compensation | AUTO |
| Focal length | 5~90mm |
| Optical zoom | 18-fold |
| Focusing | Manual/automatic |
| Signal output | AHD 960P/default setting CVBS | Infrared range | 30-50M | Infrared lamp power | 3.6W | Infrared open mode | Low illumination 0.1Lux on | Power Supply | 12V | Power Dissipation | 12W |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
