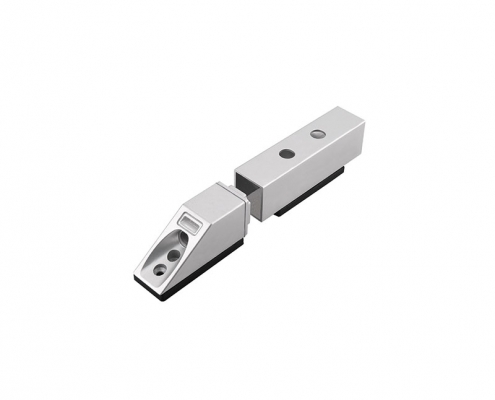

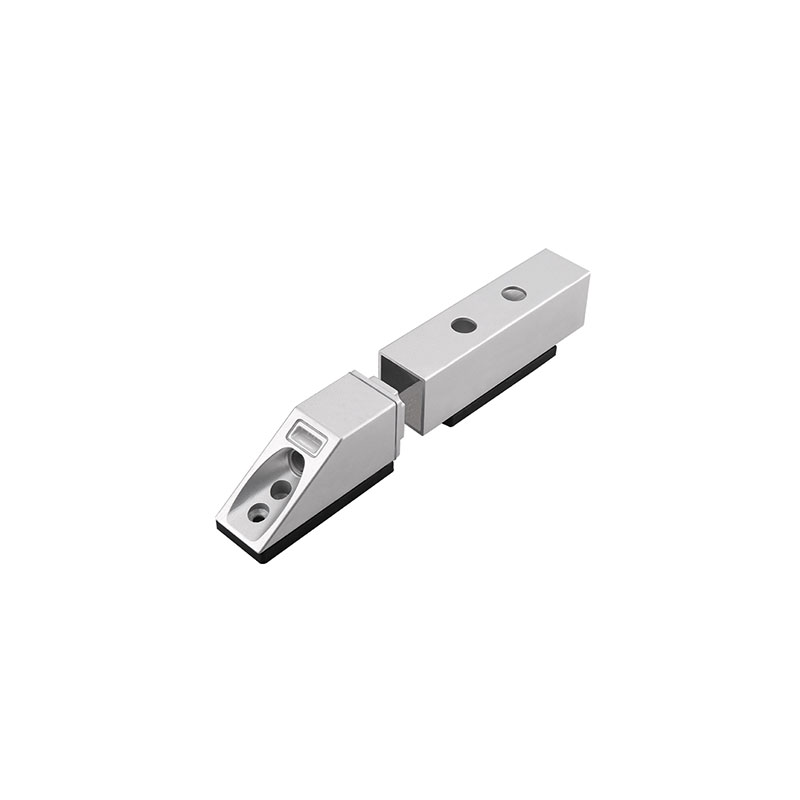

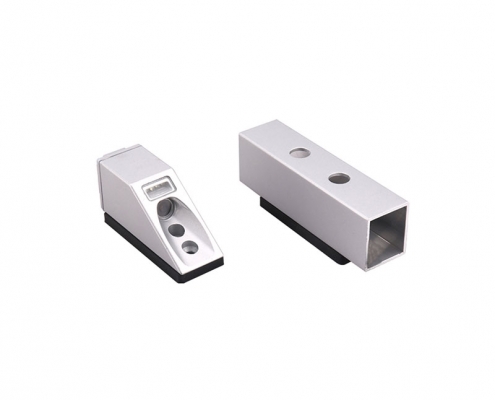

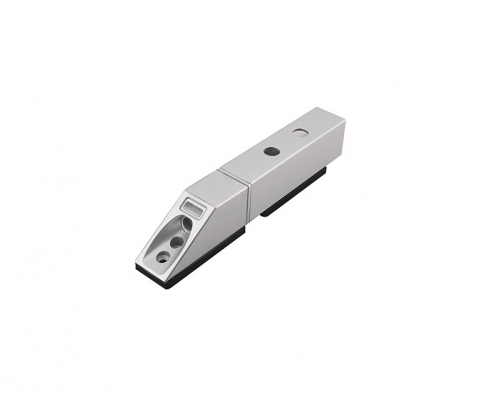

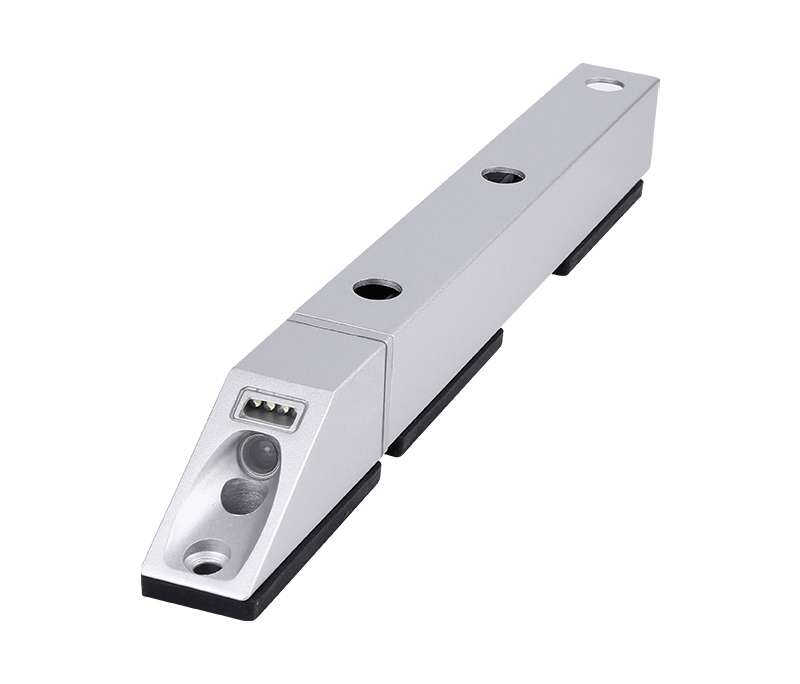

JY-F2 special designed IP69K forklift camera with CMOS sensor

Product Features

Forklifts are widely used and have a certain degree of risk. When the forklifts frequently and quickly pick up goods, the size and height of the goods are different, which makes it difficult for the driver to determine the position of the forks. The Luview forklift camera can display clear images of the fork position and the surrounding area, providing the driver with more field of view, reducing blind areas during operation, improving work efficiency and increasing safety factor.

  • Support mirror switch
  • Tape transfer function
  • Waterproof grade IP69K
  • With tail tube, magnet mounting

Technical Specifications

Image Sensor 1/3 CMOS
TV SystemNTSC/PAL
Effective Pixels968(H)*488(V)
Sensing Area4.880mm*3.670mm
Sync. SystemInternal
Resolution700 TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneNO
IR LED Qtywhite light 4 PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens5.68mm
Lens Angle53°
Current Drain70±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
