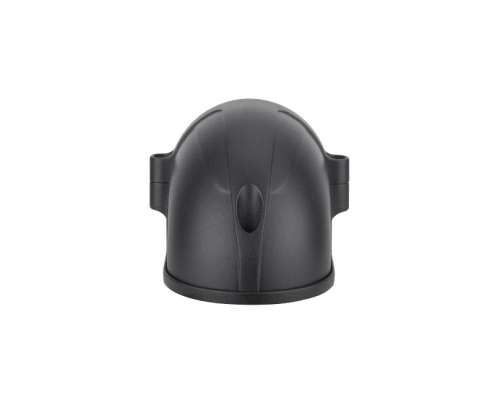

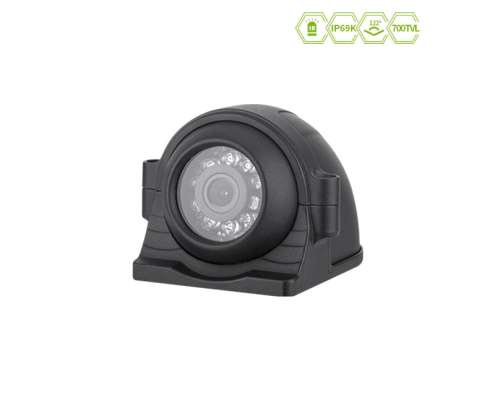

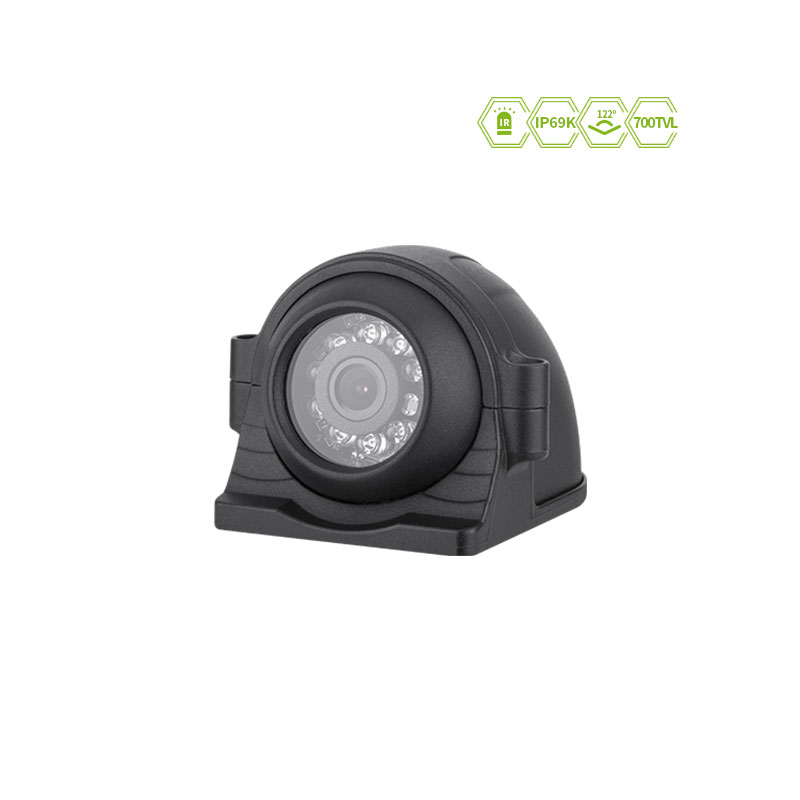

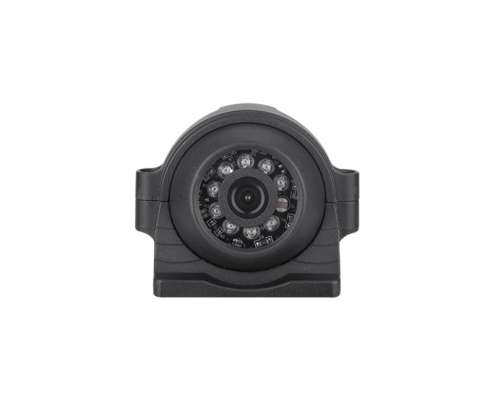

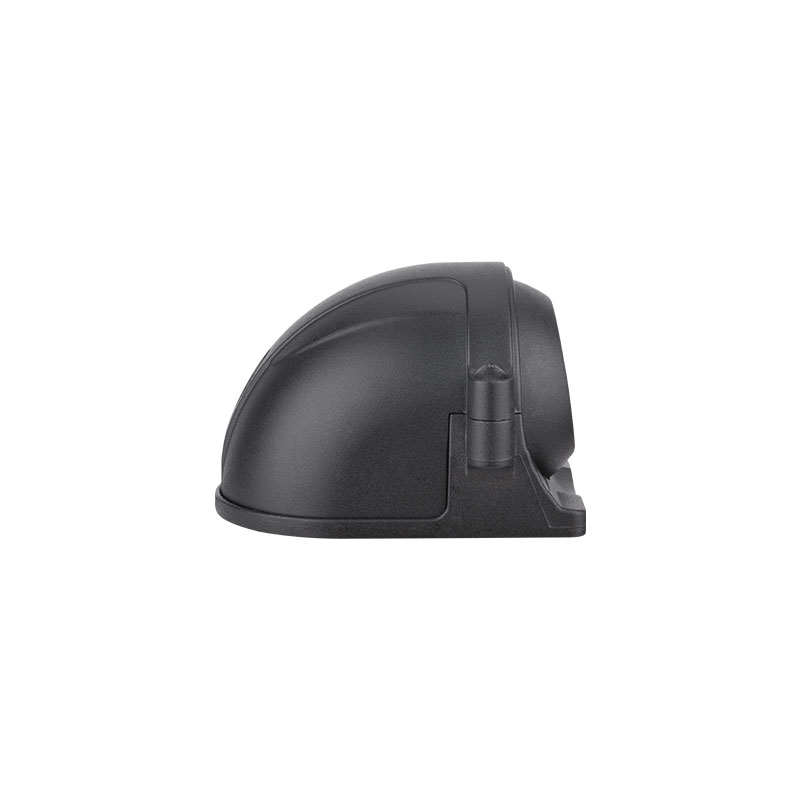

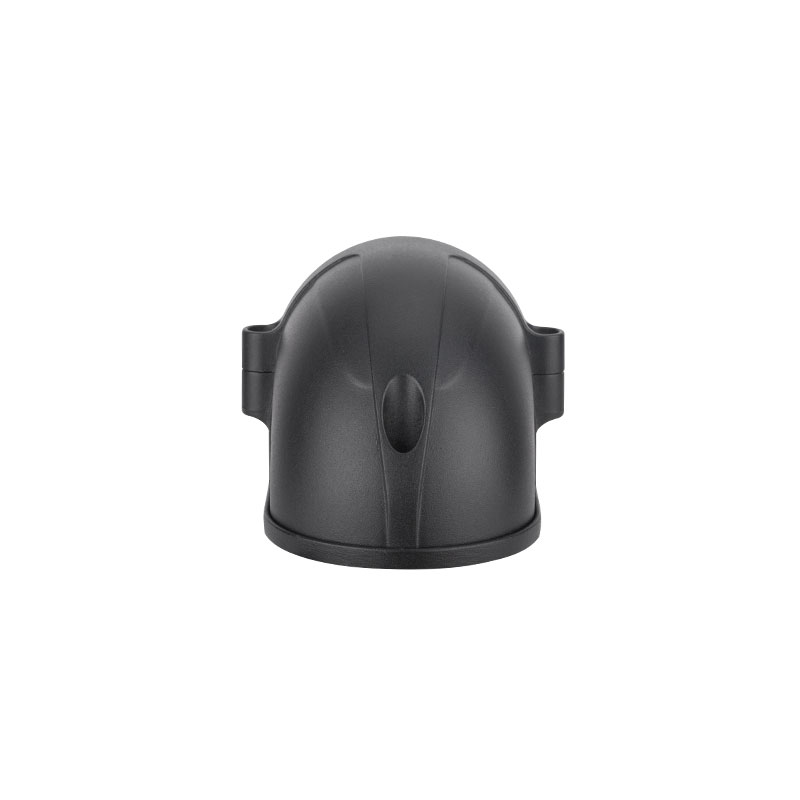

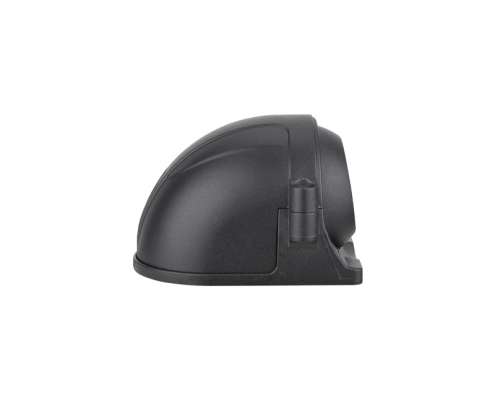

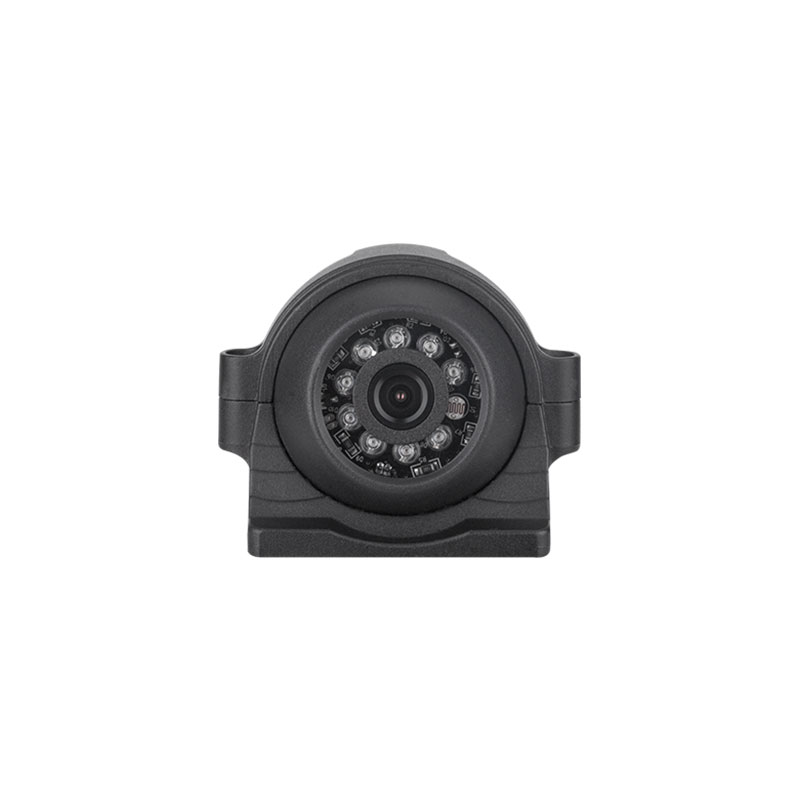

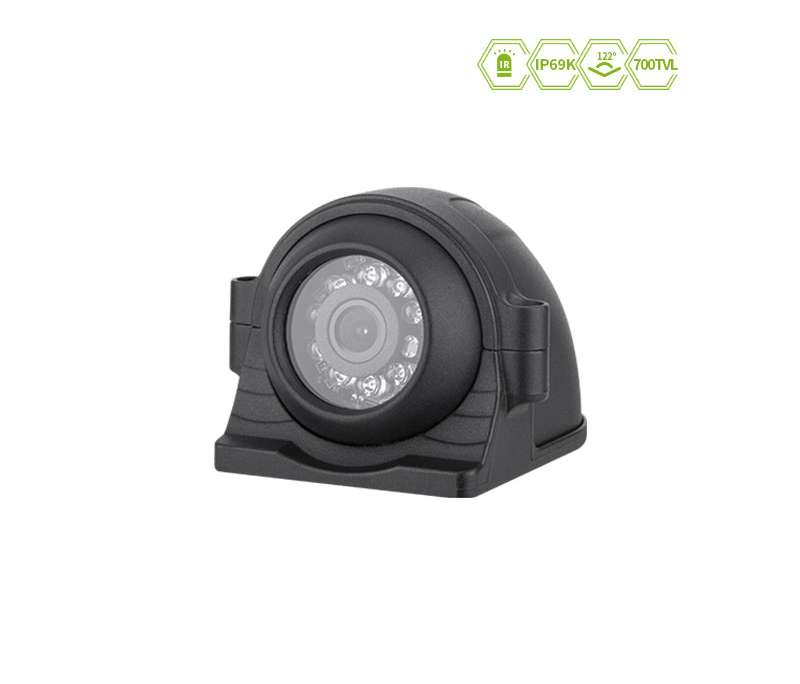

JY-688 IP68 side view camera with starlight image and night vision
Product Features
The Luview JY-688 IP68 starlight image and night vision side view camera standard with a viewing angle of 120 degrees and 700 TV lines, which ensures you to get good image quality with no blind spots. The 9 pieces infrared LEDs allow you to see up to 35 feet even in the darkest night. With an IP68 rating this camera will be fit to ride out even in rainy weather or other unexpected disaster. Come with aircraft grade cable connectors, these connector types can be specified by customers, suitable for truck, RV, long trailer, tractor usage. The sensor brand, image resolution, night vision distance, painting color, logo and package can be customized per customer’s requirements with small MOQ required.
- IP69K
- Support mirror switch
- Support ICR switching
- Infrared distance is 10 meters
- Support analog hd video 700 TVL
- With night vision function
Technical Specifications
| Image Sensor | 1/3 AHD |
| TV System | NTSC/PAL |
| Effective Pixels | 1280(H)×960(V) |
| Sensing Area | 3.75μm |
| Sync. System | Internal |
| Resolution | 1.3 mega pixels |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 8PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 102° |
| Current Drain | 70±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
