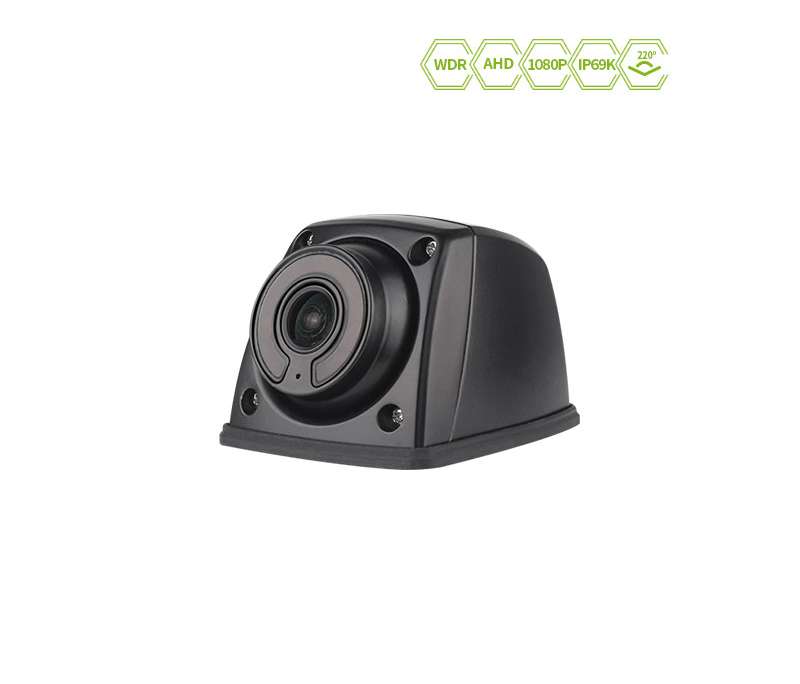

JY-831 960P WDR IP69K waterproof mini side view camera

Product Features

In today’s automotive environment, various forms of on-board cameras provide reliable monitoring solutions for safe driving. To make driving safer, we provide global retailers and wholesalers with high-quality waterproof car cameras to prevent accidents by creating a wide field of view. This JY-831 side-view camera uses a 1/3 CMOS wide dynamic module, supports analog high-definition video 130W/960P output, is suitable for various large vehicles, and can provide drivers with a clear and broad driving vision.

  • ultra wide angle 150 degrees
  • support analog hd video 700TVL
  • Waterproof grade IP69K
  • Support mirror switching and ruler control functions

Technical Specifications

Image Sensor1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective Pixels968(H)*488(V)
Sensing Area6.2um*7.4um
Sync. SystemInternal
Resolution700TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty6PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.3mm
Lens Angle150°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
