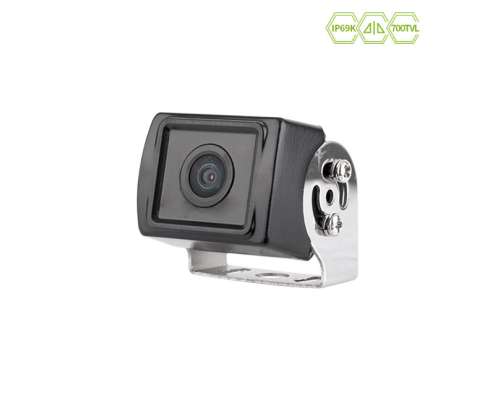

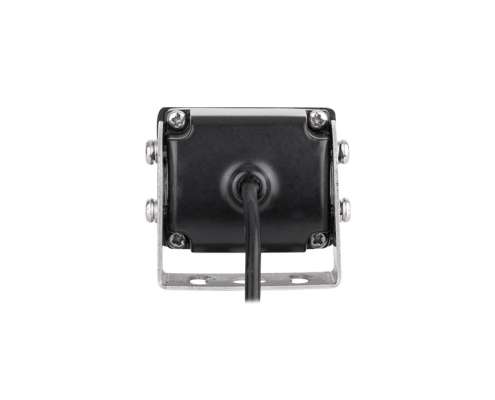

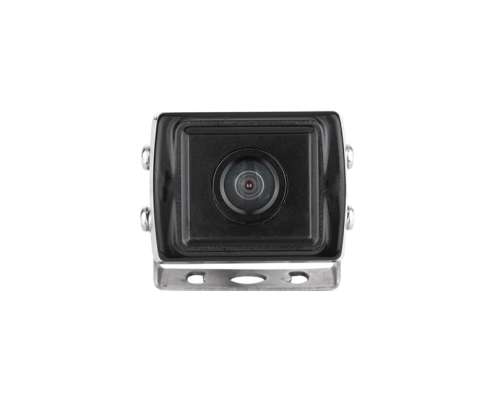

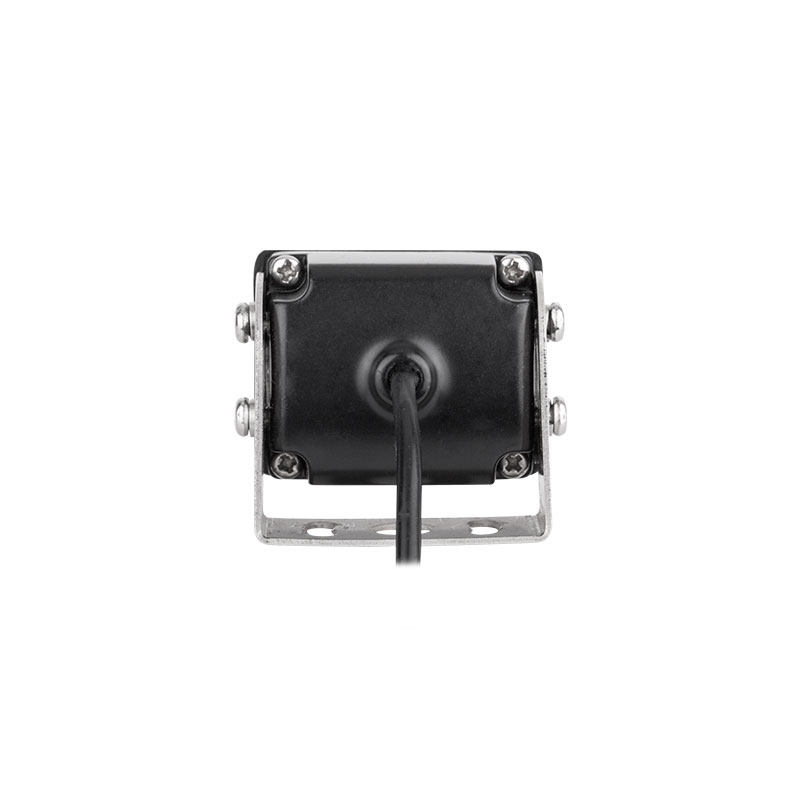

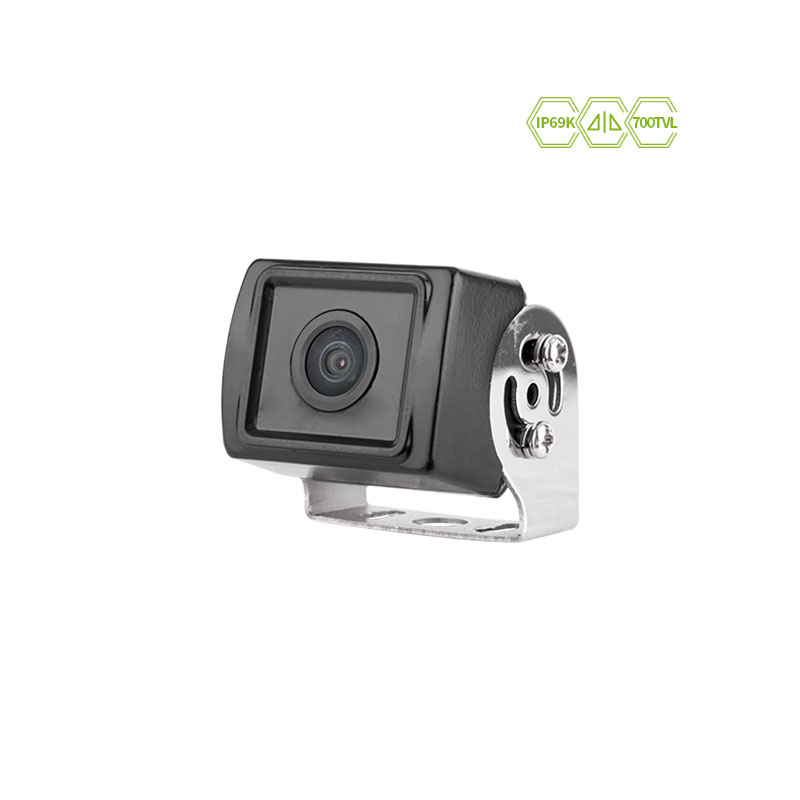

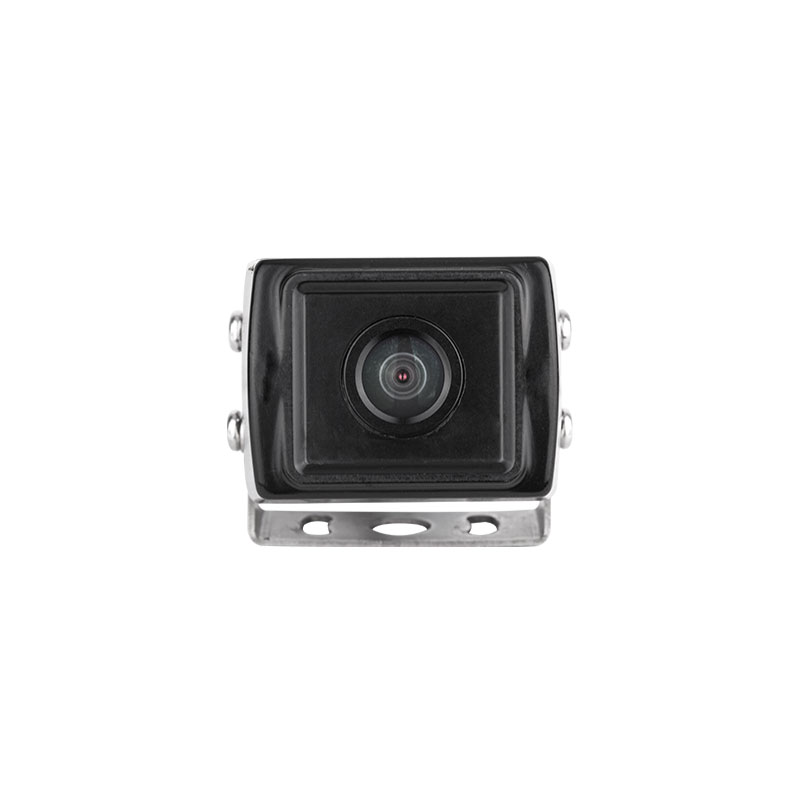

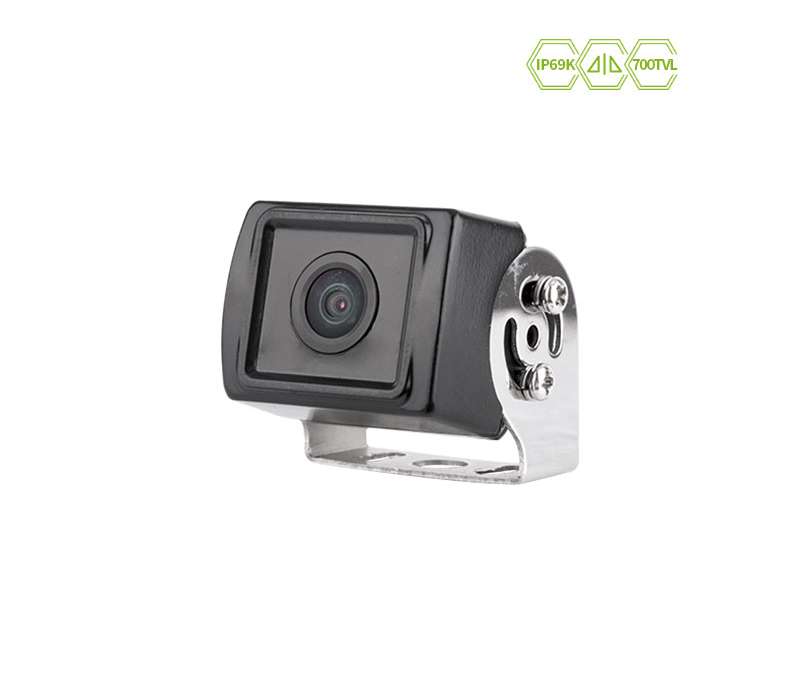

JY-365 600 TVL IP69K side view camera with stainless steel bracket
Product Features
JY-365 side view camera using 1/3 CMOS sensor, supports analog high-definition video 600TVL, with wide angle 135°. This camera is suitable for RVs, caravans, trailers, heavy trucks and construction vehicles, and can be installed behind and on both sides of the vehicles. The product has a wonderful appearance and texture. It comes with a polished stainless steel bracket. Every detail of the screw has been rigorously designed. It has passed E9/CE/FCC/ROHS and ATF and other authoritative certifications. LUVIEW can provide you with a free one-year warranty.
- IP69K
- 1.1/3CMOS sensor
- Tape transfer function
- support analog hd video 700TVL
Technical Specifications
| Image Sensor | 1/3 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 756(H)*504(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 600 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | NO |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.25mm |
| Lens Angle | 135° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
