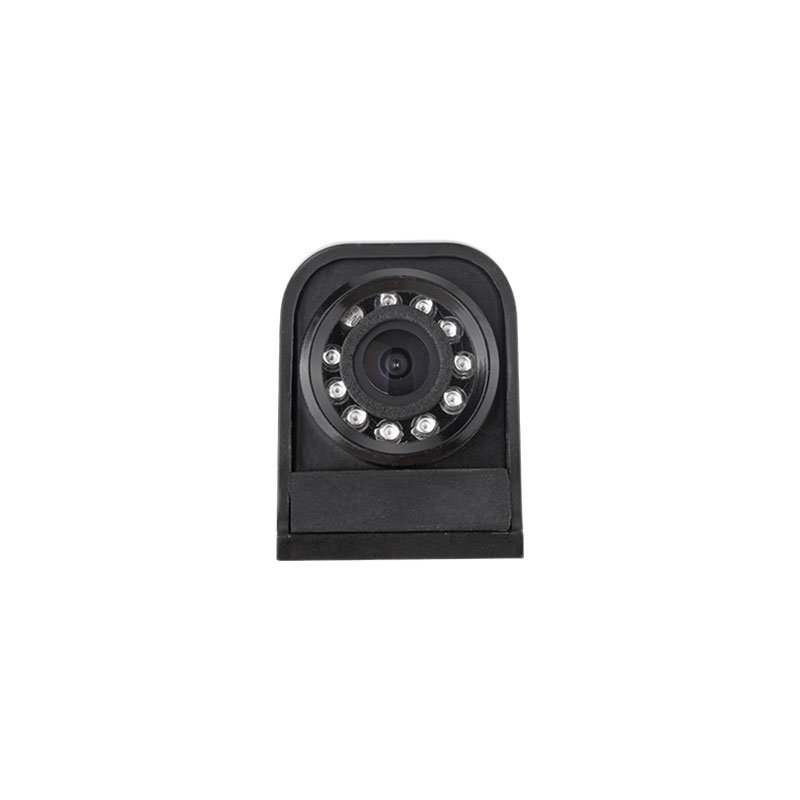

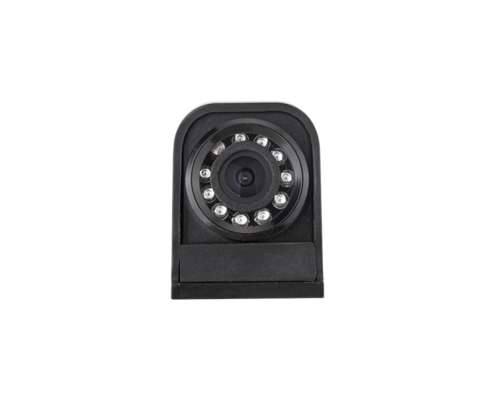

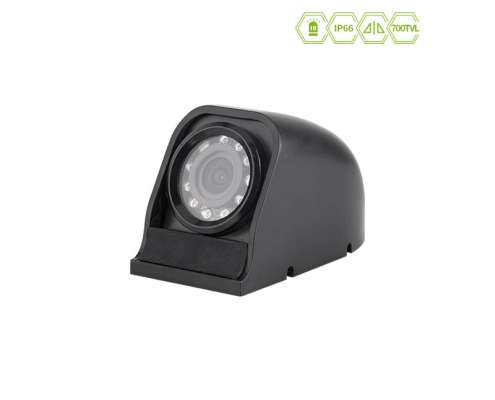

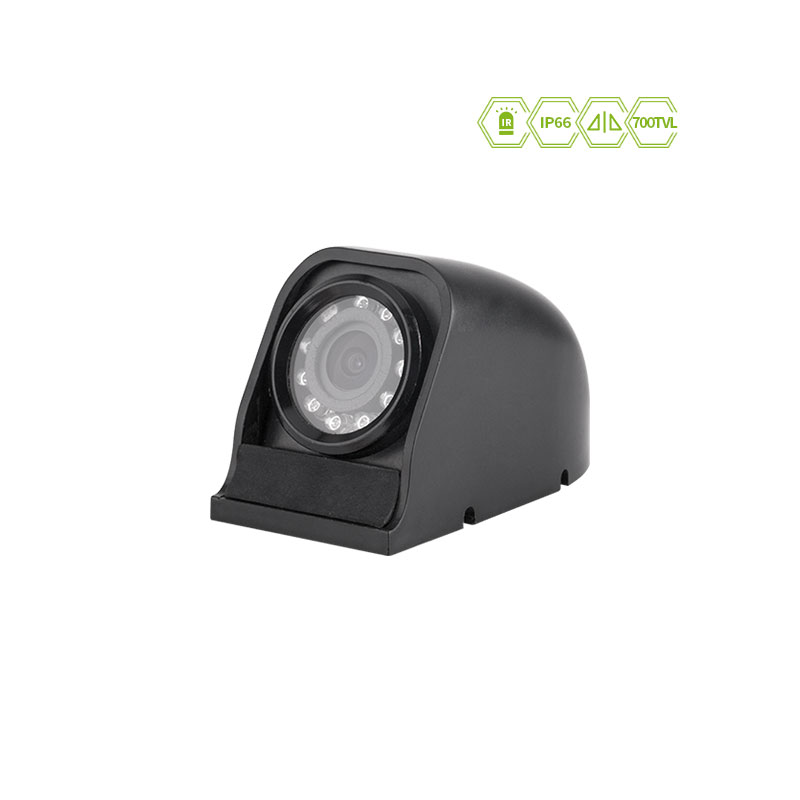

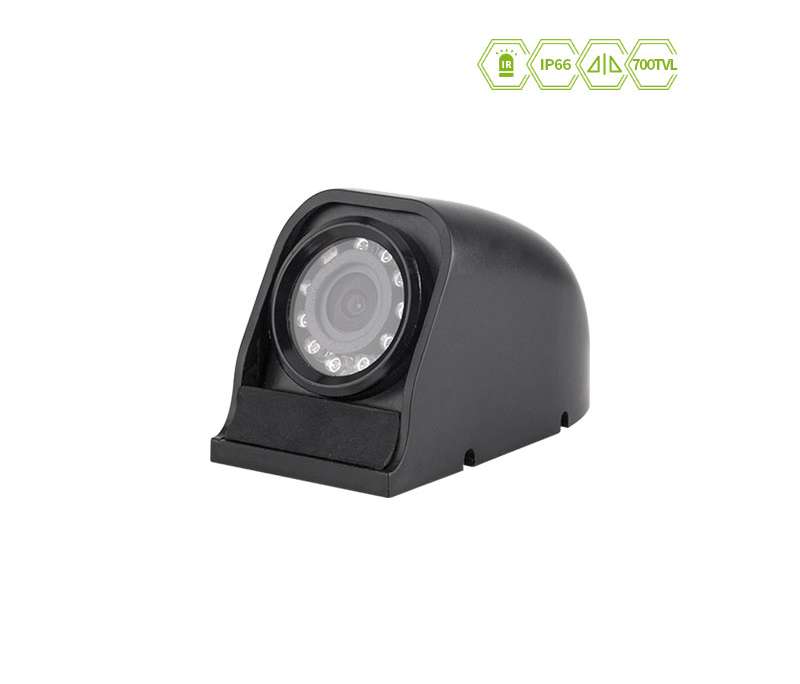

JY-681 IP66 side view camera for heavy duty vehicles with Infrared LEDs

Sony ccd sensor side view backup camera for truck, school bus, long trailer and other heavy duty vehicles from China manufacturer, free design custom brand, logo and package service available, usually 2 side view cameras forms a side view backup camera system, the 580TVL or 700TVL high resolution and strong night vision ability effectively avoid blind zone from large vehicle mirror to the back both in the day and night. They can match with most car monitors or mobile app. Besides, we suggest you to add an extra rear view camera to set up a complete all around view security driving camera system for truck, school bus, shuttle bus, combine, trailers, RV and other heavy duty vehicles.

Product Features

Accessories such as bend brackets and tray mounting brackets for choosing, these accessories can be adjusted to an angle of +90° for flexible installation in a variety of installation environments.

  • Watts 480W, 550W, 960W, 1100W
  • Lumen efficiency 1451m/W, 120Im/W
  • IP66 ingress protection and 10KV surge protection
  • 5 years warranty
  • Certificates: ENEC, SAA, CB, CE, RoHS

Technical Specifications

Sensor 1/3 Sony CCD, CMOS or Sharp optional
Audio optional
Effective Pixels NTSC/510×492 pixels, PAL/500×582 pixels
TV line 580
Lens 2.5 mm
Minimum illumination 0 Lux ( LED ON)
Infrared IR LED 10 pcs built in night vision infrared IR LEDS
Night vision distance 35 ft
Waterproof rating IP66
View angle 120° view angle
Working voltage DC 12V ( DC 24V optional )
Operation temperature -20°C~70°C
Automatic heating when the camera’s running temperature below 10°C ( optional )
Mounting place can be mounted on either side of vehicles ,automobile or car
Optional color black,white,silver
Warranty 1 year Manufacturer’s Warranty

Product Video
