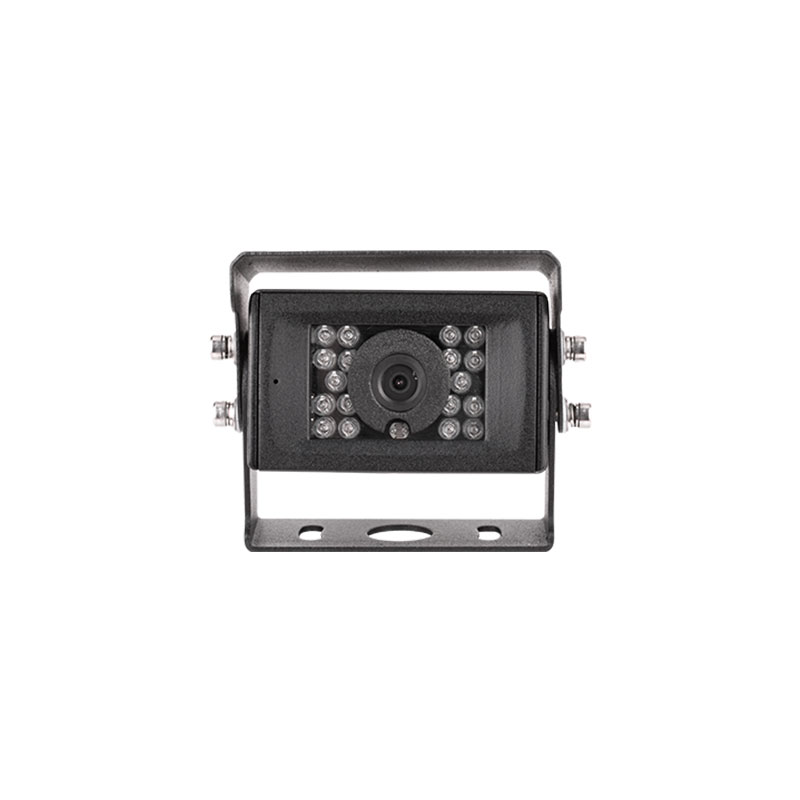

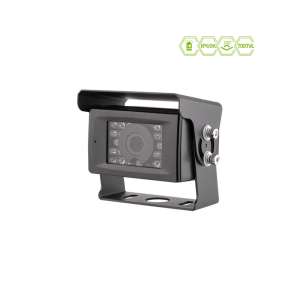

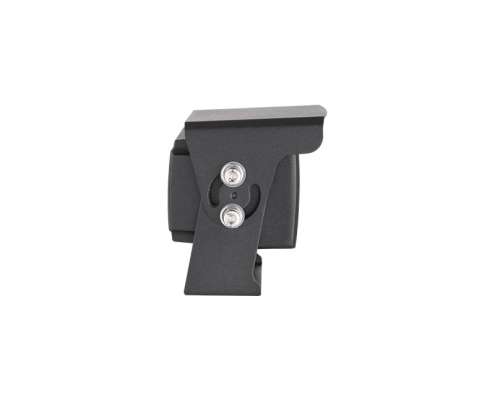

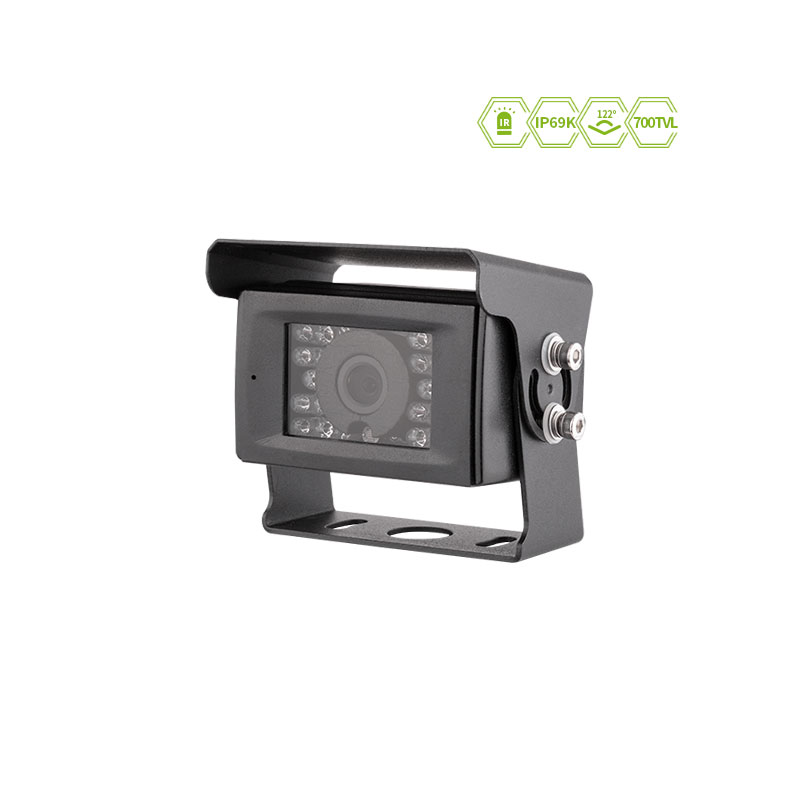

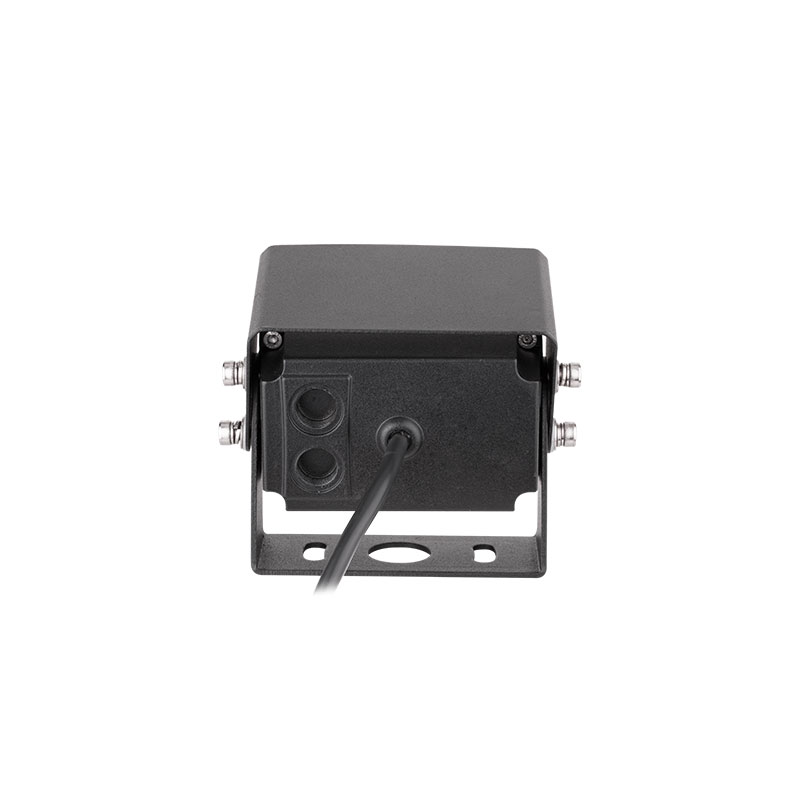

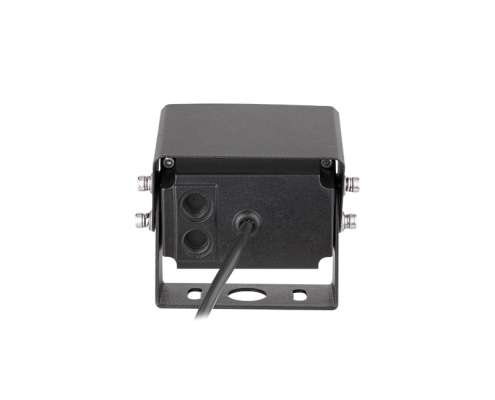

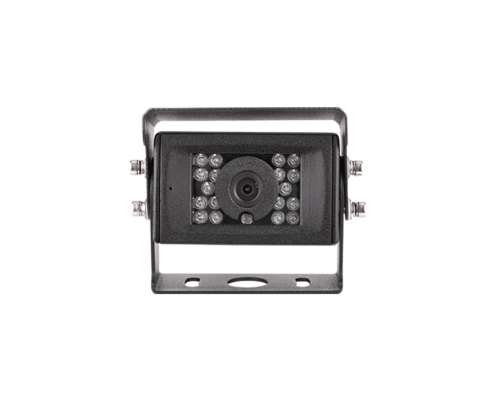

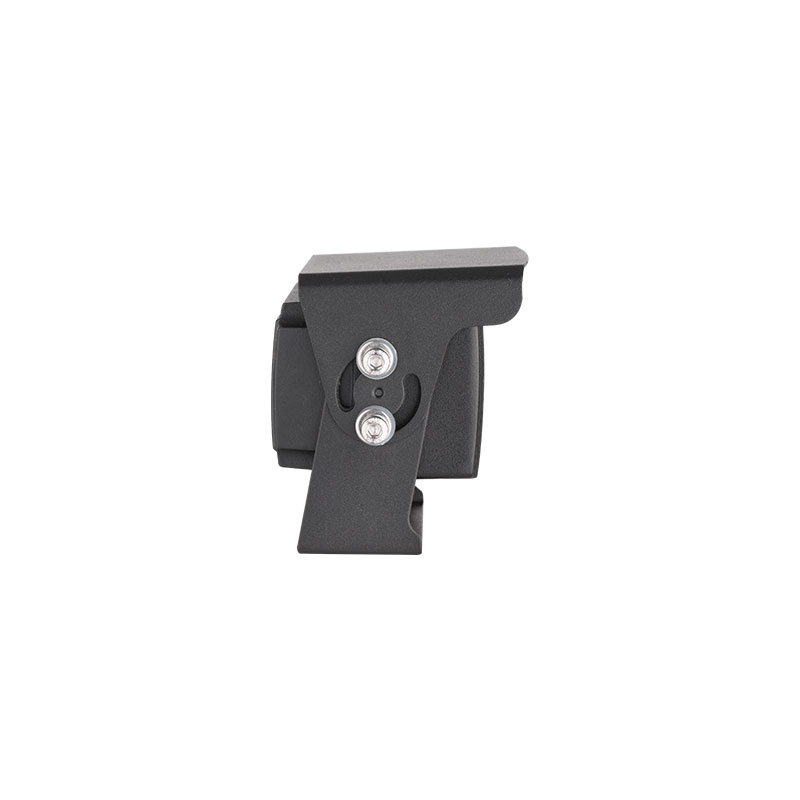

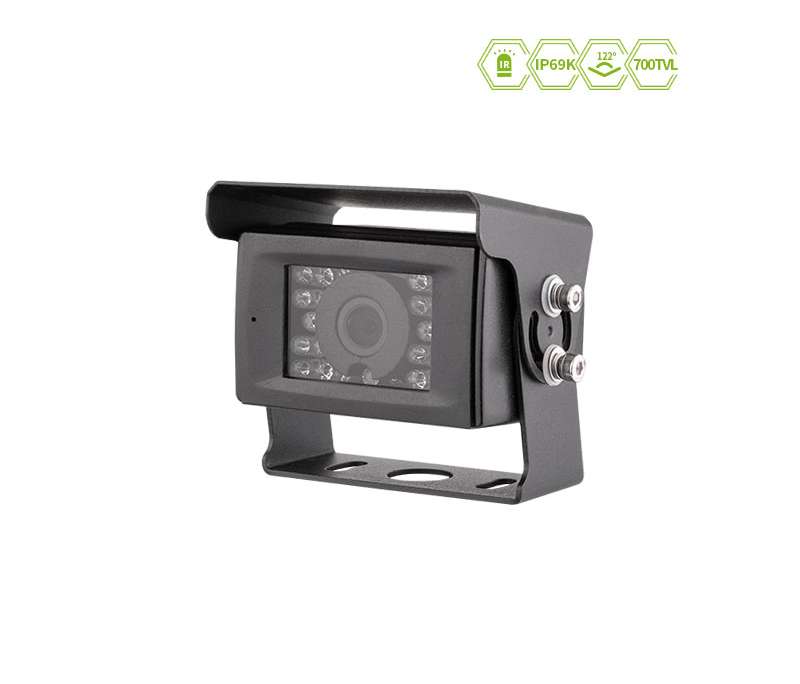

JY-675 CMOS Sensor Waterproof Backup Camera for Rear and Side View

JY-675 CMOS sensor waterproof backup camera from Luview, it can mounted at both rear and side of the vehicle, with 10 meters night vision and IP69K waterproof function, make it an universal backup camera for most heavy duty vehicles, with Luview JY-675 backup camera, never need to worry about wrong purchase again. If you are looking for universal backup camera in bulk quantity, please feel free to contact [email protected] .

Product Features

  • Use 1/3CMOS sensor,support analog hd video 700TVL
  • Waterproof grade IP69K
  • Support mirror switching and ruler control functions
  • With night vision function, infrared distance is 10 meters
  • Can be installed in the rear and both sides of the vehicle

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective Pixels968(H)×488(V)
Sensing Area4.880mm*3.670mm
Sync. SystemInternal
Resolution700TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty18PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.8mm
Lens Angle115°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
