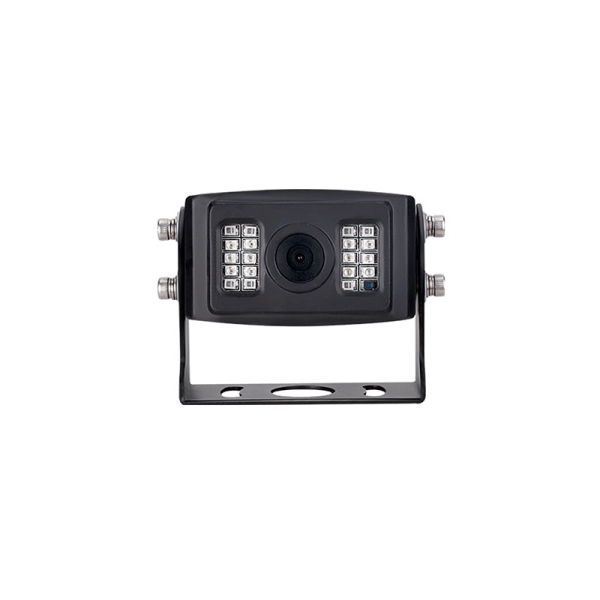

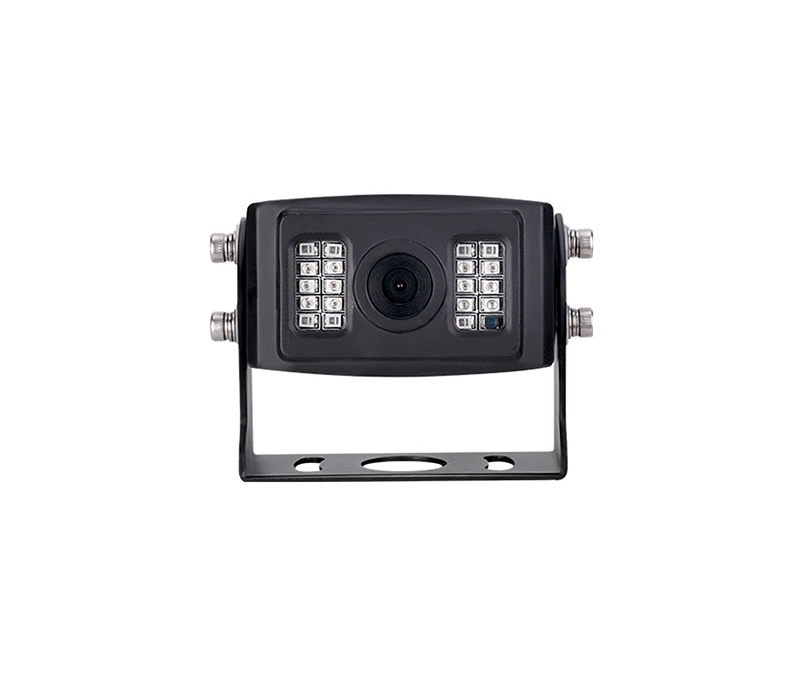

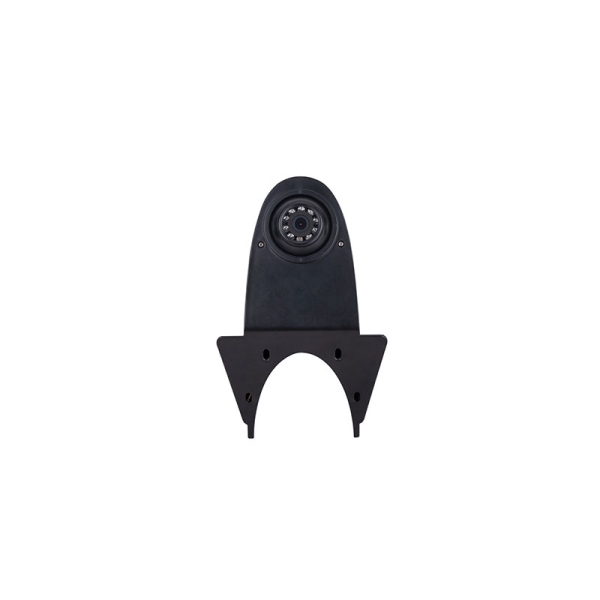

JY-657 IP69K wide angle 700 TVL 960P HD rear view camera
Product Features
In today’s automotive environment, various forms of on-board cameras provide reliable monitoring solutions for safe driving. To make driving safer, we provide global retailers and wholesalers with high-quality waterproof car cameras to prevent accidents by creating a wide field of view. This JY-657 side-view camera uses a 1/3 CMOS wide dynamic module, supports analog high-definition video 130W/960P output, is suitable for various large vehicles, and can provide drivers with a clear and broad driving vision.
- ultra wide angle 150 degrees
- support analog hd video 700TVL
- Waterproof grade IP69K
- Support mirror switching and ruler control functions
Technical Specifications
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)*488(V) |
Sensing Area | 6.2um*7.4um |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 6PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.3mm |
Lens Angle | 150° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
