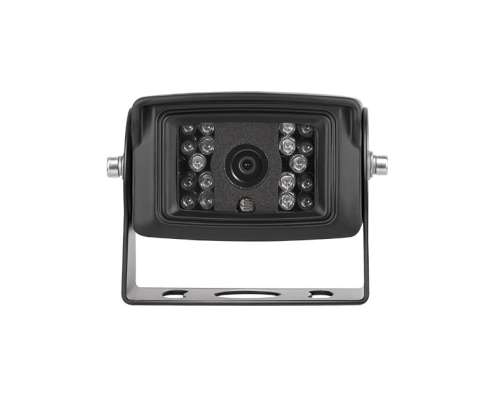

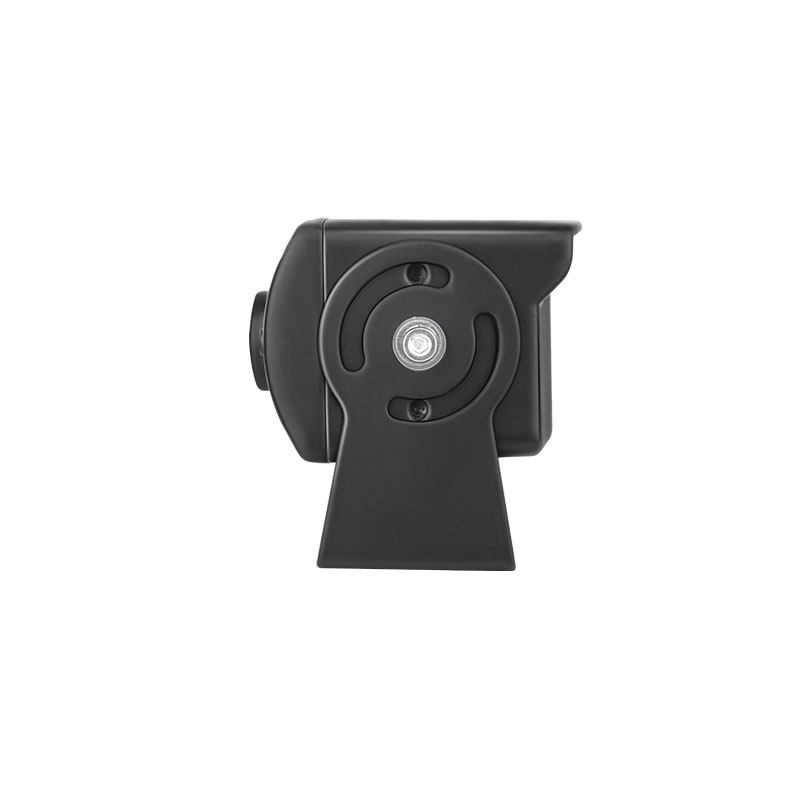

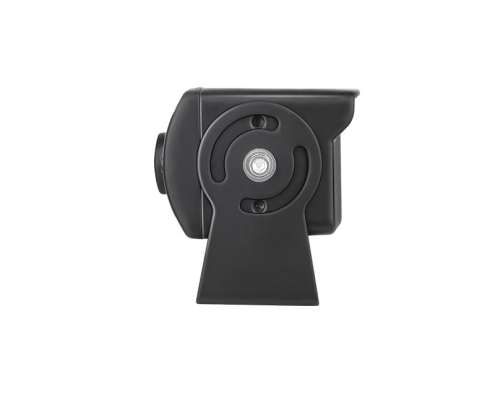

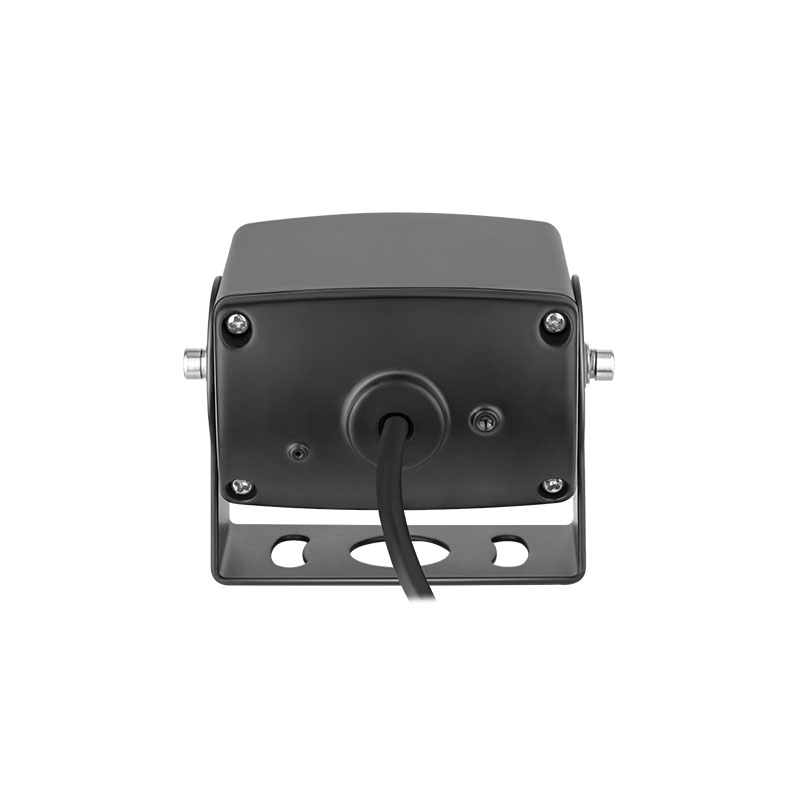

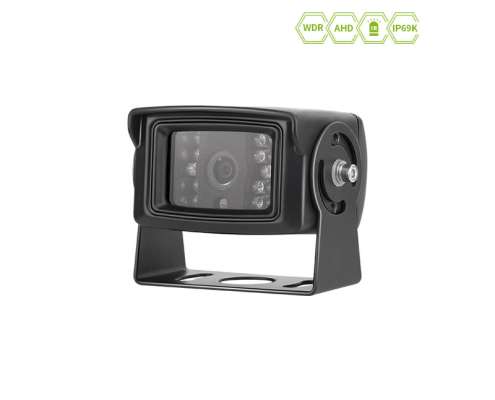

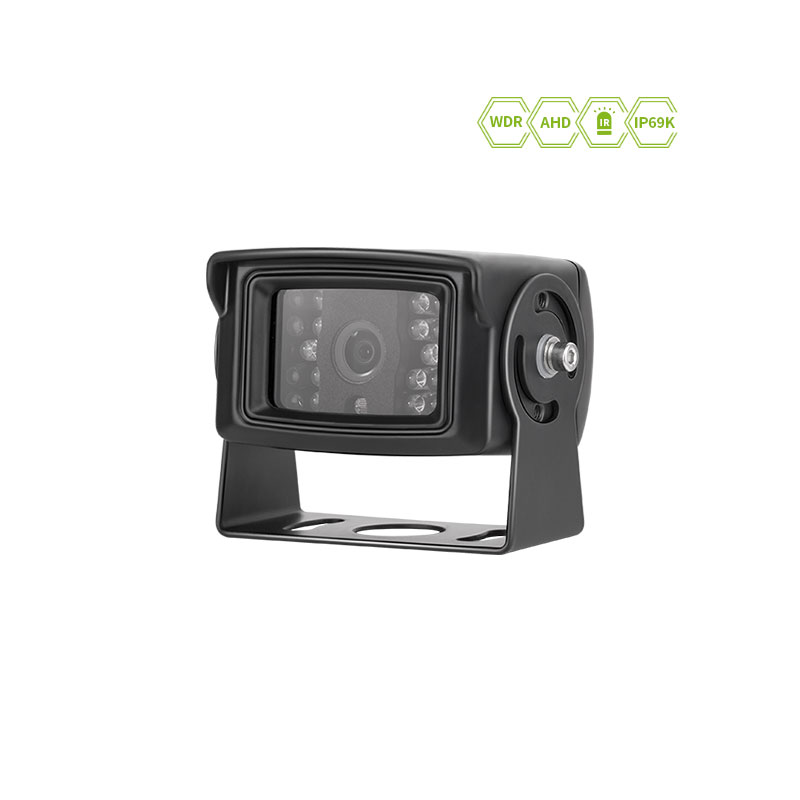

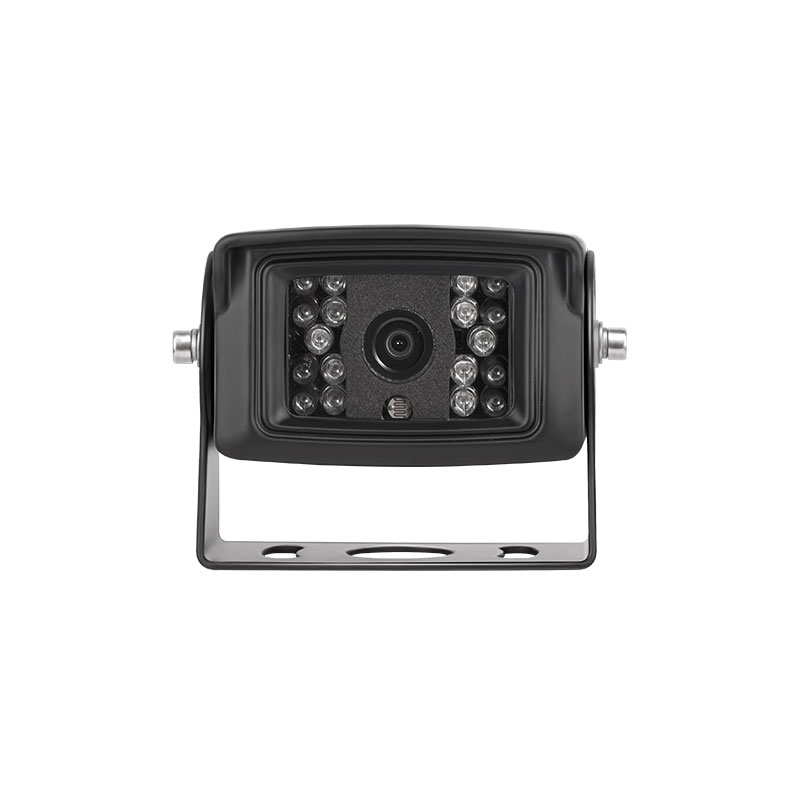

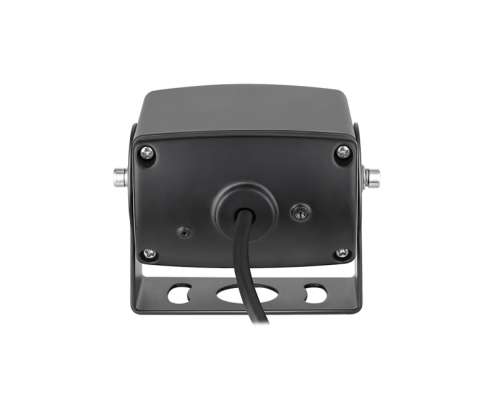

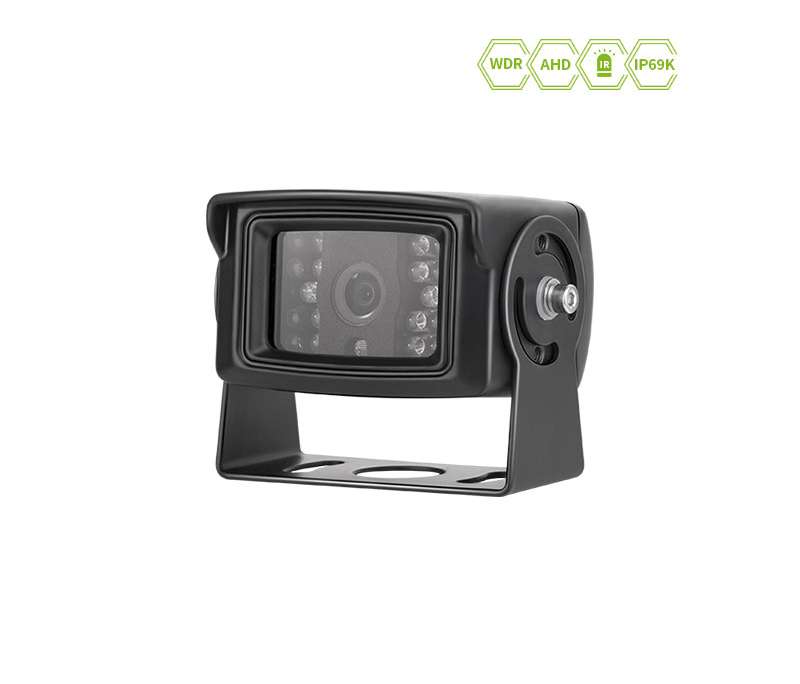

JY-665 IP69K aftermarket rear view camera with Sony CCD sesnor

Product Features

The JY-665 camera with imported Sony CCD chip is suitable for trucks, trailers, RVs and other large vehicles. The camera has a wonderful design with a tough and reliable shape high-quality aluminum alloy shell. After installation, it is perfect coordinated with the vehicle. The camera has a high resolution 700TV lines, fast imaging response speed; wide viewing angle adjustment range, up and down, left and right adjustment of the viewing angle; It has automatic aperture control, so can effectively guaranteeing the image effect of light/dark environment changes with a great shockproof performance.

  • IP69K
  • Support mirror switch
  • Support ICR switching
  • Infrared distance is 13m
  • 2Megapixel sensor of SONY
  • With night vision function

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective PixelsN:968(H)×488(V)
Sensing Area4.880mm*3.670mm
Sync. SystemInternal
Resolution700 TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty15PCS/15PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.8mm
Lens Angle115°
Current Drain80±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
