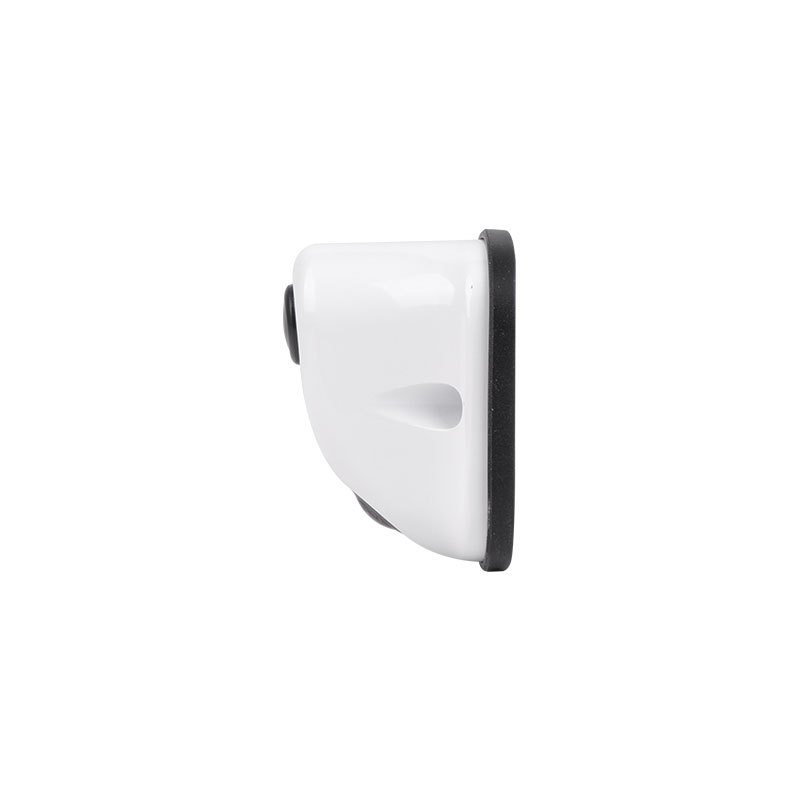

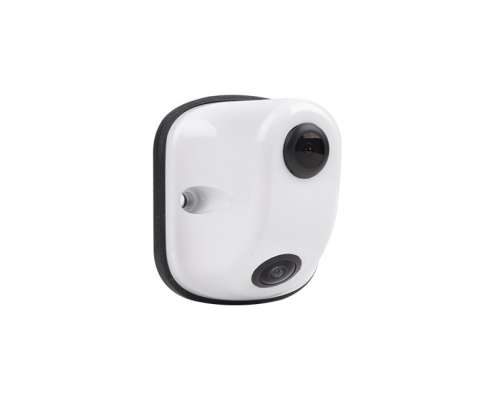

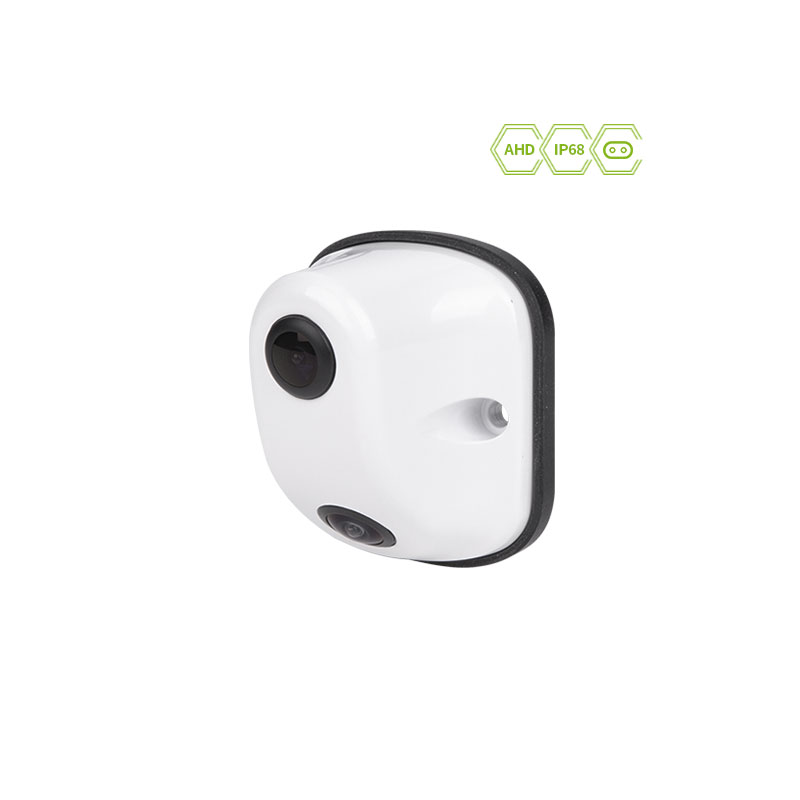

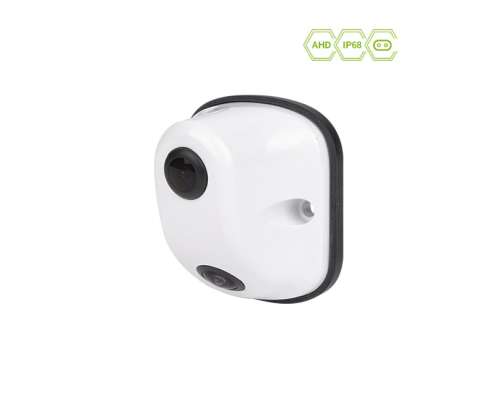

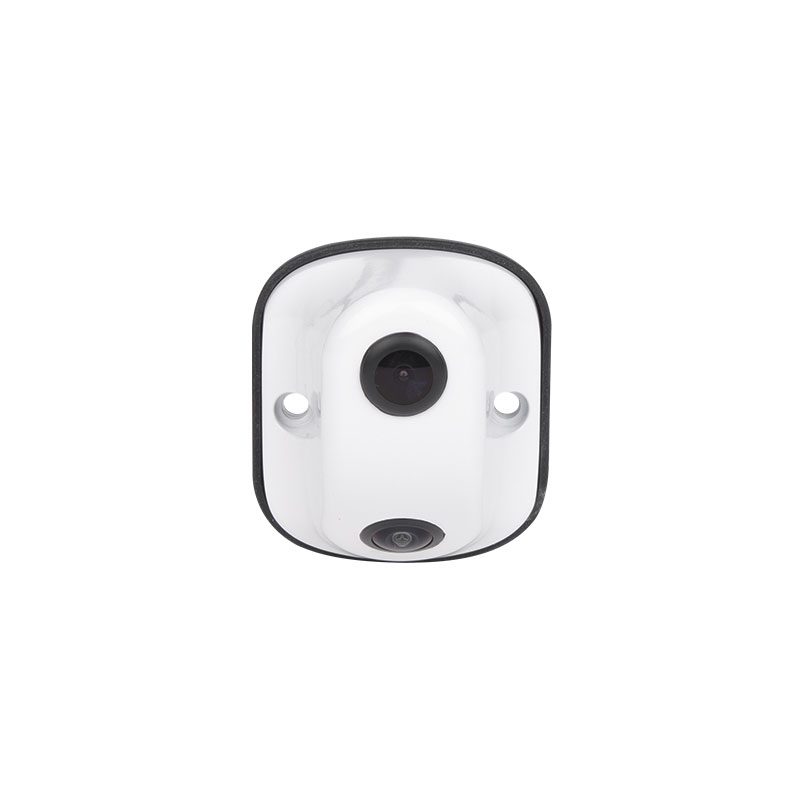

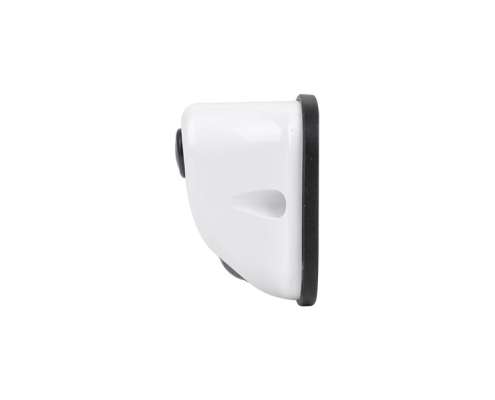

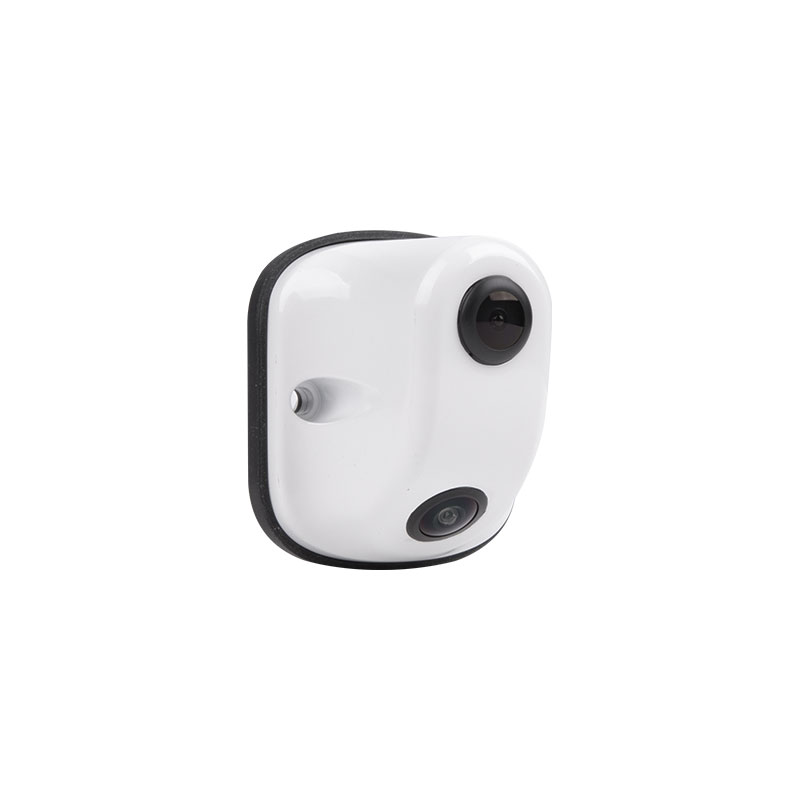

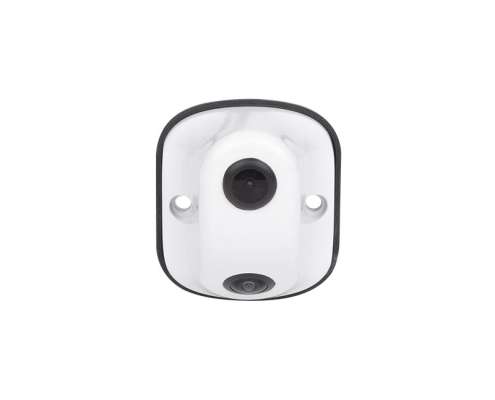

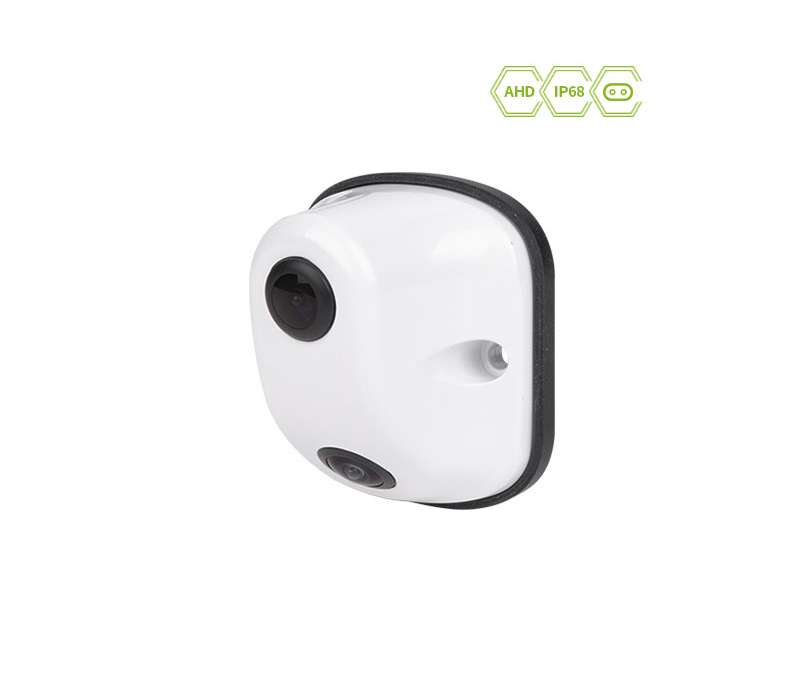

JY-032 IP68 1080P AHD dual lens rear view camera for RVs

The Luview JY-032 IP68 1080P AHD dual-lens rear-view camera uses an advanced 1/2.9 CMOS sensor, delivering 2 million pixels of high-definition image quality. Specially designed for RVs, it features excellent waterproof performance with an IP68 rating, ensuring reliable operation in various harsh environments. The high-definition image quality and dual-lens design provide a wider field of view and a sense of depth, reducing blind spots and enhancing driving safety.

Inquiry Now

Product Features

  • Adopt 1/2.9 CMOS sensor, 2 million pixels
  • Waterproof protection level IP68
  • Can be installed in RV

Technical Specifications

Image Sensor 1/2.9 CMOS GC2053
TV System NTSC / PAL
Video Format AHD/1080P
Effective Pixels 1920(H)×1080(V)
Sensing Area 2.8μm（H）ⅹ 2.8μm（V）
Sync. System Internal
Resolution 2 Million Pixels
Minimum Illumination 0.01 Lux
Microphone None
Video Output 1.0 Vp-p/75 Ohm
Scanning System Interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC 12V
Lens Angle High Lens: 2.5mm 134°(H) 67°(V) 150°（D）/Low Lens: 1.86mm 153°(H) 90°(V)172°（D）
Current Drain Single Lens: 85±10mA
Waterproof rating IP68
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
