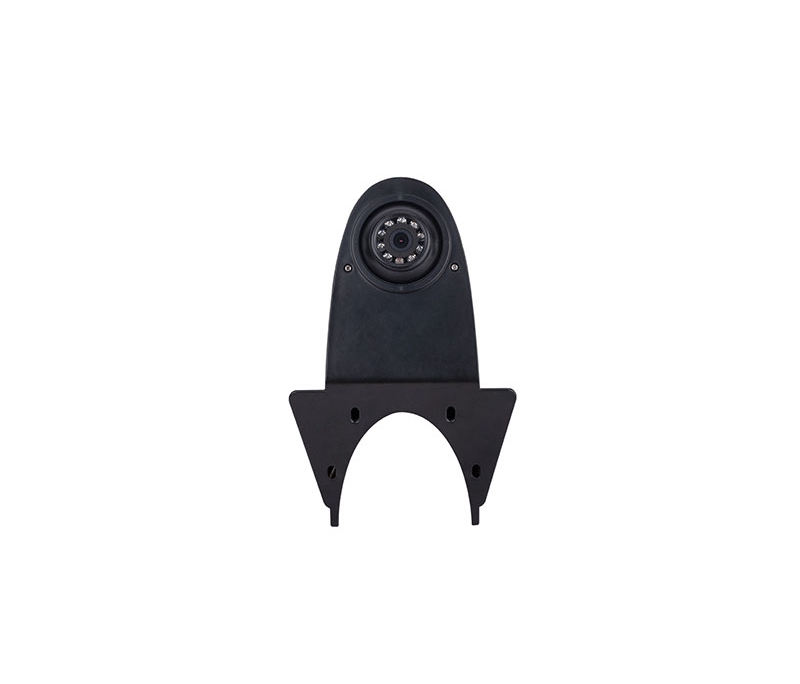

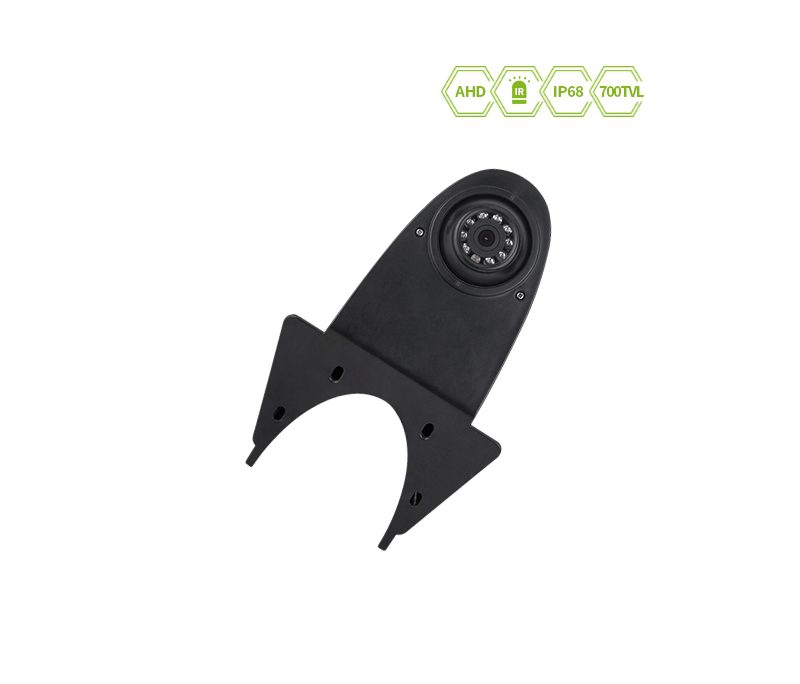

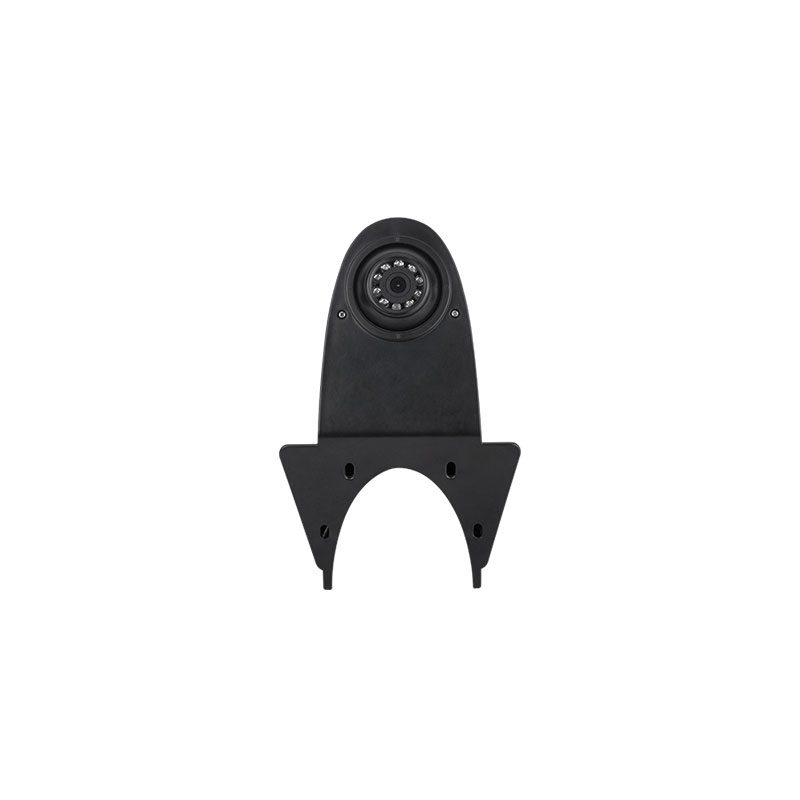

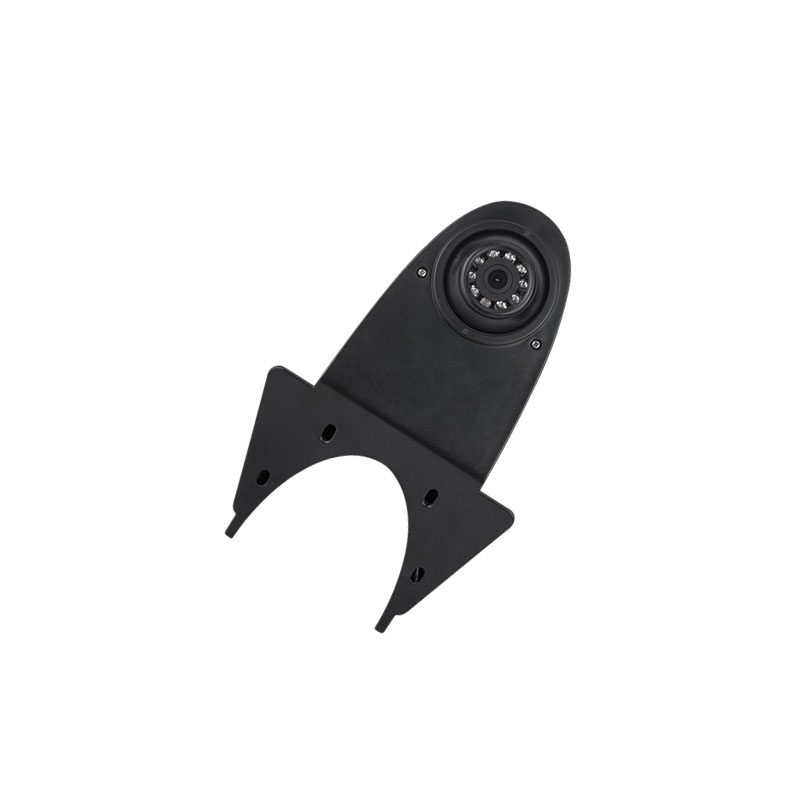

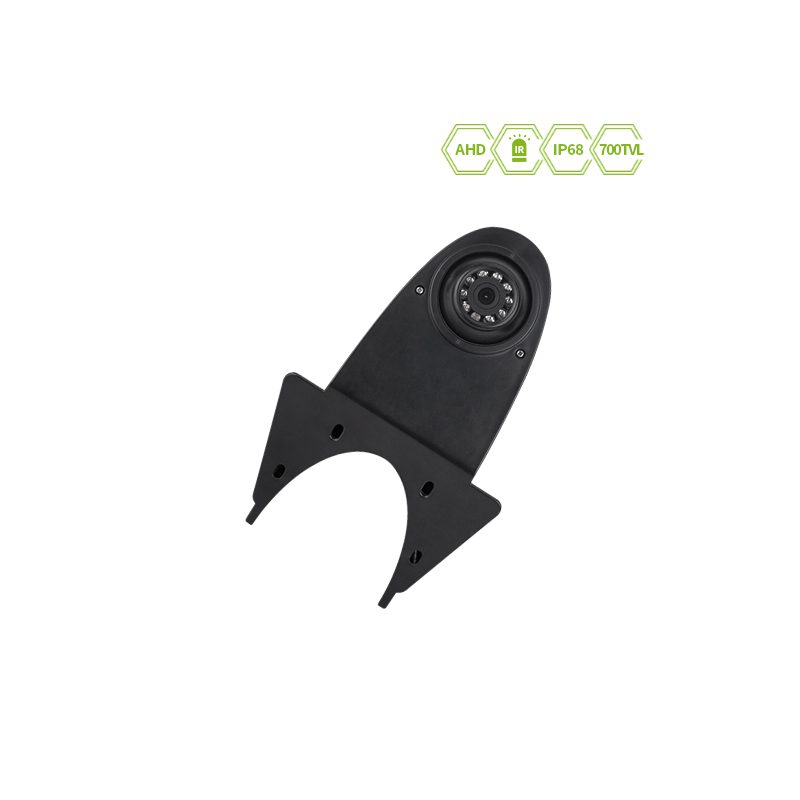

JY-670 ip68 rear view camera with high definition processor chip
Product Features
Luview developed and produced this backup camera with night vision, waterproof, high definition and other features. This JY-670 camera uses a high-brightness LED chip, 9 LED lights can enhance the night vision effect and help the reversing lights fill light. With Intelligent CCD high-definition chip, the camera image is clearer and the color is more realistic.
The camera will do soaking test, and ensure the waterproof rate so it can also be used in rainy days.
LUVIEW is China’s leading truck and other special vehicle camera system manufacturer and solution provider.
If you have requirement on these products, please feel free to contact us.
- IP68K
- 1/3CMOS sensor
- Support mirror switch
- Infrared distance is 10m
- With night vision function
- Support scale control function
- support analog hd video 700TVL
Technical Specifications
| Image Sensor | 1/3 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 700 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 9PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 115° |
| Current Drain | 80±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
