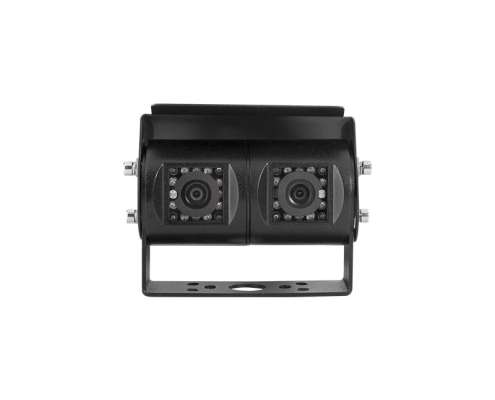

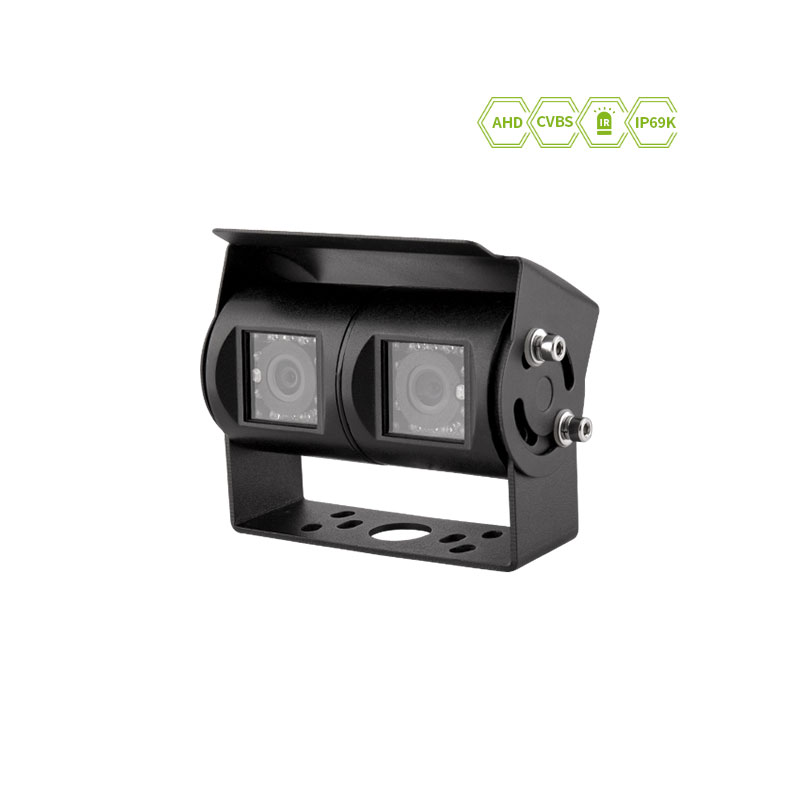

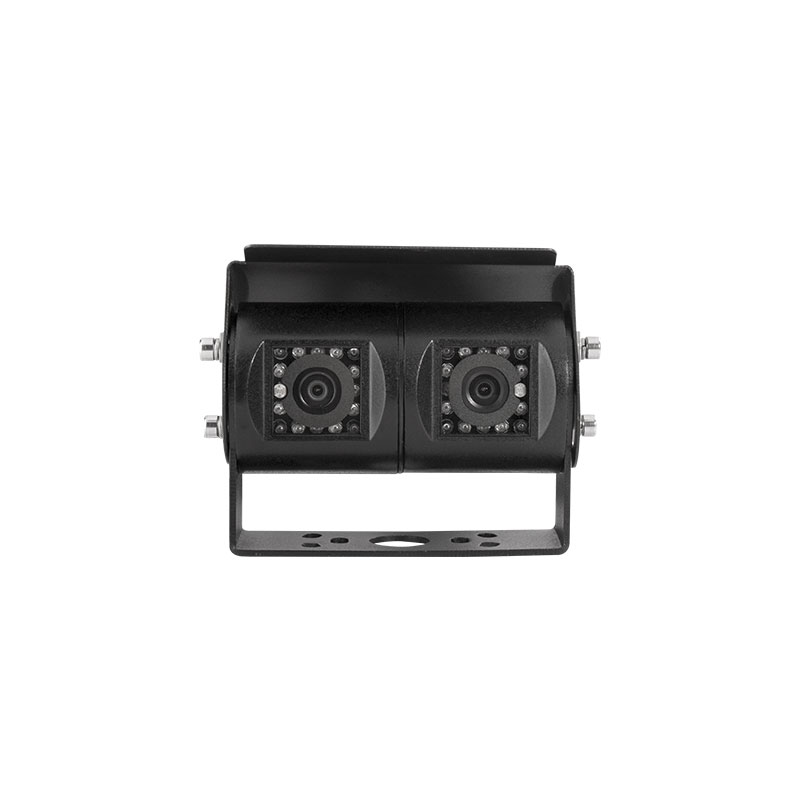

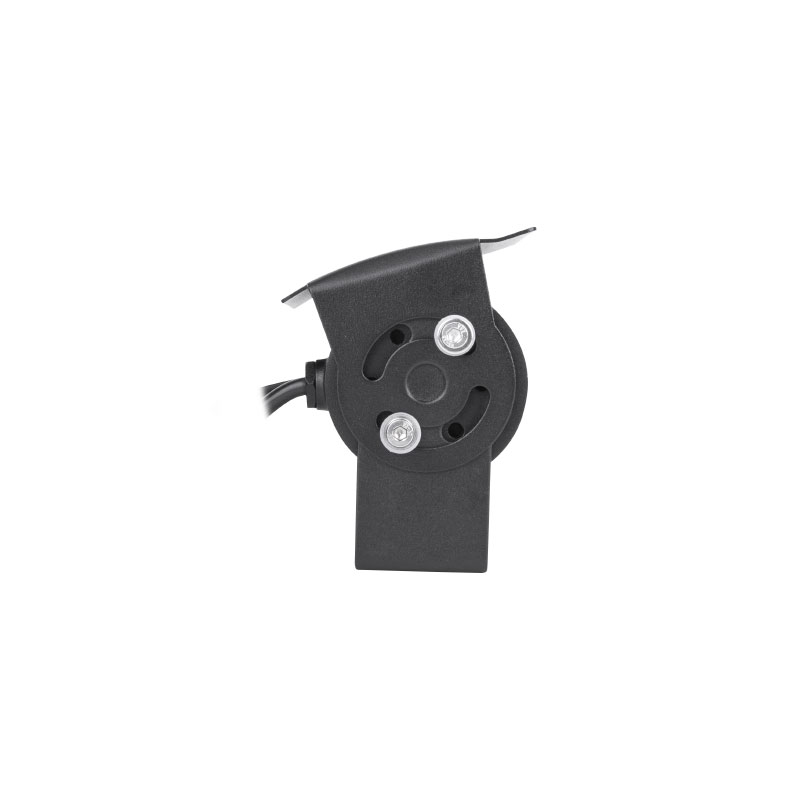

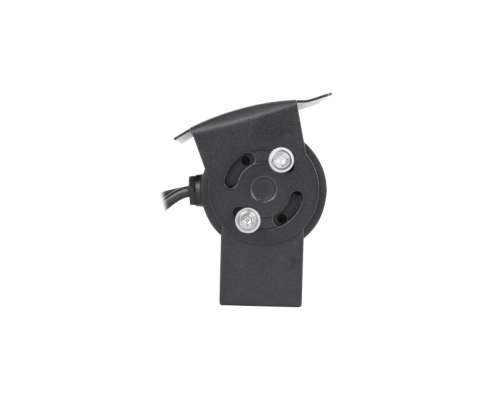

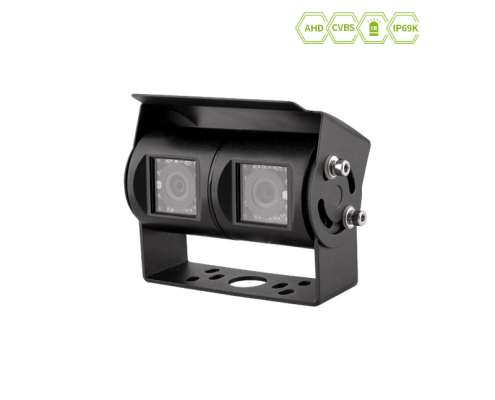

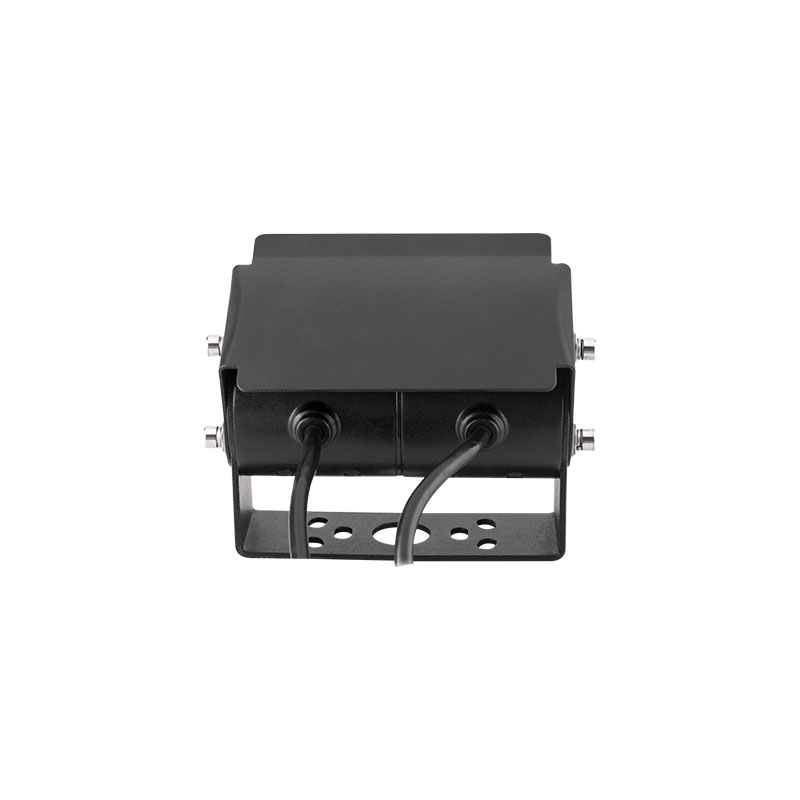

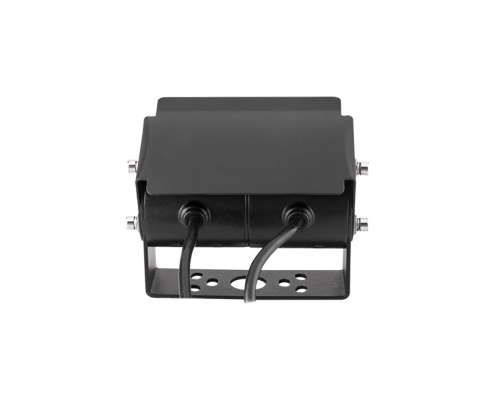

JY-672 IP69K dual lens rear view reversing camera supports mirrow switch
Product Features
The JY-672 dual-lens rear view reversing camera can help drivers easily and clearly see ahead, and improve the traffic stories caused by nervous novice drivers, poor vision in cloudy and rainy days, and invisible obstacles in the blind area of reversing. The camera has 15 pcs high brightness chips, higher brightness than ordinary LED lights, uniform image quality, high efficiency. The product is made of high quality aluminum alloy and waterproof up to IP69K, so that the camera can still work normally in the harsh outdoor environment.
- IP69K
- Support mirror switch
- Support ICR switching
- Infrared distance is 10m
- 2 Mega pixel sensor of SONY
- With night vision function
Technical Specifications
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)*488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 15PCS/15PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 80±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
