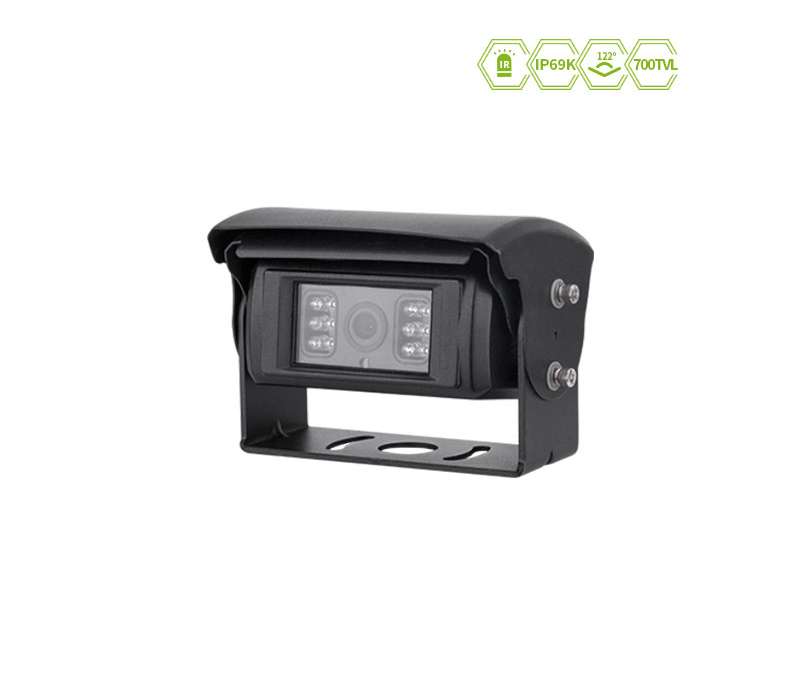

JY-678 IP68 auto shutter rear view camera with AHD sensor
Product Features
The camera is suitable for trucks, engineering vehicles and other large vehicles, AHD 2 million or 1/4 CMOS image sensor optional. The appearance of the product is a strong metal shell, white, black, silver three colors, waterproof, dustproof, collision proof. The camera is equipped with 12 far-infrared night vision LED lights, and the infrared automatic induction transmitter actively projects infrared light onto the object, which can capture the picture clearly even in the dark. LUVIEW offers 5, 10 and 15 meter extension cables that can be installed on either side of the vehicle.
- IP69K
- Support mirror switching
- With night vision function
- SONY High Performance 2 Megapixel Sensor
Technical Specifications
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | N:968(H)×488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 12PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12-24V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
