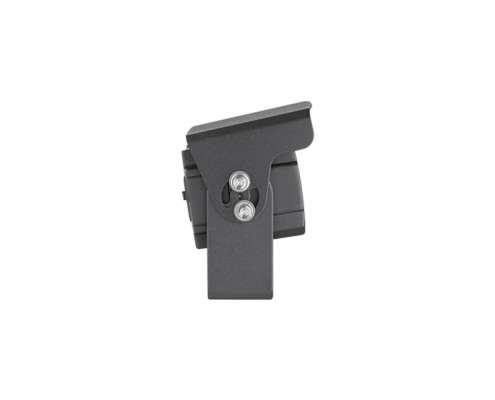

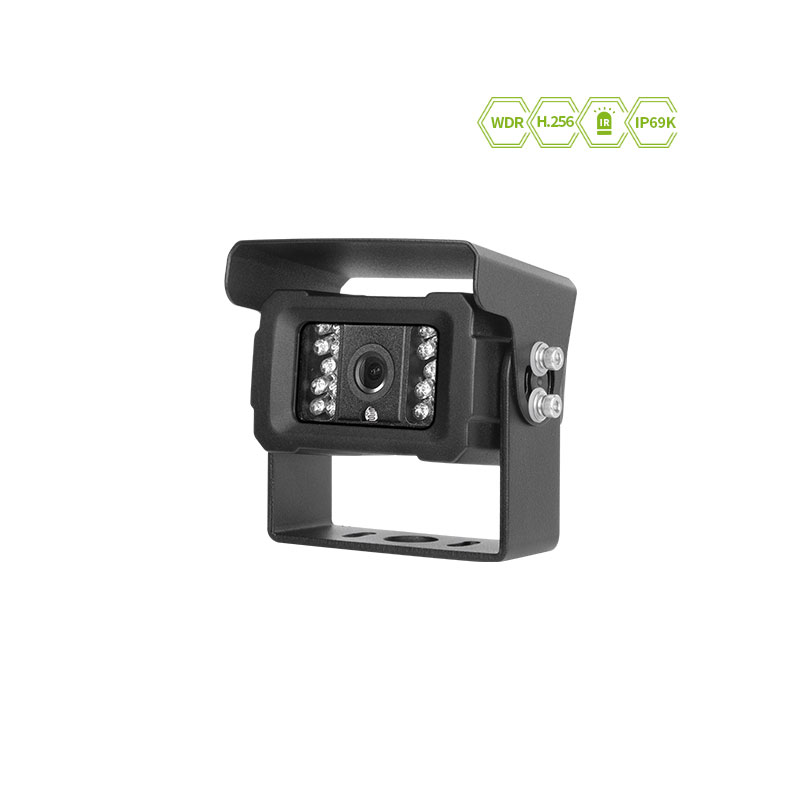

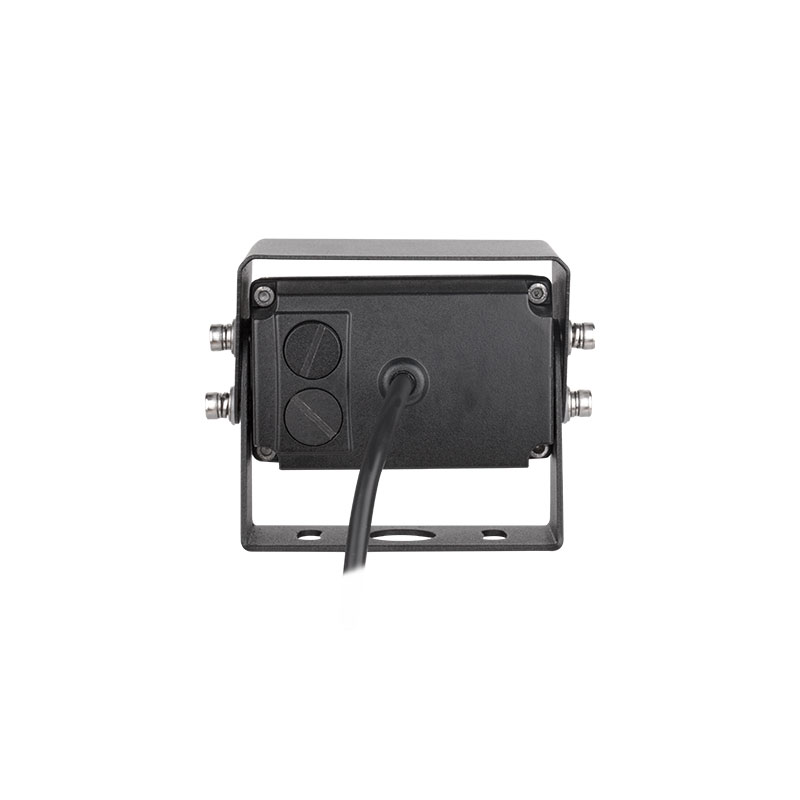

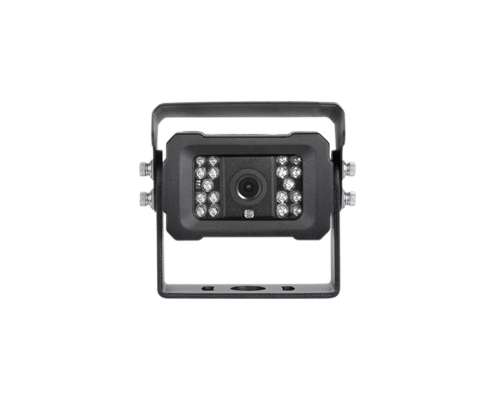

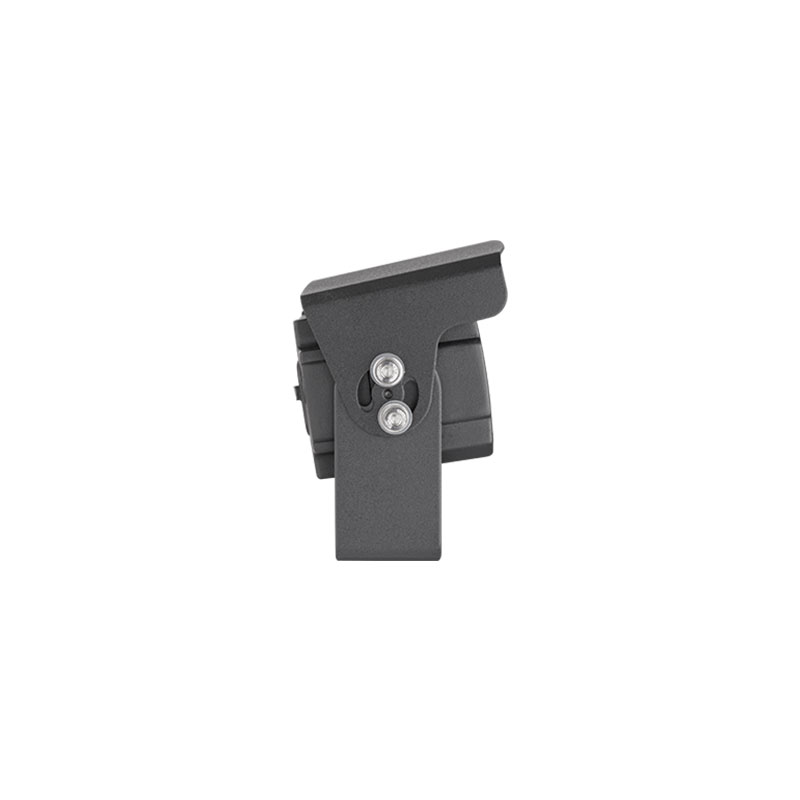

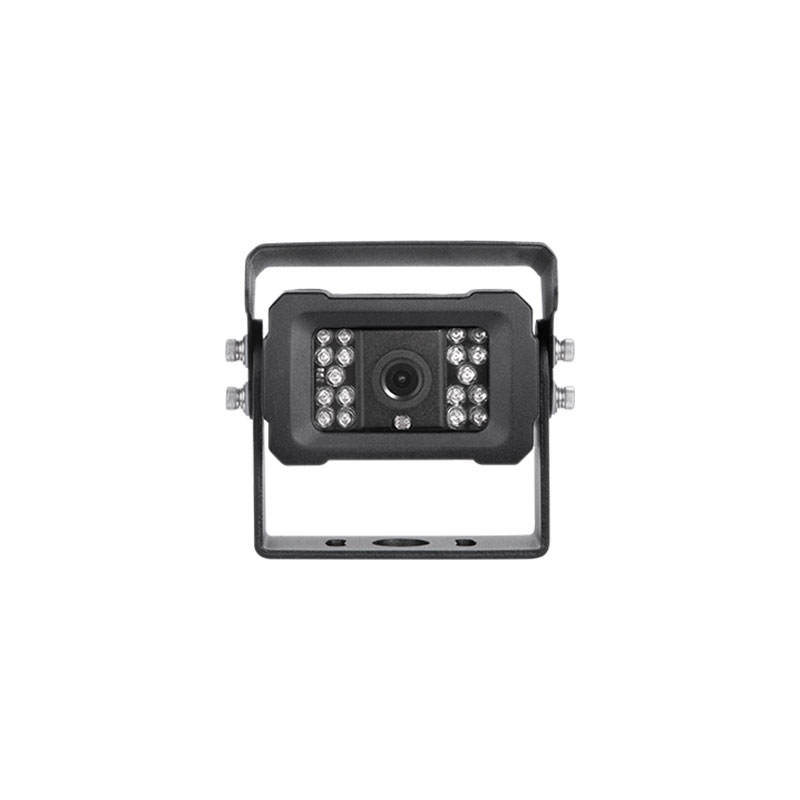

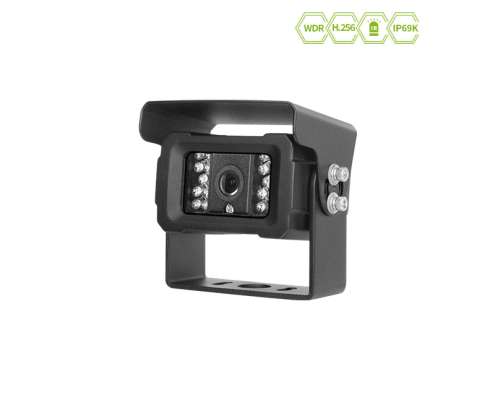

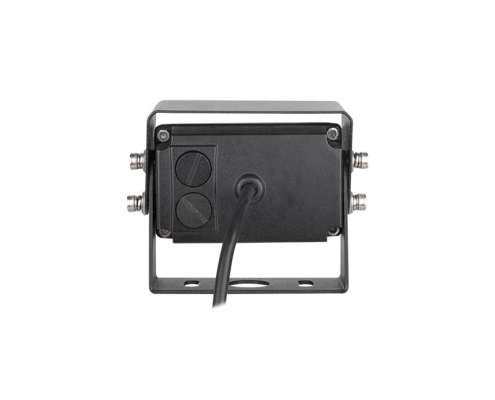

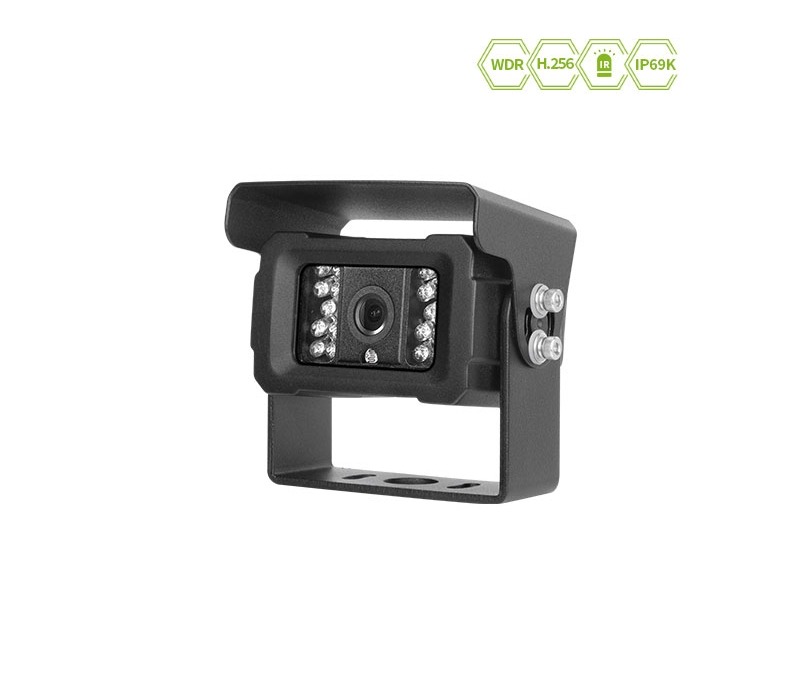

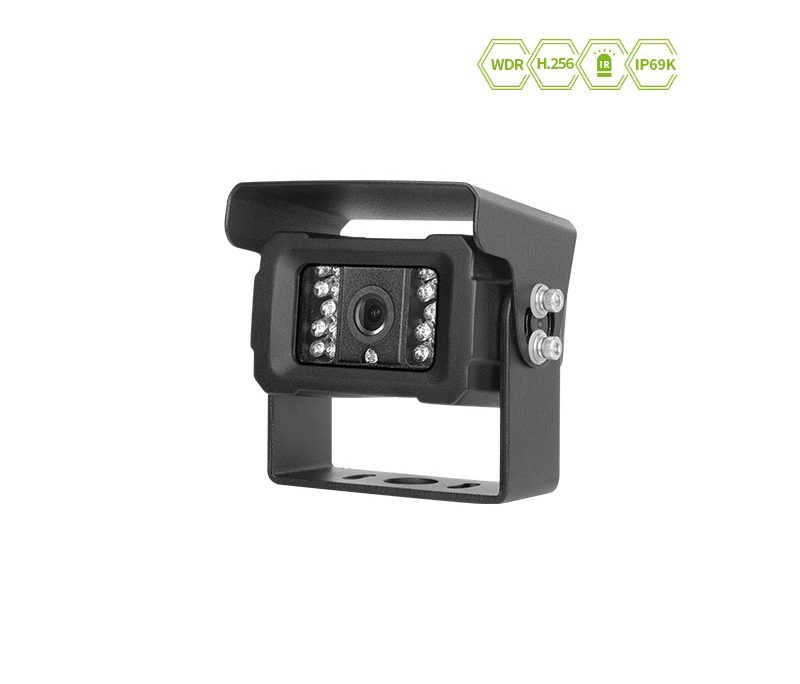

JY-683 IP69K rear view camera with Sony CCD sensor for large vehicles
Product Features
High quality infrared LED light source, high brightness, long life. The metal shell with rich texture has good heat dissipation, which will not cause damage of electronic components due to high temperature. JY-683 is suitable for large operating vehicles, It can be installed behind the rear and on both sides of the vehicle.
- IP69K
- Support mirror switch
- Support ICR switching
- Infrared distance is 10m
- With night vision function
- 2Megapixel sensor of SONY
Technical Specifications
| Image Sensor | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)*488(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 700 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 18PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 115° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
