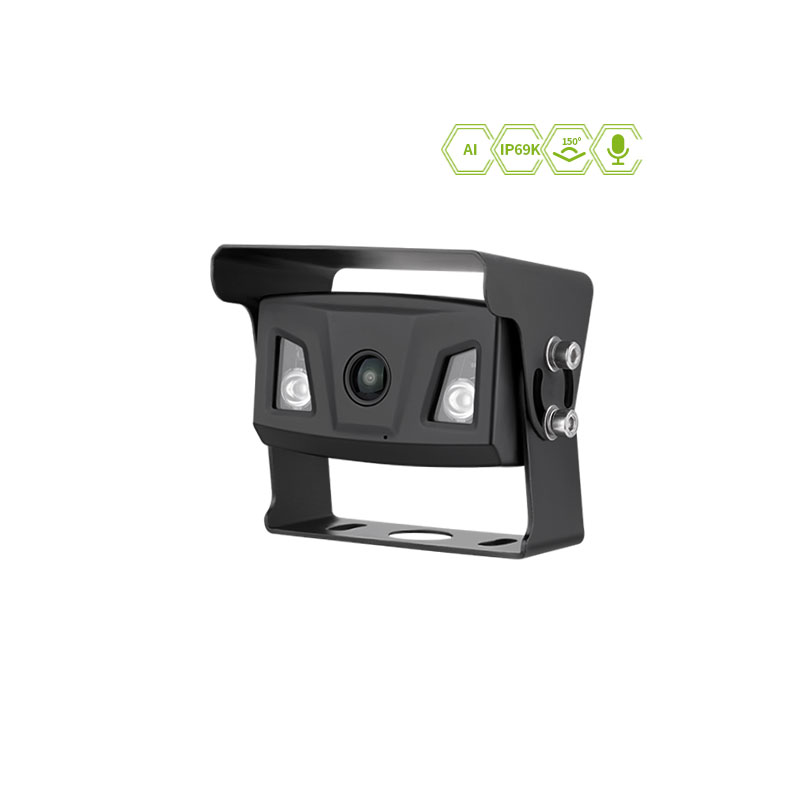

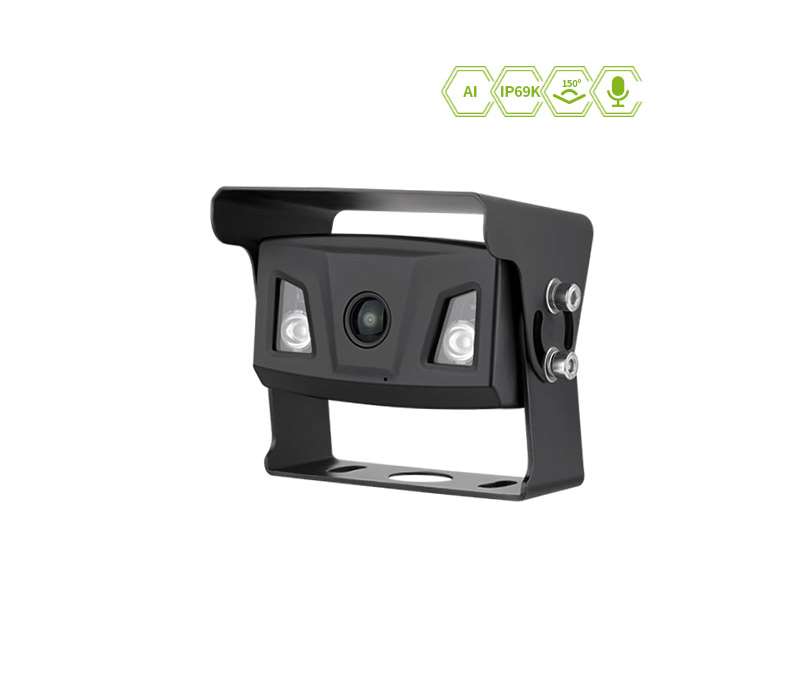

JY-810 150 degree super wide angle IP69K AHD rear view camera

Product Features

The JY-810 supports a 2-mega pixel AHD sensor and is equipped with two built-in night-vision infrared leds. The rear-view camera has a super wide Angle of 150 degrees. The rear of the car can avoid parking barriers such as rocks, pits and animals in the blind area of reversing. If you are looking for a high resolution truck rear-view camera manufacturer or developer in China, please contact us.

  • IP69K
  • Support mirror switching
  • Super wide viewing angle (150°)
  • Supporting 130W analog HD video with SONY 1/3 star night vision sensor

Technical Specifications

Image Device 1/3 CMOS
TV SystemNTSC/PAL
Effective Pixels976(H)*592(V)
Sensing Area4.880mm*3.670mm
Sync. SystemInternal
Resolution700 TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty2PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens1.98mm
Lens Angle150°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
