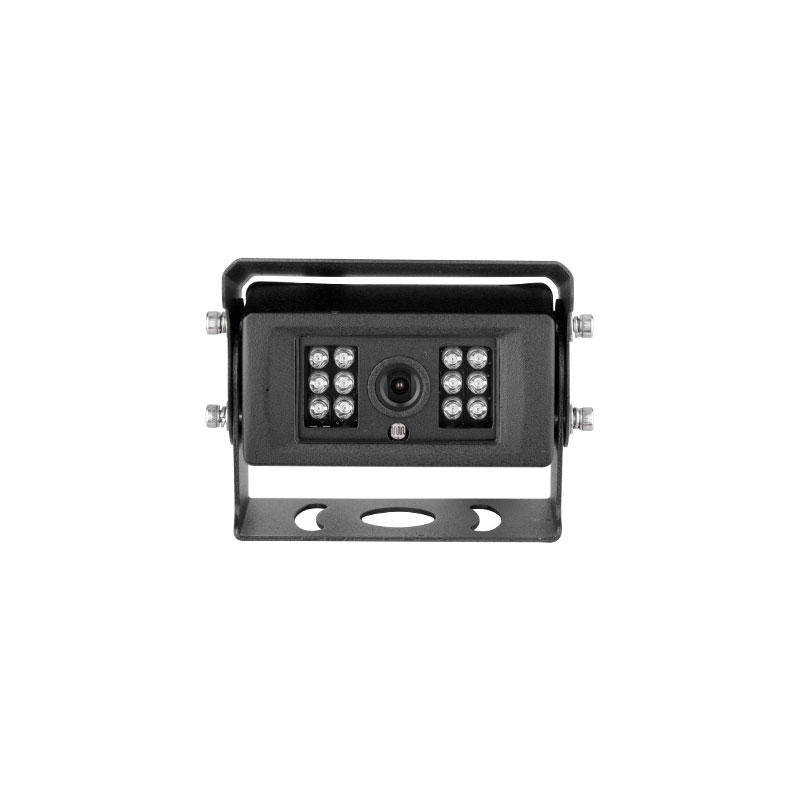

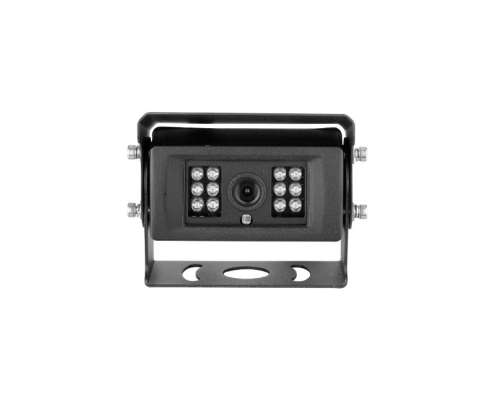

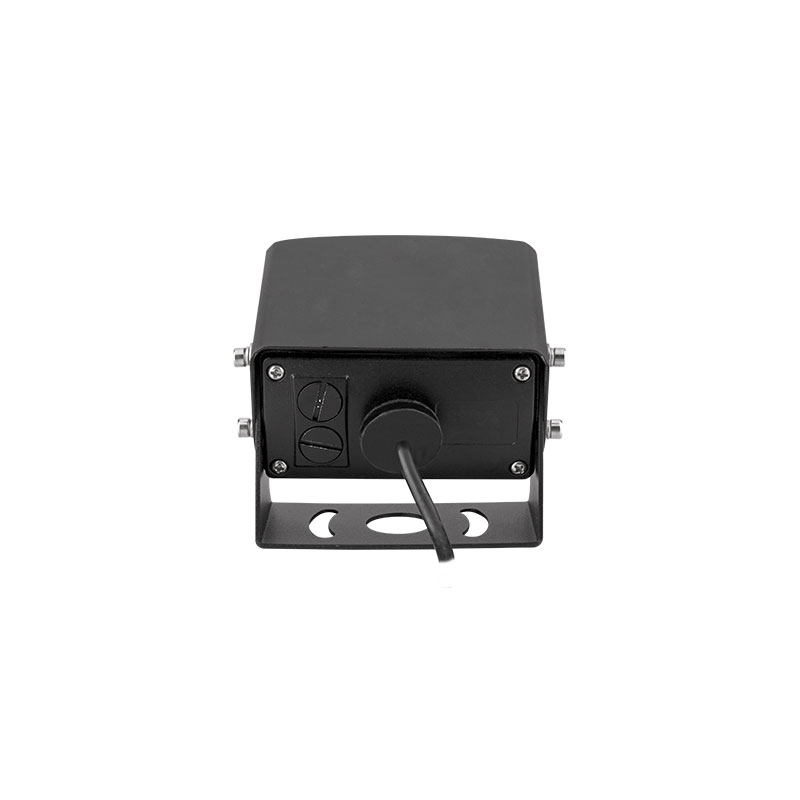

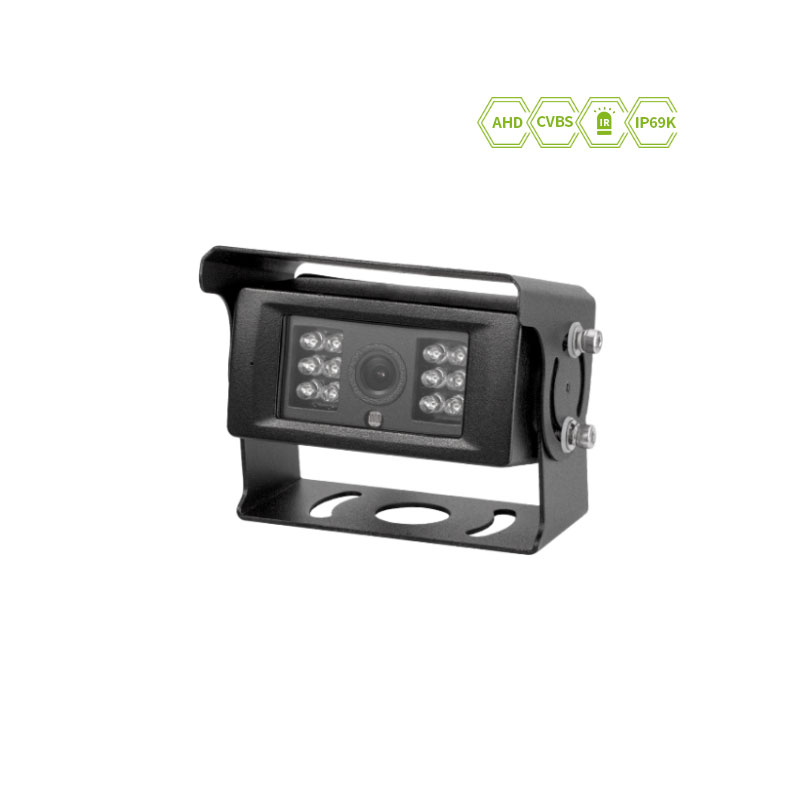

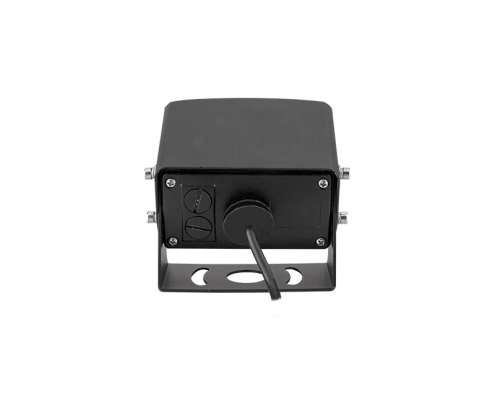

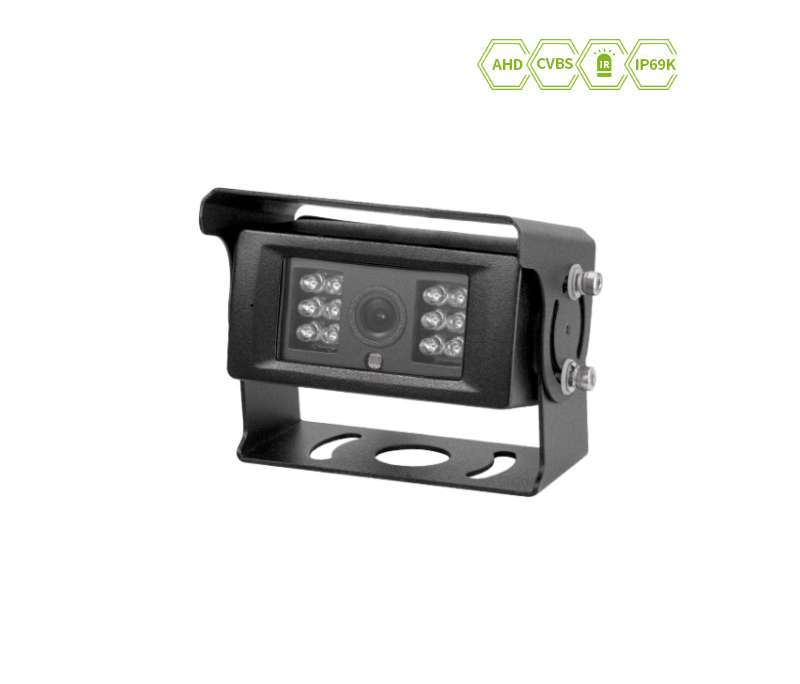

JY-6731 IP69K 420 TV lines wired backup rear view camera
Product Features
JY-6731 high performance waterproof camera is specially designed for trucks, engineering vehicles, agricultural machinery vehicles, the product is equipped with high pixel, large image sensor, effectively enhance the image quality. The waterproof grade is IP69K, the minimum illumination is 0.1Lux, 12 night vision infrared lights are built in, the effective infrared distance is 10 meters.
- IP69K
- Support mirror switch
- Support ICR switching
- Infrared distance is 10m
- 2 Mega pixel sensor of SONY
- With night vision function
Technical Specifications
| Image Sensor | 1/2.9 SONY |
| TV System | NTSC/PAL |
| Effective Pixels | 1920(H)×1080(V) |
| Sensing Area | 2.8μm（H）ⅹ 2.8μm（V） |
| Sync. System | Internal |
| Resolution | 200W |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 12PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 122° |
| Current Drain | 70±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
