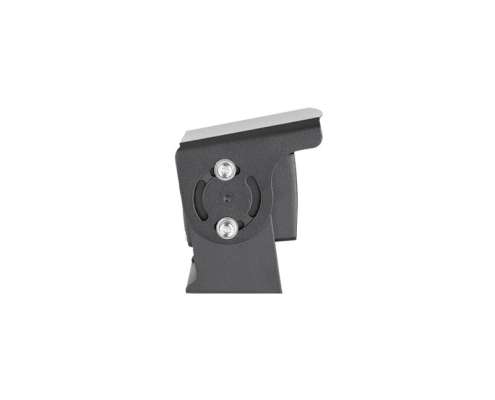

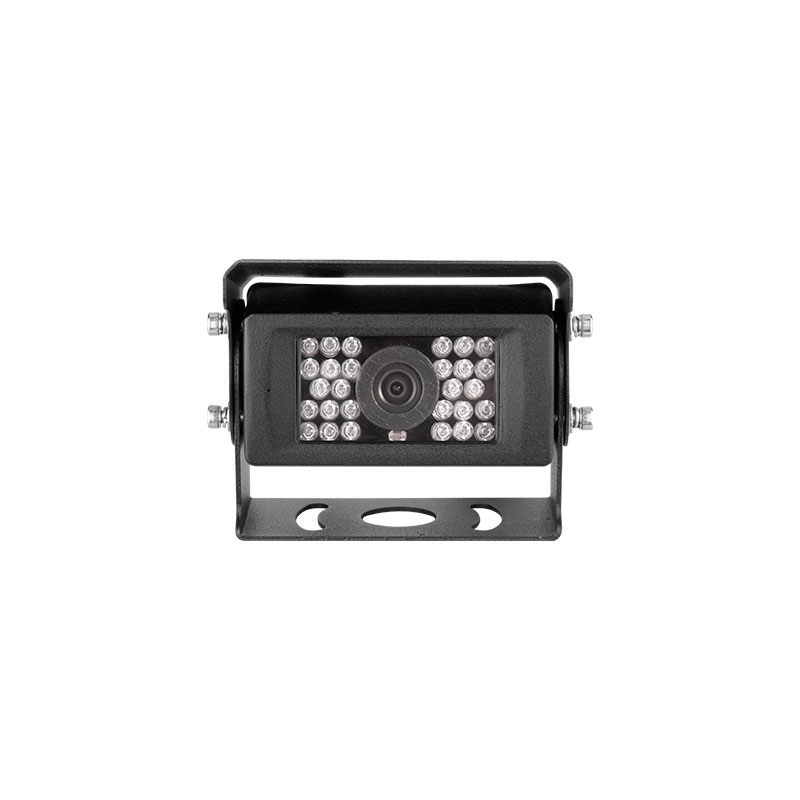

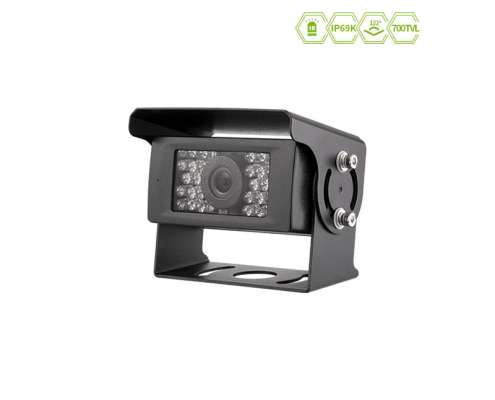

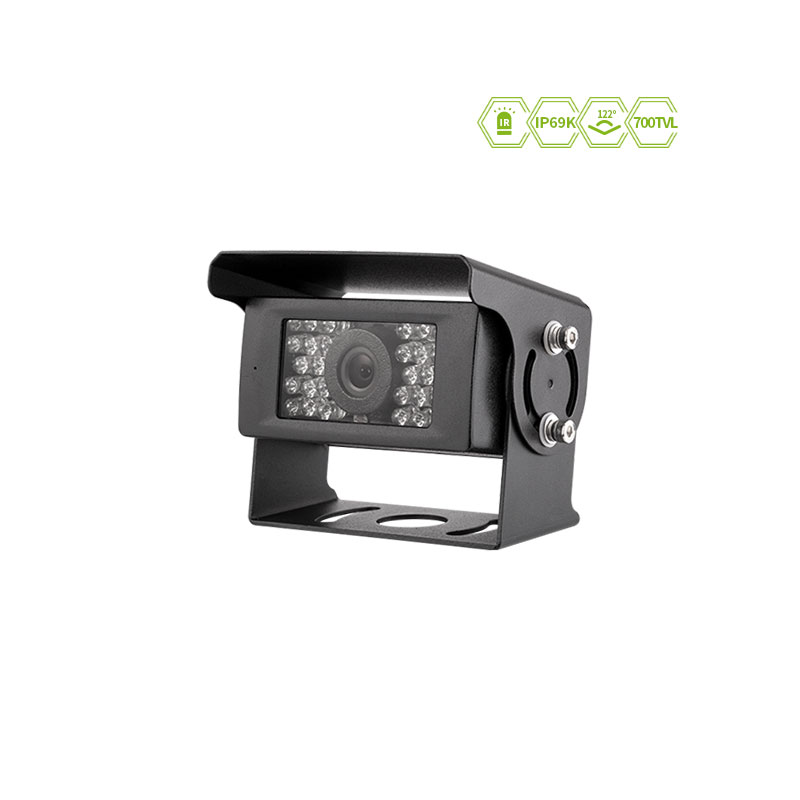

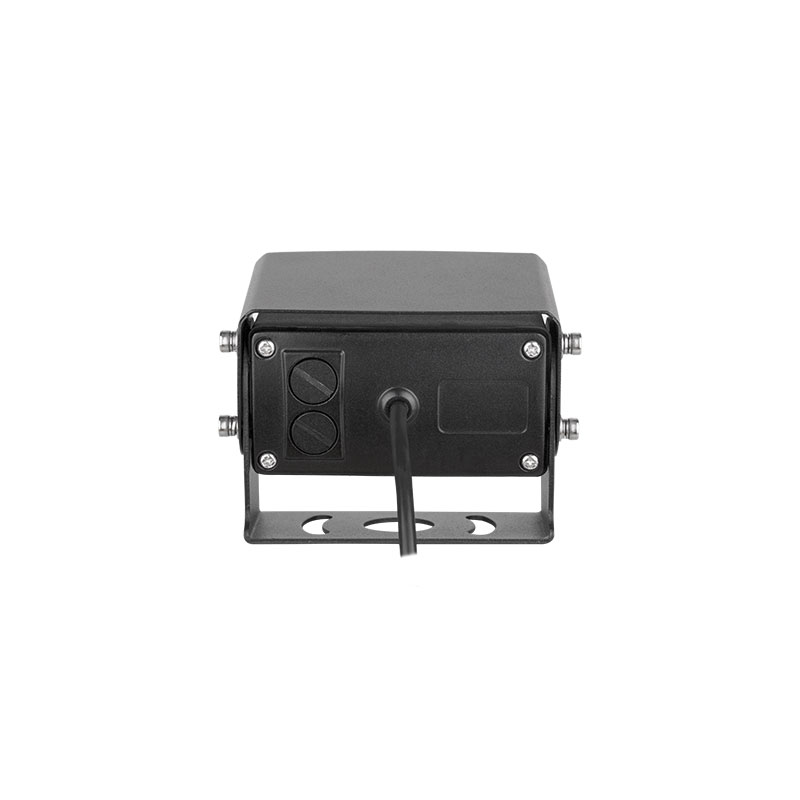

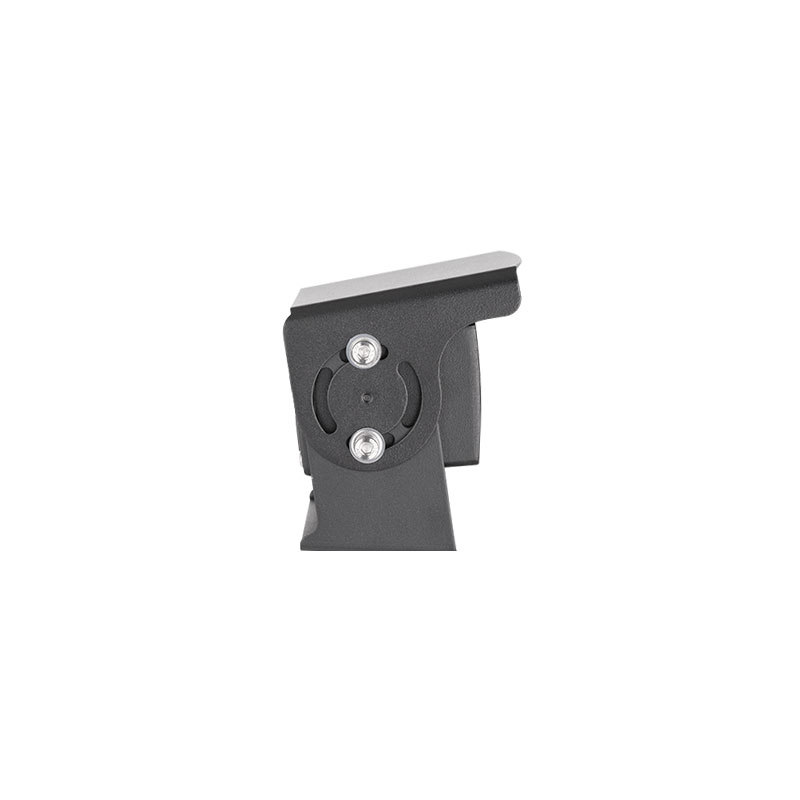

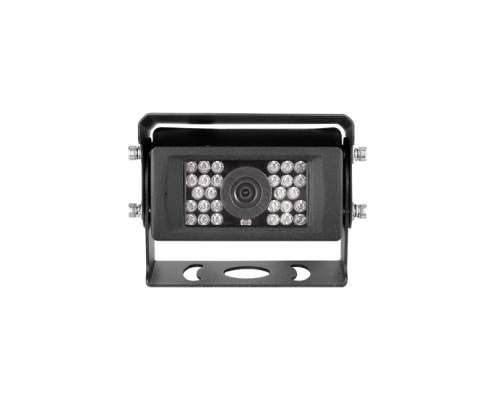

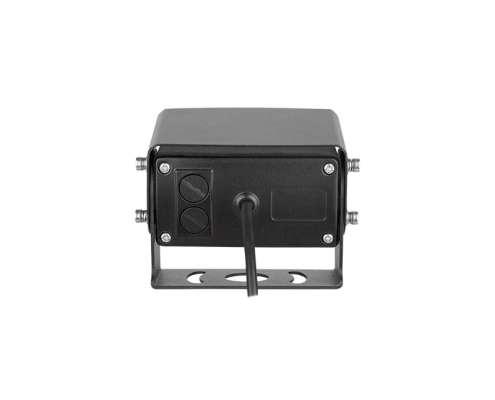

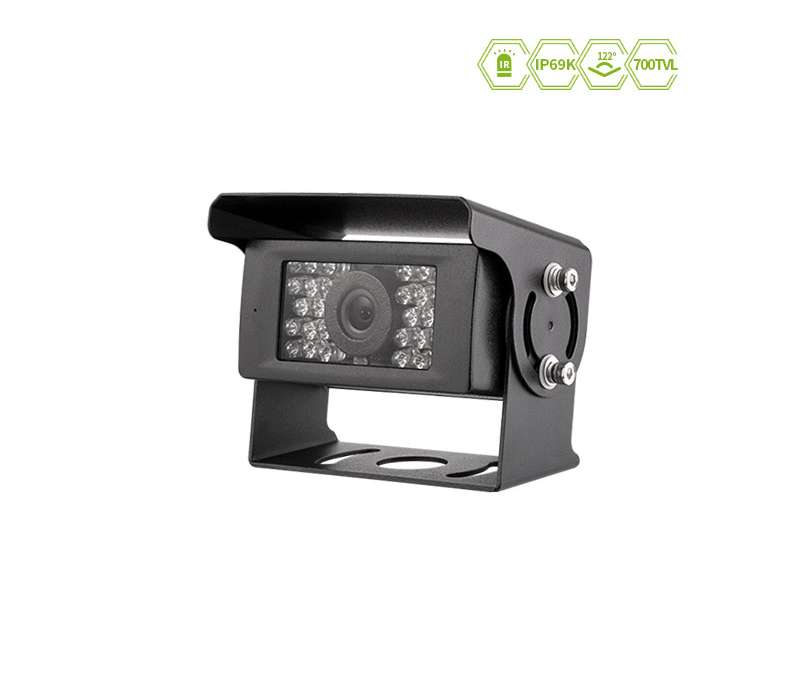

JY-6732 IP69K night vision rear view camera with metal texture

Product Features

The JY-6732 body is full of metal texture. It is IP69K waterproof and dustproof. The camera use SONY high-performance 2-megapixel Sensor and 13m infrared night vision distance.

  • IP69K
  • Support mirror switch
  • Support ICR switching
  • Infrared distance is 13m
  • With night vision function
  • 2 Mega pixel sensor of SONY

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective Pixels968(H)*488(V)
Sensing Area4.880mm*3.670mm
Sync. SystemInternal
Resolution700 TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty28PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.8mm
Lens Angle115°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
