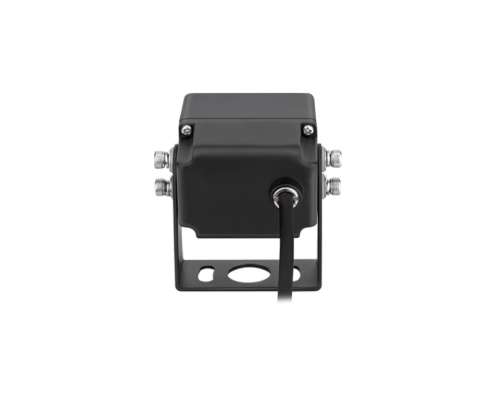

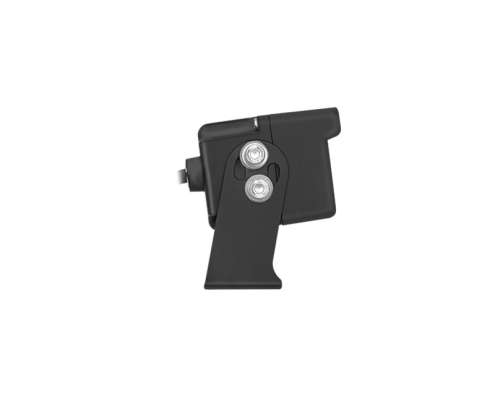

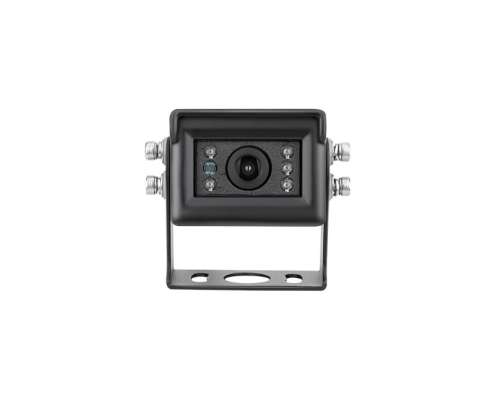

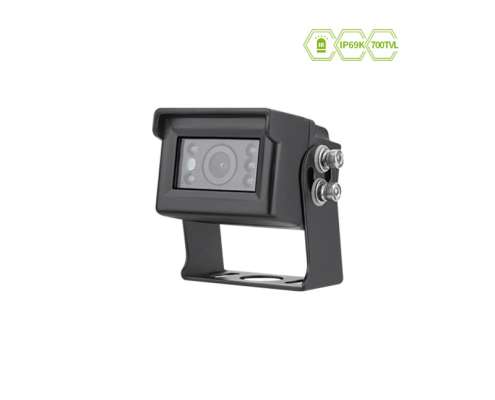

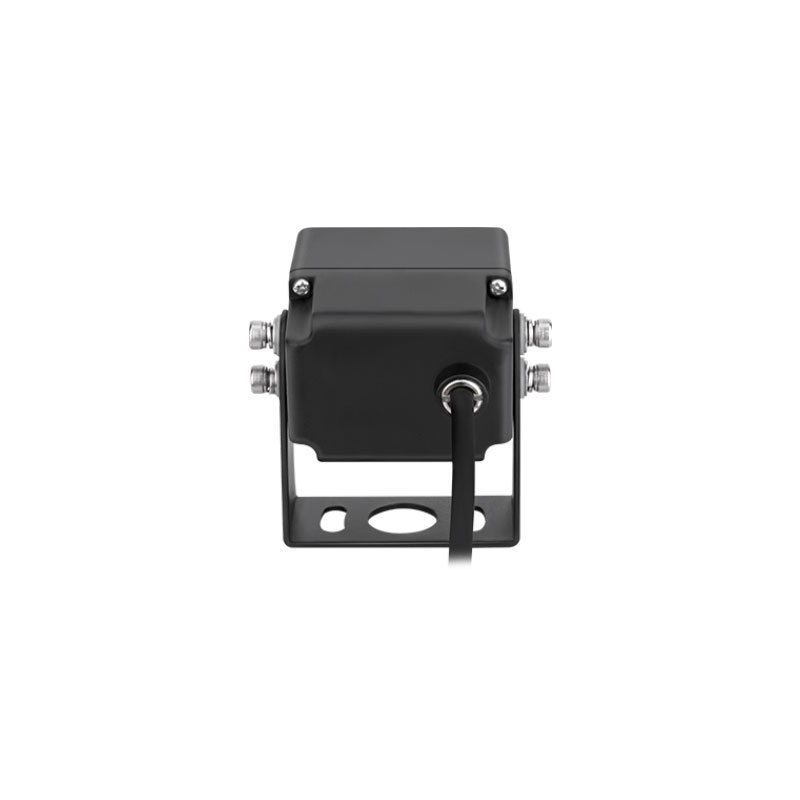

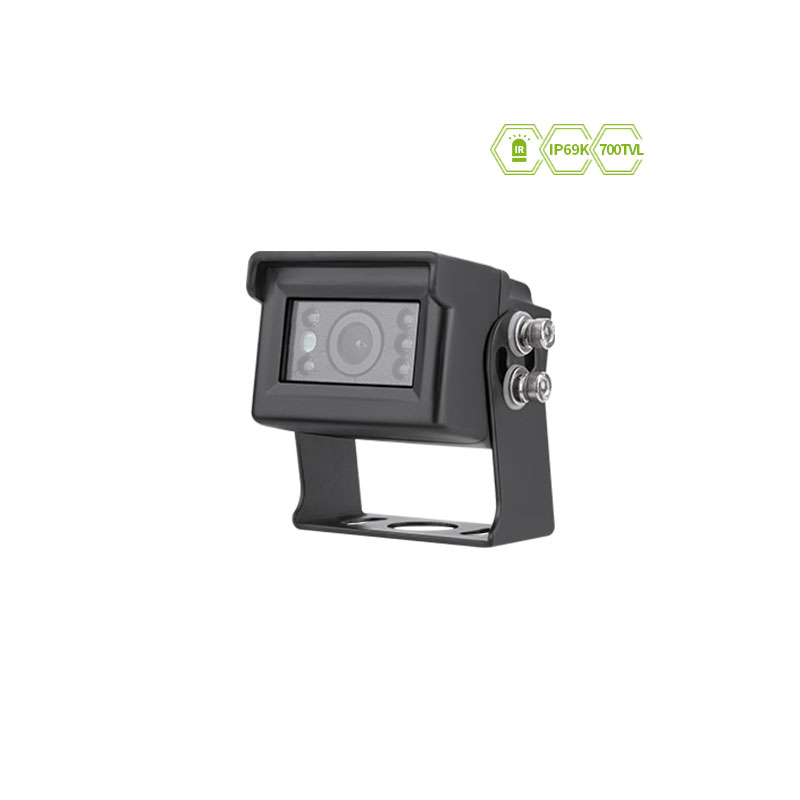

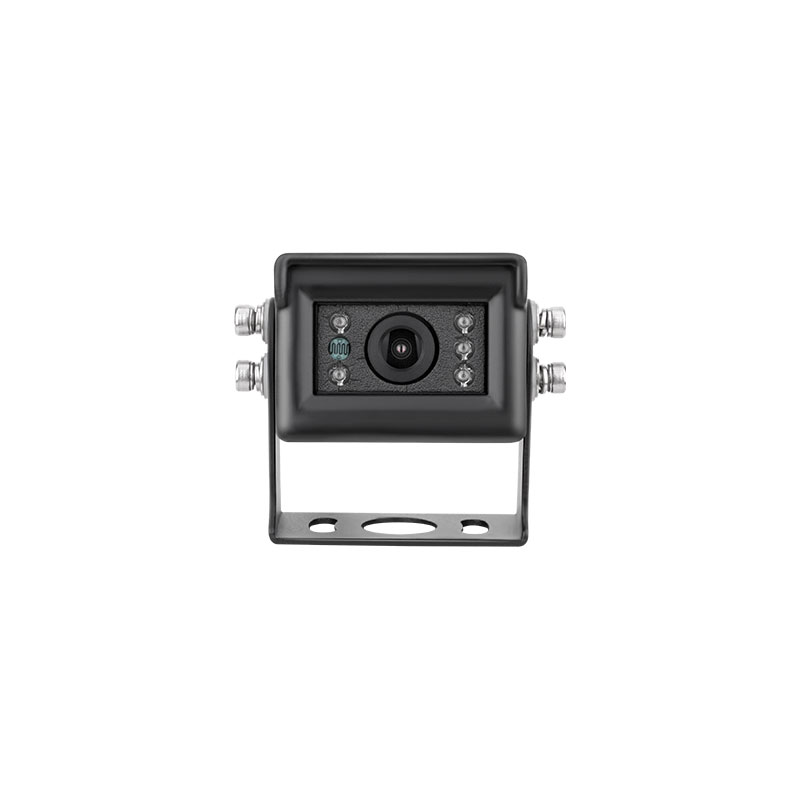

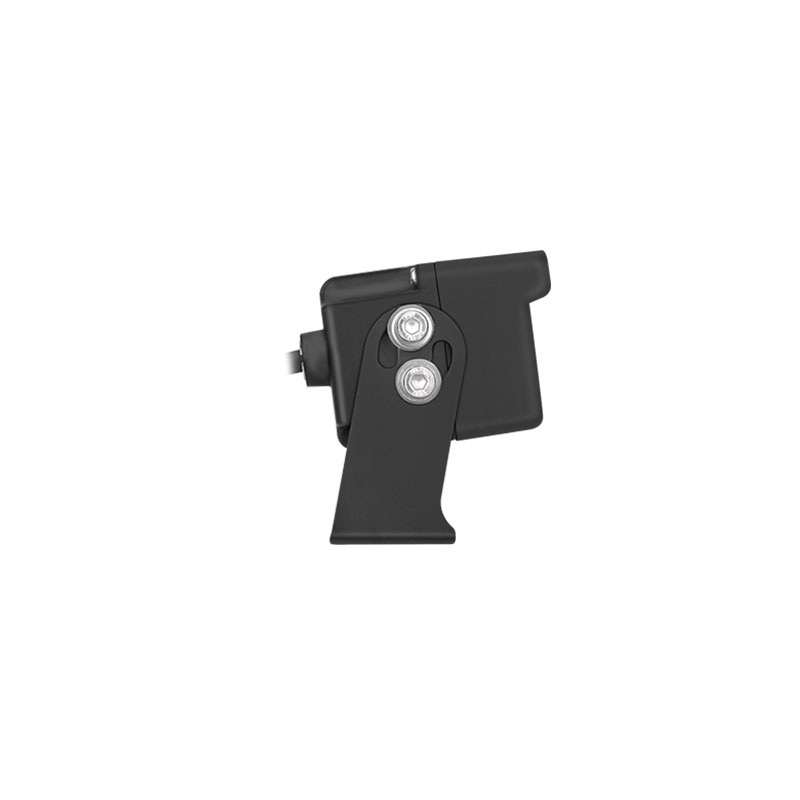

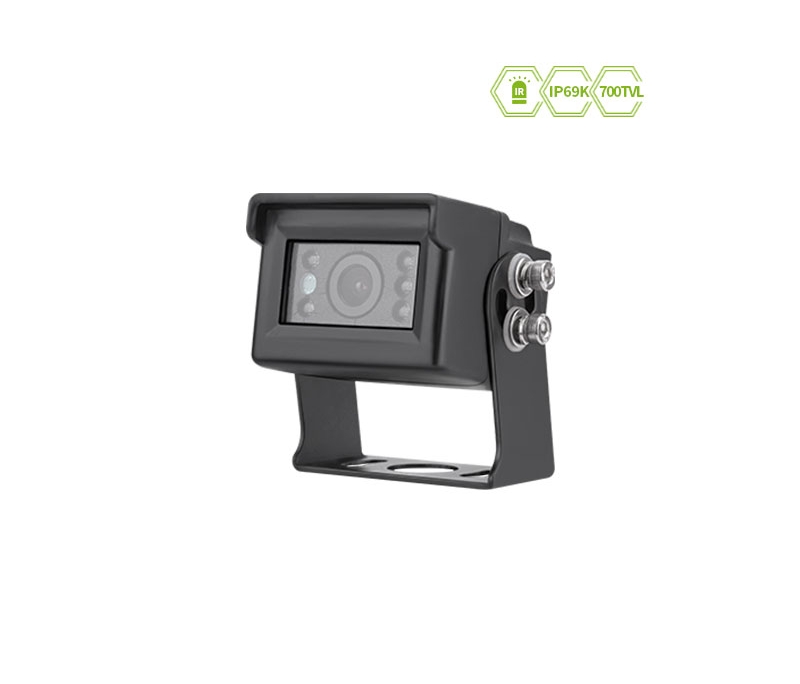

JY-361 IP69K night vision reversing camera with 7 meters infrared distance
Product Features
The JY-361 reversing camera has night vision function, which means can clearly show the real colors and pictures no matter day or night. The infrared distance is 7 meter, which can greatly improve the safety of night driving and provide users with a clear vision. This camera has a highest IP69K waterproof rate, so when rain or car washing, it will not get water and work usual. Also, we will do a long-term high-pressure soaking to ensure the quality before shipping.
- IP69K
- 1.3 Mega pixel sensor
- Support mirror switching
- With night vision function
Technical Specifications
| Image Sensor | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)*488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 5PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 115° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
