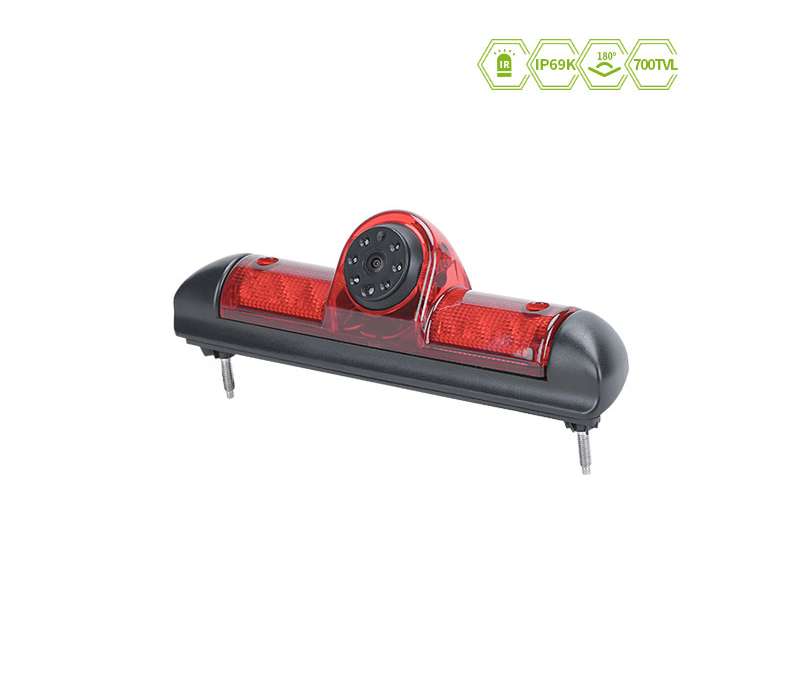

JY-684 brake light camera for 2006-2022 Fiat Ducato, Peugeot Boxer, Citroen Jumper, Citroen Relay
Product Features
For anyone driving a Fiat Ducato, Peugeot Boxer, Citroen Jumper or Relay between 2006 and 2022, the Luview JY-684 brake light camera is ideal! Not only does it provide invaluable visibility into your rear blind area view of the vehicle without any distortion to picture quality regardless of time of day thanks to its high performance CMOS chip – but waterproofing protection against dust and fog plus impressive anti-shock capabilities make this one durable piece of tech.
- IP68
- Support mirror switch
- Supporting ICR switching
- Bracket material: plastic
- High performance 2Megapixel sensor of SONY
- With night vision function, infrared distance is 10 meters .
Technical Specifications
| Image Sensor | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
