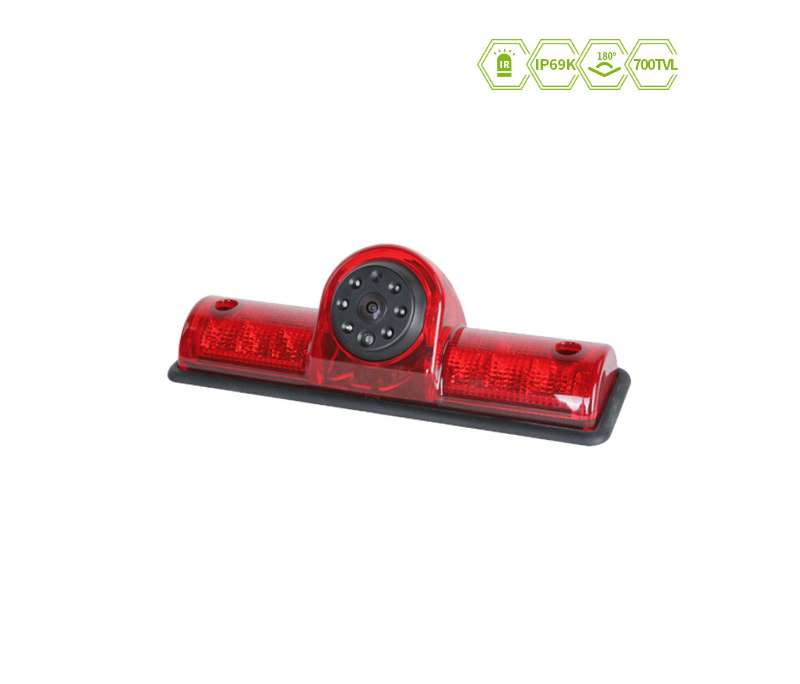

JY-684-1 third brake light camera for Nissan NV2500 NV3500 and other universal cargo vans
Product Features
Increase your driving safety day and night with the Luview JY-684-1 third brake light camera. With night vision module and 6 LED lights, it will help you navigate during low visibility by providing superior nighttime illumination. Ideal for Nissan NV2500, NV3500 and other universal cargo vans, this brake light camera is sure to put your mind at ease when on the road!
- IP68
- Support mirror switch
- bracket material:plastic
- Supporting ICR switching
- High performance 2Megapixel sensor of SONY
- With night vision function, infrared distance is 10m
Technical Specifications
| Image Sensor | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
