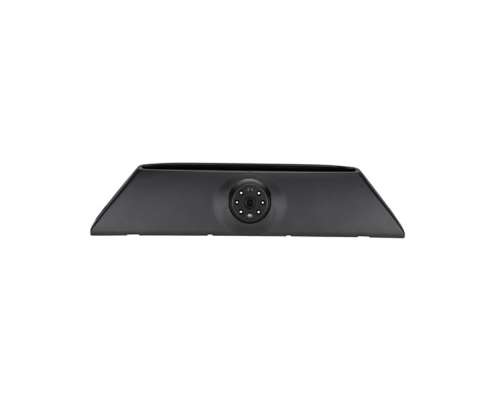

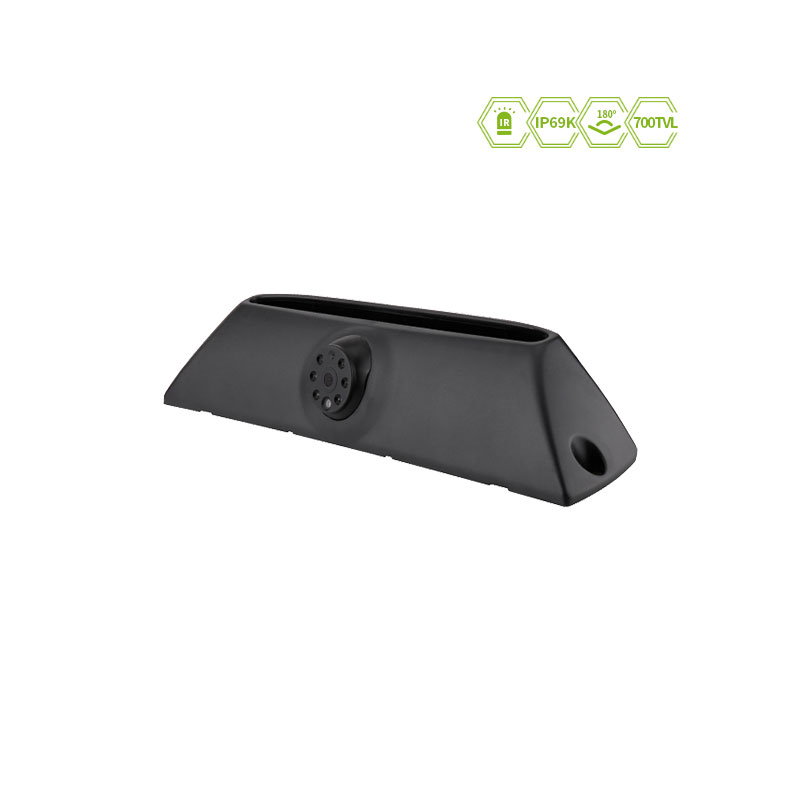

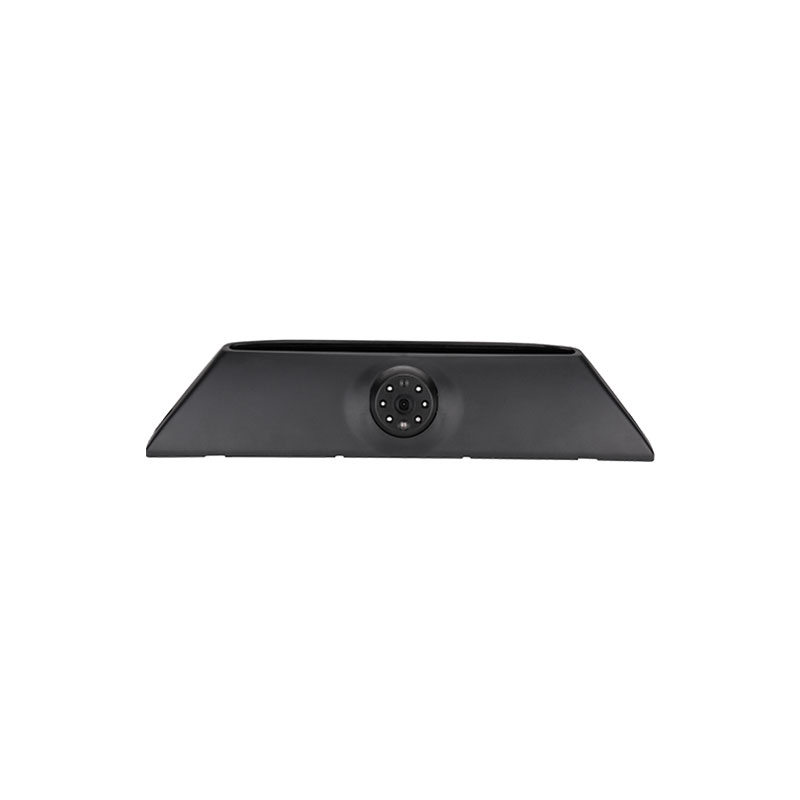

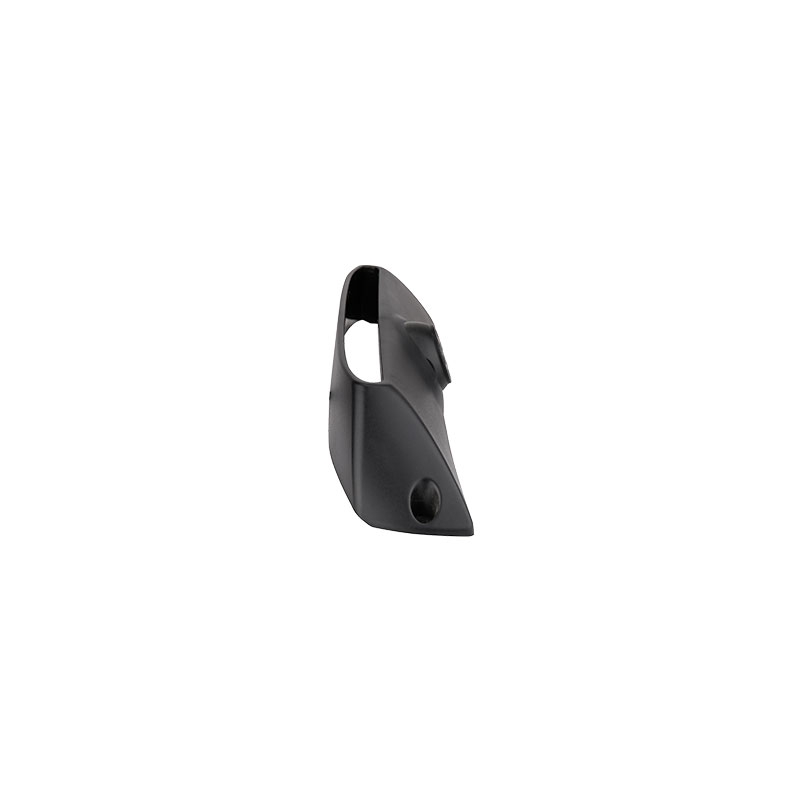

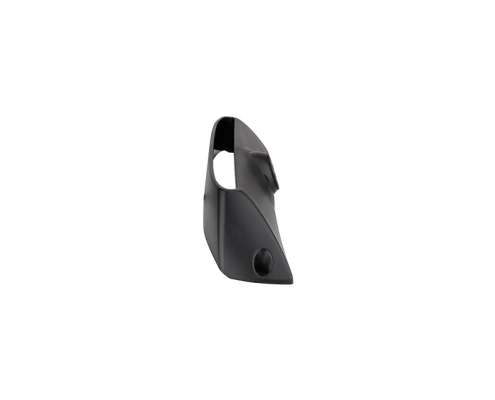

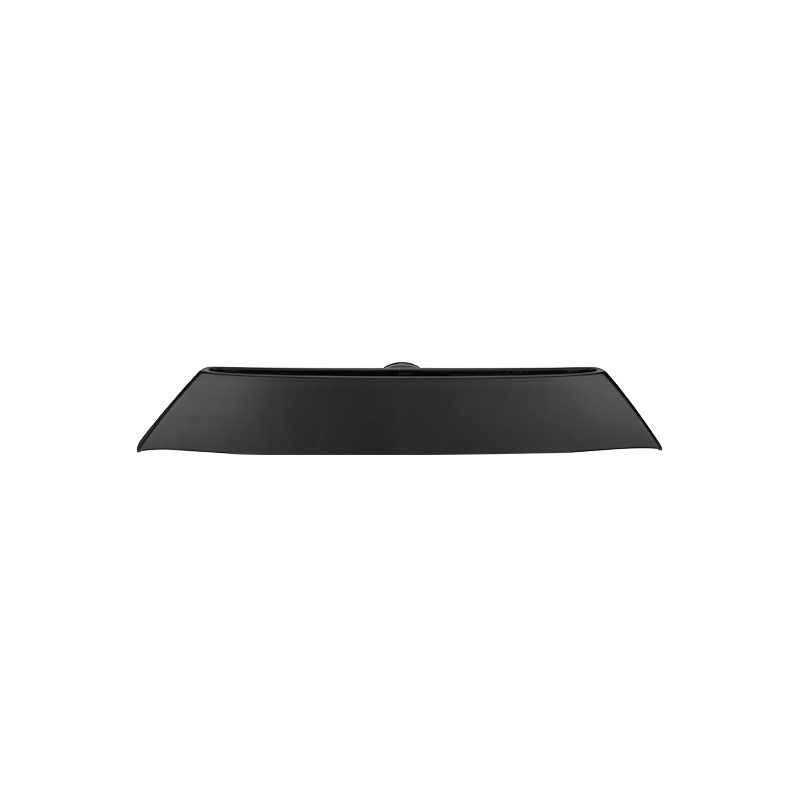

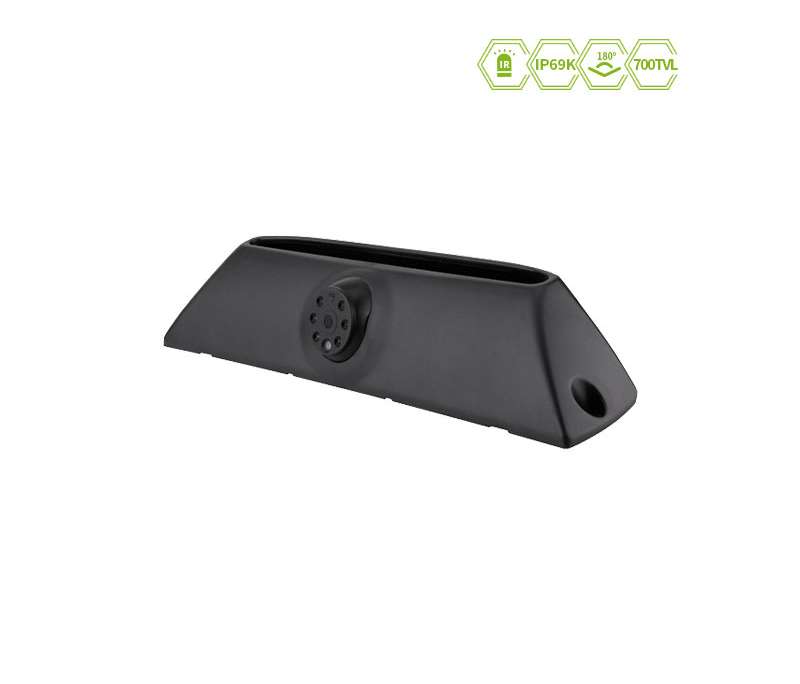

JY-685 third brake light camera for 2011-2014 IVECO Daily van
Product Features
JY-685 is specially designed for Iveco Daily from 2011 to 2014. After installation, it can be perfectly integrated with the vehicle without affecting the original aesthetics. The camera supports mirror switching and ruler control functions, and 1/3 SHARP CCD sensor can provide clear image quality. As a supplier, LUVIEW allows you to choose high-quality products at a lower price.
- Waterproof grade IP68
- Support mirror switch
- Supporting ICR switching
- With night vision function
- High performance 2Megapixel sensor of SONY
Technical Specifications
| Image Device | 1/3 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.6mm |
| Lens Angle | 130° |
| Current Drain | 70±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
