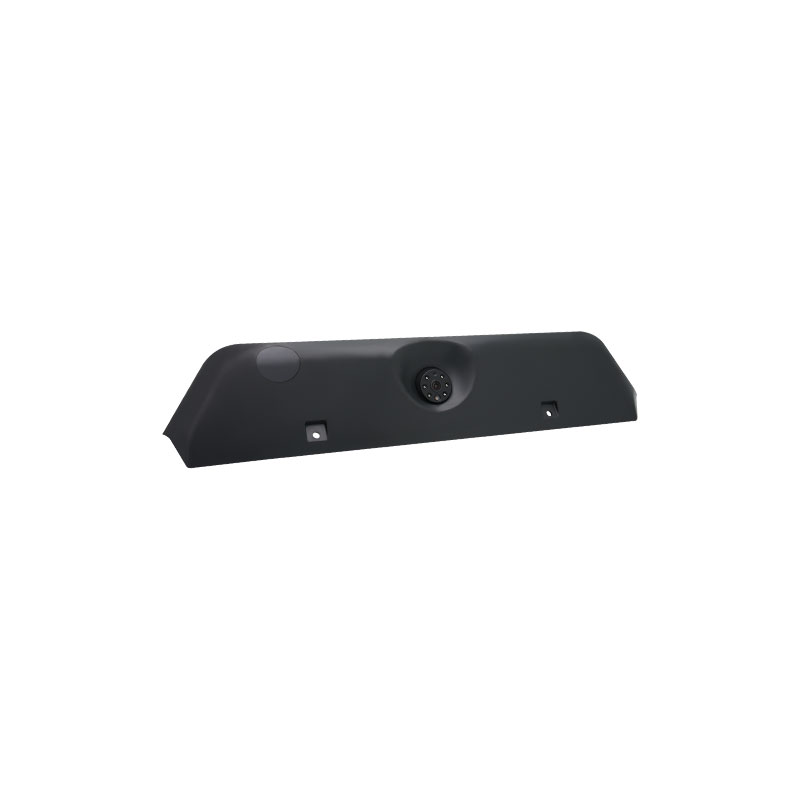

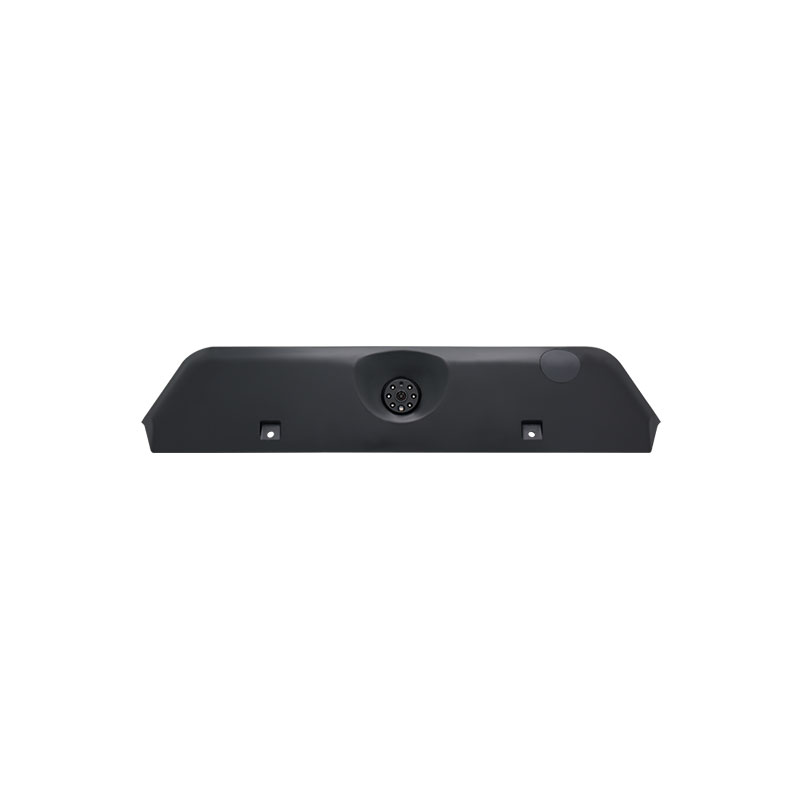

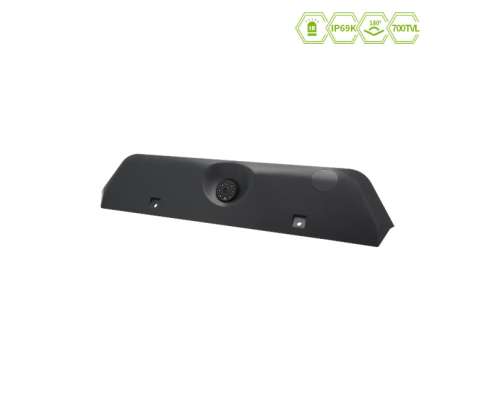

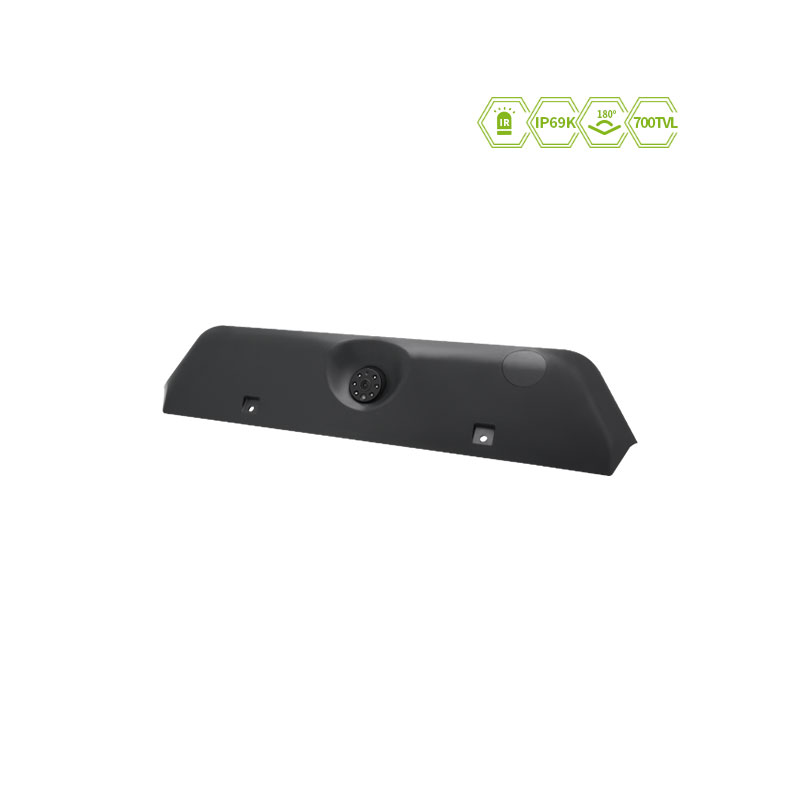

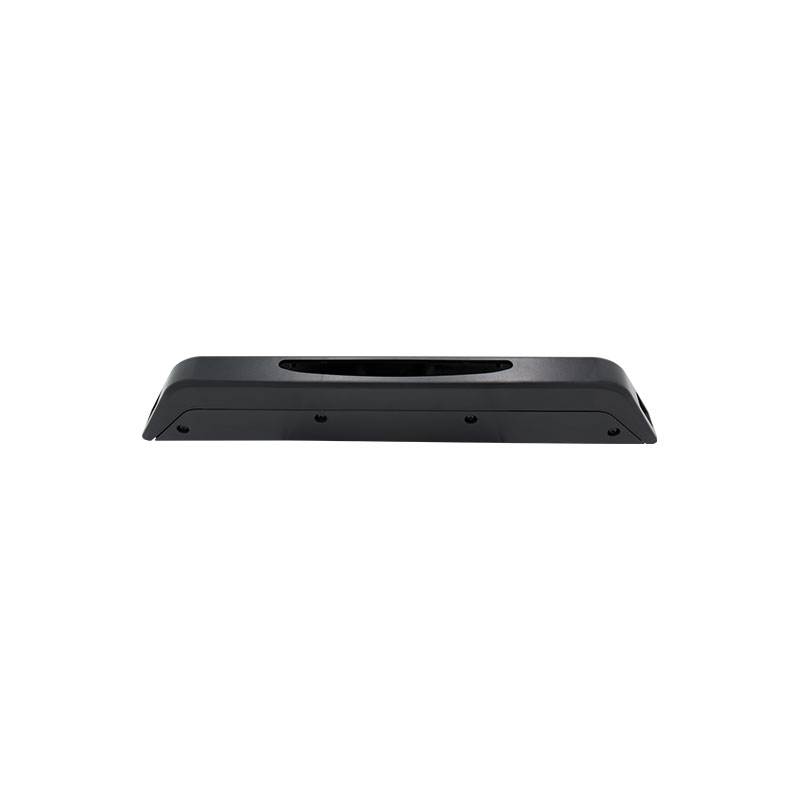

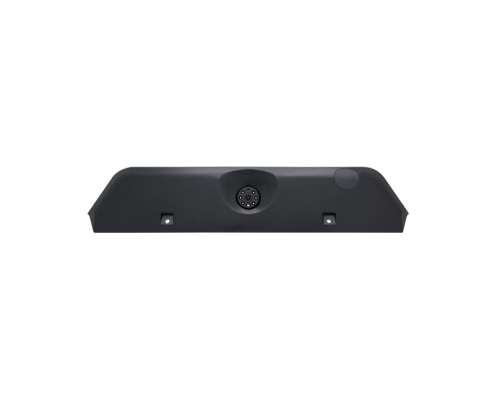

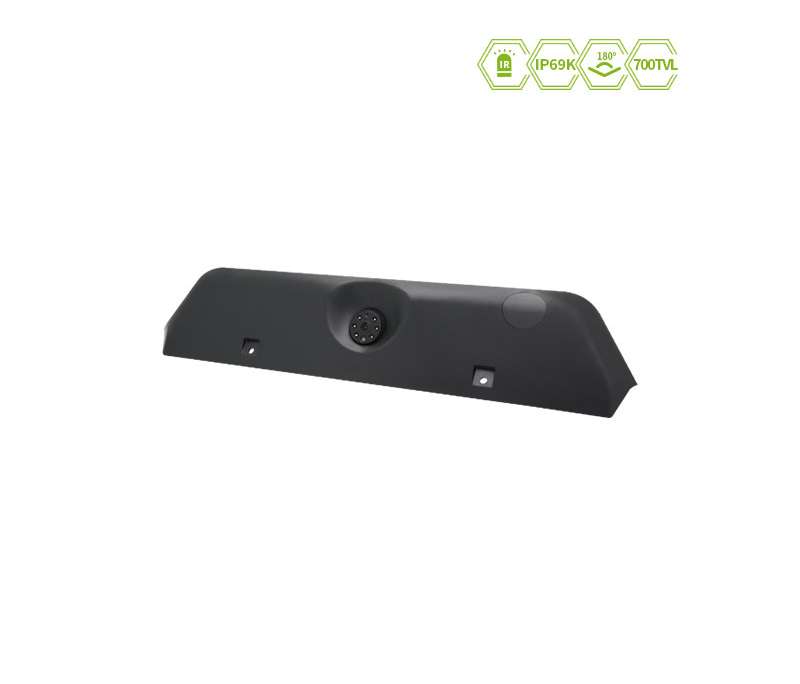

JY-689 third brake light camera for 2015-2021 IVECO Daily Truck

Product Features

Enhance the safety of your Iveco Daily with Luview’s JY-689 brake light camera.  It can be easily installed without changing the original appearance of the car, and realize the parking and reversing assistance system. Its 1280×960 resolution combined with 6 built in infrared LEDs give you an impeccable view no matter how dark it is outside. Upgrade to a safer drive today!

  • IP69K
  • Use 1/3CMOS sensor
  • Support mirror switch
  • Support for 6 modes switching
  • Support analog hd video 700TVL
  • The rear view angle is 180 degrees
  • Supporting fisheye image correction function
  • With night vision function, infrared distance is 10m

Technical Specifications

Image Device 1/3 CMOS PC2099
TV System NTSC/PAL
Effective Pixels 968(H)×488(V)
Sensing Area 4.880mmⅹ 3.670mm
Sync. System Internal
Resolution 700TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Optional
IR LED Qty 6PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.6mm
Lens Angle 130°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
