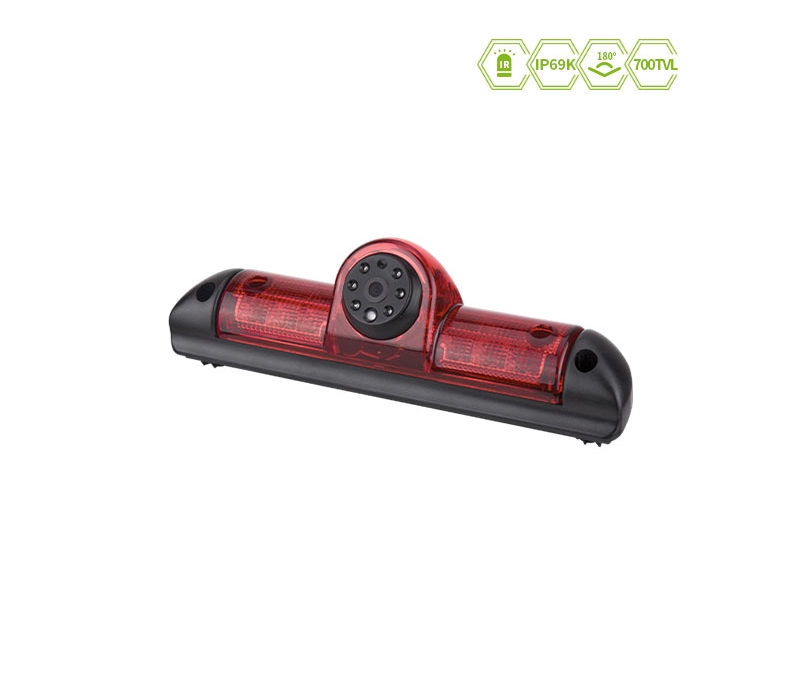

JY-684-2 third brake light camera for 2006-2022 Peugeot Boxer, Fiat Ducato, Citroen Jumper, Citroen Relay & 2021-2022 Vauxhall Movano, Opel Movano

Product Features

Enhance your safety and visibility with the Luview JY-684-2 third brake light camera. Compatible with multiple models of 2006 – 2022 Peugeot Boxer, Fiat Ducato, Citroen Jumper & Relay as well as 2021 – 2022 Vauxhall Movano and Opel Movano vehicles it provides an optimal view into otherwise blind areas. Its clear picture quality is due to its CMOS chip while its waterproof dustproof construction makes it anti-fog and shock resistant too! Never worry about night vision again – the perfect solution for on road security!

  • IP68
  • Support mirror switch
  • Supporting ICR switching
  • Bracket material: plastic
  • High performance 2Megapixel sensor of SONY
  • With night vision function, infrared distance is 10 meters .

Technical Specifications

Image Sensor 1/3 CMOS PC1058K
Effective Pixels 976(H)×592(V)
Sensing Area 4.880mmⅹ 3.670mm
Sync. System Internal
Resolution 700TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Optional
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.6mm
Lens Angle 130°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
