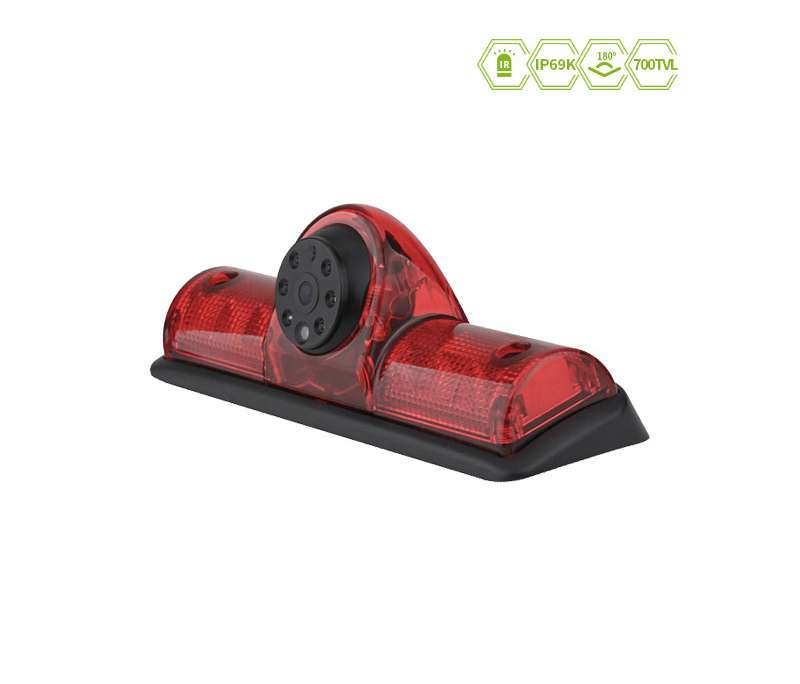

JY-684-4 third brake light camera for RAM PROMASTER City 2009-2022

Product Features

For RAM PROMASTER City 2009-2022 owners looking to prevent backup accidents and get a clean, tidy view of their vehicle’s rear end, the Luview JY-684-4 third brake light camera is an excellent choice. Boasting a 150 degree angle of view with superior night vision capabilities and waterproof design, you’ll always have peace of mind knowing your added safety measure will remain dependable – even in rain or low visibility!

  • IP68
  • Support mirror switch
  • bracket material:plastic
  • Supporting ICR switching
  • High performance 2Megapixel sensor of SONY
  • With night vision function, infrared distance is 10m

Technical Specifications

Image Sensor 1/3 CMOS PC1058K
TV System NTSC/PAL
Effective Pixels 976(H)×592(V)
Sensing Area 4.880mmⅹ 3.670mm
Sync. System Internal
Resolution 700TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Optional
IR LED Qty 6PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.6mm
Lens Angle 130°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
