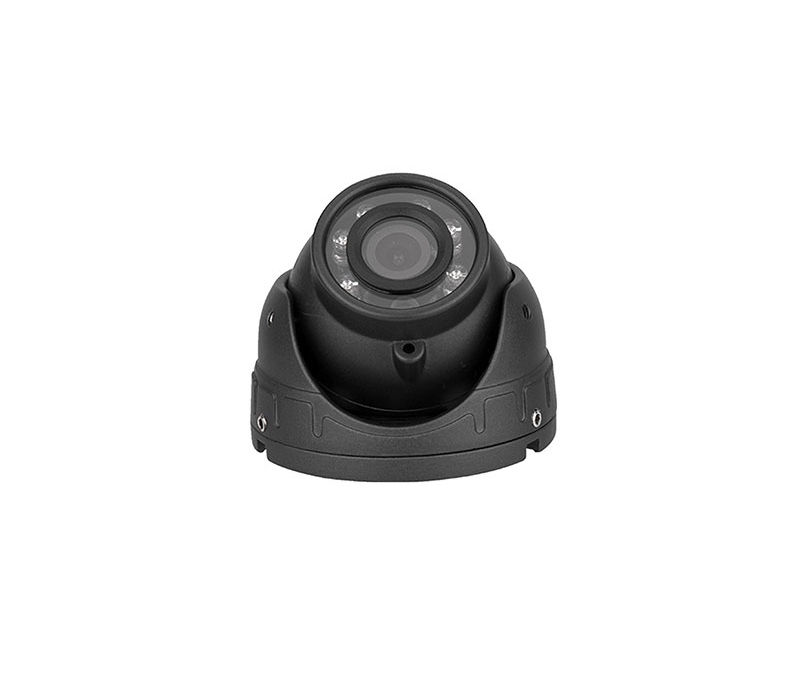

JY-D16 700 TVL HD inside cabin camera for bus, police wagon & other indoor application

Product Features

The dome camera is small in size, beautiful in appearance, excellent in sealing performance and easy to install. The opening design of the camera shell allows the heat generated inside the shell to quickly escape out of the shell through the orifice of the shell during use, and the electronic components will not be damaged due to high temperature. The multi-layer high-transmittance glass lens of the camera can effectively increase the light transmission, and the filter lens can make the picture clearer, and can also provide a delicate video picture at night.

  • Support mirror switchin
  • support analog hd video 700TVL
  • Support ruler control functions
  • With night vision function

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective Pixels968(H)×488(V)
Sensing Area6.2um*7.4um
Sync. SystemInternal
Resolution700TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneOptional
IR LED Qty6PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.3mm
Lens Angle150°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
