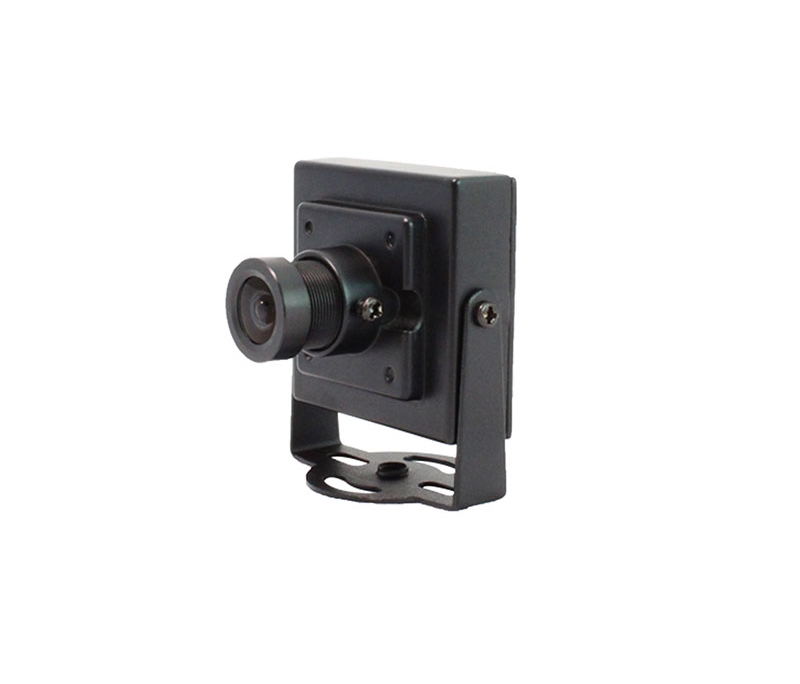

JY-362 economic inside cabin camera for vehicle interior monitoring

Product Features

The camera can be flexibly applied to the interior of various vehicles to provide a basis for dealing with problems such as passenger disputes, lost property finding, anti-robbing and anti-theft; it provides monitoring of the environment inside and outside the compartment, and provides safety guarantee for vehicle driving. This camera is available in black, white, and silver colors, and has the advantages of high sensitivity, anti-glare, small distortion, small size, long life, and vibration resistance.

  • Support mirror switch
  • Support ICR switching
  • Superficial colors are optional

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV SystemNTSC/PAL
Effective Pixels968(H)×488(V)
Sensing Area4.880mmⅹ 3.670mm
Sync. SystemInternal
Resolution700TVL
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneNO
IR LED QtyNO
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.8mm
Lens Angle115°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
