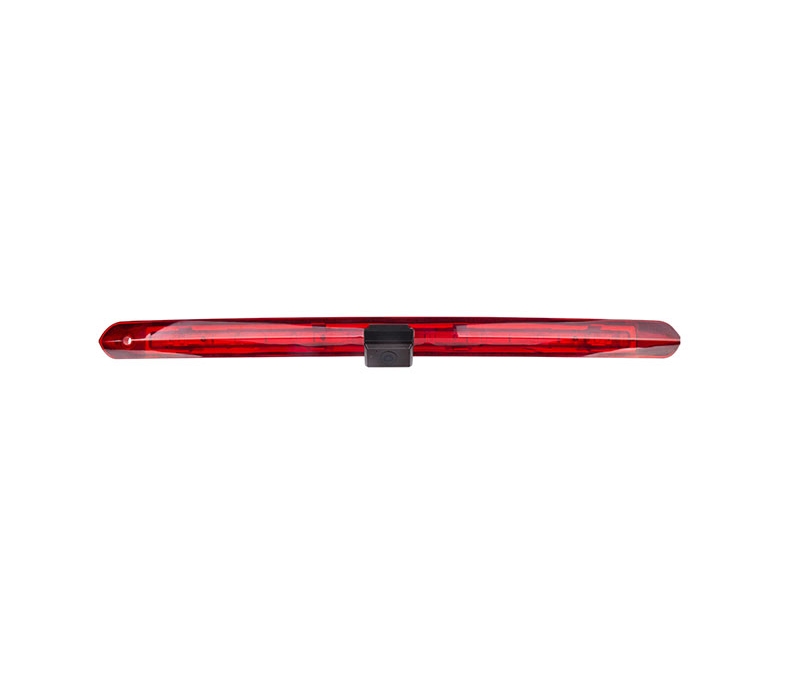

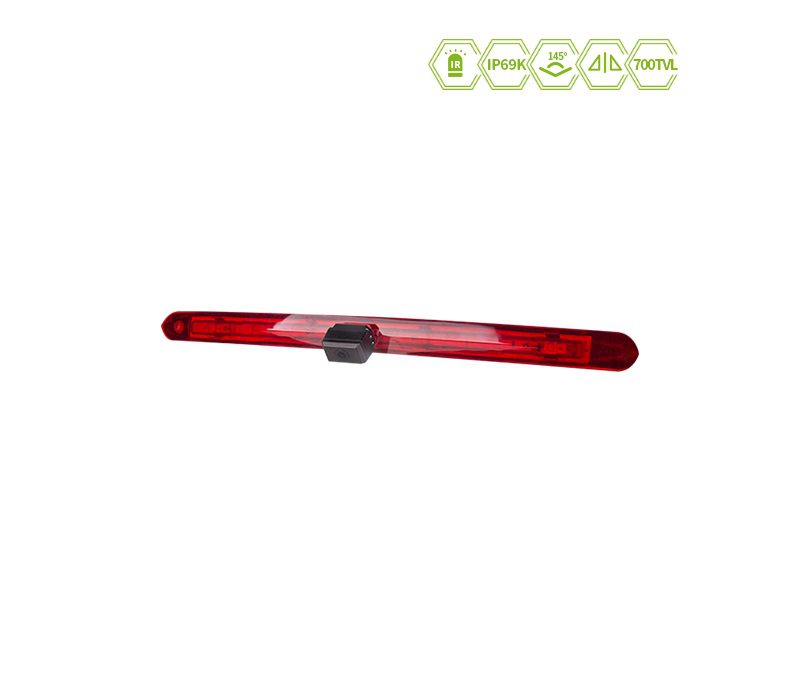

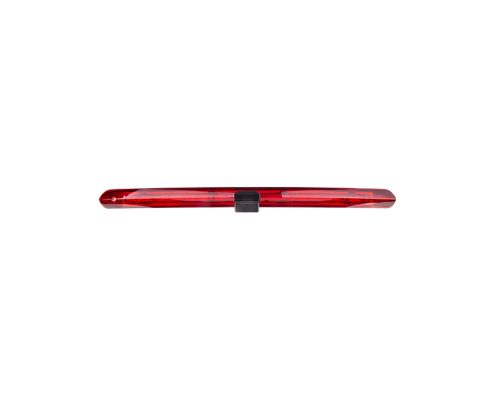

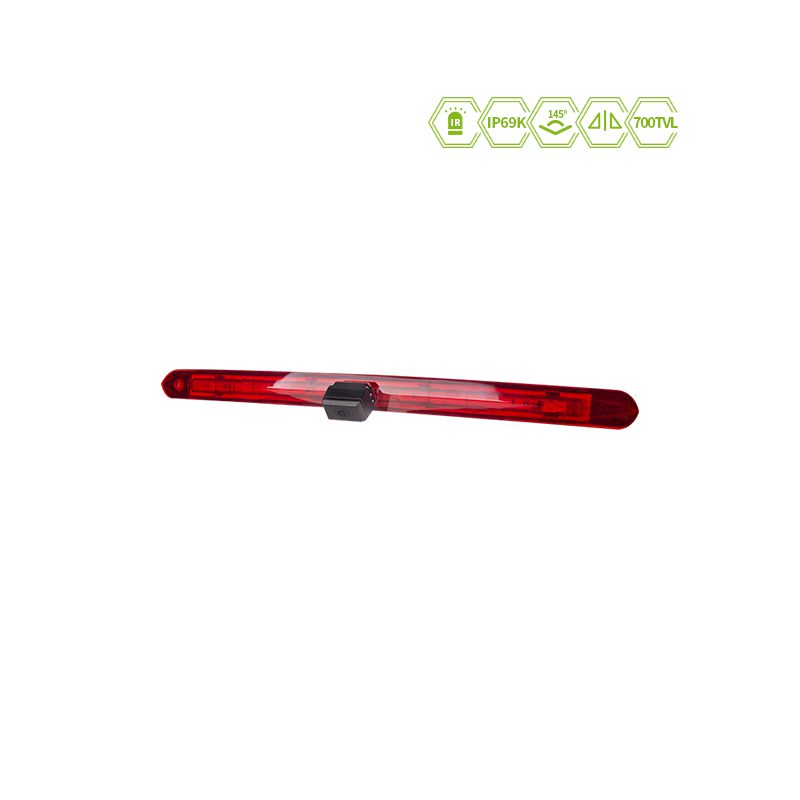

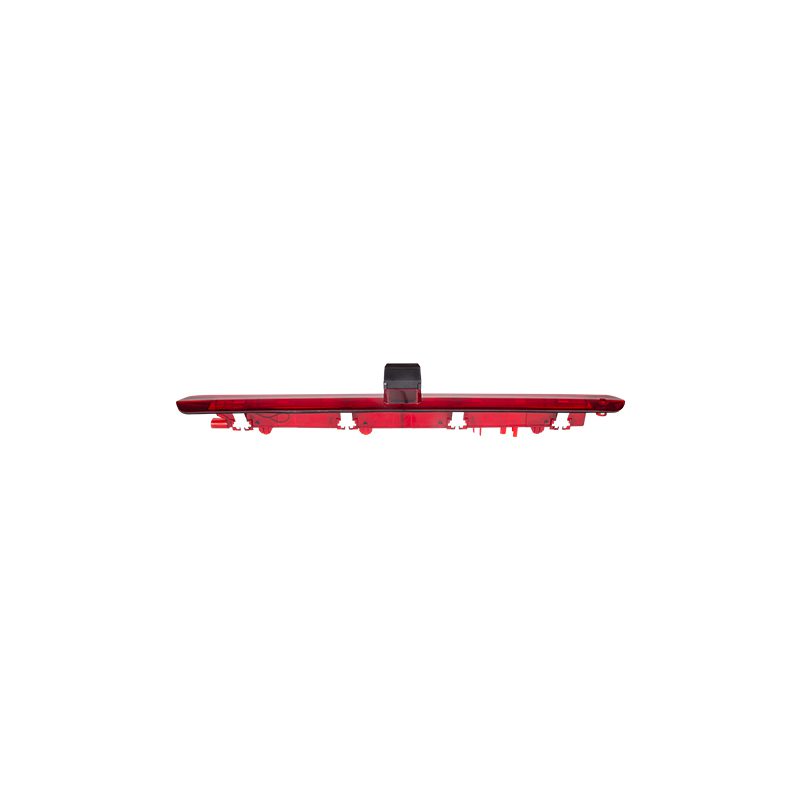

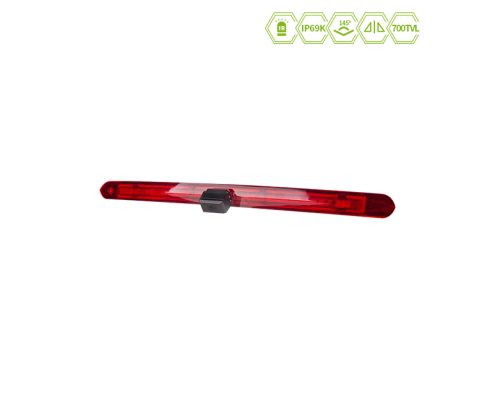

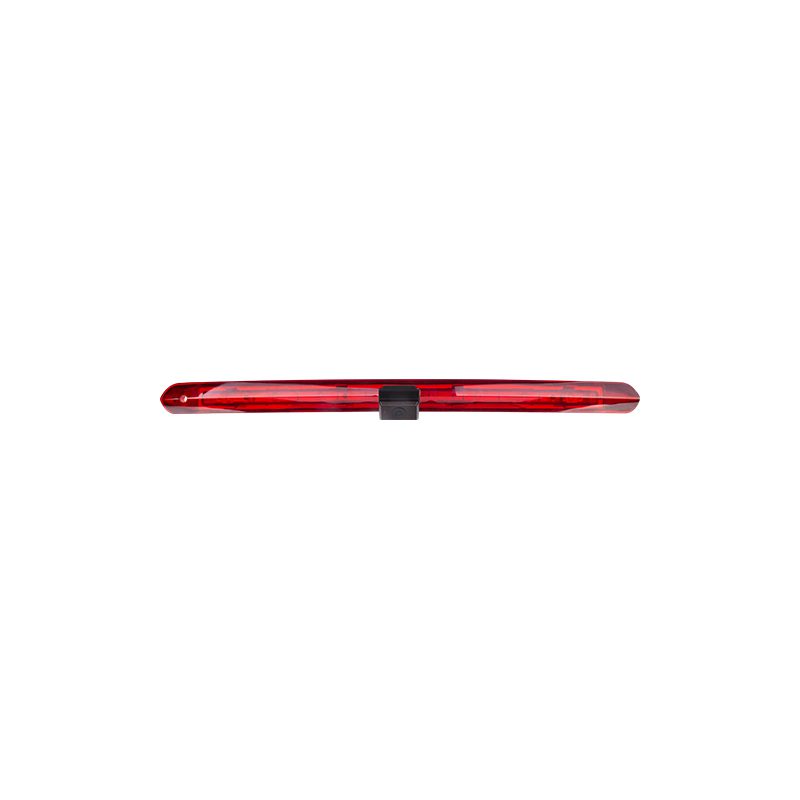

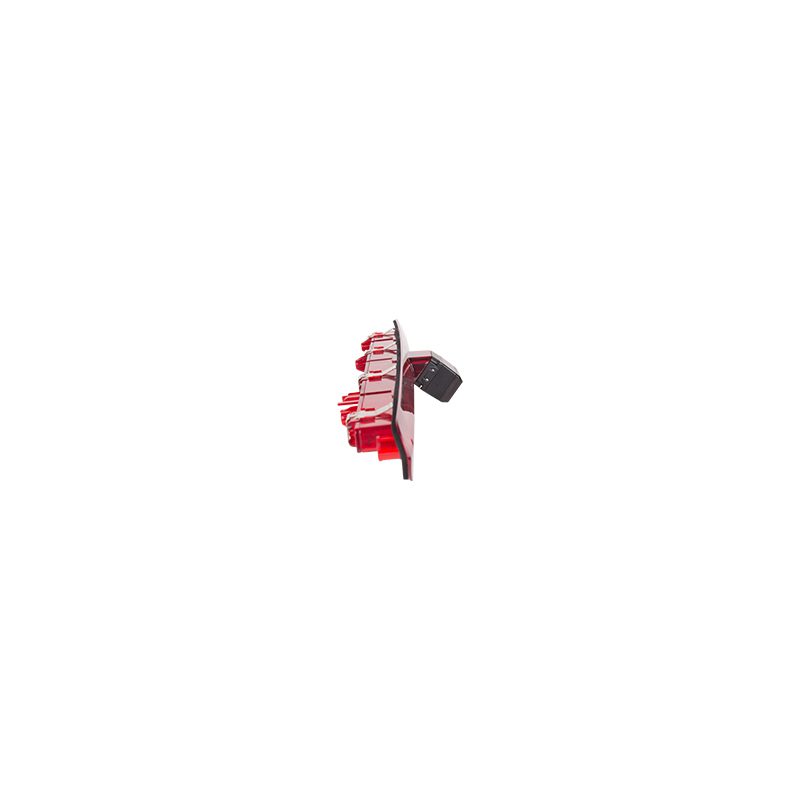

JY-874 3rd brake light camera for 2016-2023 Mercedes Vito & Metris
Product Features
Upgrade your 2016-2023 Mercedes Vito & Metris with the Luview JY-874 3rd brake light camera! All accessories, including extension cords and adapter cables, are included in the set to ensure a seamless installation. Furthermore, you can benefit from features such as night vision support and mirror/ruler switching – all guaranteed waterproof and shockproof for optimal performance.
- support analog hd video 700TVL
- Waterproof grade IP69K
- Support mirror switching and ruler control functions
Technical Specifications
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)×592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 2PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
