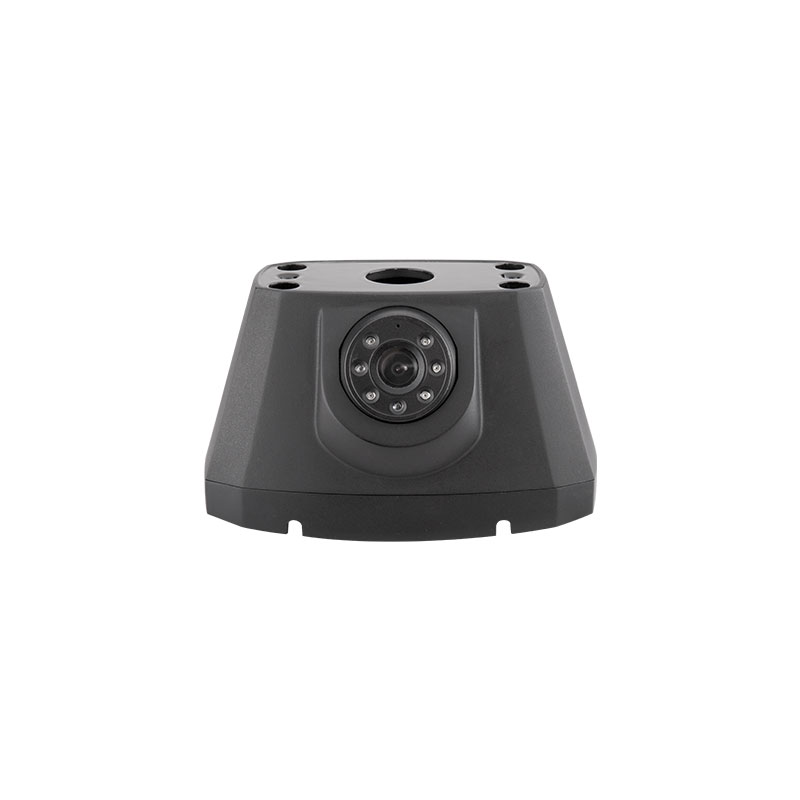

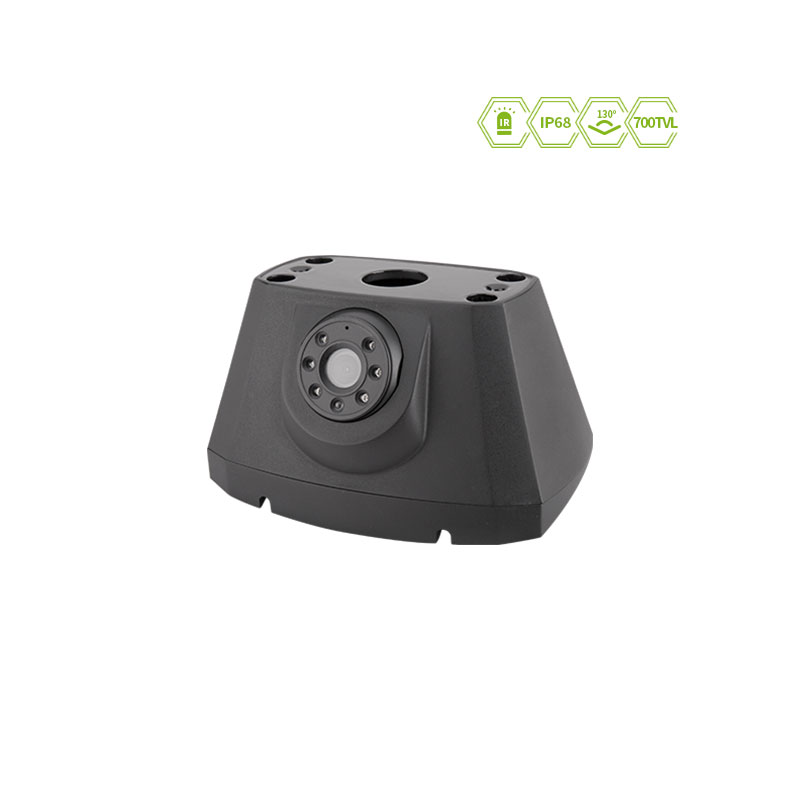

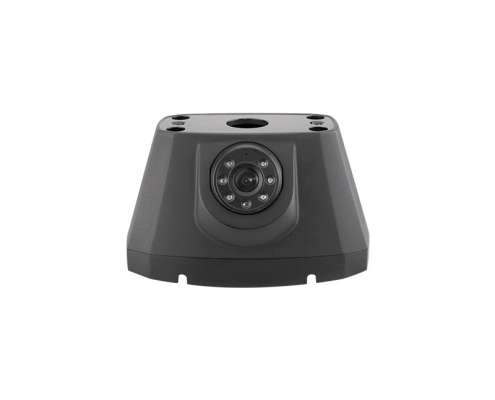

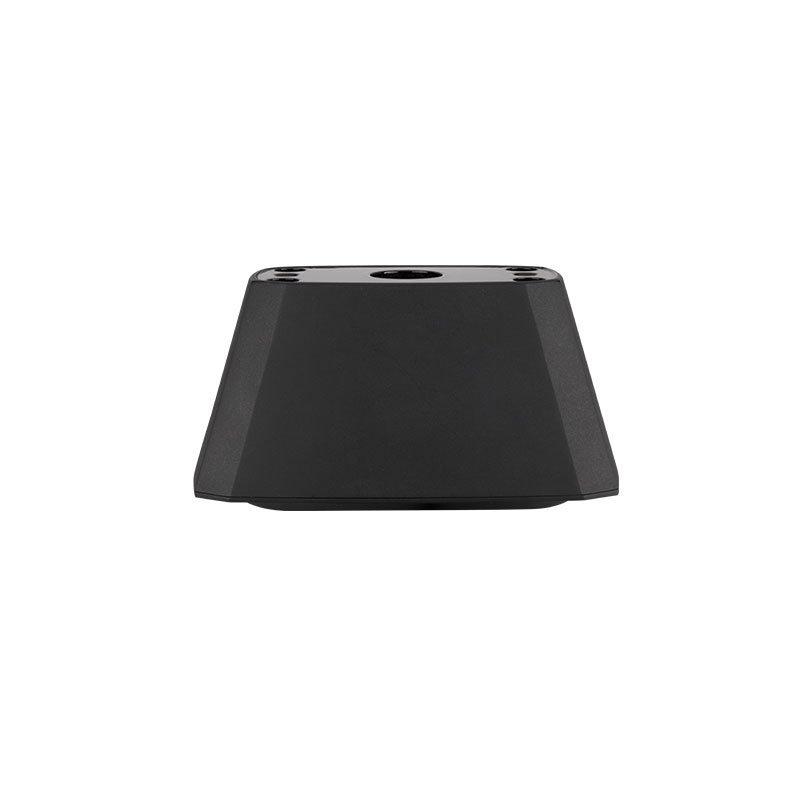

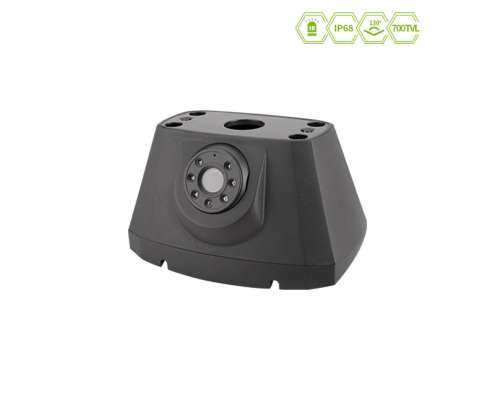

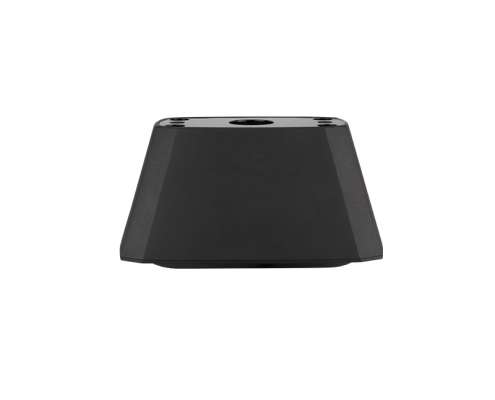

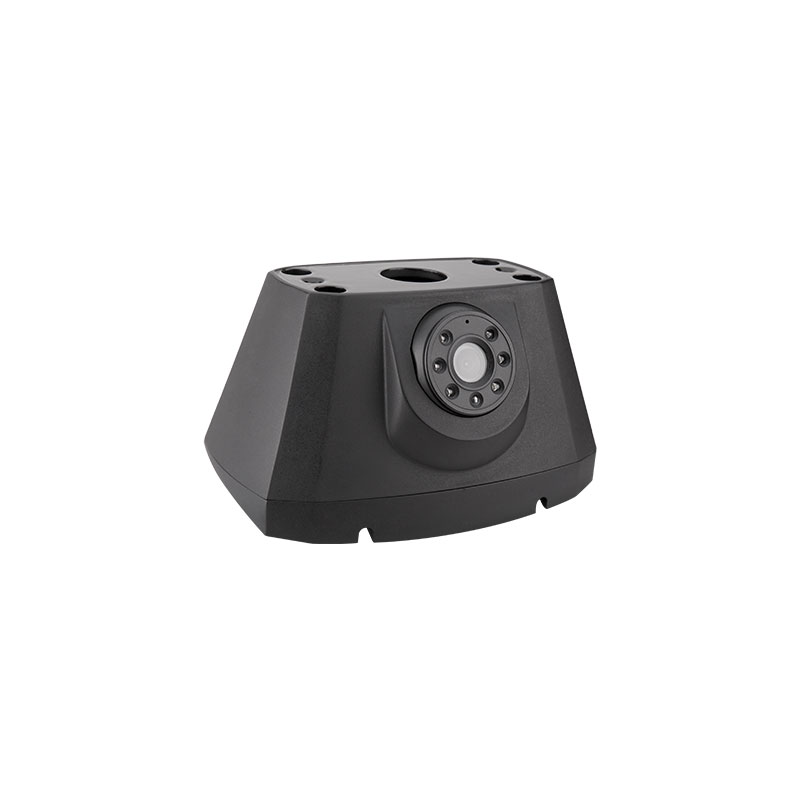

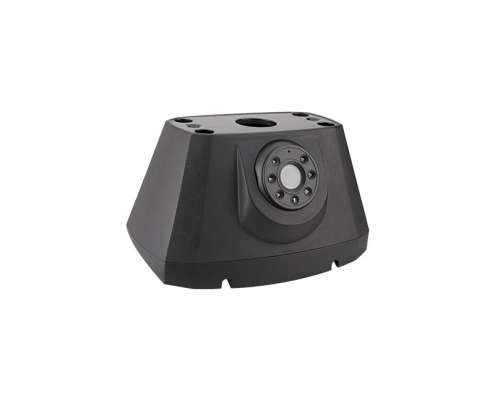

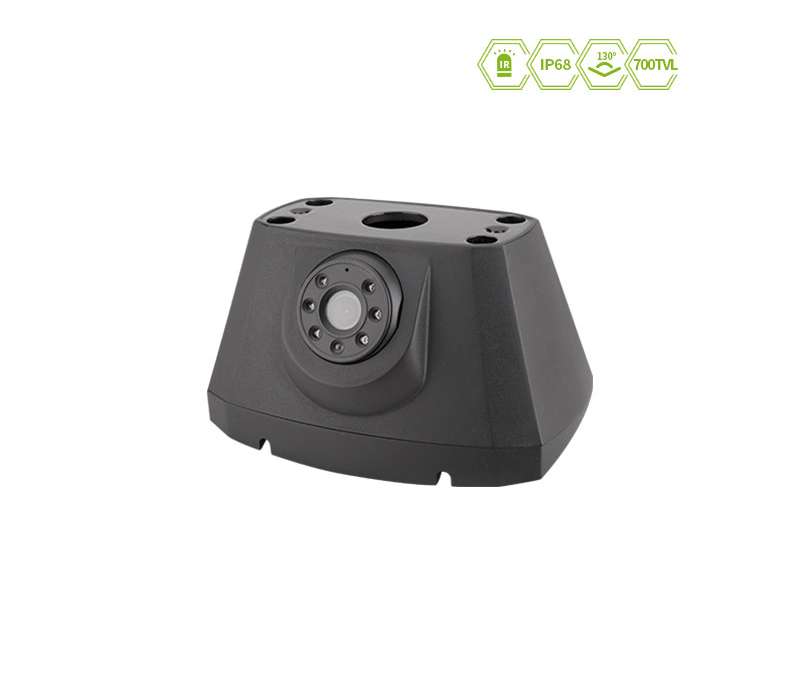

JY-692 third brake light camera for 2008-2023 RAM PROMASTER

Product Features

The Luview JY-692 brake light camera offers an unprecedented level of clarity thanks to its high quality CMOS image sensor, perfect for the 2008-2023 RAM PROMASTER. With a built in audio feature and 6 infrared LED lamp beads which illuminate even at night time, drivers can drive with peace of mind knowing their safety is increased by this revolutionary device. Plus, that piece of mind comes backed up by CE, FCC and EMC tests as well as a 1 year warranty from Luview – now you don’t have to worry twice!

  • Use 1/3CMOS sensor
  • Waterproof grade IP68
  • with mirror switch
  • with ruler control function
  • With night vision function

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)×488(V)
Sensing Area 4.880mmⅹ 3.670mm
Sync. System Internal
Resolution 700TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Optional
IR LED Qty 6PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.3mm
Lens Angle 130°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
