JY-693 brake light camera for 2009-2022 Nissan NV200 & Evalia, 2011-2022 Mitsubishi Delica D3, 2014-2018 Chevrolet City Express, 2013-2015 Ashok Leylan Stile
Product Features

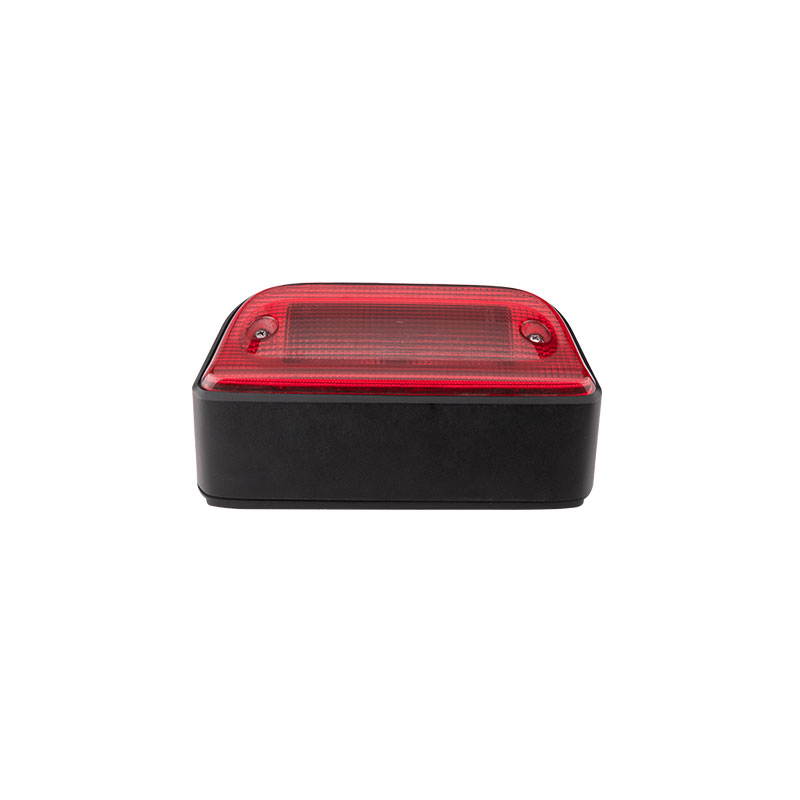

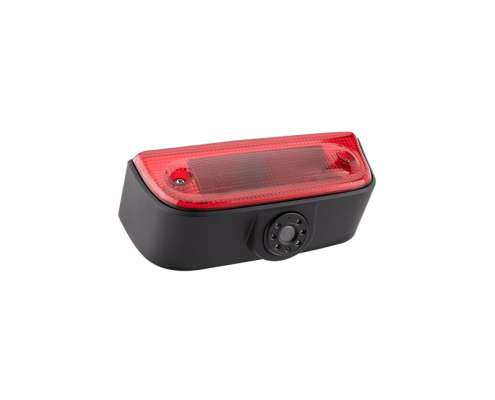

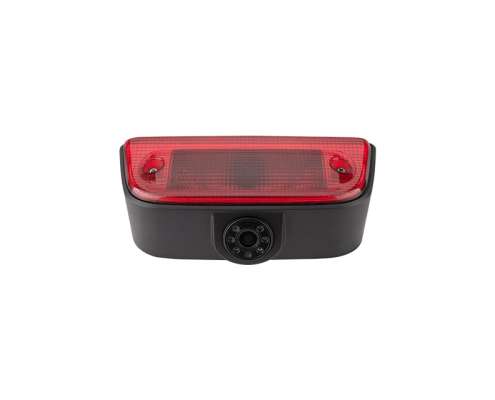

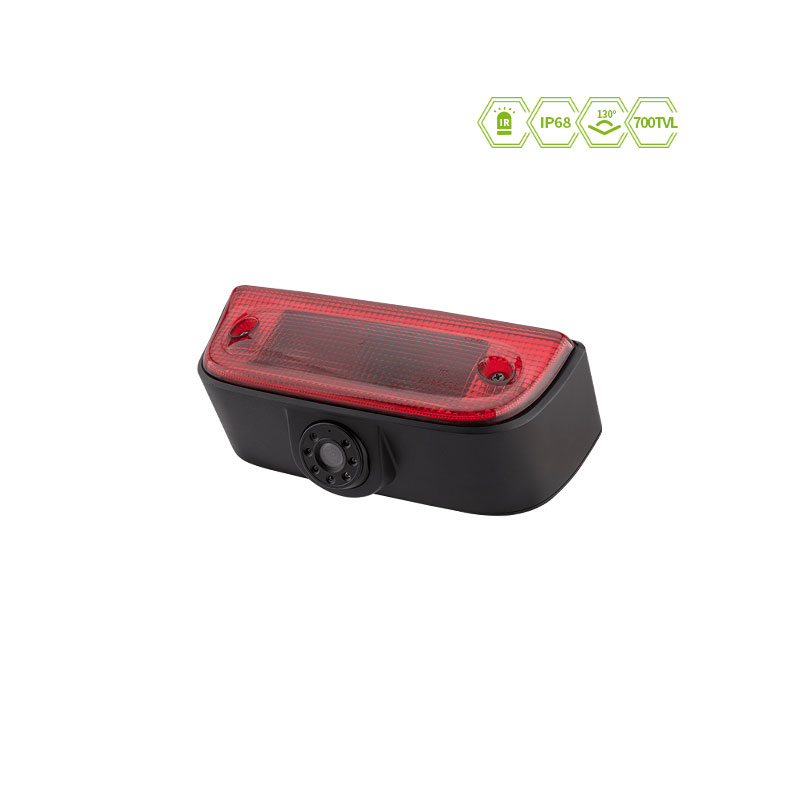

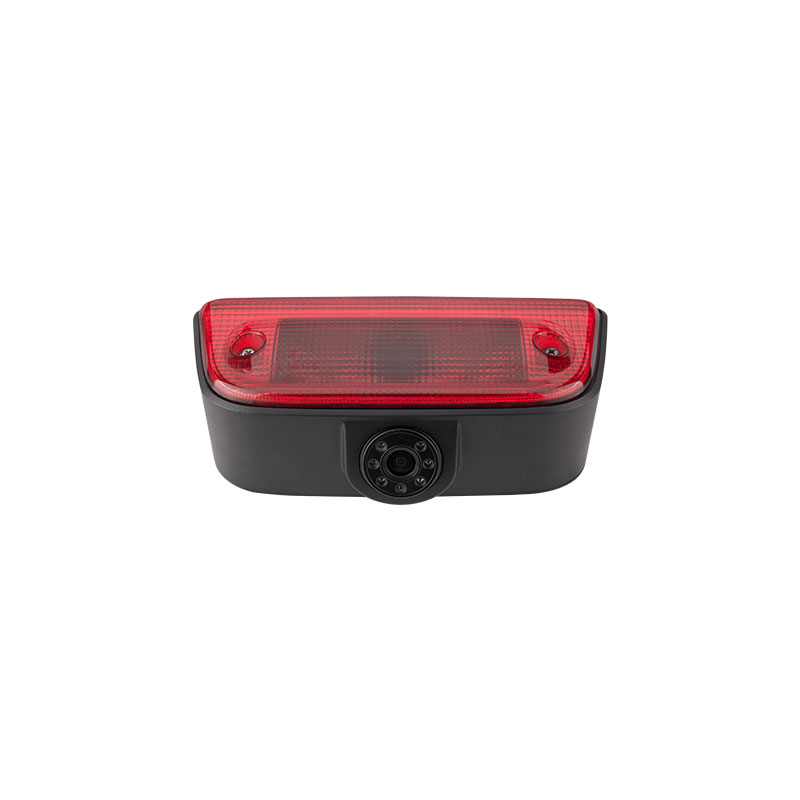

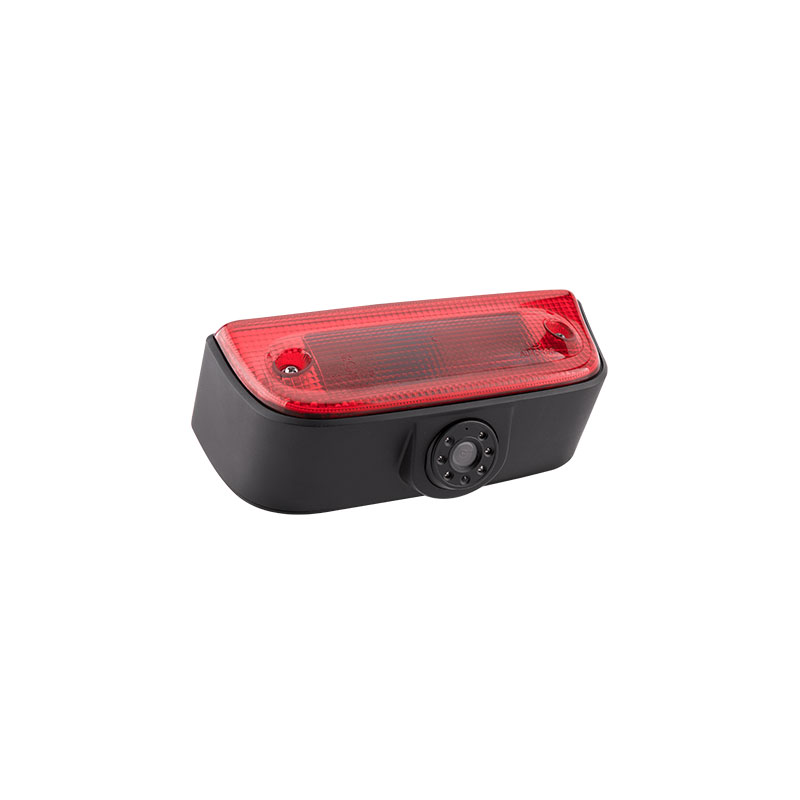

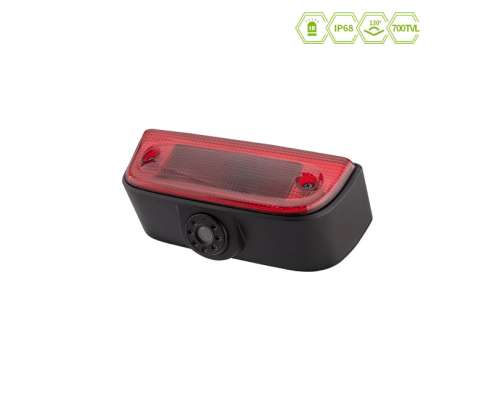

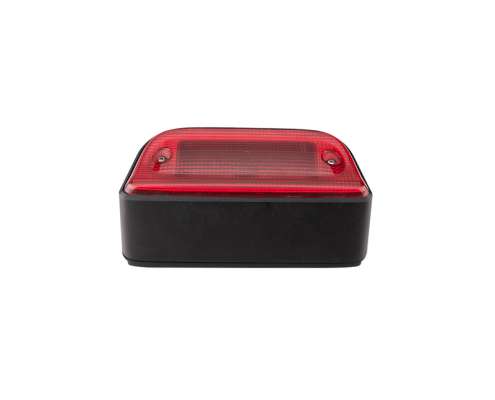

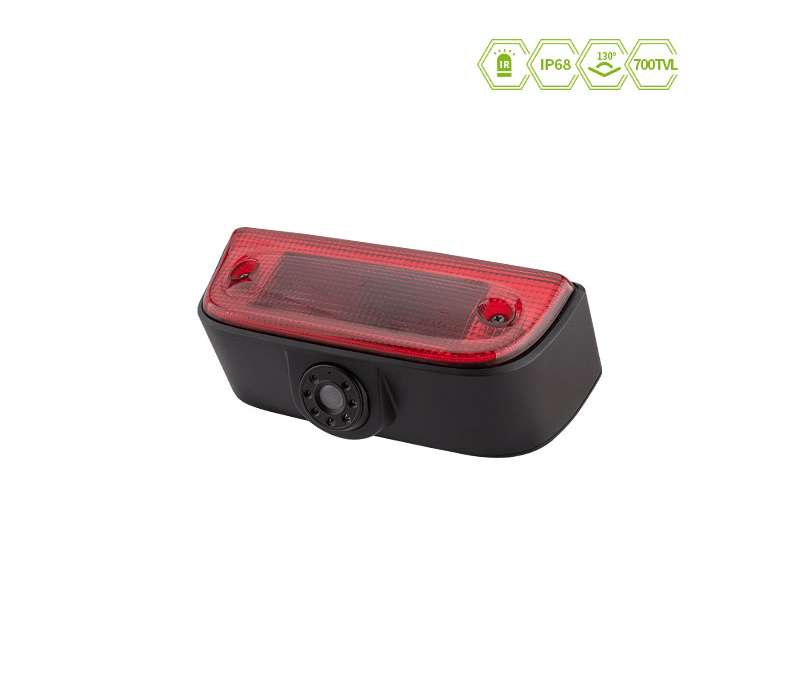

The Luview JY-693 third brake light camera is suitable for 2009-2022 Nissan NV200 & Evalia, 2011-2022 Mitsubishi Delica D3, 2014-2018 Chevrolet City Express, 2013-2015 Ashok Leylan Stile, it can directly replace the original brake light, and the appearance is exquisite. The camera shell is made of ABS, which has outstanding features such as high strength and good toughness. These Cameras have undergo very strict testing before shipment.
- Use 1/3CMOS sensor
- Waterproof grade IP68
- with mirror switch
- with ruler control function
- With night vision function
Technical Specifications
| Image Device | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.3mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
